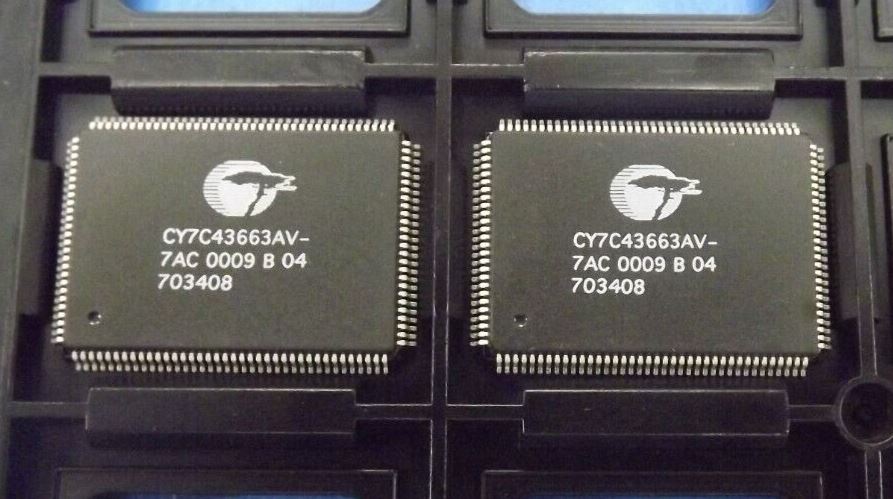

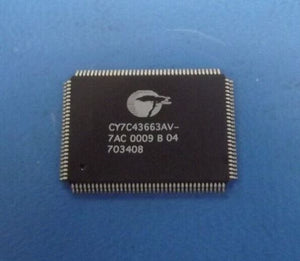

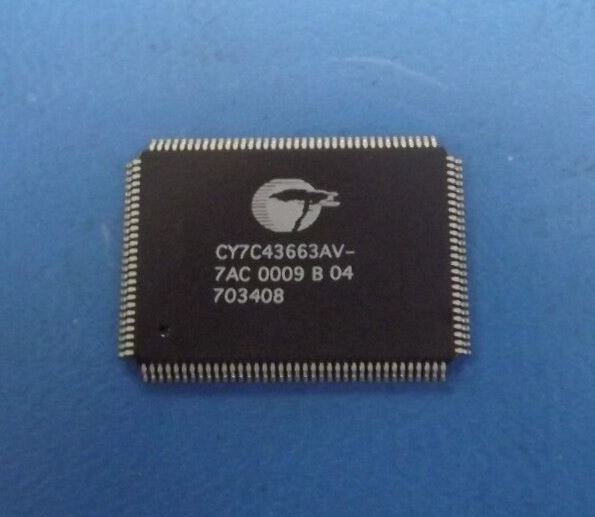

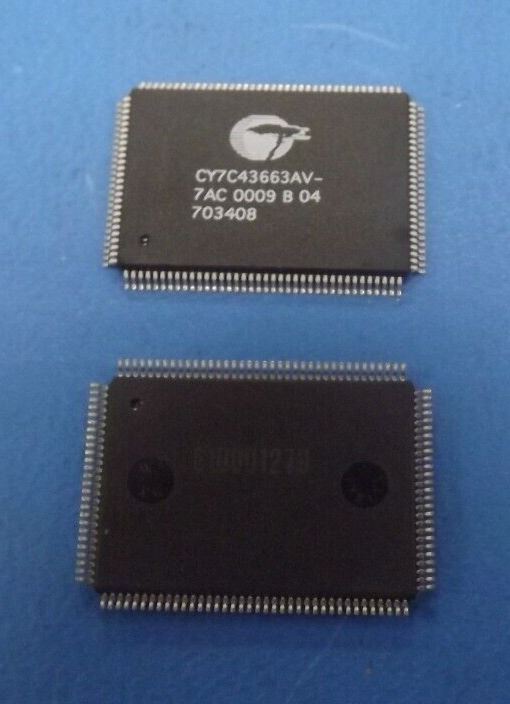

(1PC) CY7C43663AV-7AC Mem Sync Dual Depth/Width Uni-Dir 4K x 36 128-Pin TQFP
Tax included.
THIS LISTING IS FOR (1PC) OF CY7C43663AV-7AC BY CYPRESS
Mfr Package Description 14 X 20 MM, 1.40 MM HEIGHT, PLASTIC, TQFP-128
Status Discontinued
Sub Category FIFOs
Access Time-Max 6.0 ns
Clock Frequency-Max (fCLK) 133.0 MHz
Cycle Time 7.5 ns
JESD-30 Code R-PQFP-G128
JESD-609 Code e0
Memory Density 147456.0 bit
Memory IC Type OTHER FIFO
Memory Width 36
Number of Functions 1
Number of Terminals 128
Number of Words 4096.0 words
Number of Words Code 4K
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 4KX36
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP128,.63X.87,20
Package Shape RECTANGULAR
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Standby Current-Max 0.012 Amp
Supply Current-Max 0.06 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.135 V
Supply Voltage-Max (Vsup) 3.465 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Length 20.0 mm
Width 14.0 mm
