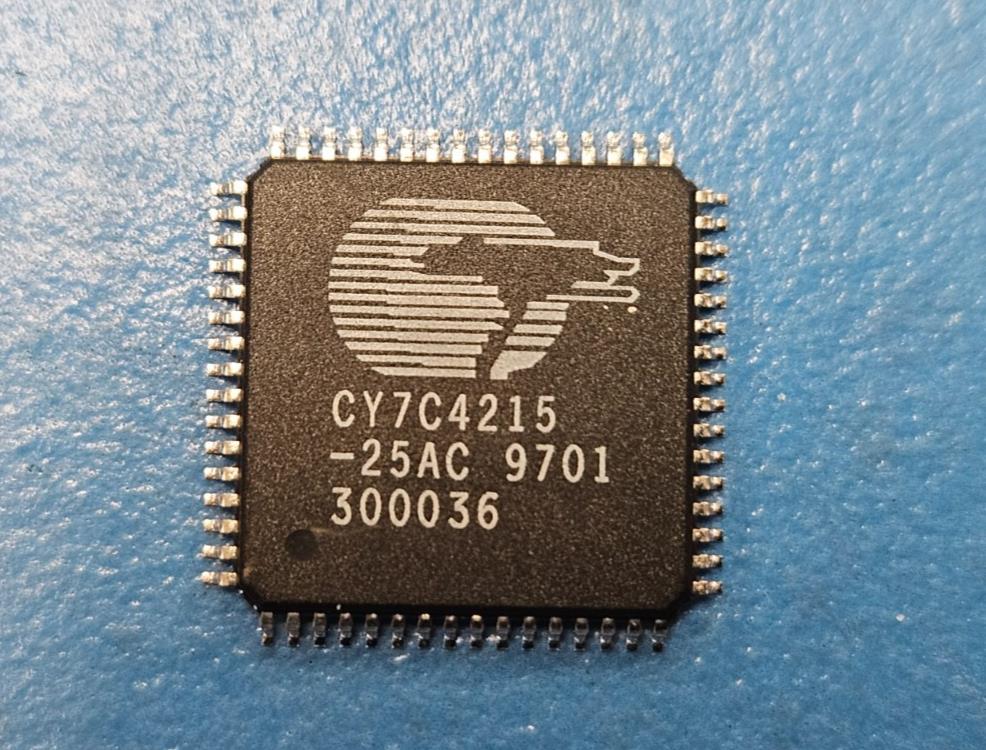

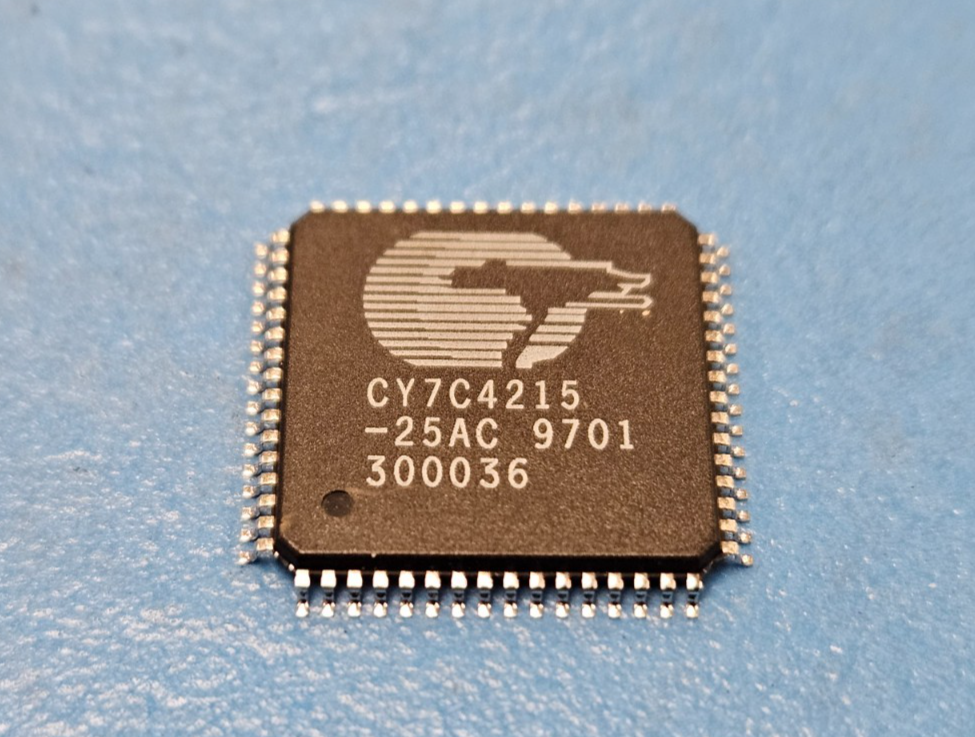

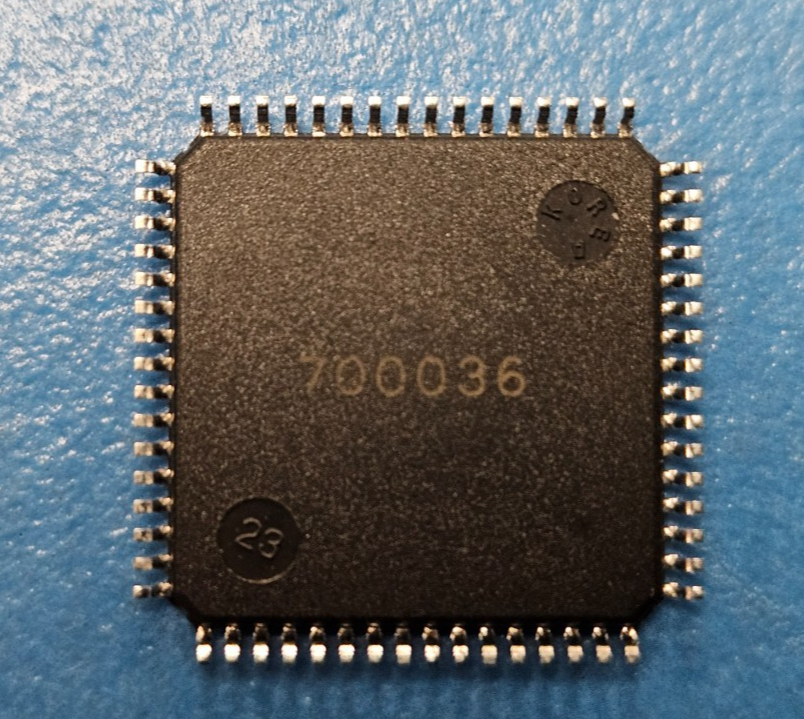

(1PC) CY7C4215-25AC Cypress FIFO, 512X18, 15ns, Synchronous, CMOS, PQFP64
Tax included.
This listing is for (1PC) of CY7C4215-25AC by Cypress
Status Discontinued
Access Time-Max (ns) 15.0000000000000000
Additional Feature RETRANSMIT
Clock Frequency-Max (MHz) 40.00000
Cycle Time (ns) 25.0000000000000000
JESD-30 Code S-PQFP-G64
J-STD-609 Code e0
Length (mm) 14.0000
Memory Density (bits) 9216.0000000000000000
Memory IC Type OTHER FIFO
Memory Width 18
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 64
Number of Words (words) 512.0000000000000000
Number of Words Code 512
Operating Mode SYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 512X18
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP64,.66SQ,32
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE
Parallel/Serial PARALLEL
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.6000
Standby Current-Max (A) 0.010000000000000
Supply Current-Max (mA) 45.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 0.800
Terminal Position QUAD
Width (mm) 14.0000
