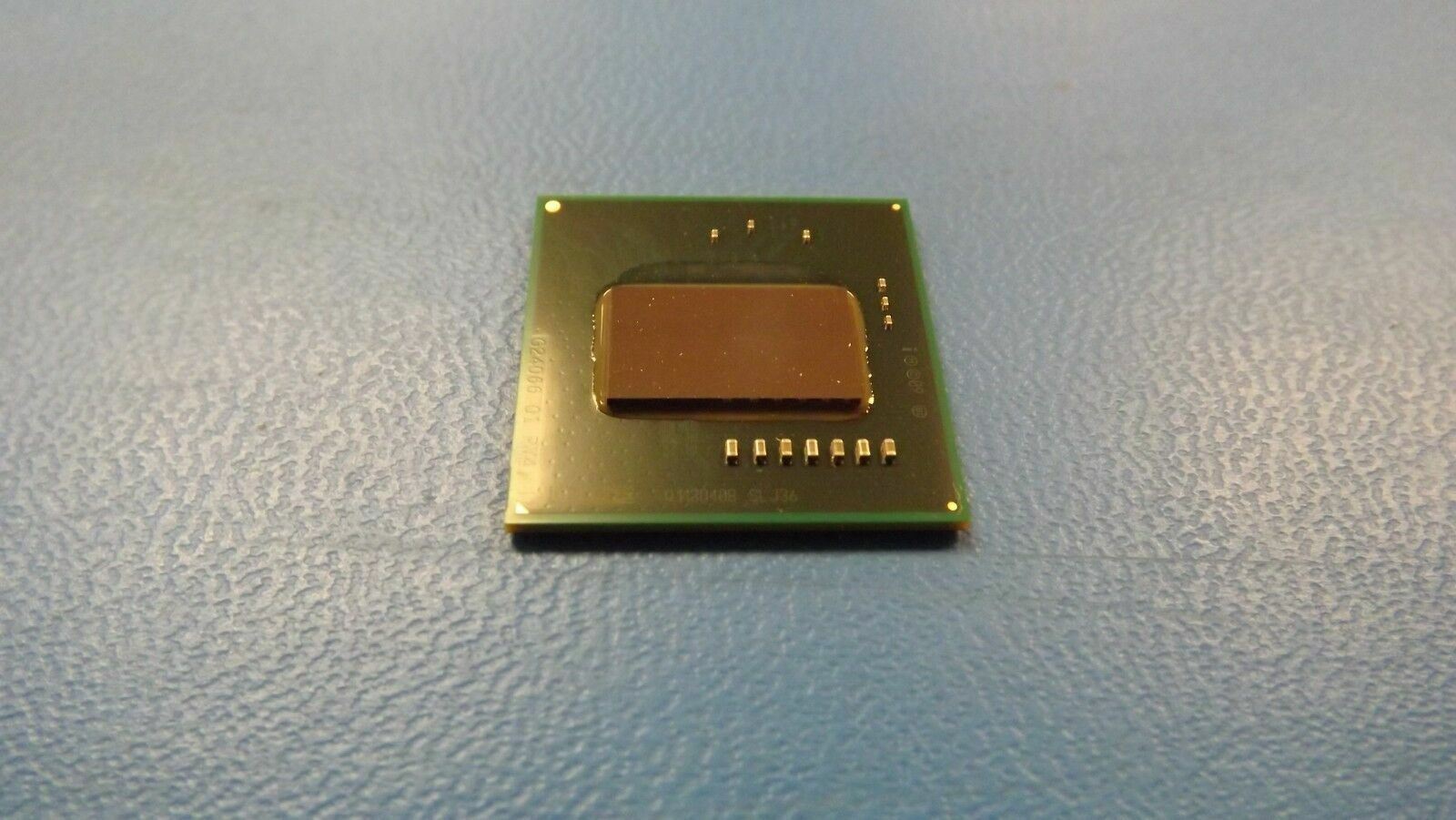

(1PC) CT80618005844 INTEL CPU Atom E620T Single CR 600 MHz FCBGA676
Tax included.
THIS LISTING IS FOR (1PC) OF CT80618005844AB BY INTEL
SPECIFICATIONS
| Mfr Package Description | 22 X 22 MM, 2.35 MM HEIGHT, 0.80 MM PITCH, FCBGA-676 |
| REACH Compliant | Yes |
| Status | Active |
| Microprocessor/Microcontroller/Peripheral IC Type | MICROPROCESSOR |
| Address Bus Width | 15.0 |
| Boundary Scan | YES |
| Clock Frequency-Max | 14.318 MHz |
| External Data Bus Width | 32.0 |
| Format | FLOATING POINT |
| Integrated Cache | YES |
| JESD-30 Code | S-PBGA-B676 |
| Low Power Mode | YES |
| Number of Terminals | 676 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | FBGA |
| Package Shape | SQUARE |
| Package Style | GRID ARRAY, FINE PITCH |
| Seated Height-Max | 2.35 mm |
| Speed | 600.0 MHz |
| Supply Voltage-Nom | 1.05 V |
| Supply Voltage-Min | 0.75 V |
| Supply Voltage-Max | 1.15 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |

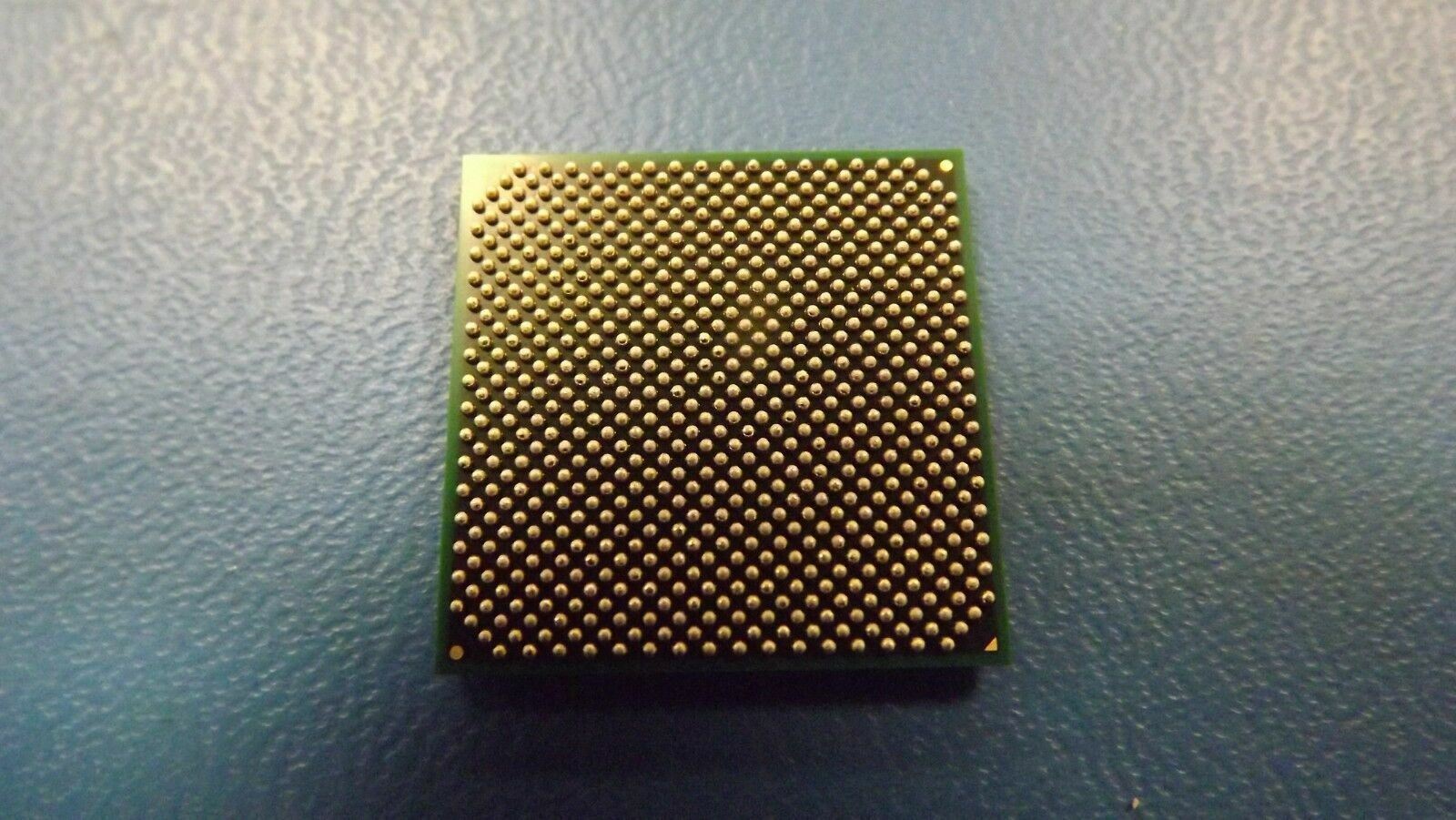

| Terminal Form | BALL |
| Terminal Pitch | 0.8 mm |
| Terminal Position | BOTTOM |
| Length | 22.0 mm |
| Width | 22.0 mm |
