(1PC) CS4231-KL, CS4231-KL EP Parallel Interface, Multimedia Audio Codec PLCC-68
Tax included.

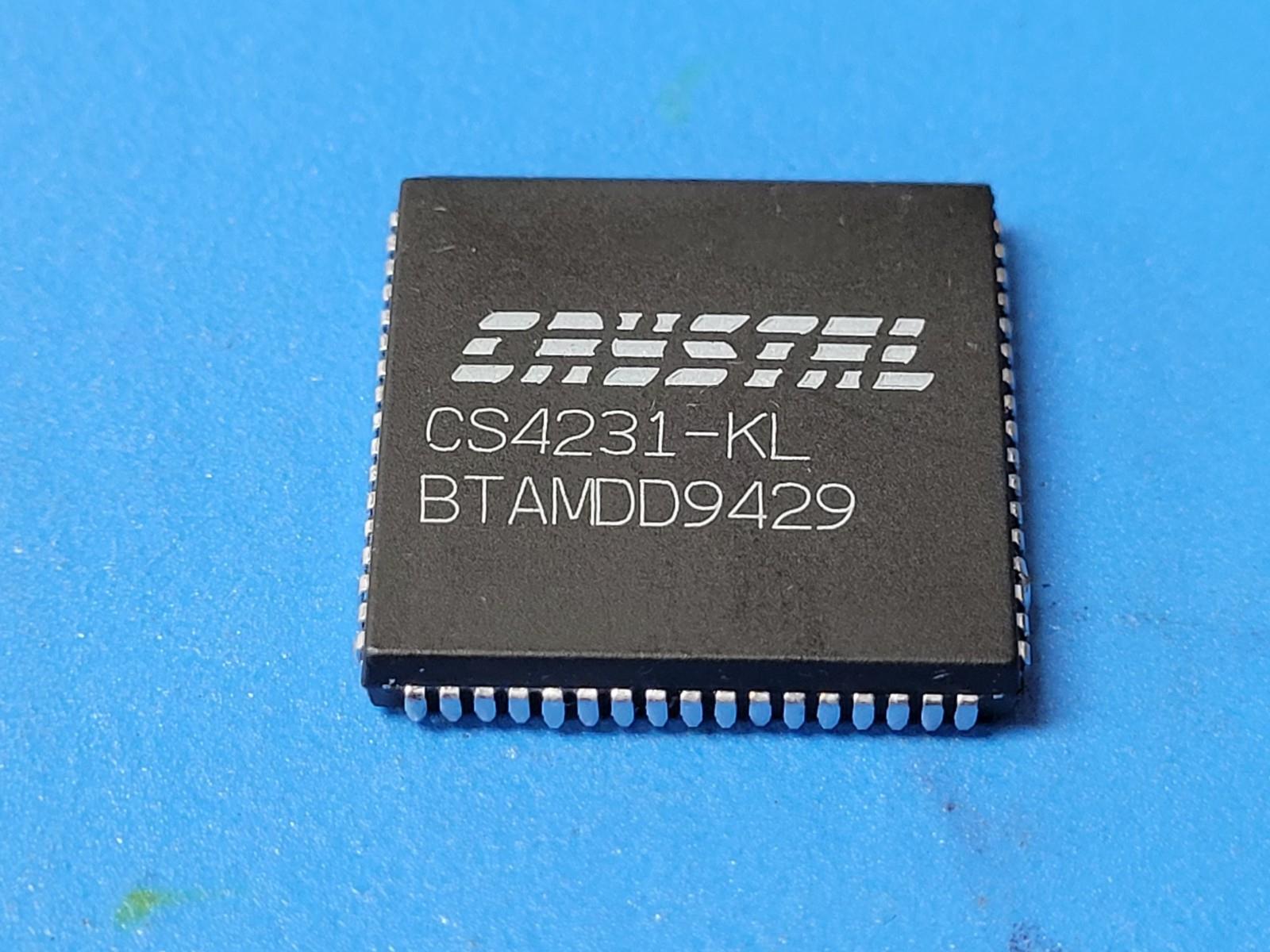

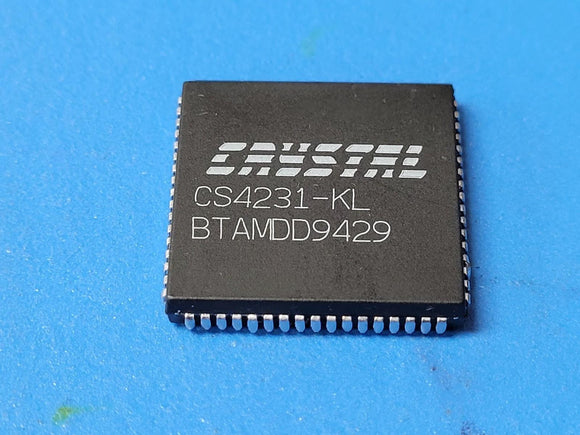

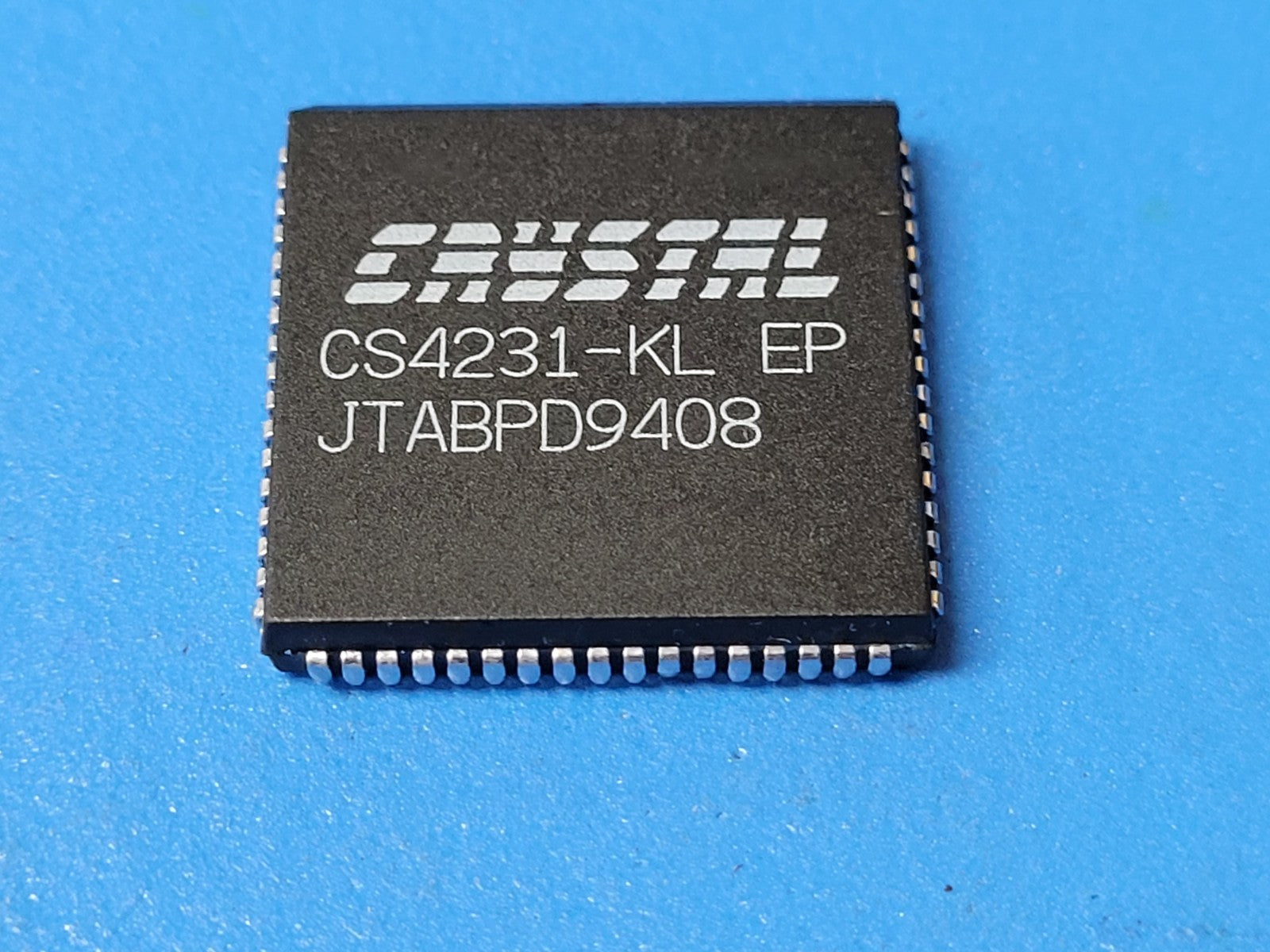

THIS IS FOR (1PC) OF CS4231-KL, CS4231-KL EP BY CRYSTAL SEMI
Parallel Interface, Multimedia Audio Codec PLCC-68
The CS4231 is an Mwave™
audio codec.
The CS4231 provides 16-bit audio for computer multimedia systems. The CS4231 includes stereo audio
converters and complete on chip filtering for record and
playback of 16-bit audio data, plus analog mixing and
programmable gain and attenuation are included to
provide a complete audio subsystem. Free high-performance Windows software drivers are available that
support all the CS4231 features including full duplex
transfers. The CS4231 is a pin compatible upgrade to
the CS4248 and AD1848 (PLCC Version).
TABLE OF CONTENTS:
ORDERING INFORMATION:
page 4-210
CS4231-KL 0 to 70°C
CS4231-KQ 0 to 70°С
68-pin PLCC
100-pin TQFP
ADPCM Compression/Decompression
• Free WindowsTM Software Drivers
MPC Compatible Mixer
Dual DMA Count Registers for Full
Duplex Operation
DMA Transfers with On-chip FIFOs.
• Timer for Audio/Visual Synchronization
16 mA Bus Drive Capability
Digital 3.3/5V Operation
Pin Compatible with CS4248/AD1848
