(1PC) CHR2295-99F UMS 24-30GHz Integrated Down Converter
Tax included.

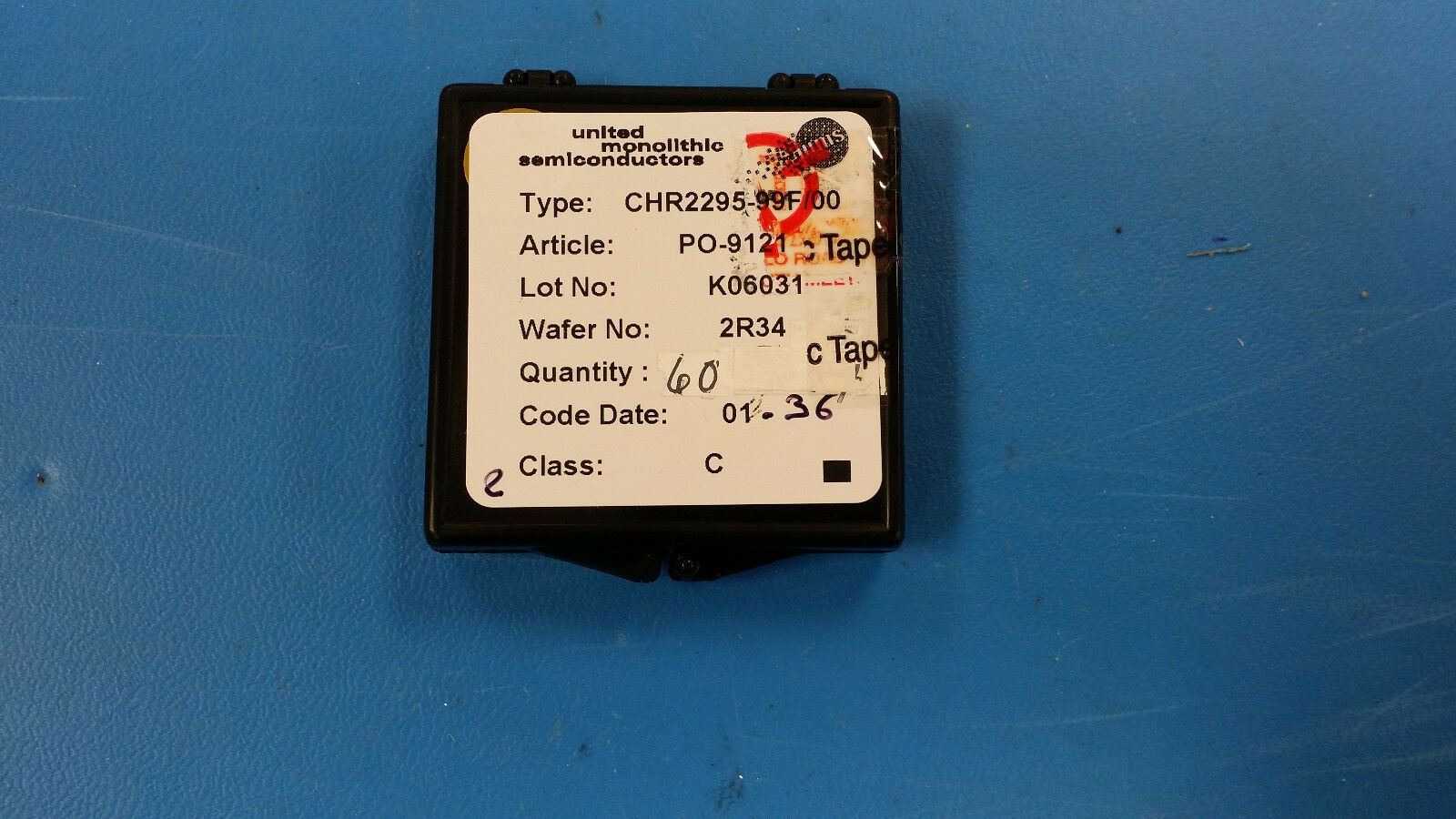

THIS LISTING IS FOR (1 PC) OF CHR2295-99F BY UNITED MONOLITHIC SEMICONDUCTOR
The CHR2295-99F from United Monolithic Semiconductors is a RF Mixer with RF Frequency 24.00-30.00 GHz, IF Frequency DC-1.5 GHz, LO Frequency 12.00-15.00 GHz, Conversion Loss 11 dB, LO Drive - Power 10 dBm. Tags: Down-Conversion Mixer.
(60 IN STOCK.WE WILL MAKE DEALS ON LARGER QUANTITIES. SEND OFFERS)
The CHR2295-99F from United Monolithic Semiconductors is a RF Mixer with RF Frequency 24.00-30.00 GHz, IF Frequency DC-1.5 GHz, LO Frequency 12.00-15.00 GHz, Conversion Loss 11 dB, LO Drive - Power 10 dBm. Tags: Down-Conversion Mixer.
(60 IN STOCK.WE WILL MAKE DEALS ON LARGER QUANTITIES. SEND OFFERS)
24-30GHz Integrated Down Converter
GaAs Monolithic Microwave IC
Description
The CHR2295 is a multifunction chip which
integrates a LO time two multiplier, a balanced
cold FET mixer, and a RF LNA. It is designed for
a wide range of applications, typically commercial
communication systems. The backside of the
chip is both RF and DC grounds. This helps
simplify the assembly process.
The circuit is manufactured with a PM-HEMT
process, 0.25µm gate length, via holes through
the substrate, air bridges and electron beam
gate lithography.
It is available in chip form.
