(1PC) BXRH-35A8001-J-23 LED COB H15 ARRAY WHT SQU 3500K
Tax included.

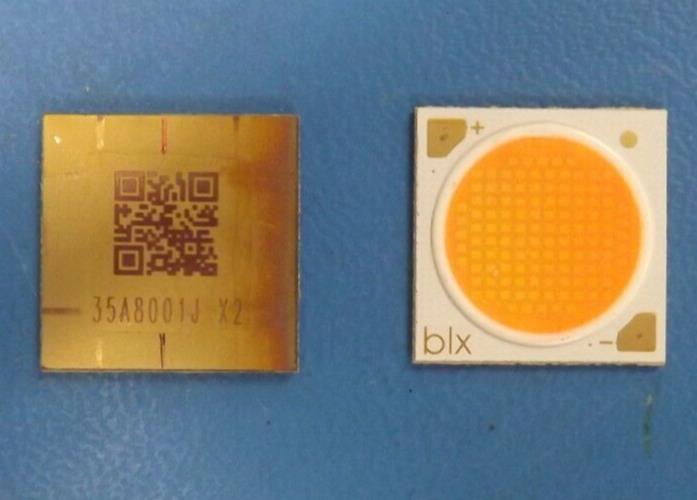

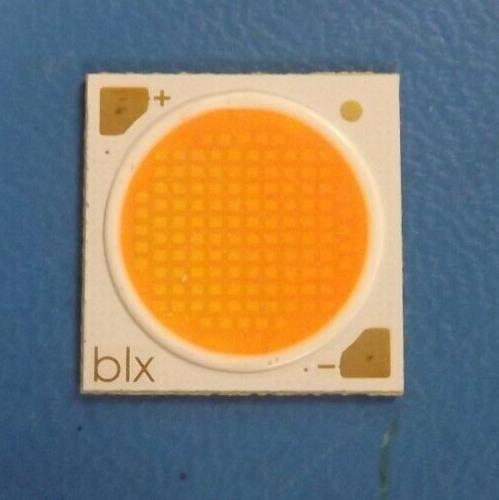

THIS LISTING IS FOR (1PC) OF LED COB H15 ARRAY WHT SQU 3500K BY BRIDGELUX
THESE COMPONENTS ARE TARNISHED, BUT THEY DO WORK.
Category
Optoelectronics
COBs, Engines, Modules, Strips
Mfr
Bridgelux
Series
H15 Array
Package
Tube
Product Status
Obsolete
Type
Chip On Board (COB)
Color
White, Warm
CCT (K)
3500K 3-Step MacAdam Ellipse
Wavelength
-
Configuration
Square
Luminous Flux @ Current/Temperature
7686lm (Typ)
Current - Test
2.5A
Temperature - Test
25°C
Voltage - Forward (Vf) (Typ)
36.6V
Lumens/Watt @ Current - Test
84 lm/W
Current - Max
3.5A
CRI (Color Rendering Index)
93 (Typ)
Viewing Angle
112°
Features
-
Size / Dimension
19.00mm L x 19.00mm W
Height
1.70mm
Light Emitting Surface (LES)
15.10mm Dia
Lens Type
Flat
Base Product Number
BXRH-35
