(1PC) BUK105-50S 29A, 50V, 0.05ohm, N-CHANNEL, Si, POWER, MOSFET TO-220 5-PIN
Tax included.

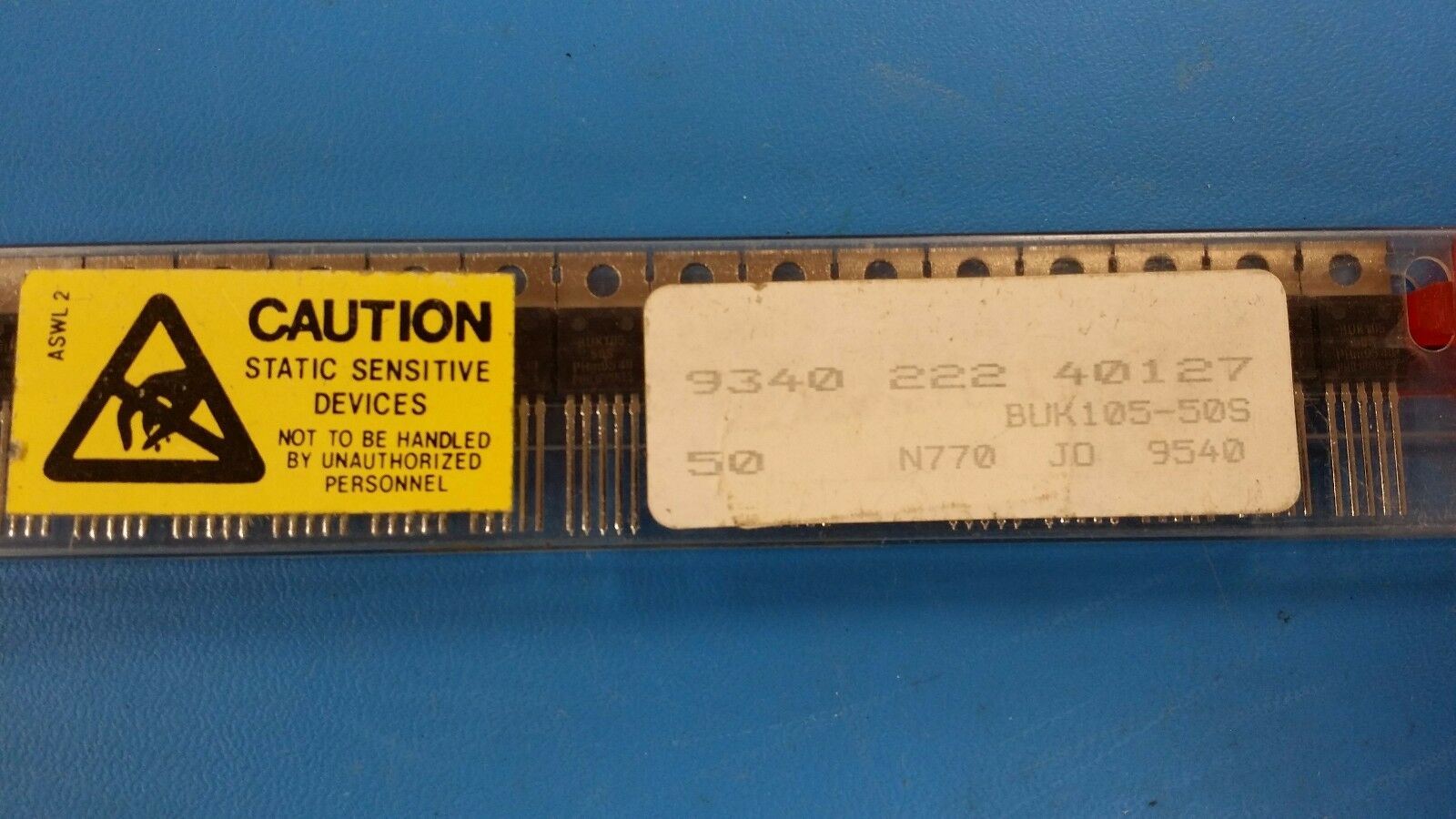

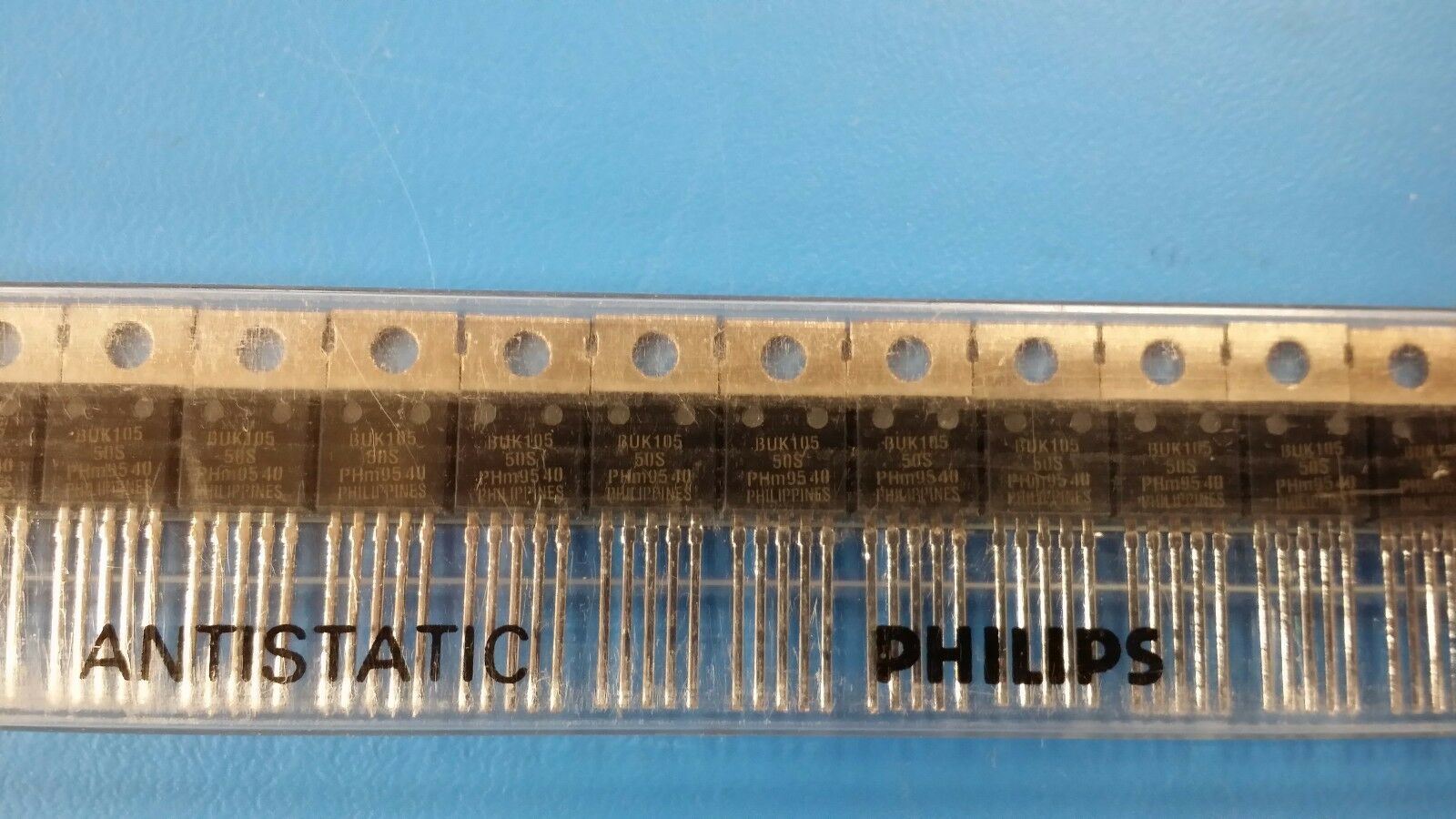

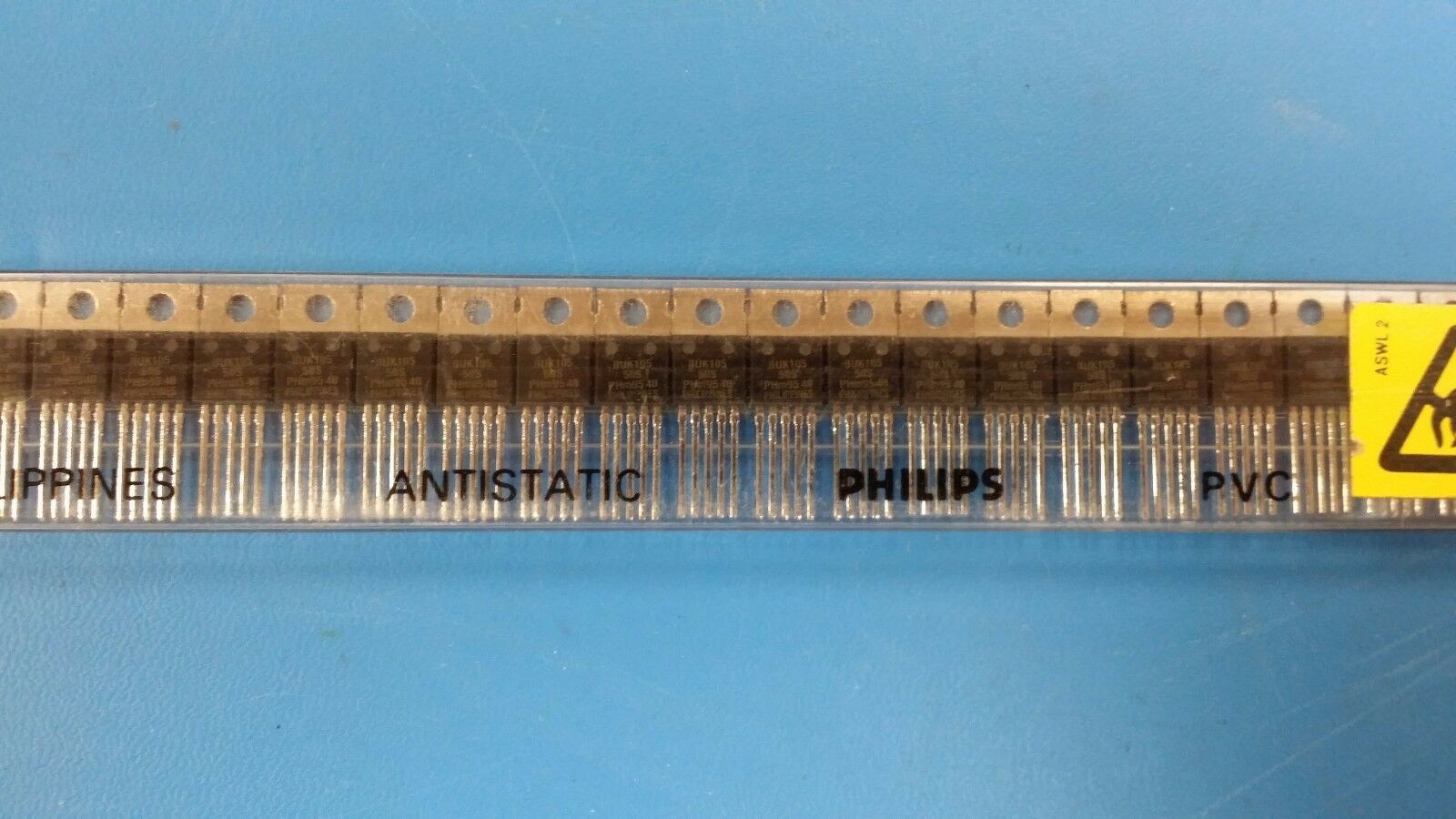

THIS LISTING IS FOR (1PC) OF BUK105-50S BY PHILIPS SEMICONDUCTOR
| Mfr Package Description | TO-220, 5 PIN |
| Status | Discontinued |
| Case Connection | DRAIN |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Drain Current-Max (ID) | 29 A |
| Drain-source On Resistance-Max | 0.0500 ohm |
| DS Breakdown Voltage-Min | 50 V |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| JESD-30 Code | R-PSFM-T5 |
| Number of Elements | 1 |
| Number of Terminals | 5 |
| Operating Mode | ENHANCEMENT MODE |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | N-CHANNEL |
| Pulsed Drain Current-Max (IDM) | 120 A |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Additional Feature | LOGIC LEVEL COMPATIBLE, ESD PROTECTED |
