(1PC) AT27C080-90PU EPROM OTP 8M-Bit 1M x 8 90ns 32-Pin PDIP
Tax included.

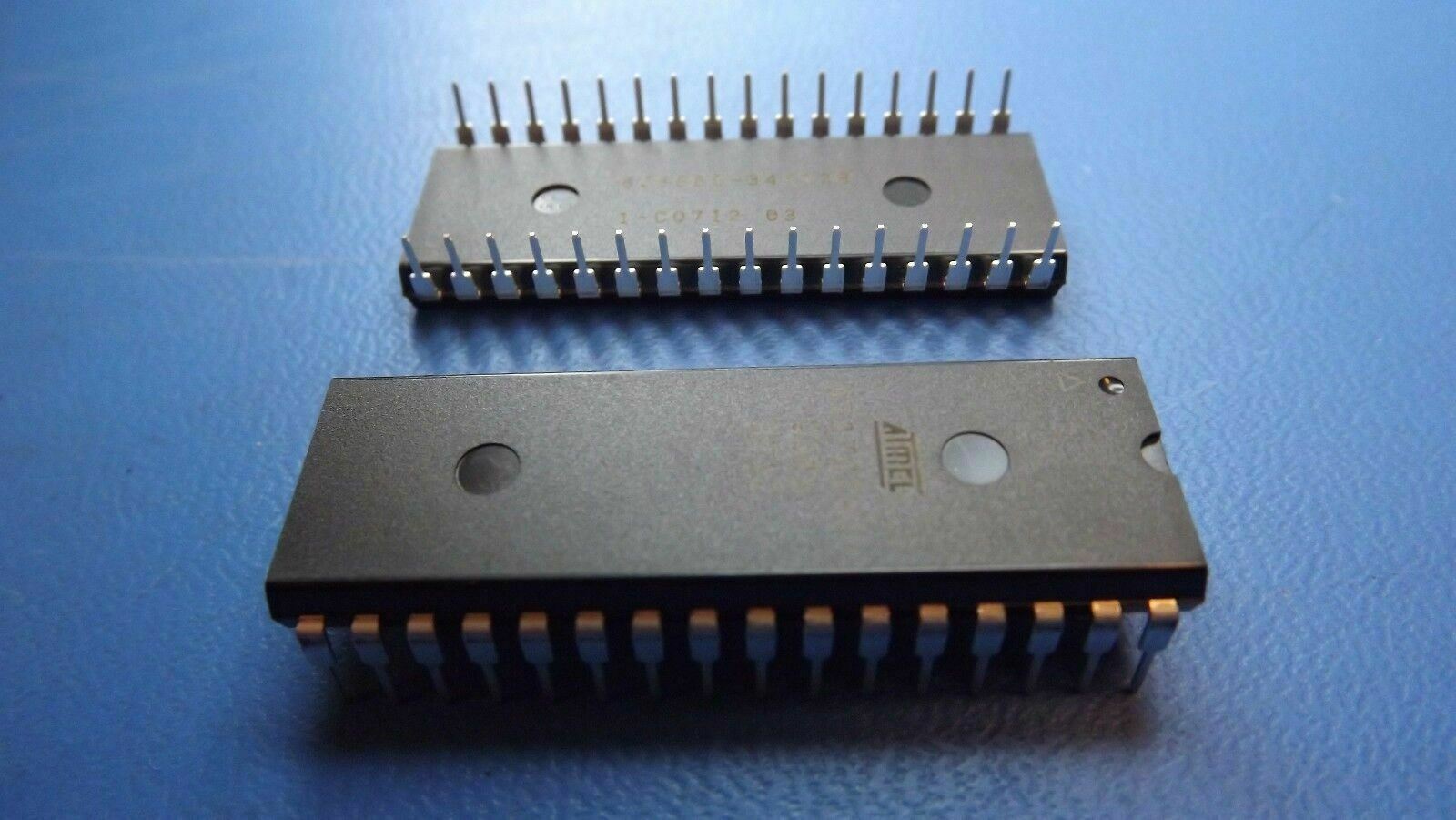

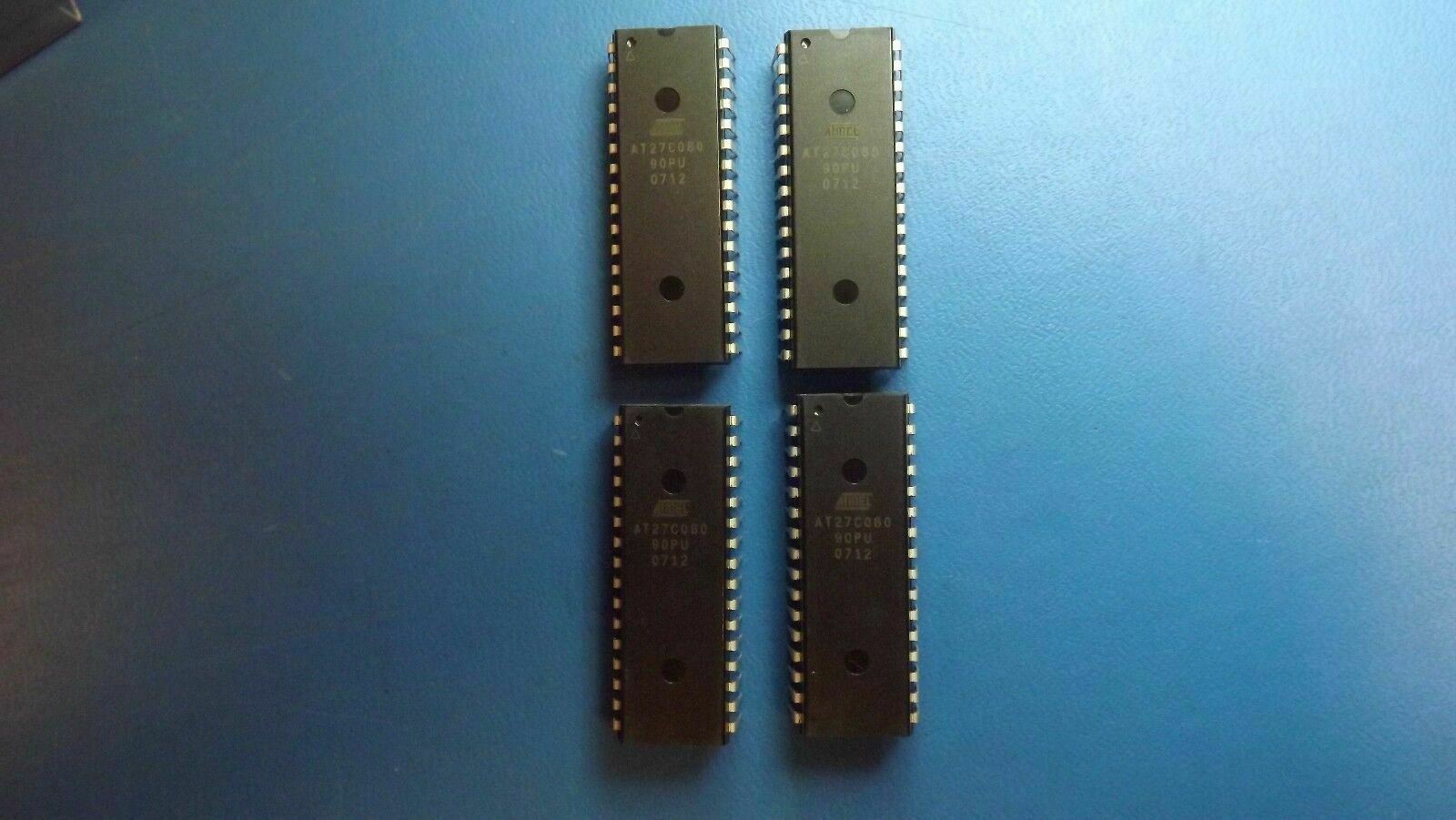

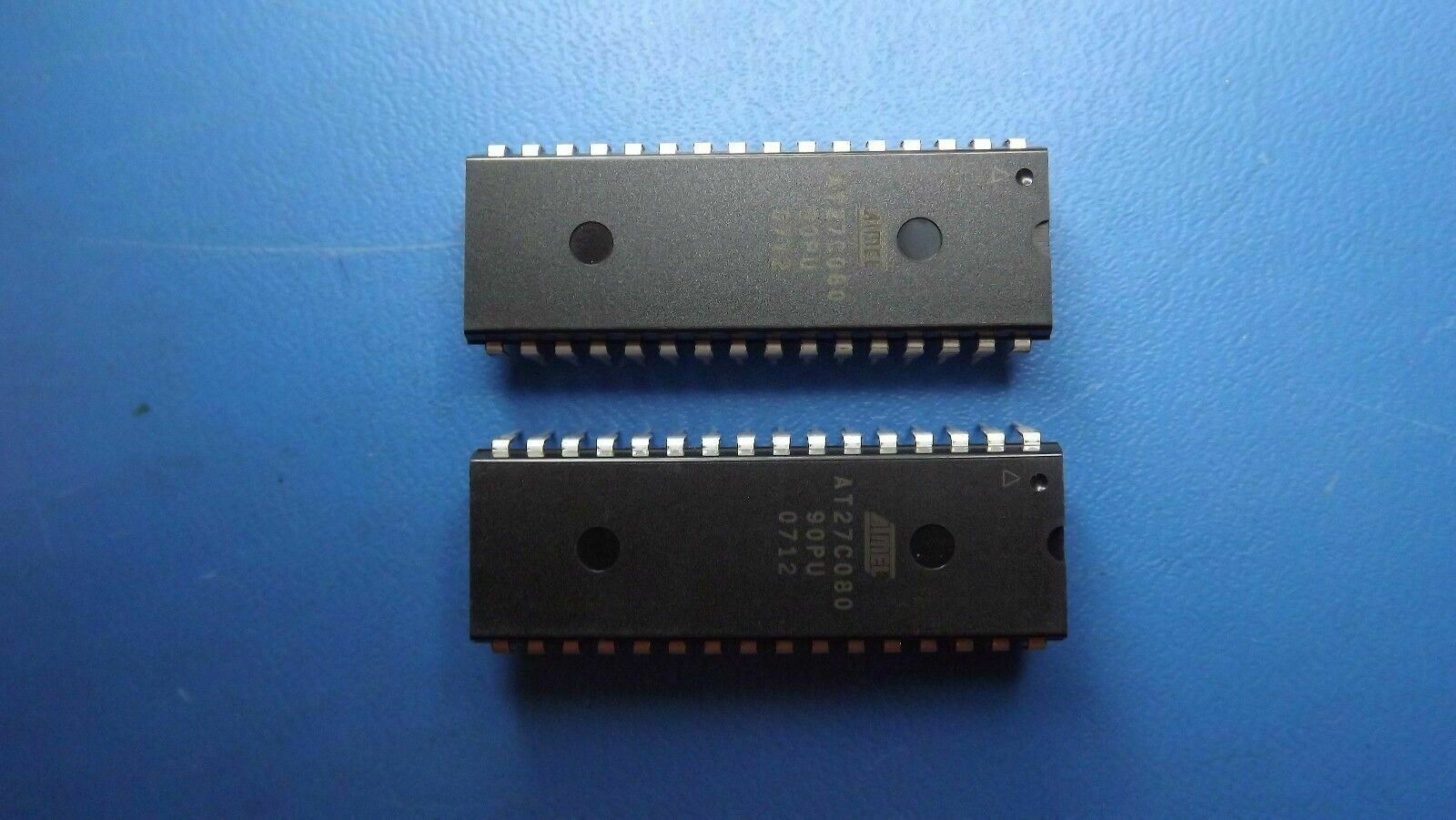

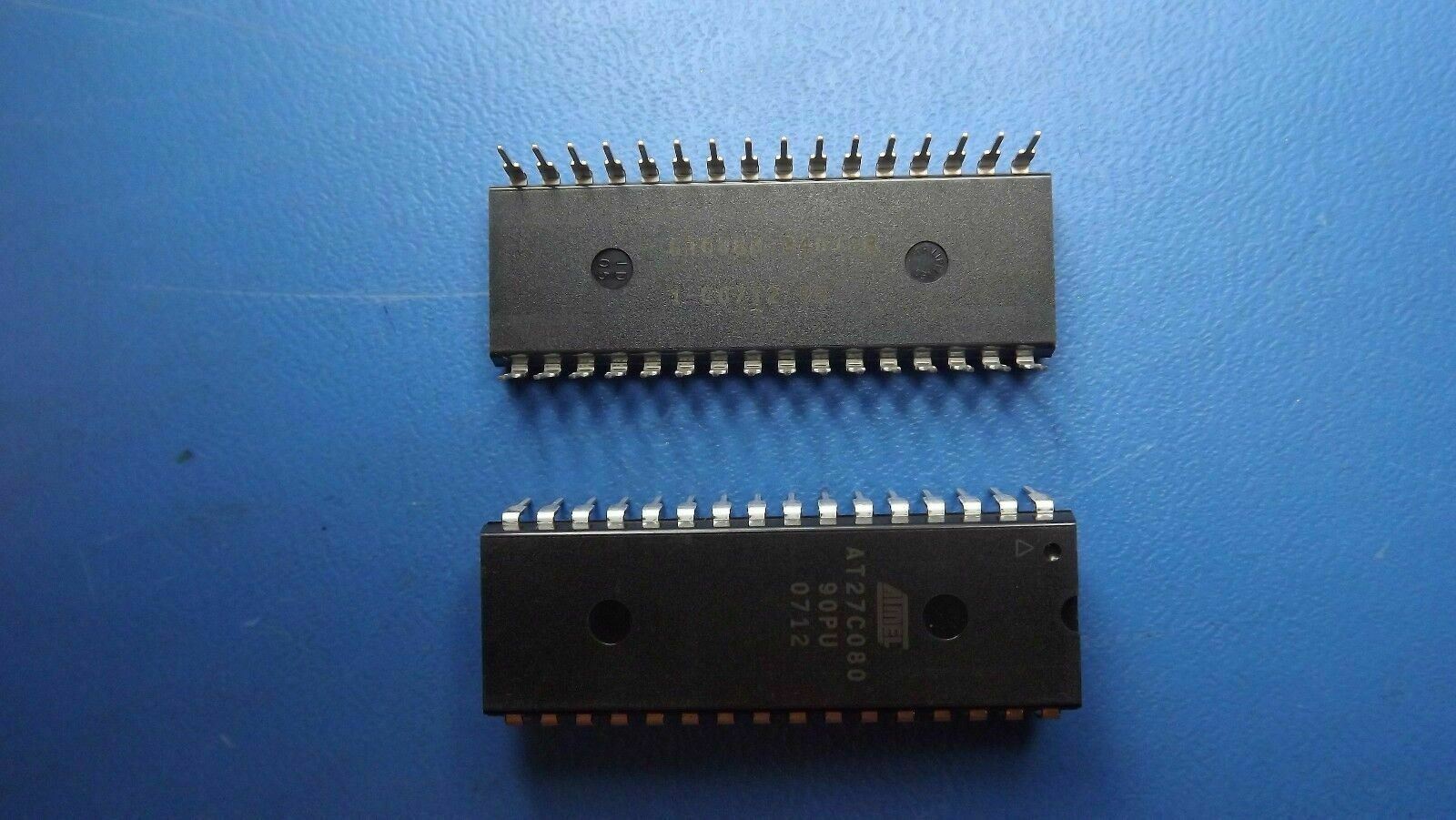

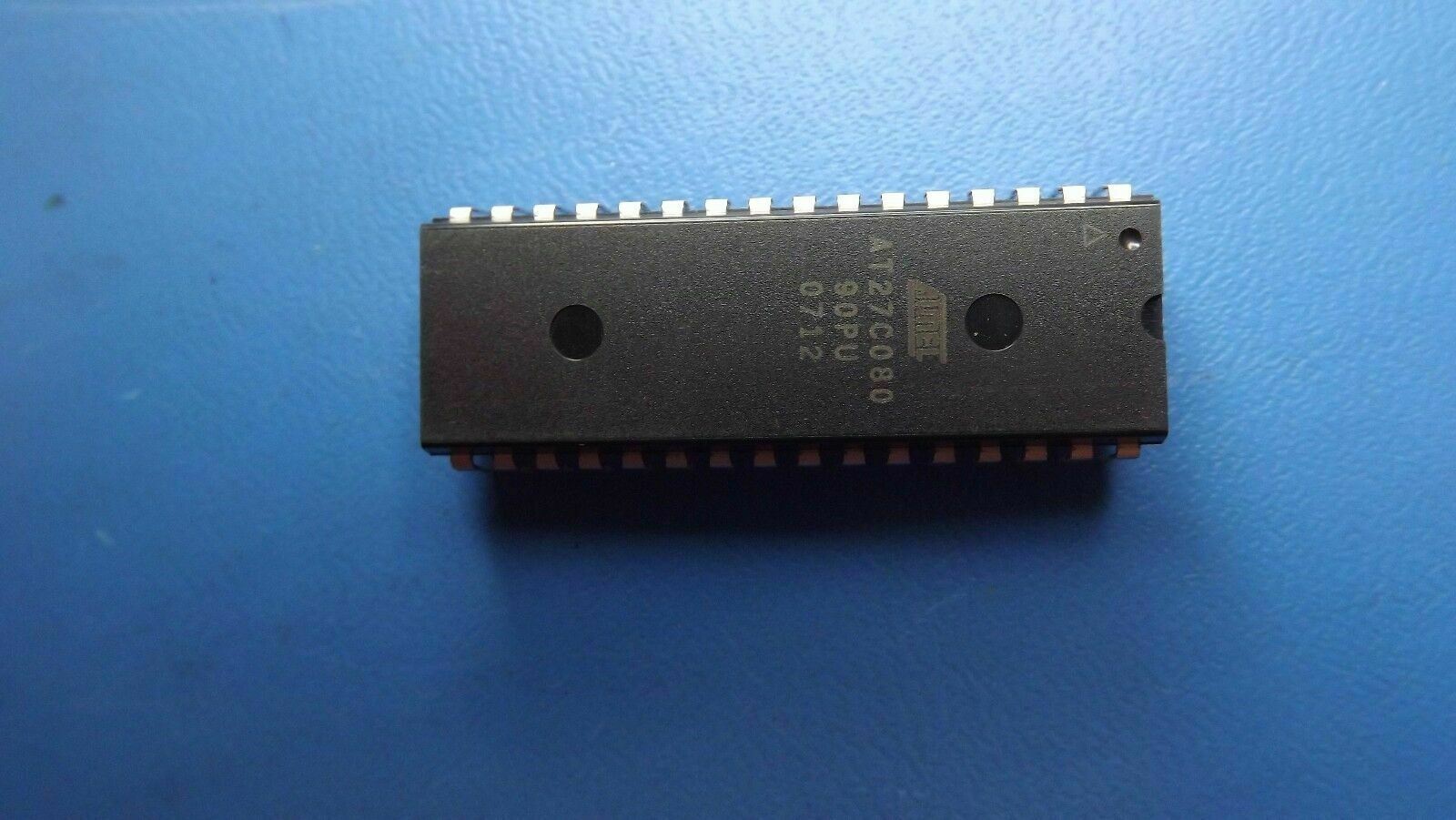

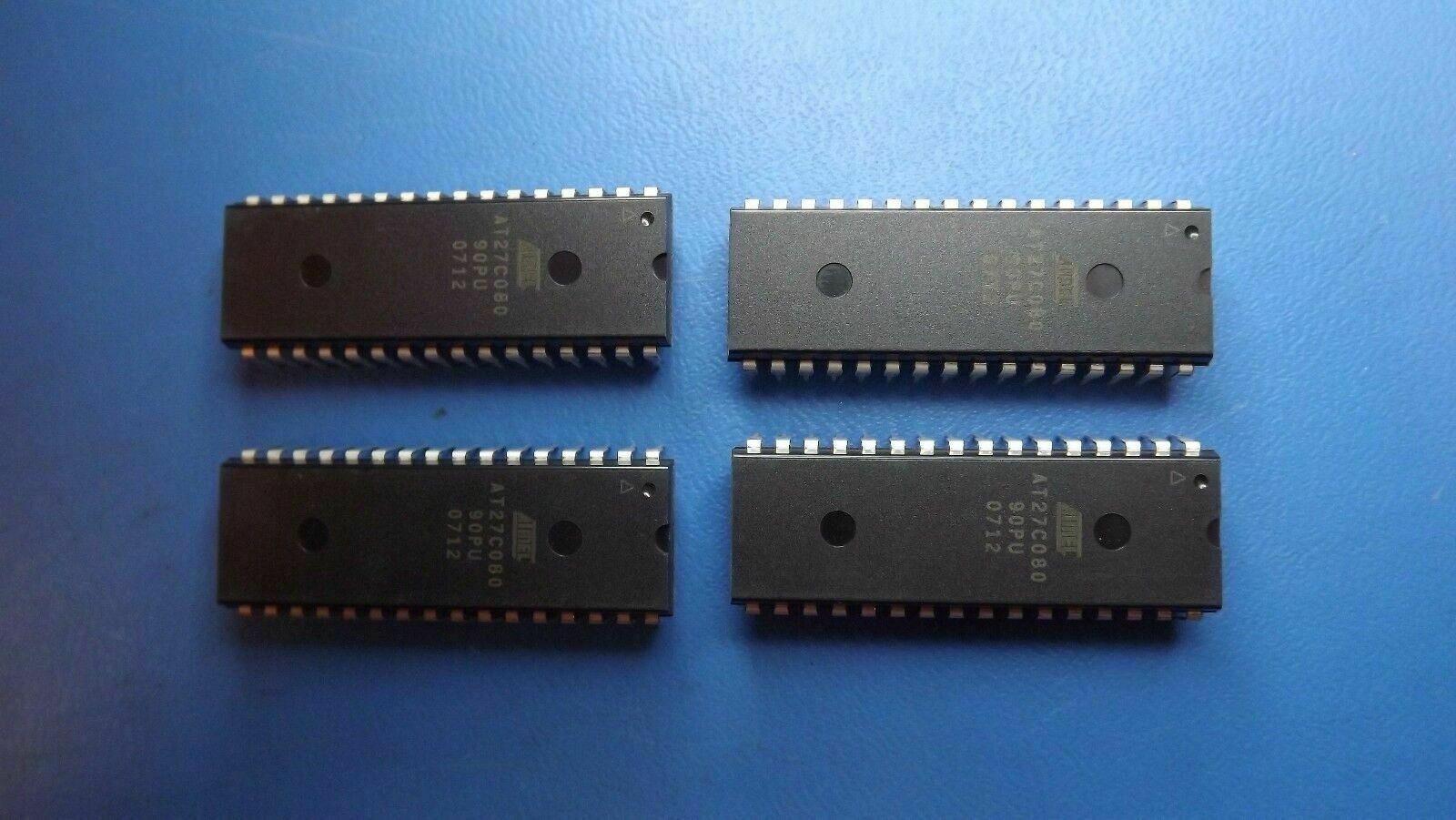

THIS LISTING IS FOR (1PC) OF AT27C080-90PU BY ATMEL
SPECIFICATIONS
| Mfr Package Description | 0.600 INCH, GREEN, PLASTIC, DIP-32 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Sub Category | OTP ROMs |
| Access Time-Max | 90.0 ns |
| I/O Type | COMMON |
| JESD-30 Code | R-PDIP-T32 |
| JESD-609 Code | e3 |
| Memory Density | 8388608.0 bit |
| Memory IC Type | OTP ROM |
| Memory Width | 8 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 32 |
| Number of Words | 1048576.0 words |
| Number of Words Code | 1M |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Organization | 1MX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP32,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.59 mm |
| Standby Current-Max | 1.0E-4 Amp |
| Supply Current-Max | 0.04 Amp |
| Supply Voltage-Nom (Vsup) | 5.0 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Length | 42.05 mm |
| Width | 15.24 mm |
