(1PC) AS37S0100 SWITCH ROCKER SPDT 4A 250V SPDT ON-OFF-ON
Tax included.

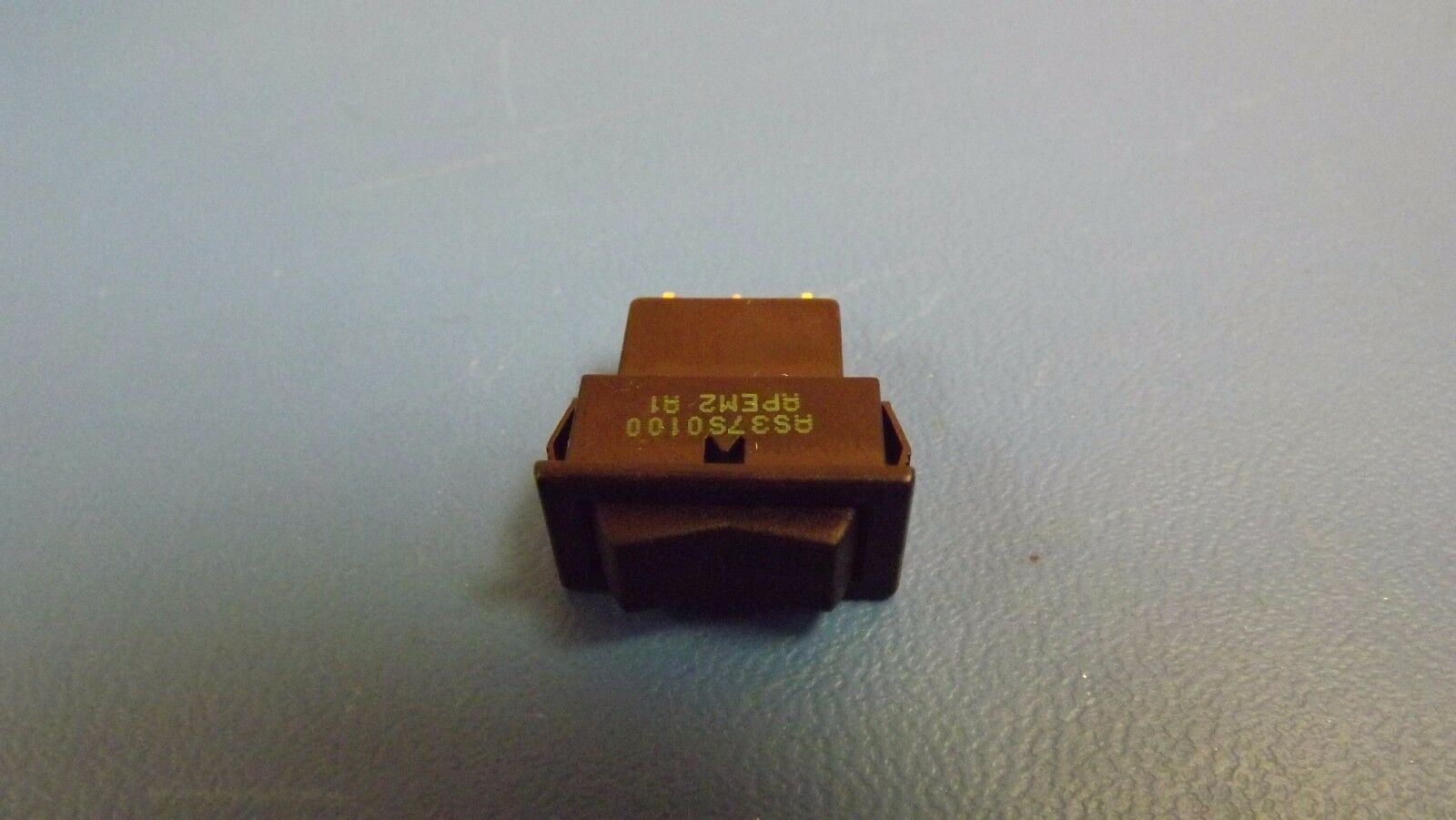

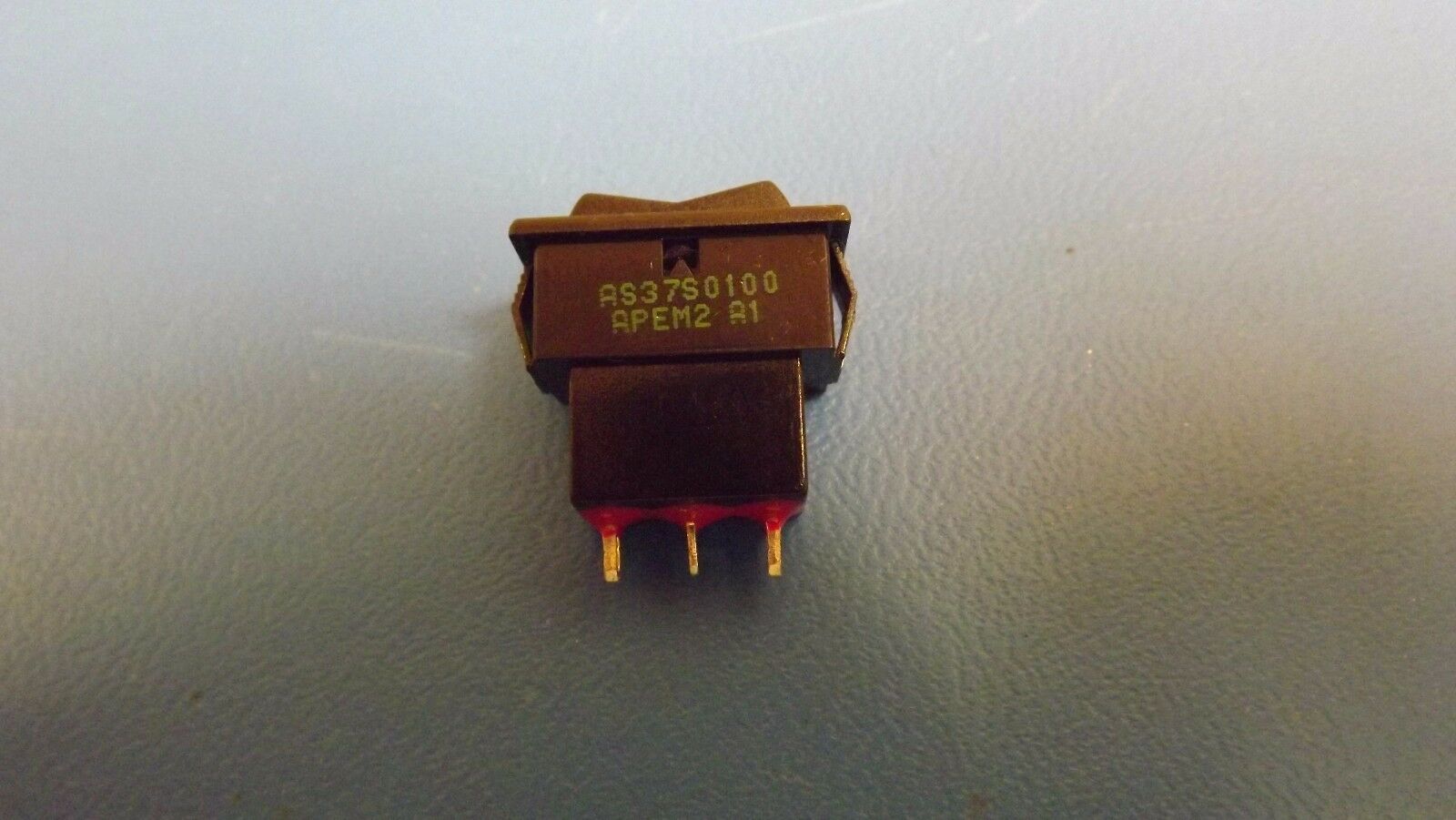

THIS LISTING IS FOR (1PC) OF AS37S0100 BY APEM
SPECIFICATIONS
| REACH Compliant | N/A |
| Status | Active |
| Switch Type | ROCKER SWITCH |
| Actuator Angle | 22 deg |
| Actuator Length | 0.1250 inch |
| Actuator Material | POLYAMIDE |
| Actuator Type | ROCKER |
| Body Breadth | 8.48 mm |
| Body Height | 15.27 mm |
| Body Length or Diameter | 19.58 mm |
| Center Contact Material | SILVER |
| Center Contact Plating | SILVER |
| Contact Current(DC)-Max | 4 A |
| Contact DC Max Rating R Load | 4A@30VDC |
| Contact Resistance | 0.0100 ohm |
| Contact Voltage(DC)-Max | 30 V |
| Electrical Life | 50000 Cycle(s) |
| End Contact Material | SILVER |
| End Contact Plating | SILVER |
| Insulation Resistance | 1.00E10 ohm |
| Manufacturer Series | AS |
| Mounting Feature | PANEL MOUNT |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 85 Cel |
| Sealing | EPOXY |
| Terminal Length | 0.1450 inch |
| Termination Type | SOLDER LUG |
