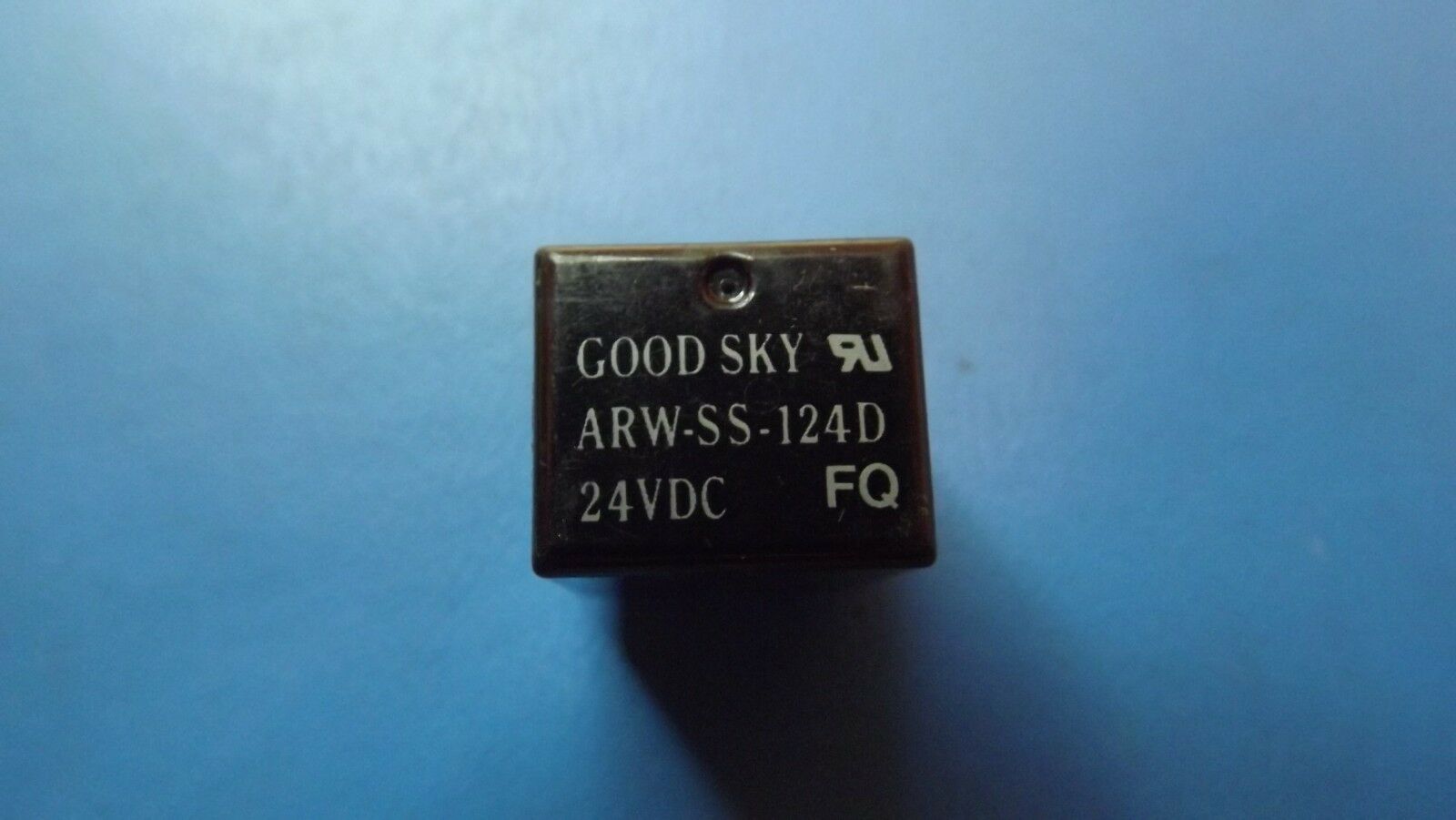

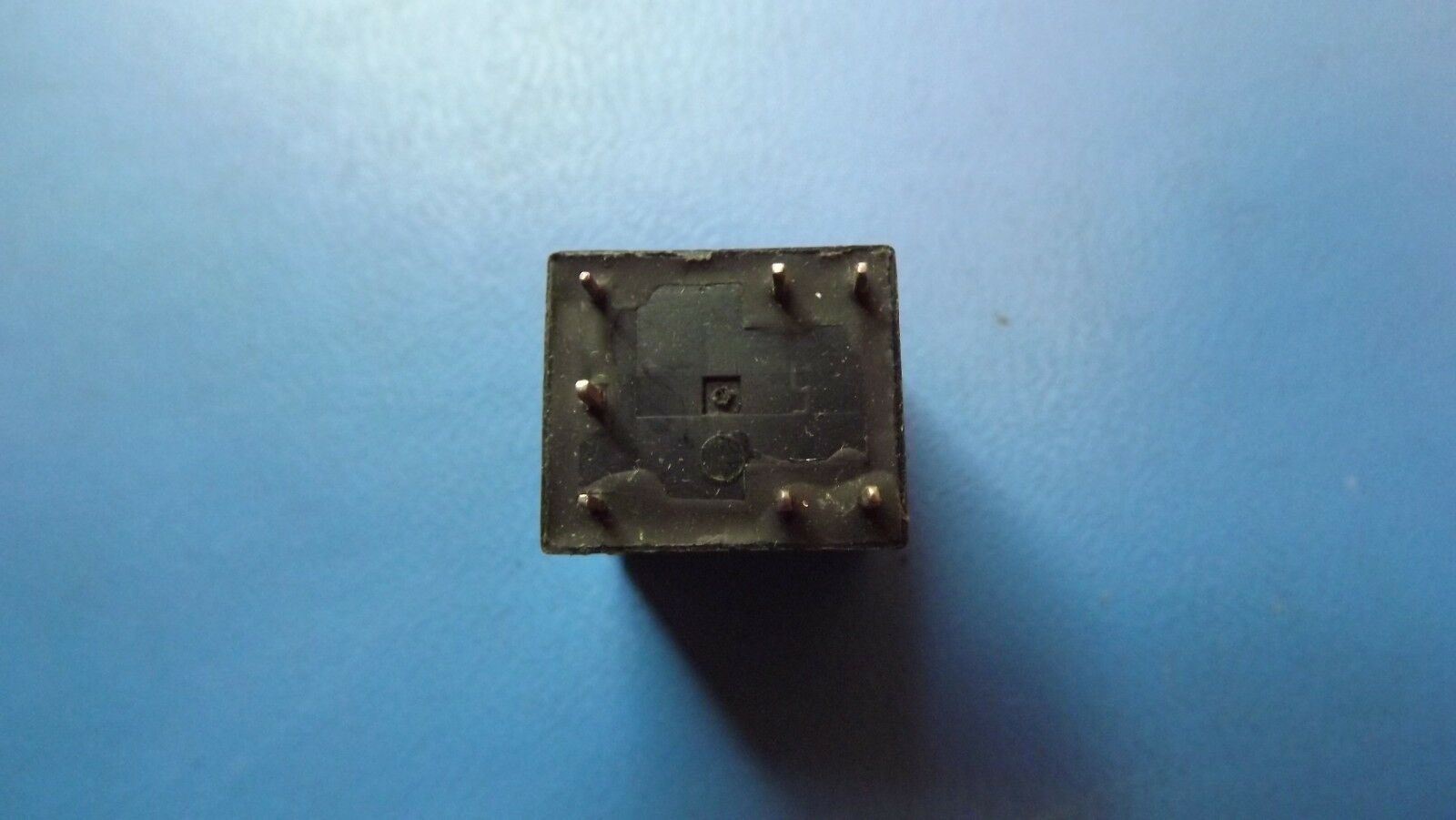

(1PC) ARW-SS-124D GOOD SKY Electromechanical Relay, SPDT, 36VDC, 15A, 28VDC
Tax included.
THIS LISTING IS FOR (1PC) OF ARW-SS-124D BY GOOD SKY
SPECIFICATIONS
| EU RoHS Compliant | Yes |
| Status | Contact Mfr |
| Body Breadth | 14.8 mm |
| Body Height | 20.2 mm |
| Body Length or Diameter | 17.2 mm |
| Coil/Input Supply Type | DC |
| Coil Operate Voltage(DC) | 19.2 V |
| Coil Release Voltage(DC) | 1.2 V |
| Coil Resistance | 660.0 ohm |
| Coil Voltage-Nom | 24.0 V |
| Coil Voltage(DC)-Max | 36.0 V |
| Contact AC Max Power Rating R Load | 600VA@120VAC |
| Contact AC Max Rating R Load | 15A@120VAC |
| Contact Current(AC)-Max | 15.0 A |
| Contact Current(DC)-Max | 15.0 A |
| Contact DC Max Power Rating R Load | 180W@28VDC |
| Contact DC Max Rating R Load | 15A@28VDC |
| Contact/Output Supply Type | AC/DC |
| Contact Resistance | 100.0 mohm |
| Contact Voltage(AC)-Max | 120.0 V |
| Contact Voltage(DC)-Max | 28.0 V |
| Dielectric Strength Between Coil and Contacts | 1000.0 Vrms |
| Dielectric Strength Between Open Contacts | 500.0 Vrms |
| Electrical Life | 100000.0 Cycle(s) |
| End Contact Material | Silver Alloy |
| Input Switching Control Type | Random |
| Insulation Resistance | 1.0E8 ohm |
| Number of Terminals | 7 |
| Operate Time | 10.0 ms |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| PCB Hole Count | 7.0 |
| Physical Dimension | 17.2mm x 14.8mm x 20.2mm |
| Reference Standard | UL |
| Relay Form | 1 FORM C |
| Relay Function | SPDT |
| Release Time | 10.0 ms |
| Sealing | FLUX-TIGHT |
| Terminal Length | 0.0035 Meter |
| Termination Type | SOLDER |
| Weight | 10.0 g |
