(1PC) Analog Circuit, 1 Func, CMOS, PDIP24
(1PC) Analog Circuit, 1 Func, CMOS, PDIP24
(1PC) Analog Circuit, 1 Func, CMOS, PDIP24
(1PC) Analog Circuit, 1 Func, CMOS, PDIP24
(1PC) Analog Circuit, 1 Func, CMOS, PDIP24
(1PC) Analog Circuit, 1 Func, CMOS, PDIP24

(1PC) Analog Circuit, 1 Func, CMOS, PDIP24

Tax included.
Only 0 left!
Will be in stock after

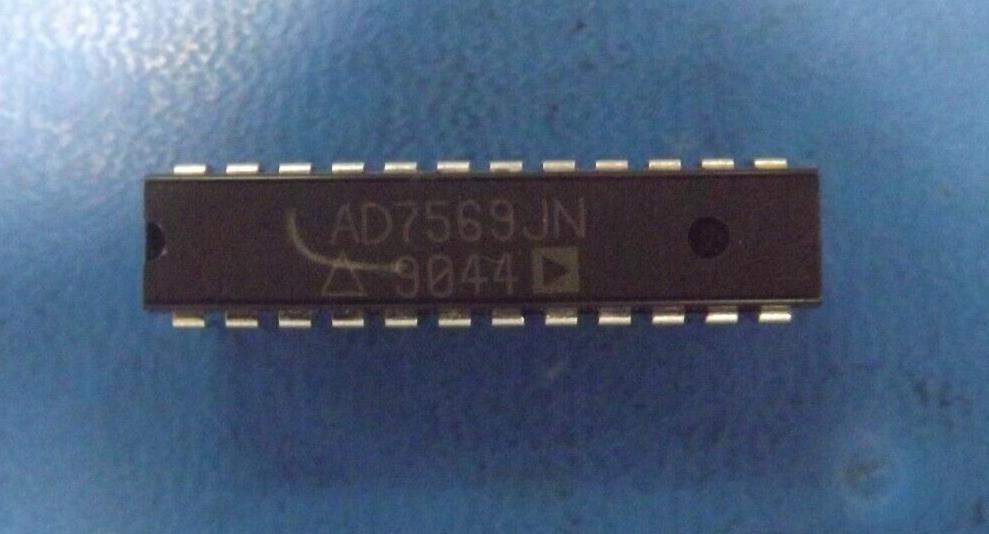

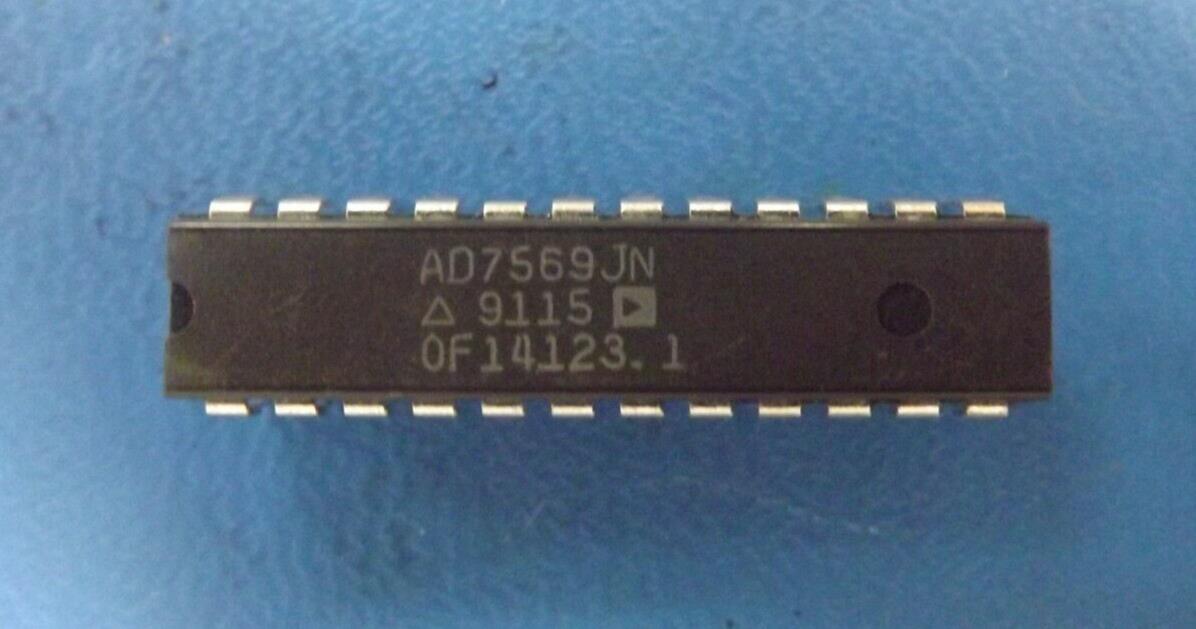

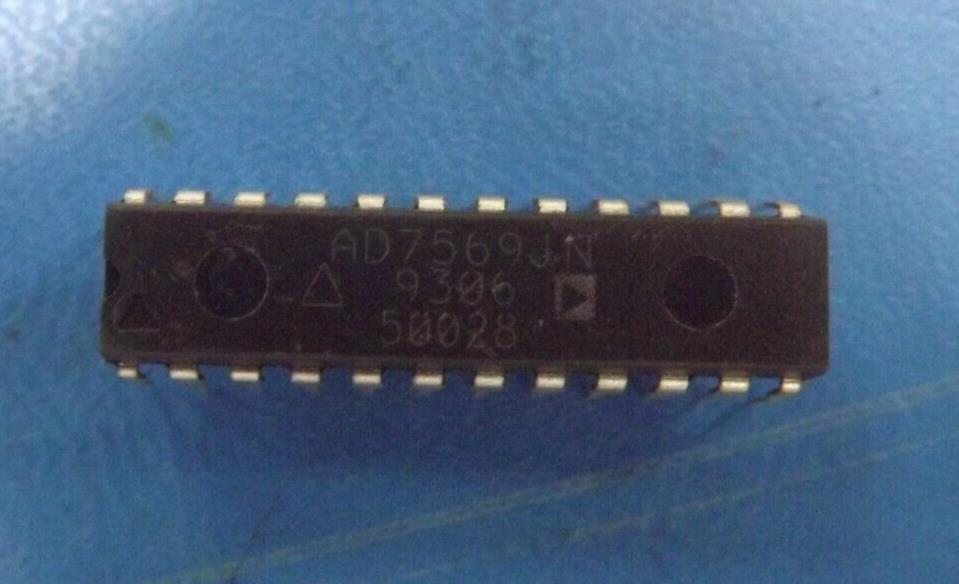

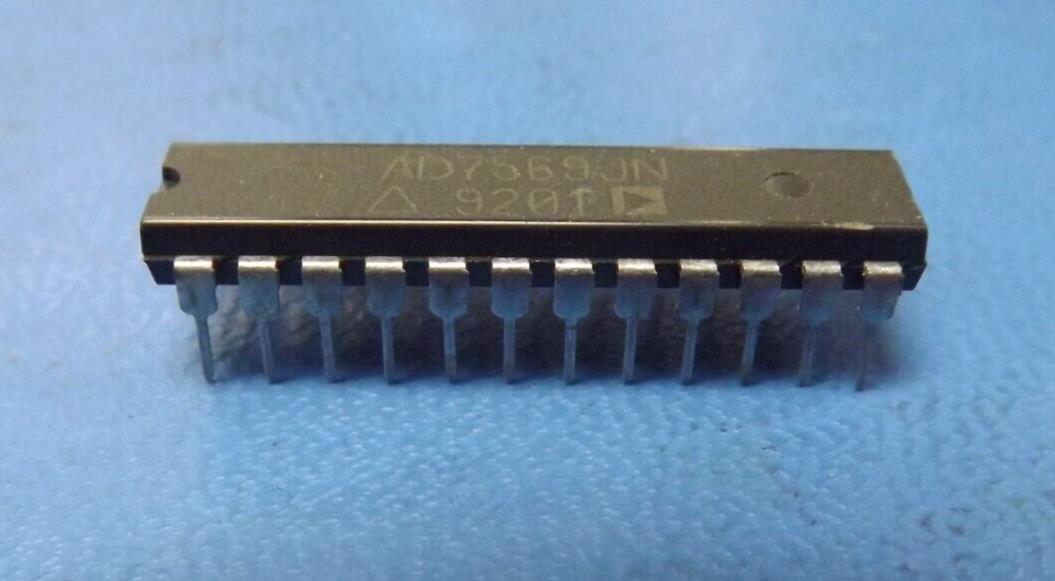

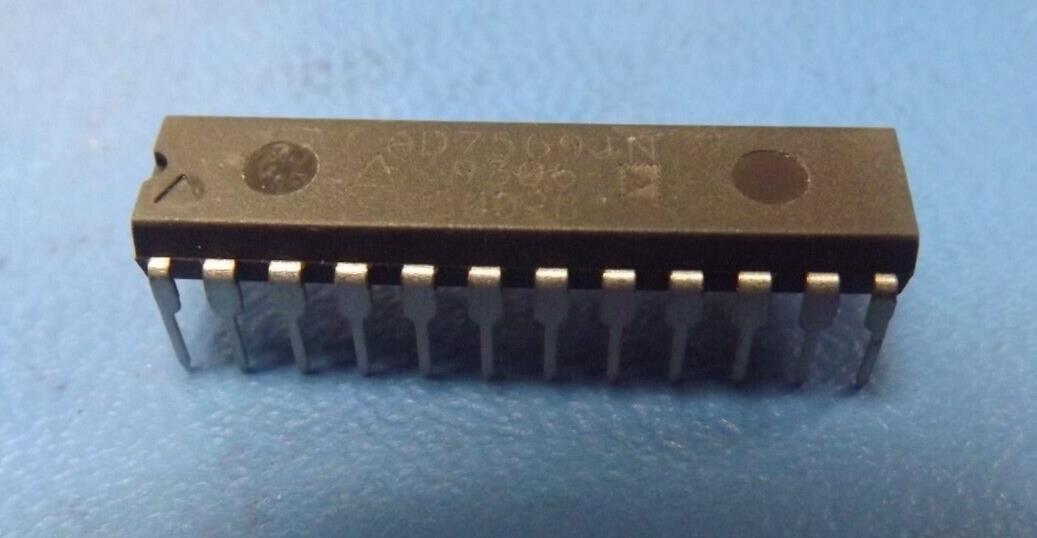

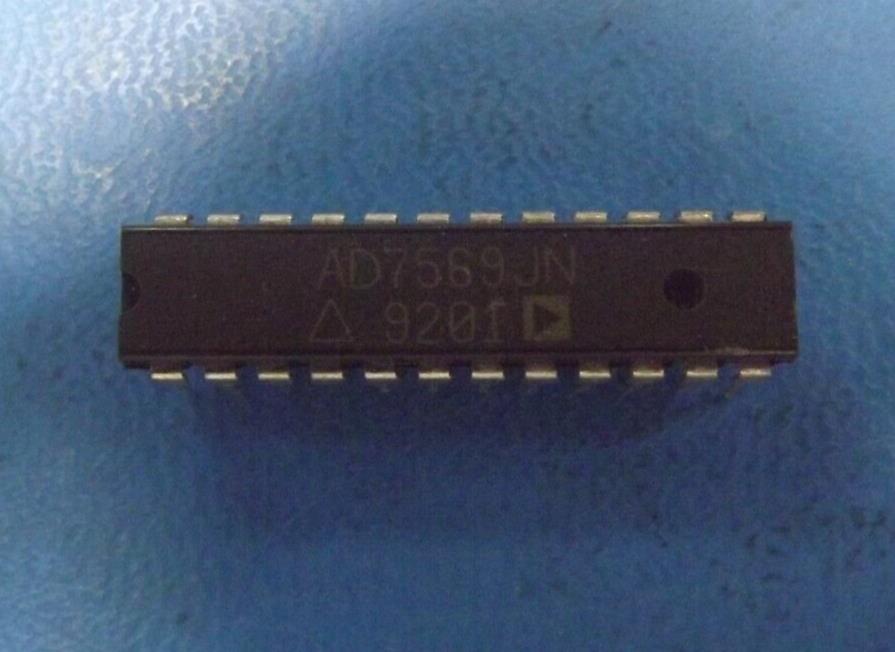

THIS LISTING IS FOR (1PC) OF AD7569JN BY ANALOG DEVICES

Mfr Package Description 0.300 INCH, SKINNY, PLASTIC, DIP-24
Status Discontinued
Analog IC - Other Type ANALOG CIRCUIT
JESD-30 Code R-PDIP-T24
JESD-609 Code e0
Neg Supply Voltage-Nom (Vsup) -5.0  V
Neg Supply Voltage-Min (Vsup) -4.75  V
Neg Supply Voltage-Max (Vsup) -5.25  V
Number of Functions 1
Number of Terminals 24
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.33  mm
Supply Current-Max (Isup) 13.0  mA
Supply Voltage-Nom (Vsup) 5.0  V
Supply Voltage-Min (Vsup) 4.75  V
Supply Voltage-Max (Vsup) 5.25  V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54  mm
Terminal Position DUAL
Length 30.485  mm
Width 7.62  mm
