(1PC) AM29F016B-90SI AMD Flash, 2MX8, 90ns, SOIC-44
Tax included.

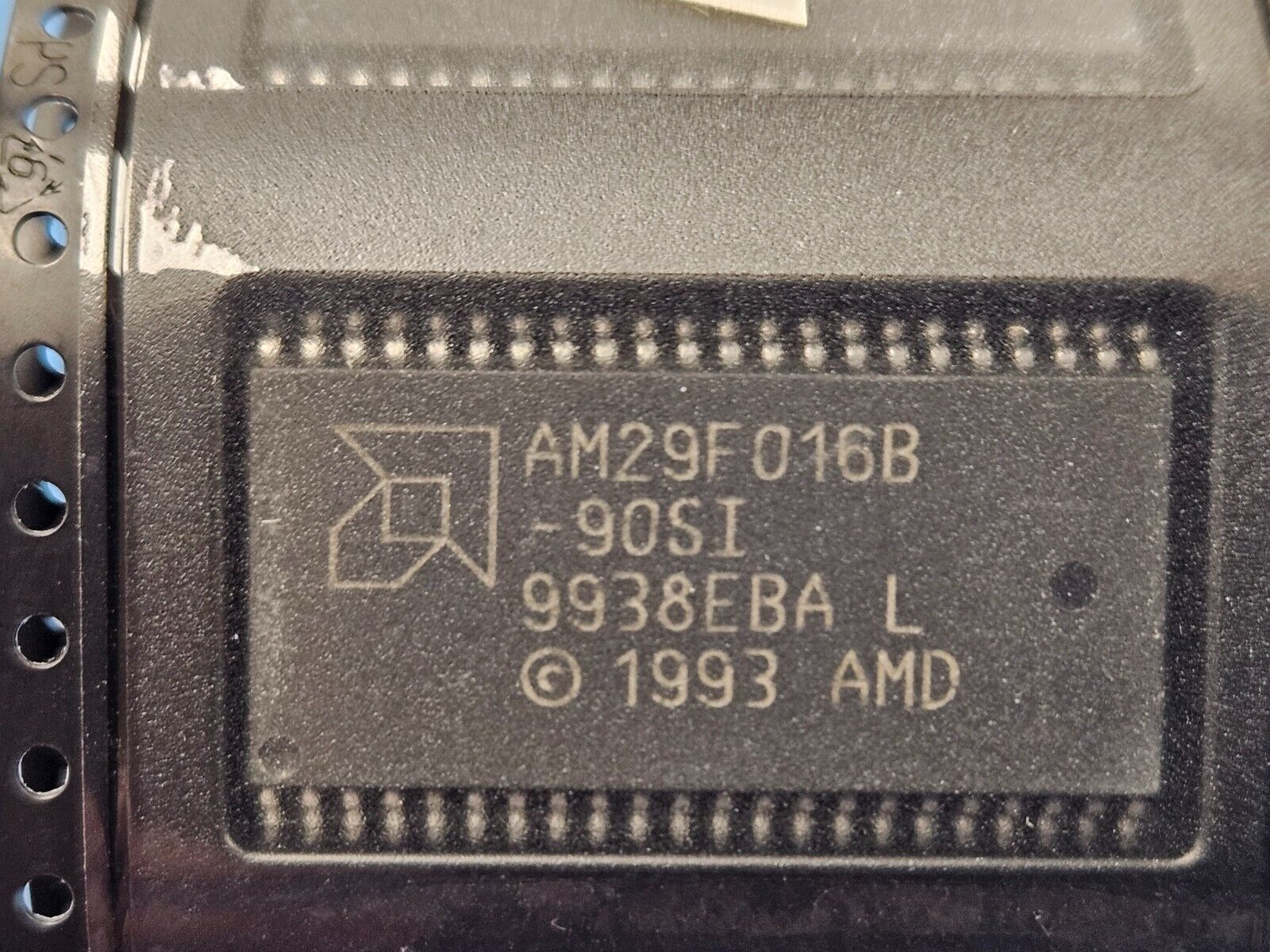

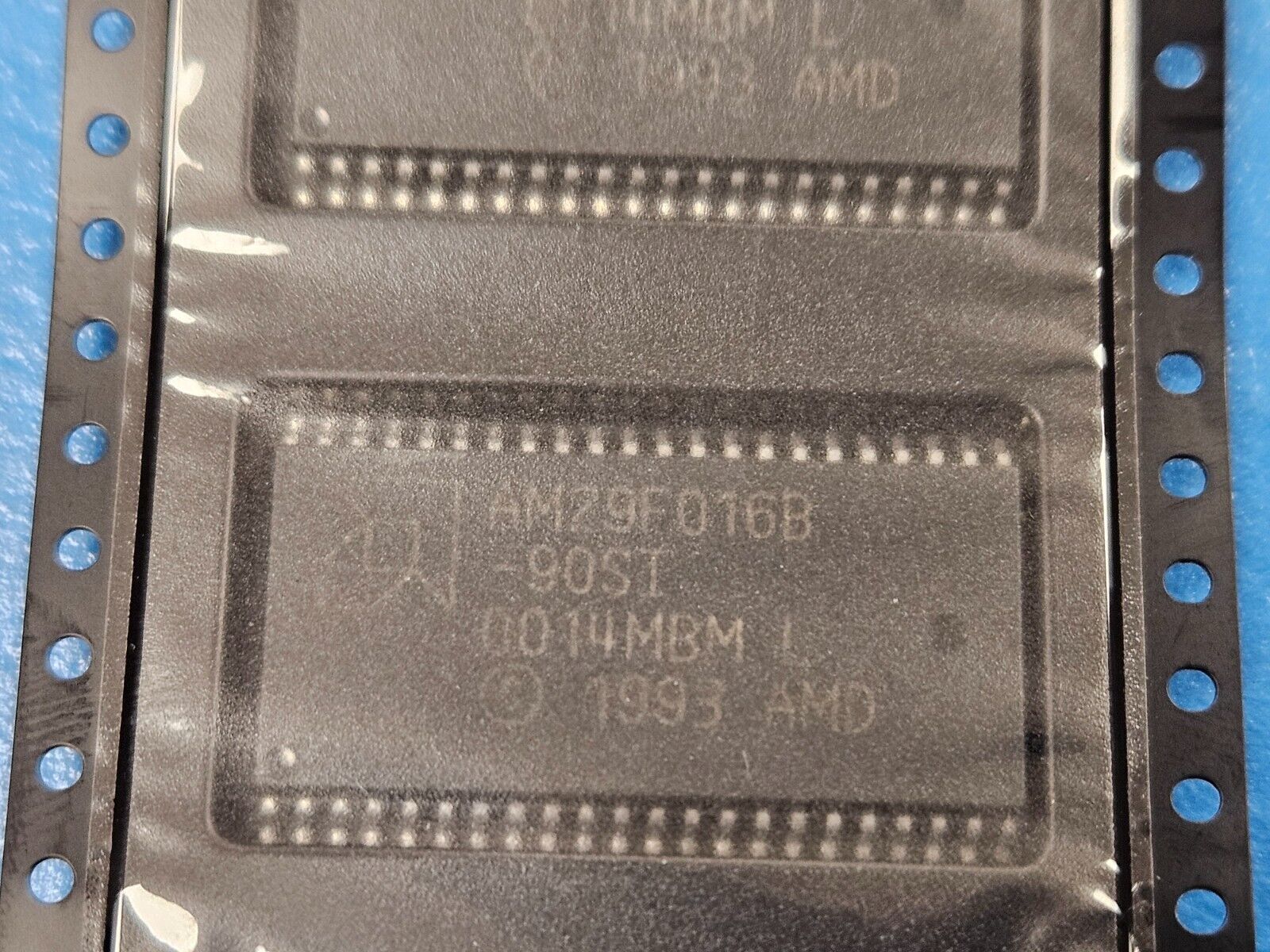

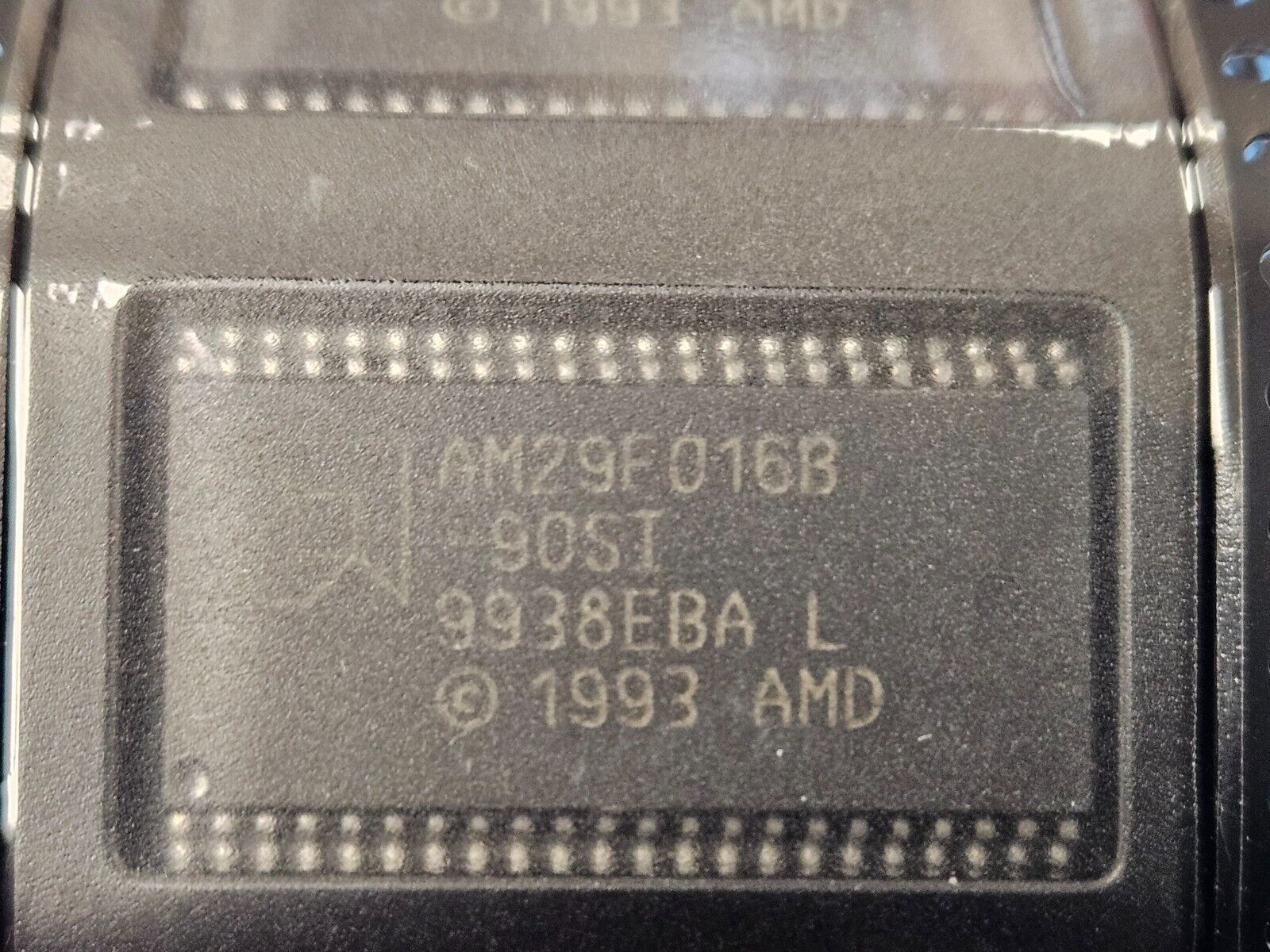

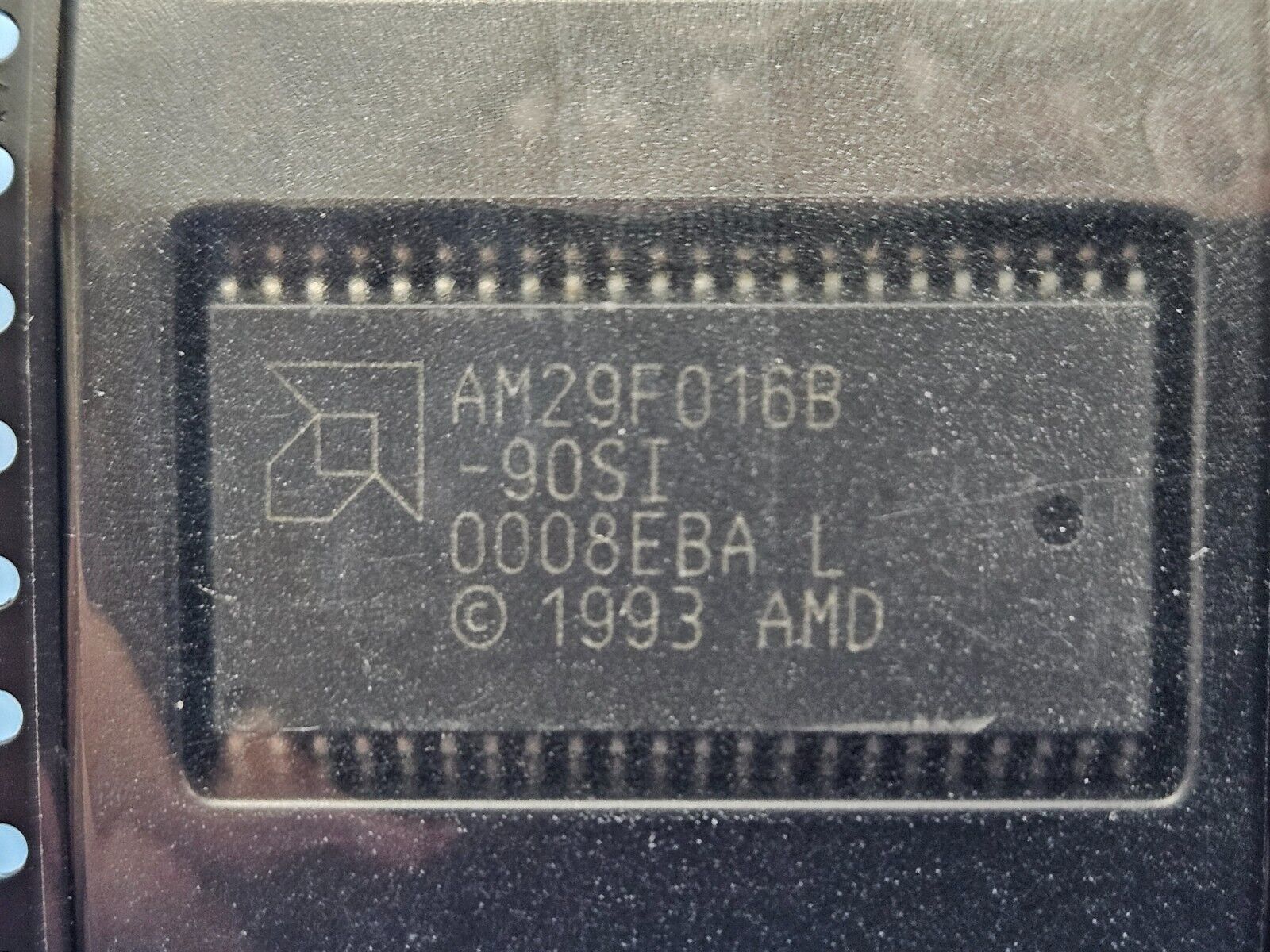

This listing is for (1PC) of AM29F016B-90SI by AMD
Mfr Package Description MO-180AA, SOP-44
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 90.0 ns
Command User Interface YES
Data Polling YES
Data Retention Time-Min 20
JESD-30 Code R-PDSO-G44
JESD-609 Code e0
Memory Density 1.6777216E7 bit
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Sectors/Size 32
Number of Terminals 44
Number of Words 2097152.0 words
Number of Words Code 2M
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 2MX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP44,.63
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Ready/Busy YES
Seated Height-Max 2.8 mm
Standby Current-Max 5.0E-6 Amp
Supply Current-Max 0.06 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Toggle Bit YES
Length 28.2 mm
Width 13.3 mm
Additional Feature MINIMUM 1000K PROGRAM/ERASE CYCLE; 20 YEAR DATA RETENTION
