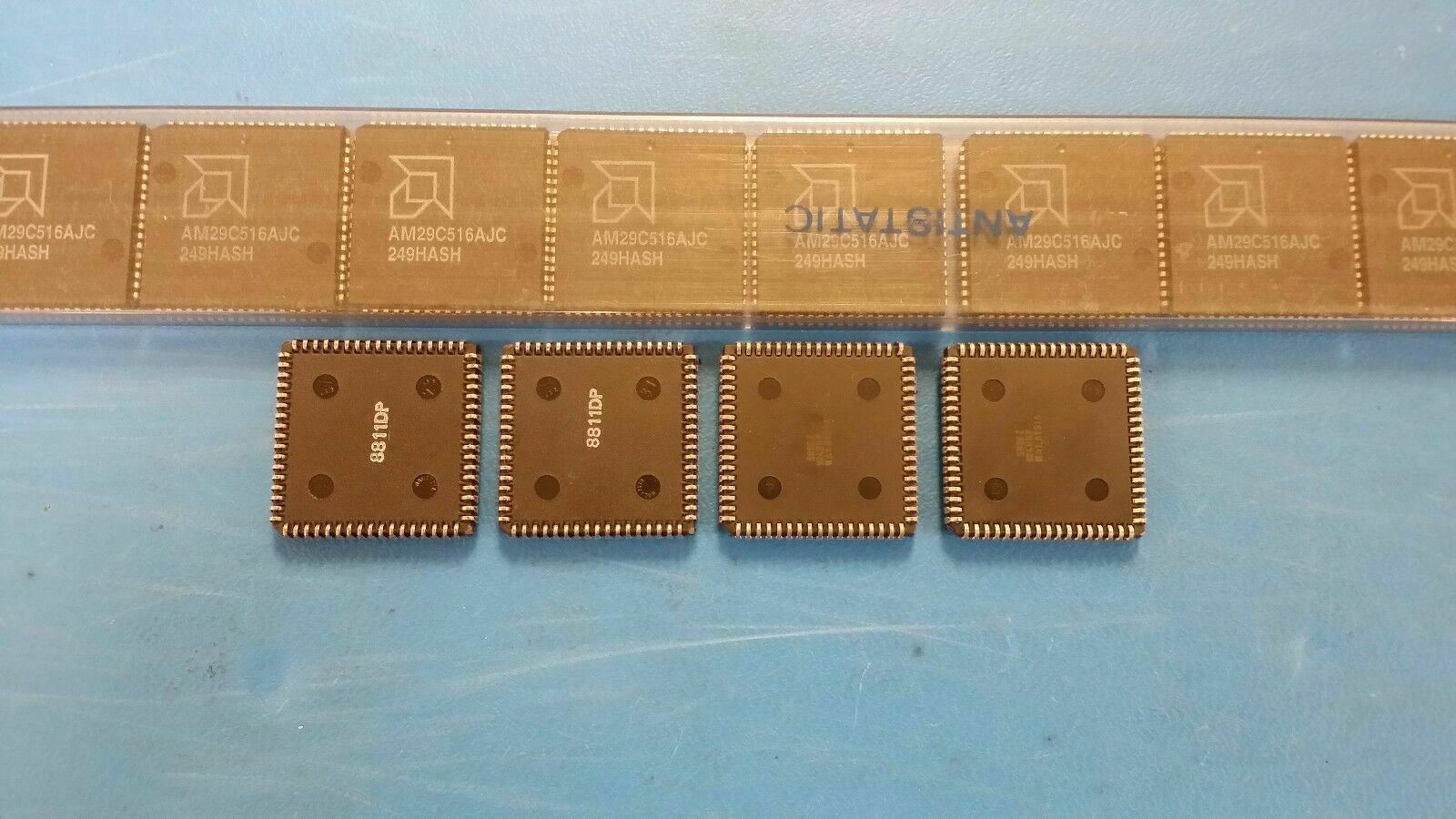

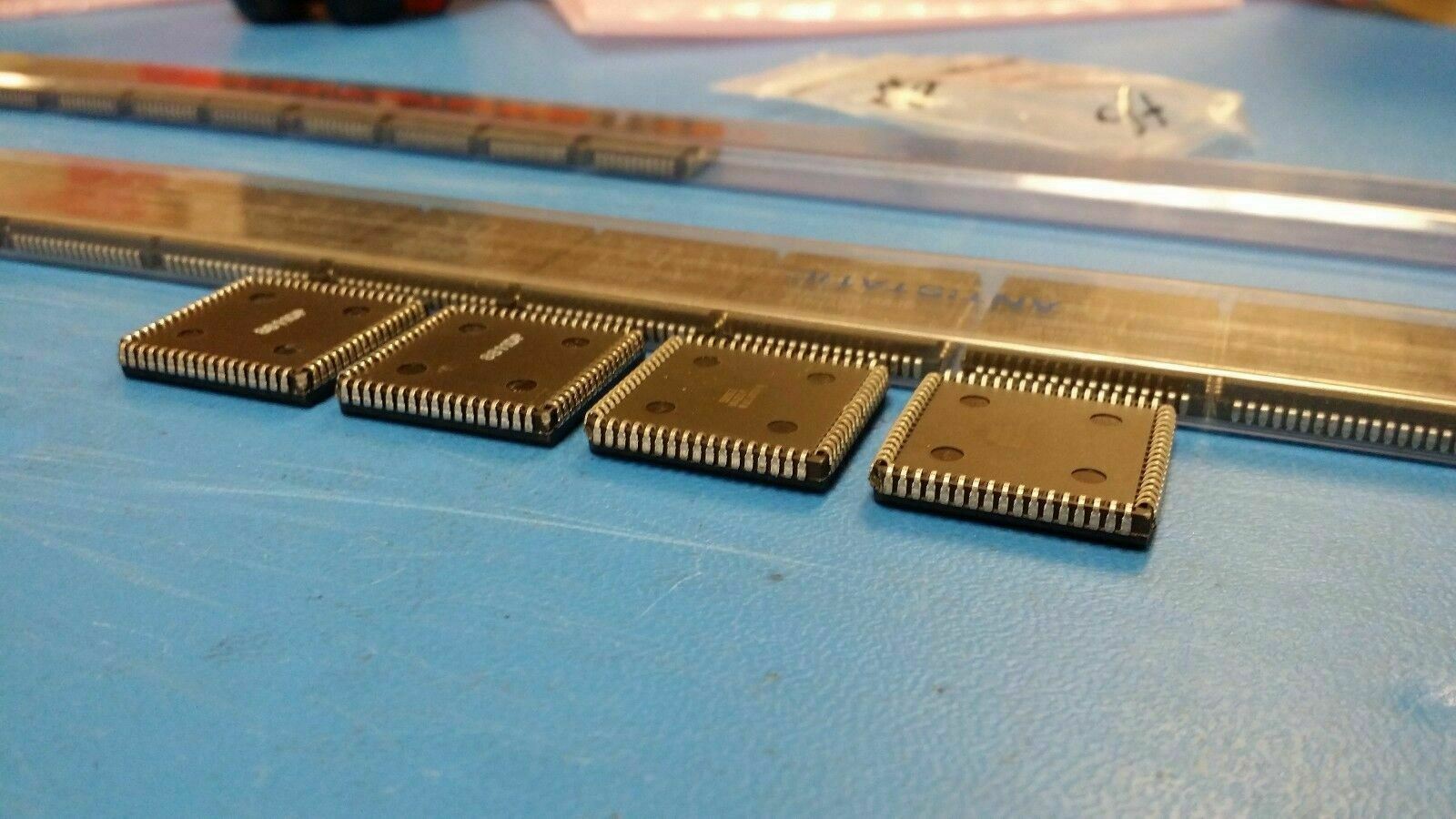

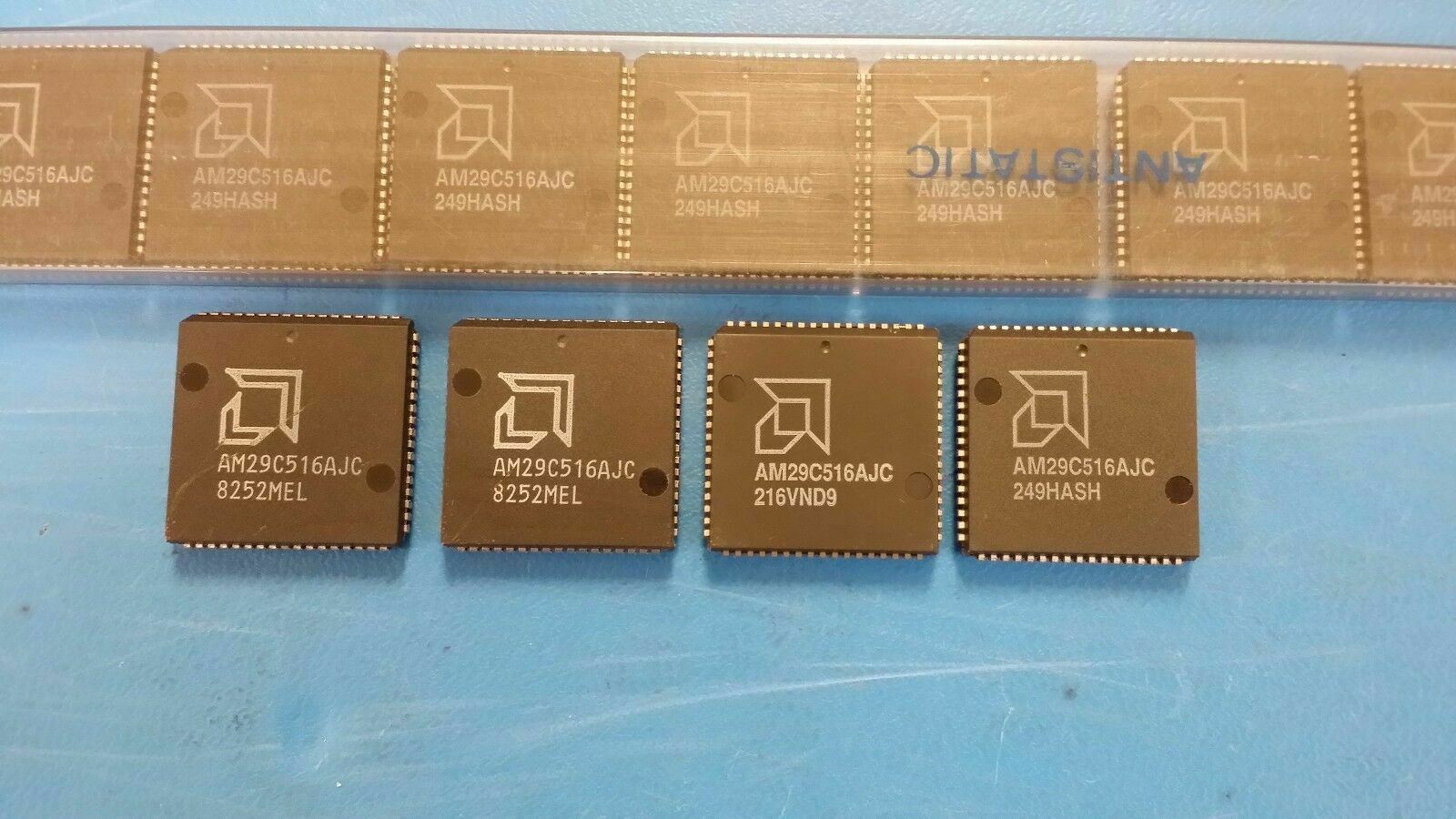

(1PC) AM29C516AJC 16-BIT, DSP-MULTIPLIER, PLCC68
Tax included.
THIS LISTING IS FOR (1PC) OF AM29C516AJC BY AMD
**THIS ITEM IS REFURBISHED AND IS NOT NEW.
SPECIFICATIONS
| Mfr Package Description | PLASTIC, LCC-68 |
| Status | Discontinued |
| Microprocessor/Microcontroller/Peripheral IC Type | DSP PERIPHERAL, MULTIPLIER |
| Boundary Scan | NO |
| External Data Bus Width | 16 |
| JESD-30 Code | S-PQCC-N68 |
| JESD-609 Code | e0 |
| Low Power Mode | NO |
| Number of Terminals | 68 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70 Cel |
| Output Data Bus Width | 32 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCN |
| Package Equivalence Code | LDCC68,1.0SQ |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER |
| Power Supplies | 5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.57 mm |
| Sub Category | DSP Peripherals |
| Supply Voltage-Nom | 5 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Max | 5.5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | NO LEAD |
| Terminal Pitch | 0.4000 mm |
| Terminal Position | QUAD |
| Length | 24.21 mm |
| Width | 24.21 mm |
