(1PC) AM21L48-45DC Standard SRAM, 1KX4, 45ns, NMOS, CDIP18
Tax included.

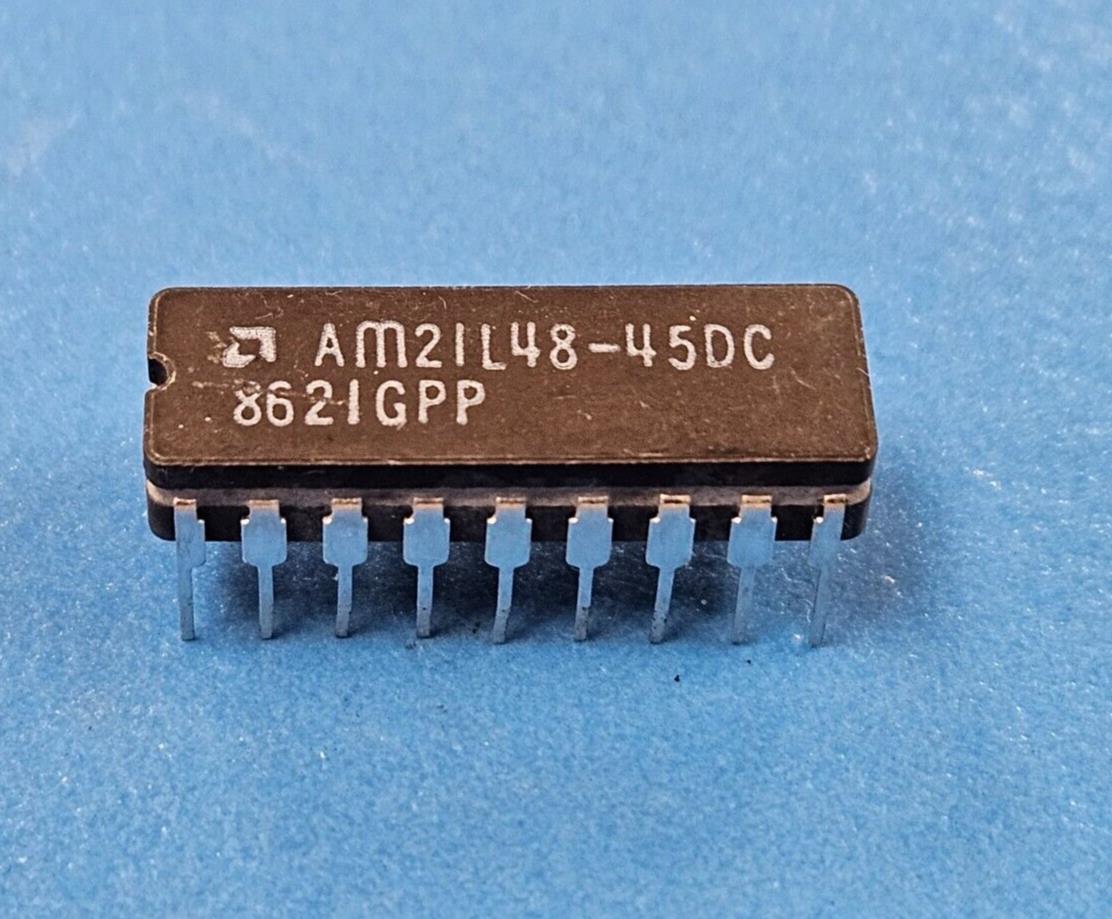

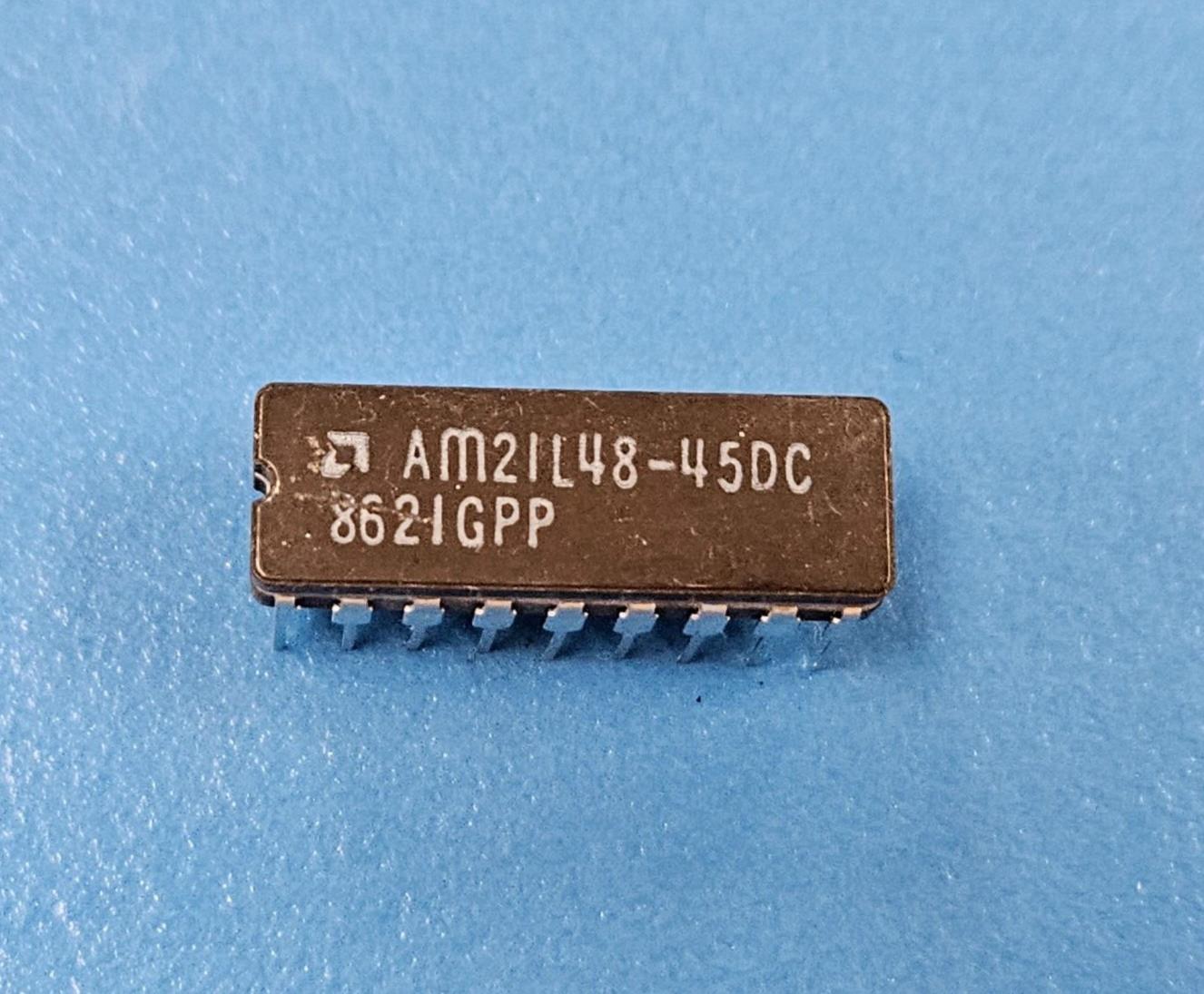

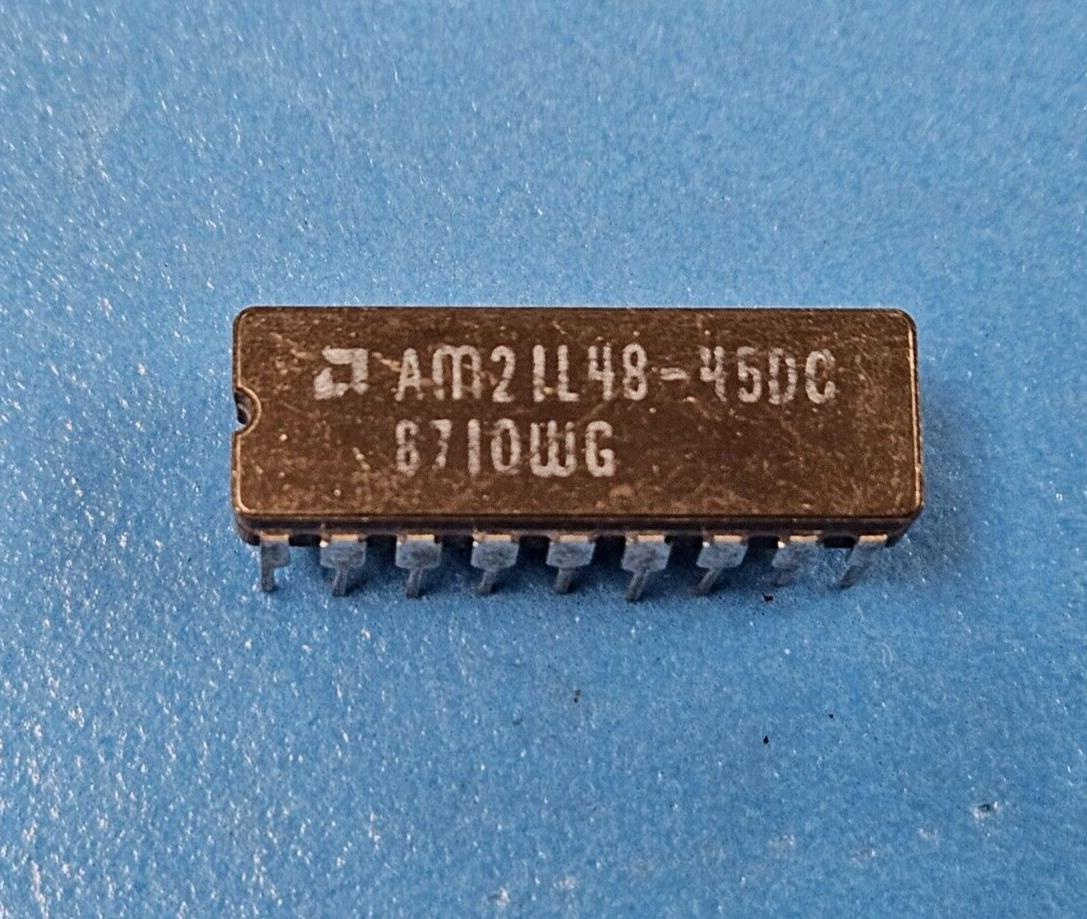

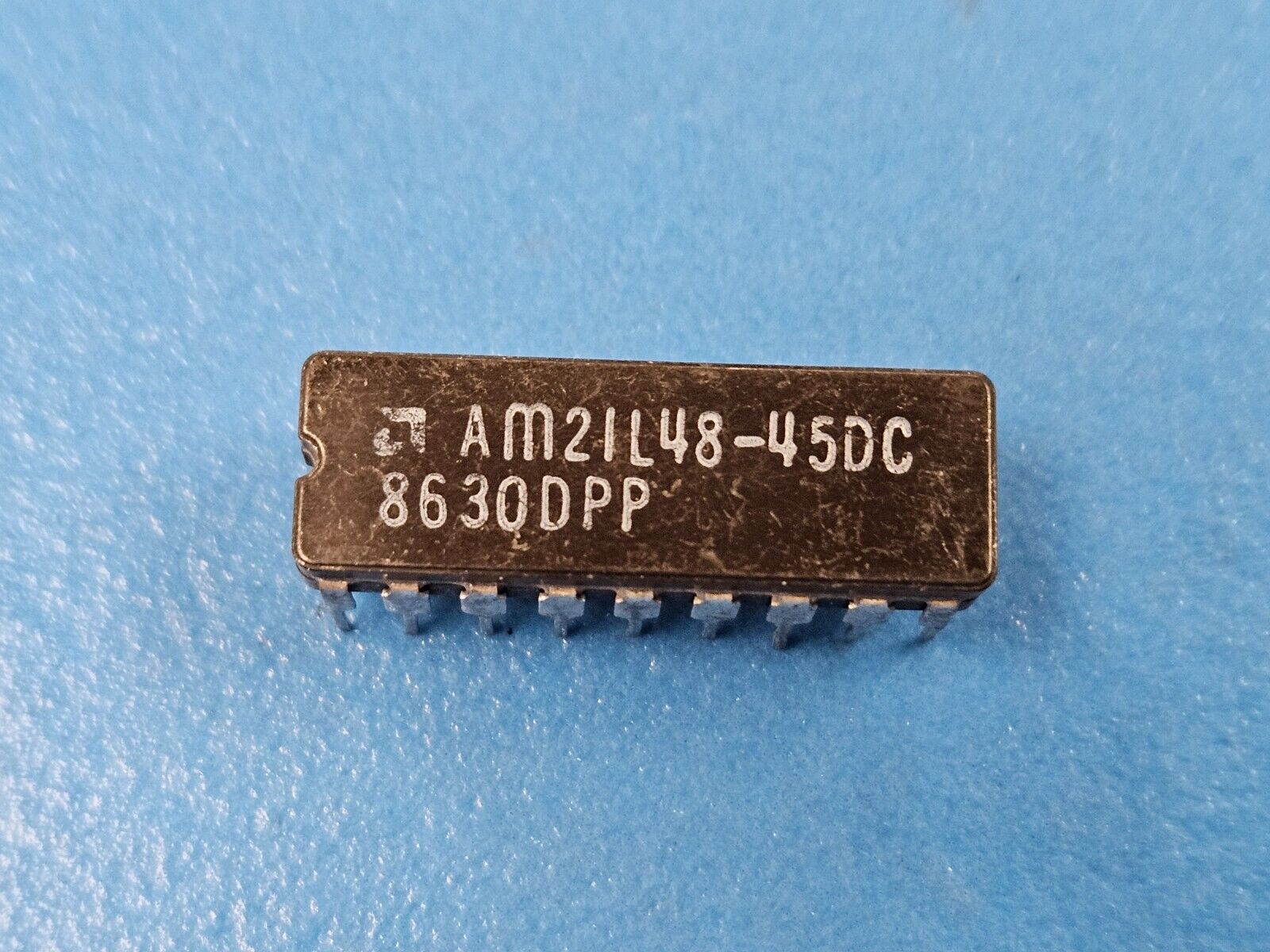

This listing is for (1pc) of AM21L48-45DC by AMD
Mfr Package Description CERAMIC, DIP-18
Status Discontinued
Sub Category SRAMs
Access Time-Max 45.0 ns
I/O Type COMMON
JESD-30 Code R-GDIP-T18
JESD-609 Code e0
Memory Density 4096.0 bit
Memory IC Type STANDARD SRAM
Memory Width 4
Number of Functions 1
Number of Ports 1
Number of Terminals 18
Number of Words 1024.0 words
Number of Words Code 1K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 1KX4
Output Characteristics 3-STATE
Output Enable NO
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP18,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Current-Max 0.125 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology NMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 22.86 mm
Width 7.62 mm
Additional Feature AUTOMATIC POWER-DOWN
