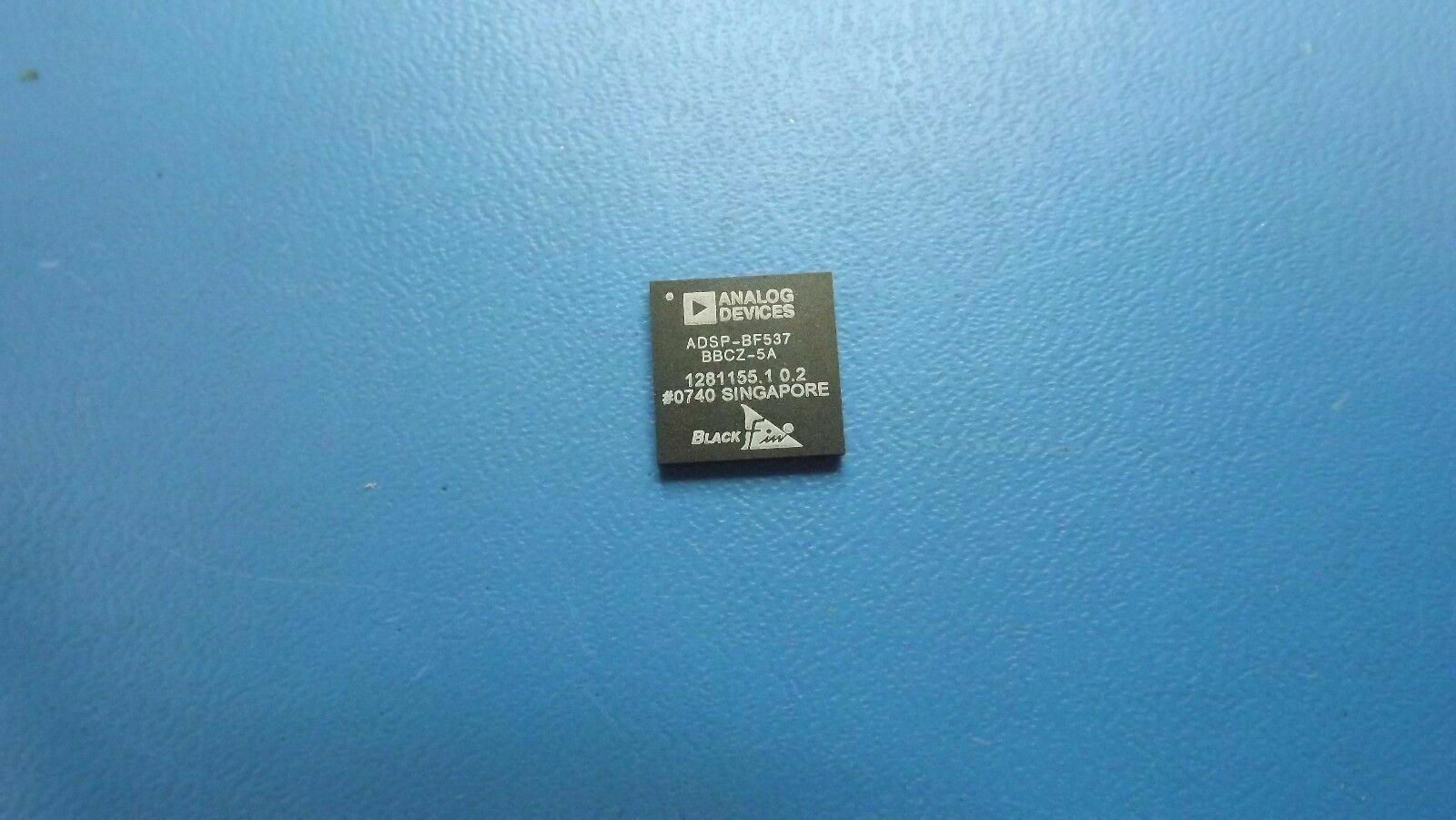

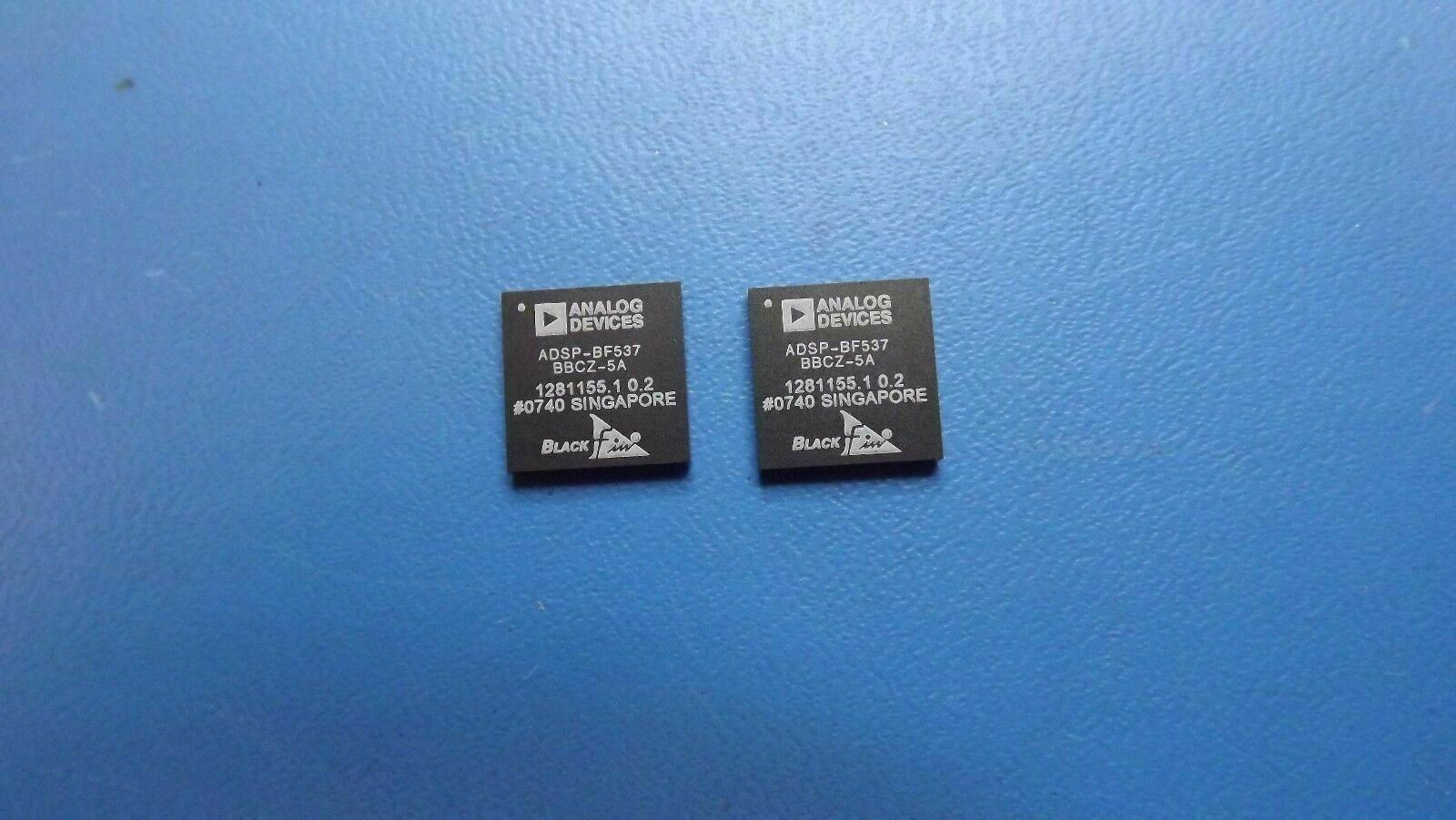

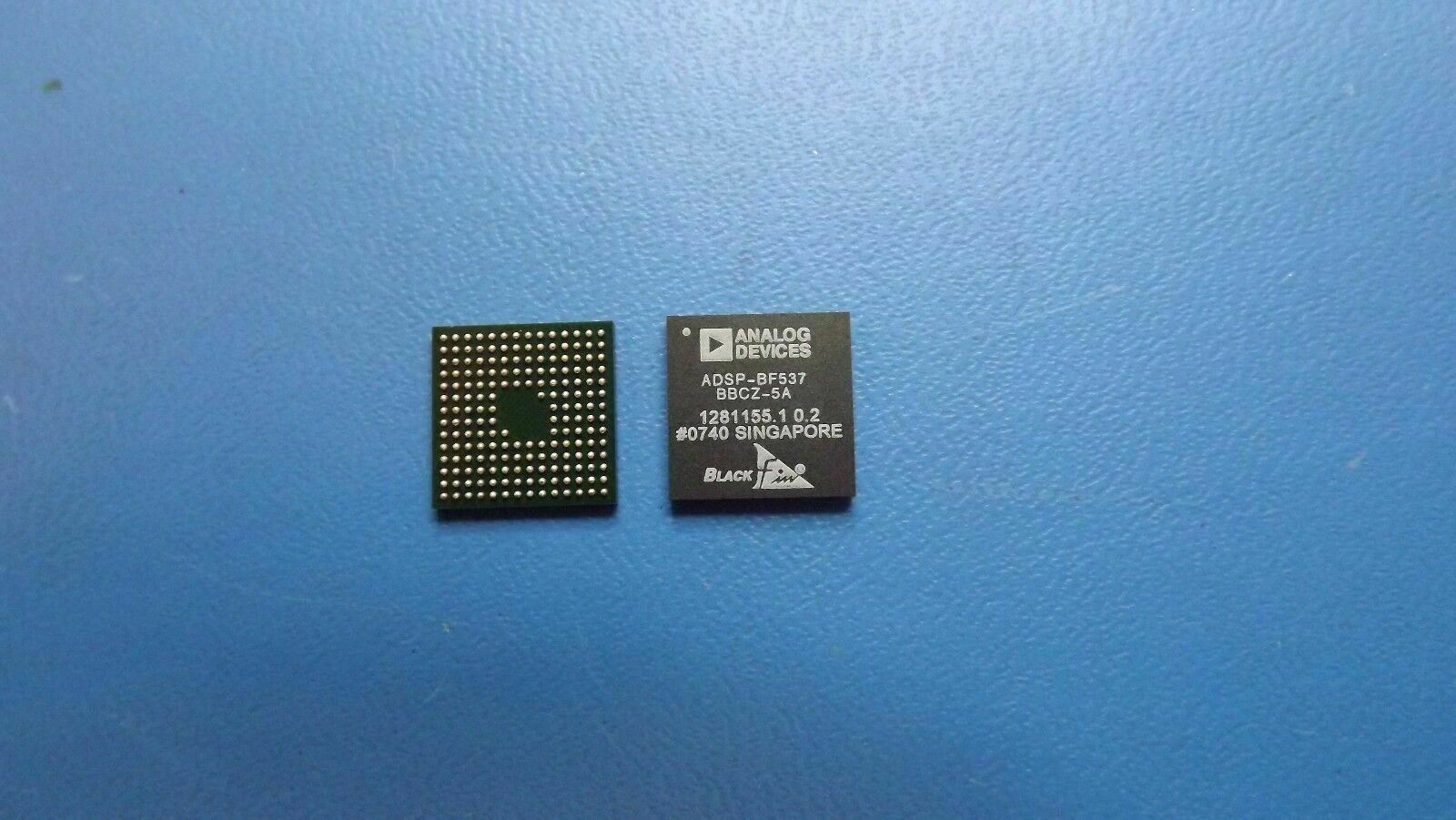

(1PC) ADSP-BF537BBCZ-5A DSP Fixed-Point 16-Bit 500MHz 500MIPS 182-Pin CSP-BGA
Tax included.
THIS LISTING IS FOR (1PC) OF ADSP-BF537BBCZ-5A BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT, MO-205AE, CSPBGA-182 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Microprocessor/Microcontroller/Peripheral IC Type | DIGITAL SIGNAL PROCESSOR, OTHER |
| Address Bus Width | 19.0 |
| Barrel Shifter | YES |
| Bit Size | 32 |
| Boundary Scan | YES |
| Clock Frequency-Max | 500.0 MHz |
| External Data Bus Width | 16.0 |
| Format | FIXED POINT |
| Internal Bus Architecture | MULTIPLE |
| JESD-30 Code | S-PBGA-B182 |
| JESD-609 Code | e1 |
| Low Power Mode | YES |
| Moisture Sensitivity Level | 3 |
| Number of Terminals | 182 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LFBGA |
| Package Equivalence Code | BGA182,14X14,32 |
| Package Shape | SQUARE |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 1.2,2.5/3.3 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.7 mm |
| Speed | 500.0 MHz |
| Sub Category | Microprocessors |
| Supply Voltage-Nom | 1.2 V |
| Supply Voltage-Min | 0.8 V |
| Supply Voltage-Max | 1.32 V |
| Surface Mount | YES |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5) |
| Terminal Form | BALL |
| Terminal Pitch | 0.8 mm |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Length | 12.0 mm |
| Width | 12.0 mm |
| Additional Feature | ALSO REQUIRES 2.5V OR 3V SUPPLY |
