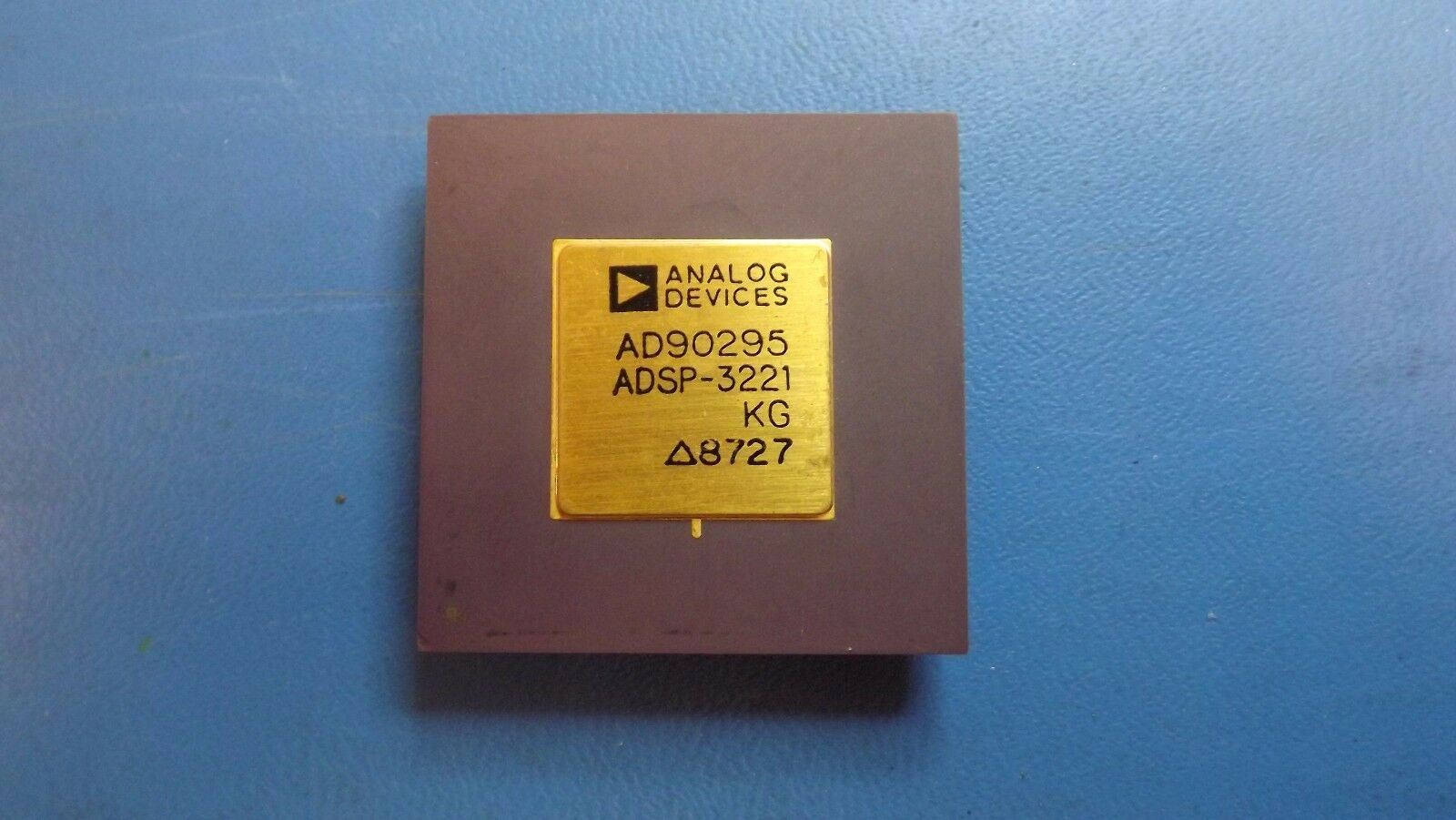

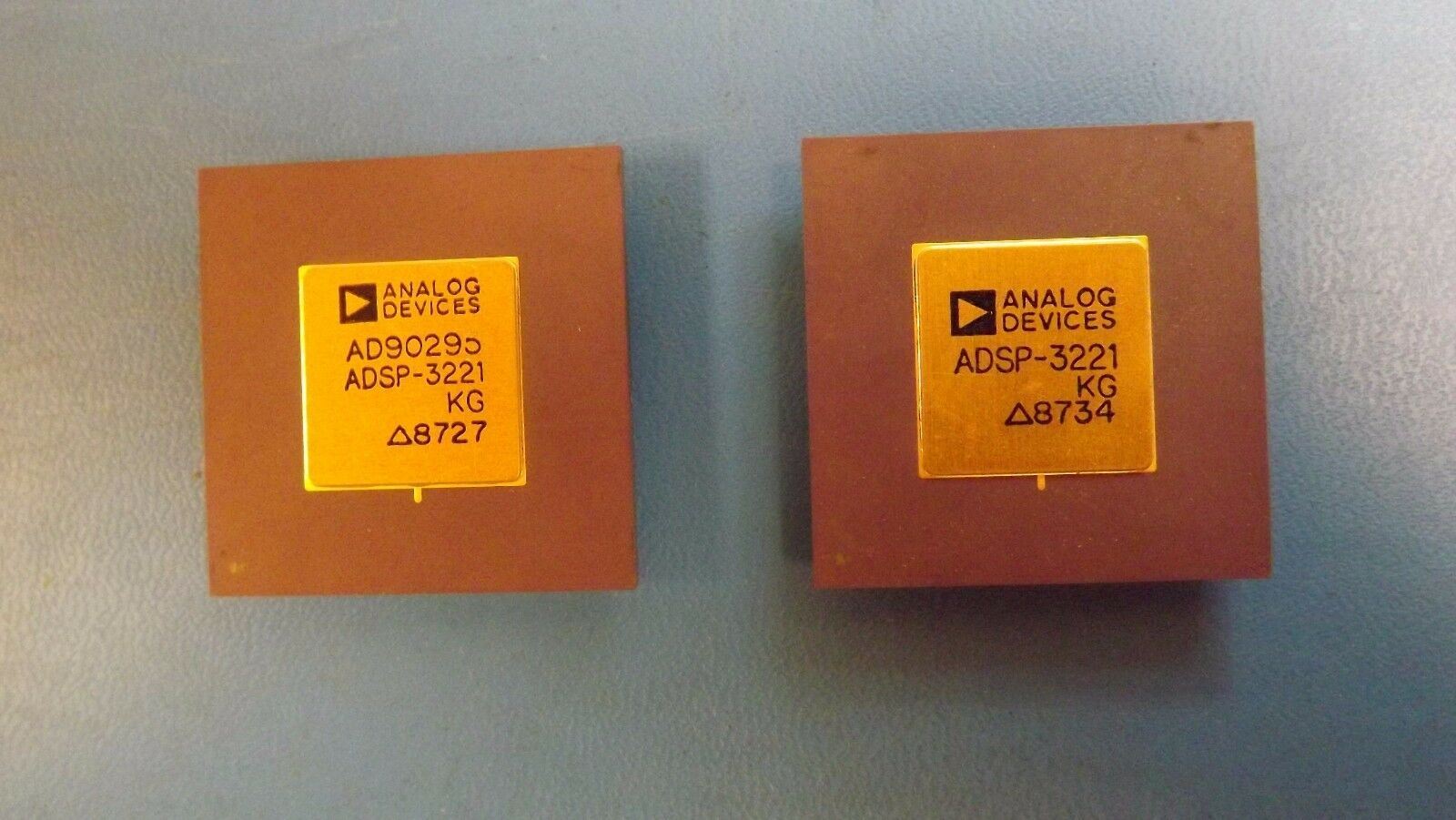

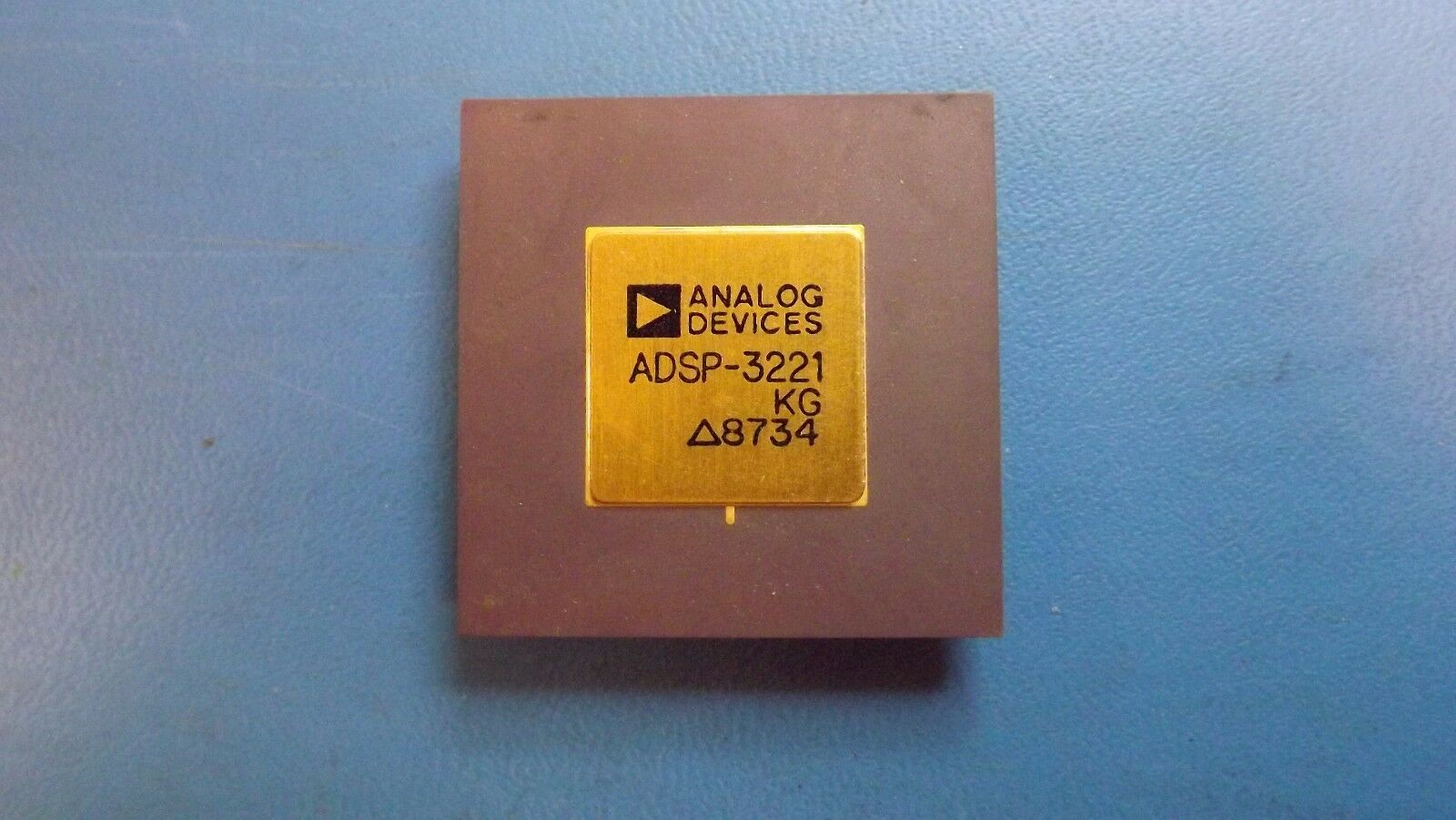

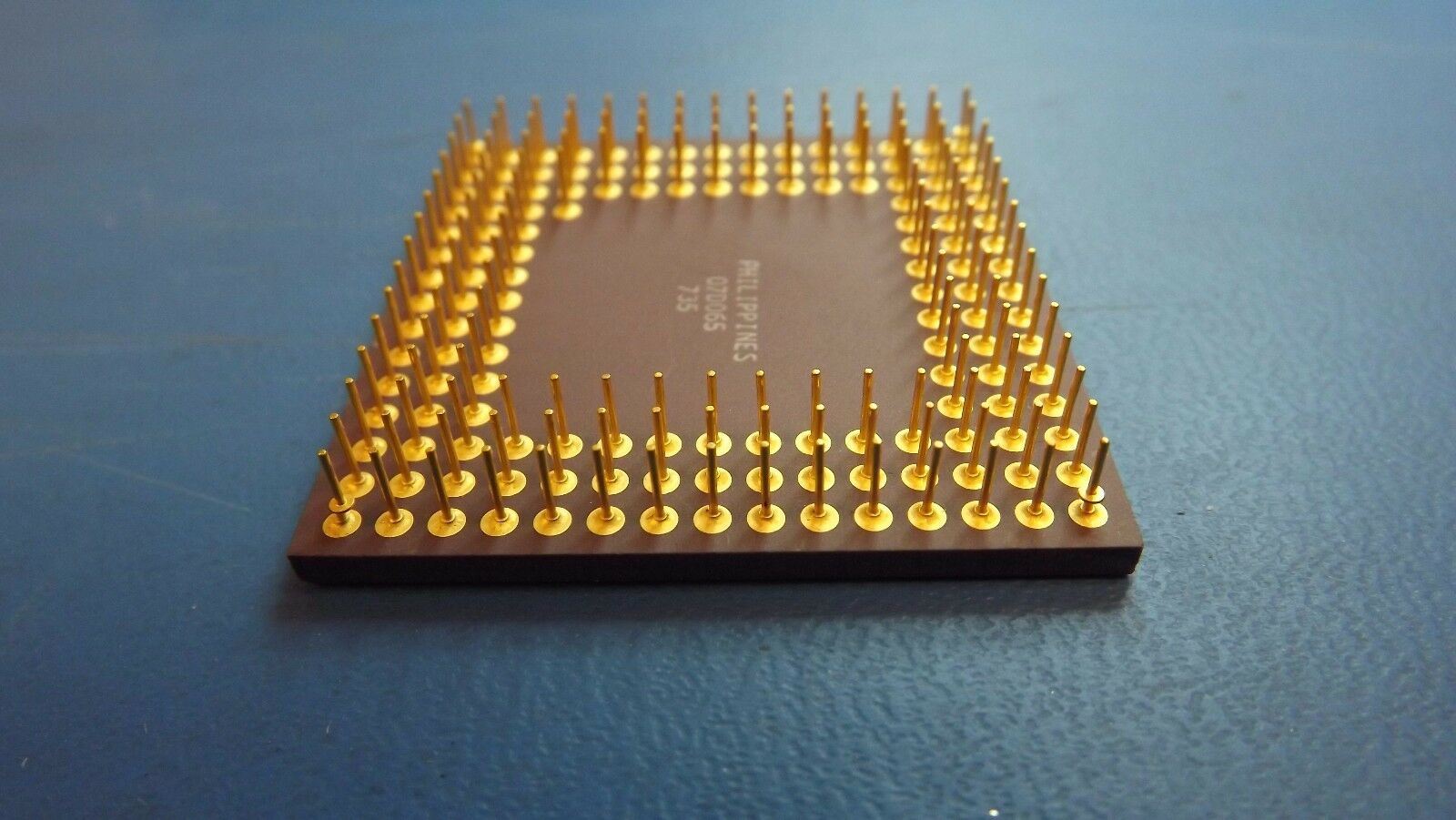

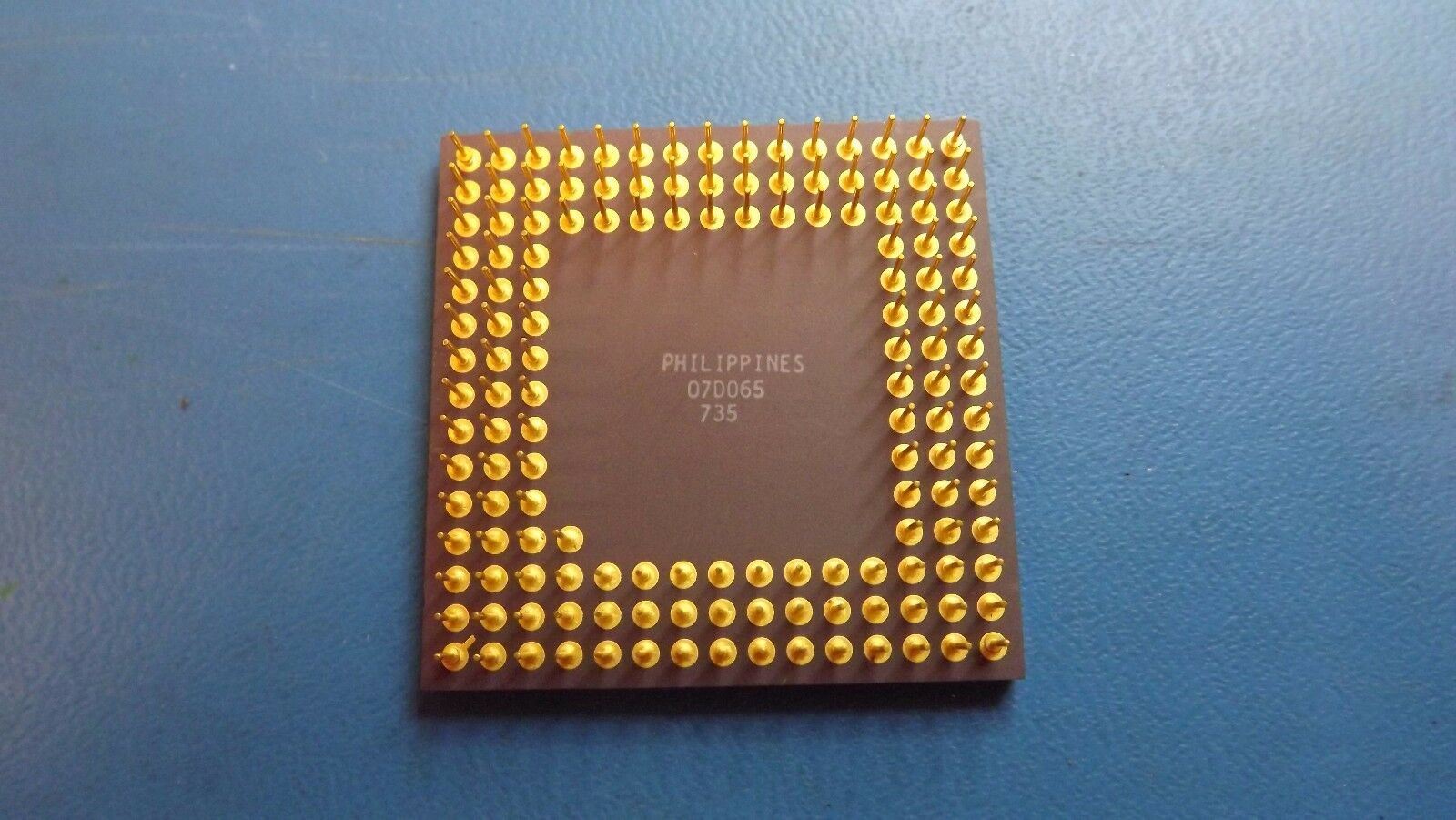

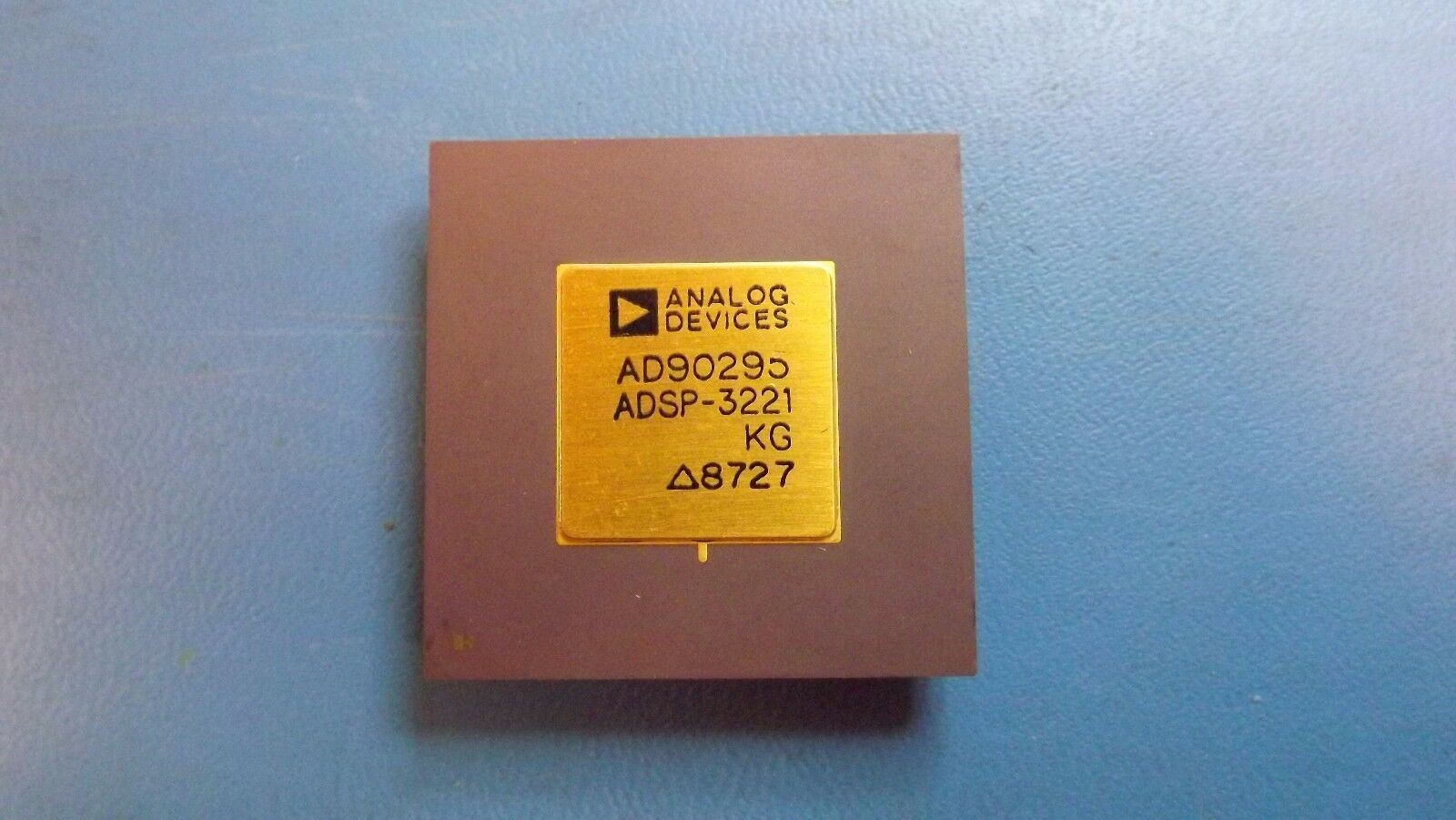

(1PC) ADSP-3221KG 32-BIT, DSP-FLOATING POINT PROCESSOR, CPGA144
Tax included.
THIS LISTING IS FOR (1PC) OF ADSP-3221KG BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | CERAMIC, PGA-144 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Microprocessor/Microcontroller/Peripheral IC Type | DSP PERIPHERAL, FLOATING POINT PROCESSOR |
| Boundary Scan | NO |
| Clock Frequency-Max | 10.0 MHz |
| External Data Bus Width | 32.0 |
| JESD-30 Code | S-CPGA-P144 |
| JESD-609 Code | e0 |
| Low Power Mode | NO |
| Number of Terminals | 144 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Data Bus Width | 32.0 |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED |
| Package Code | PGA |
| Package Equivalence Code | PGA144,15X15 |
| Package Shape | SQUARE |
| Package Style | GRID ARRAY |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies | 5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.19 mm |
| Sub Category | DSP Peripherals |
| Supply Current-Max | 150.0 mA |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Max | 5.25 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | PIN/PEG |
| Terminal Pitch | 2.54 mm |
| Terminal Position | PERPENDICULAR |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 40.0 mm |
| Width | 40.0 mm |
