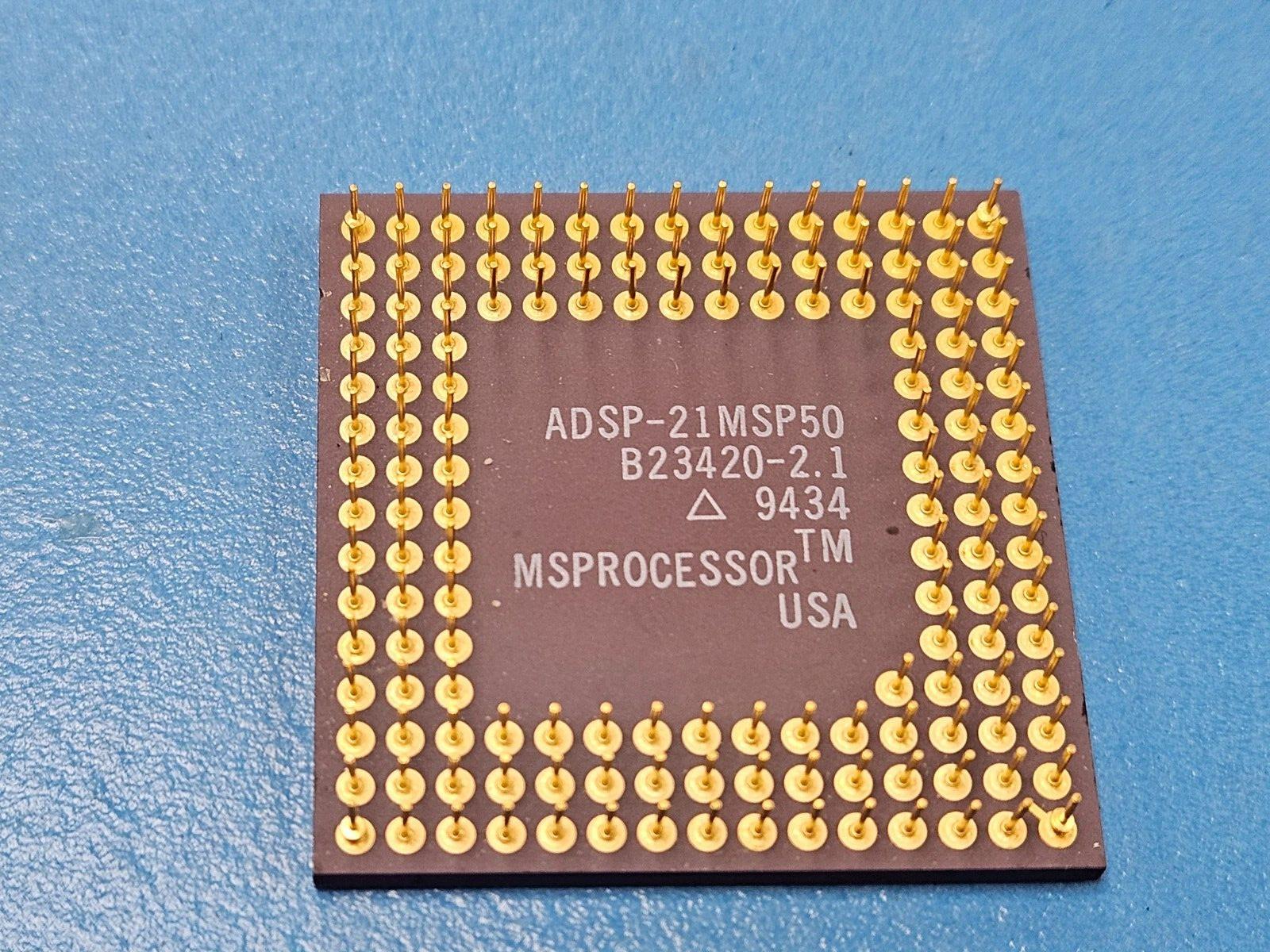

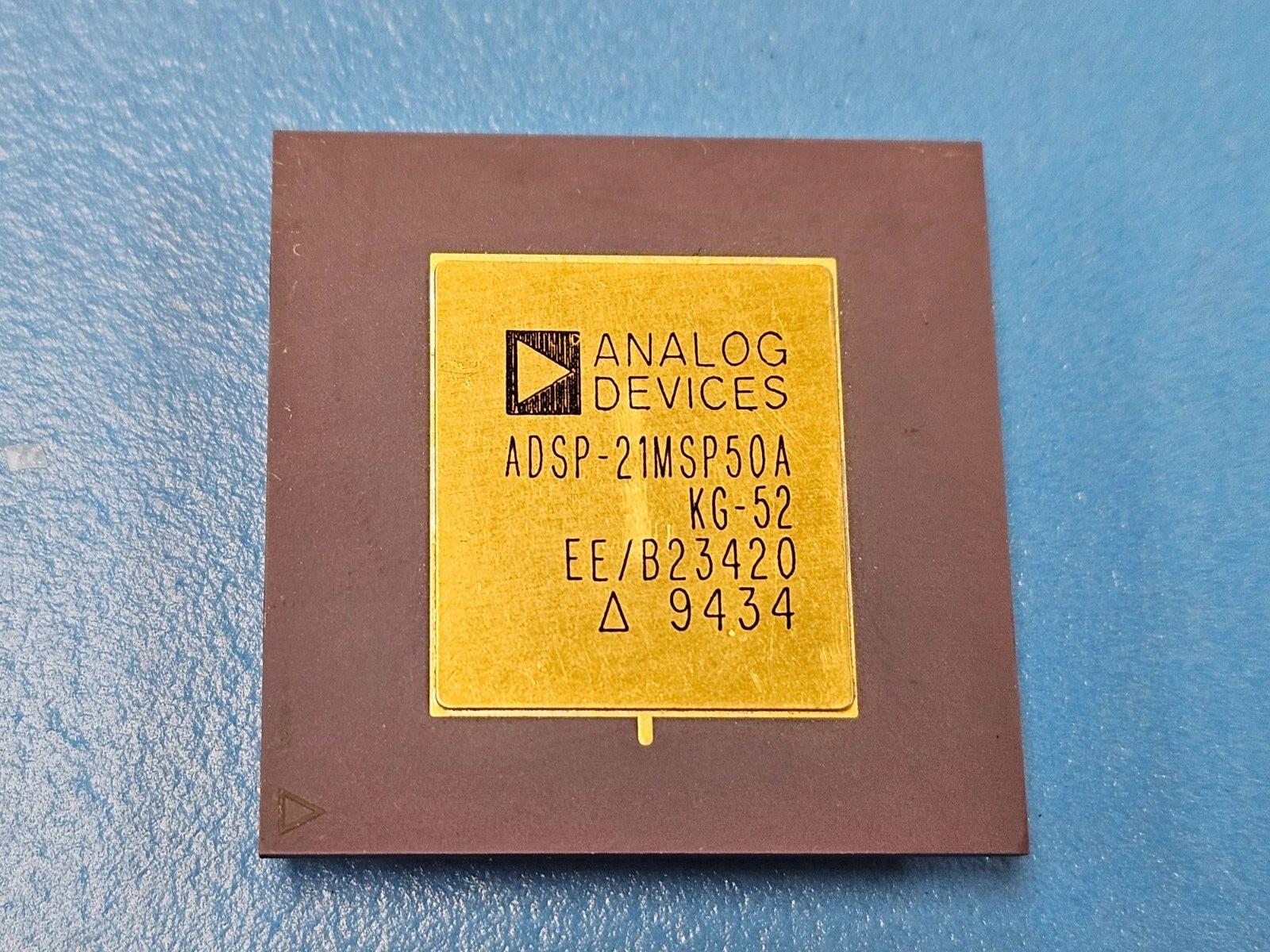

(1PC) ADSP-21MSP50AKG52 Mixed Signal DSP Controller, 16-Bit, PGA-144
Tax included.
This listing is for (1pc) of ADSP-21MSP50AKG52 by Analog Devices
Mfr Package Description PGA-144
Status Discontinued
Address Bus Width 14.0
Barrel Shifter YES
Bit Size 16
Boundary Scan NO
Clock Frequency-Max 13.0 MHz
External Data Bus Width 24.0
Format FIXED POINT
Integrated Cache NO
Internal Bus Architecture MULTIPLE
JESD-30 Code S-CPGA-P144
JESD-609 Code e0
Low Power Mode YES
Number of DMA Channels 0.0
Number of External Interrupts 3.0
Number of Serial I/Os 2.0
Number of Terminals 144
Number of Timers 1.0
On Chip Data RAM Width 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code PGA
Package Equivalence Code PGA144,15X15
Package Shape SQUARE
Package Style GRID ARRAY
Power Supplies 5
Qualification Status Not Qualified
RAM (words) 512
Sub Category Digital Signal Processors
Supply Current-Max 90.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Gold
Terminal Form PIN/PEG
Terminal Pitch 2.54 mm
Terminal Position PERPENDICULAR
Additional Feature 16-BIT SIGMA-DELTA ADC AND DAC; 8/16 BIT PARALLEL HOST INTERFACE PORT; SINGLE CYCLE INSTR EXECUTION
