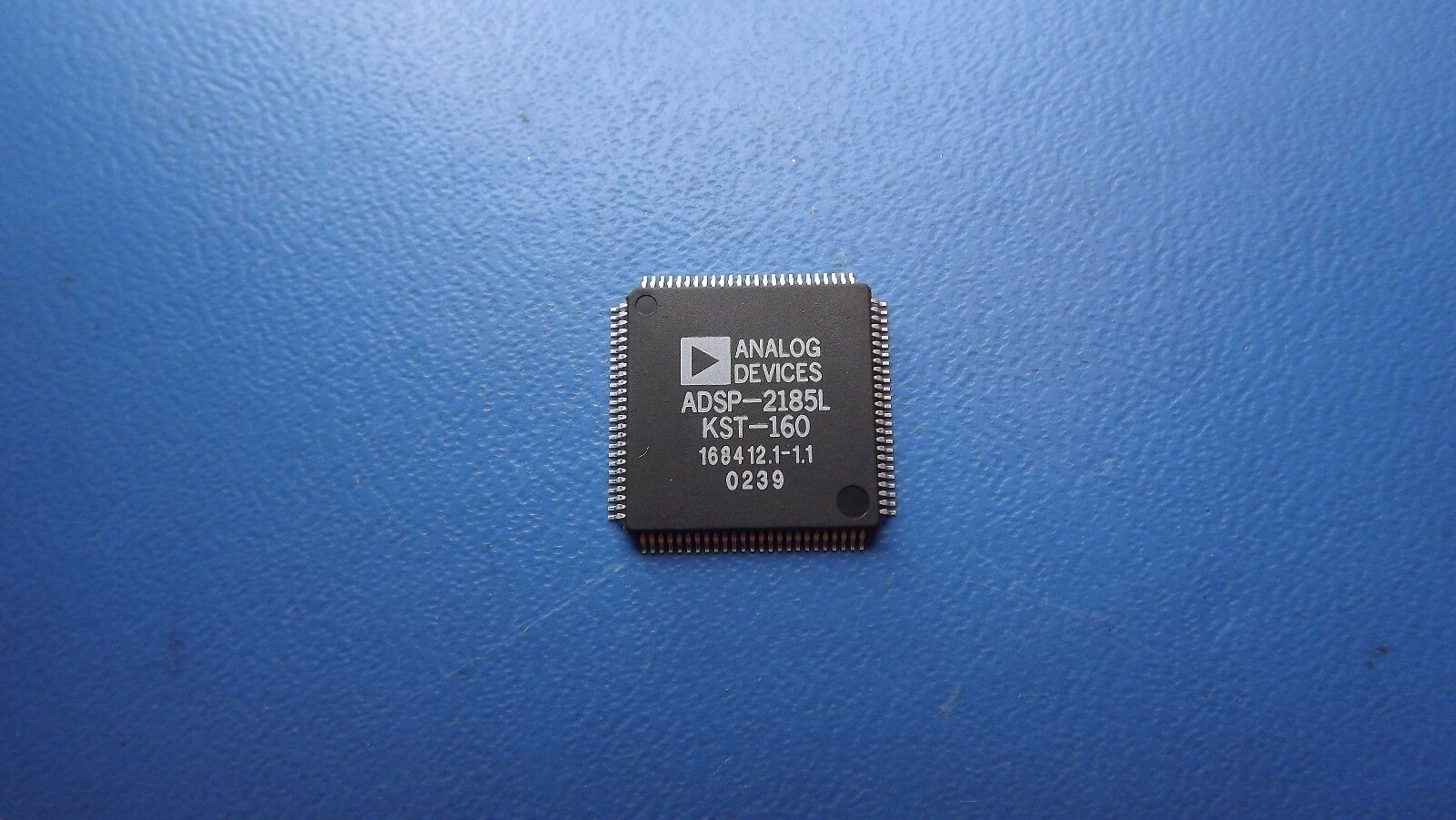

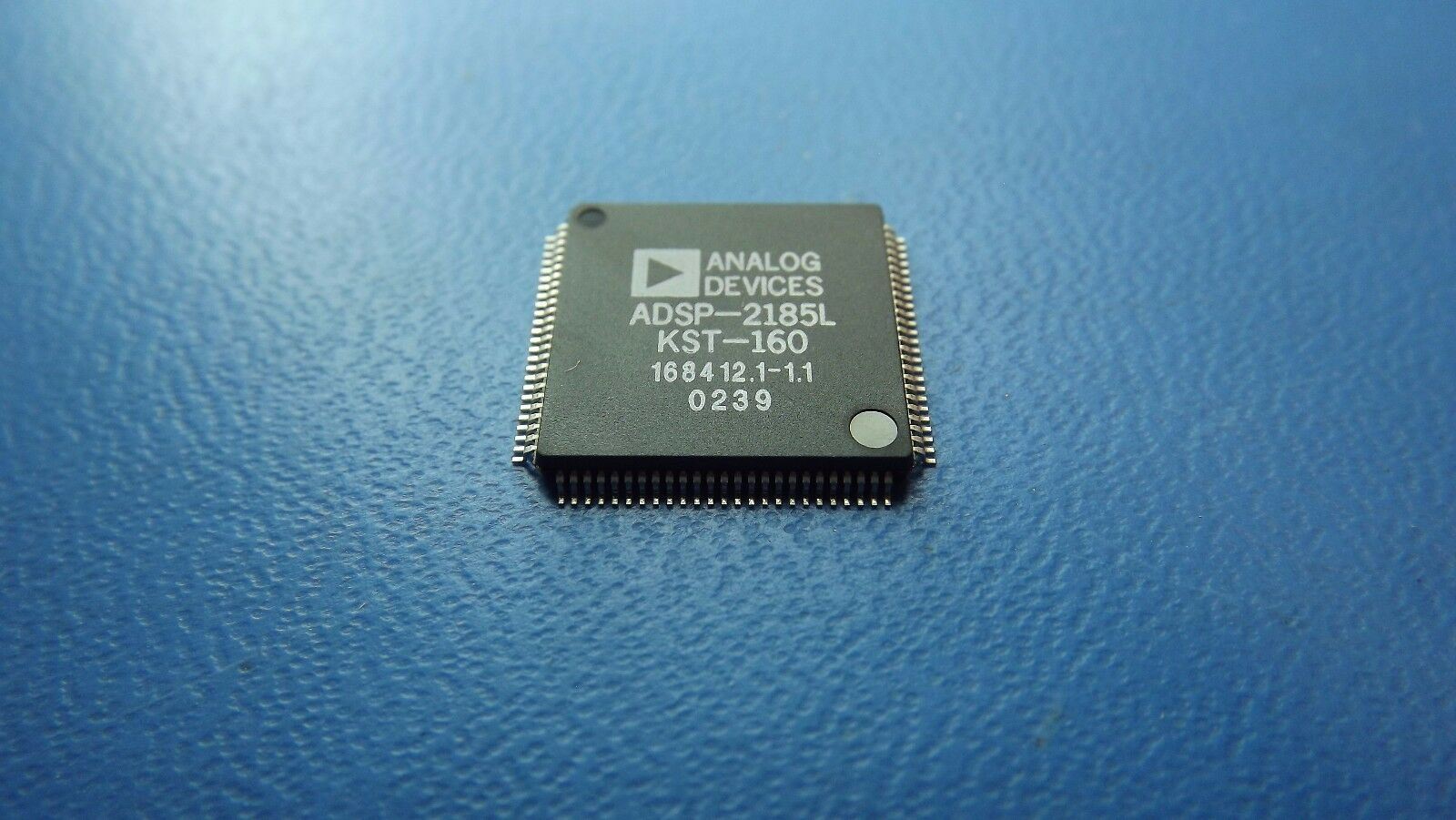

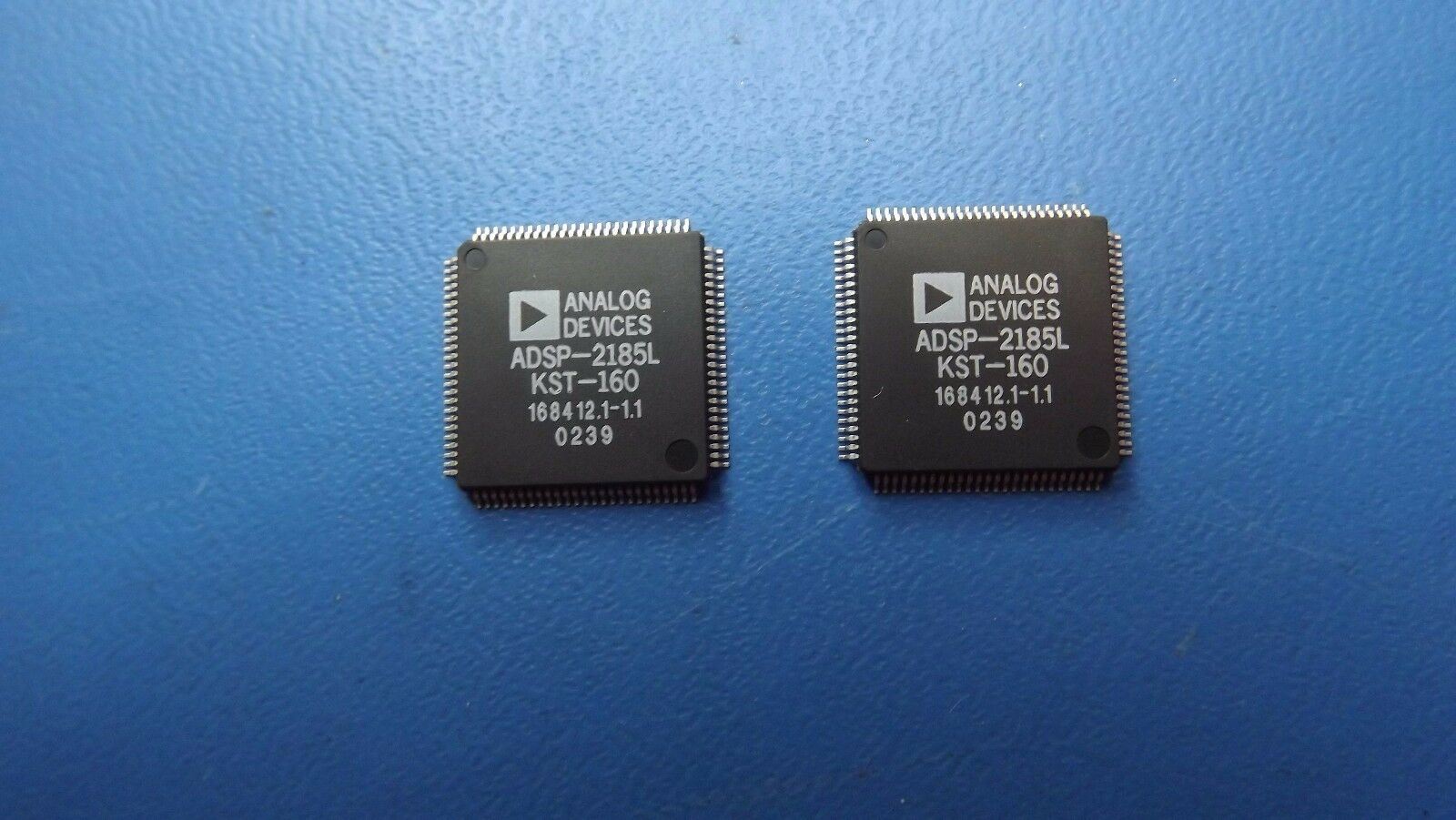

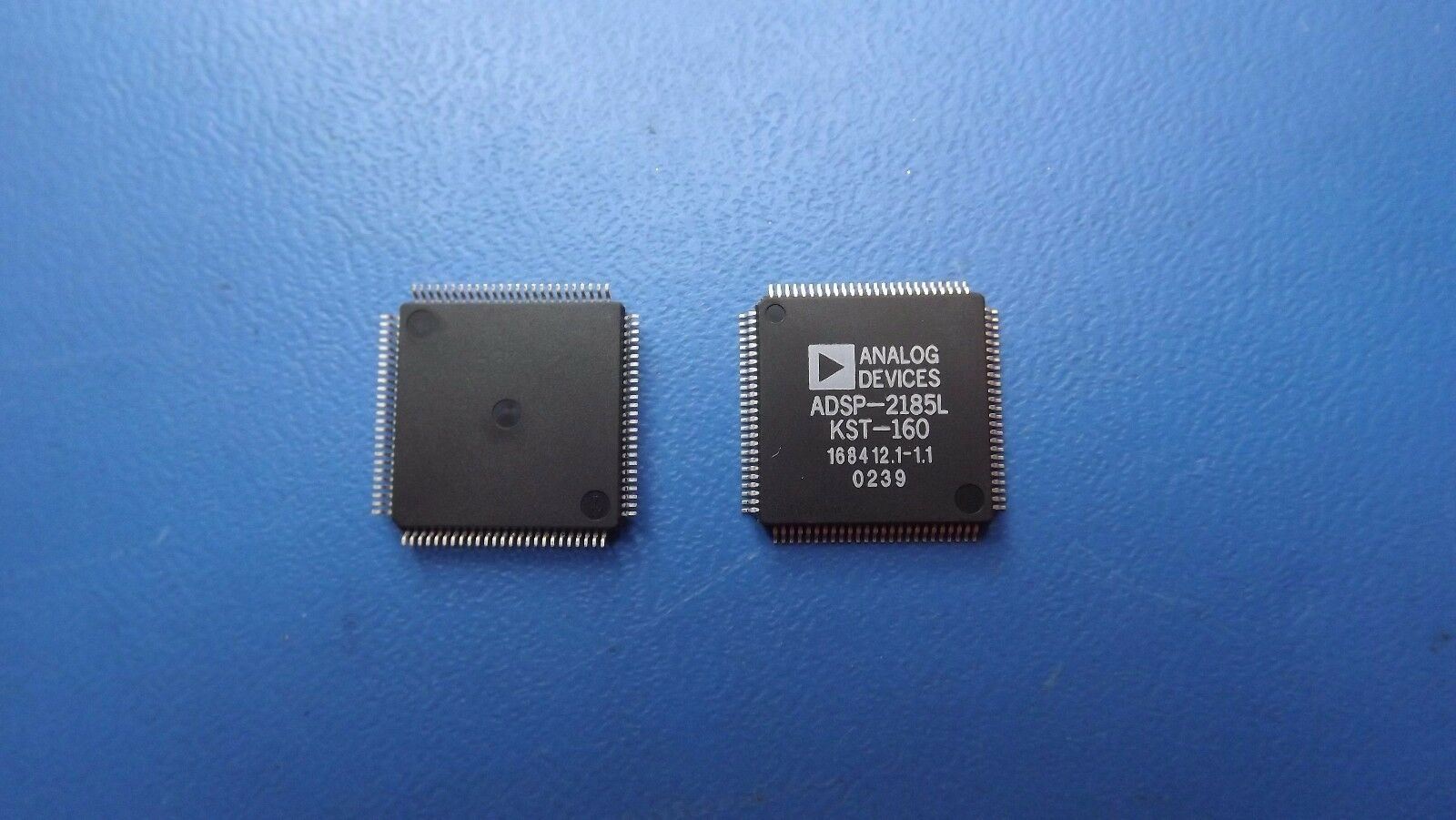

(1PC) ADSP-2185LKST-160 DSP Fixed-Point 16-Bit 40MHz 40MIPS 100-Pin LQFP
Tax included.
THIS LISTING IS FOR (1PC) OF ADSP-2185LKST-160 BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | MS-026BED, LQFP-100 |
| Status | Discontinued |
| Microprocessor/Microcontroller/Peripheral IC Type | DIGITAL SIGNAL PROCESSOR, OTHER |
| Address Bus Width | 14.0 |
| Barrel Shifter | YES |
| Boundary Scan | NO |
| Clock Frequency-Max | 26.3 MHz |
| External Data Bus Width | 24.0 |
| Format | FIXED POINT |
| Internal Bus Architecture | MULTIPLE |
| JESD-30 Code | S-PQFP-G100 |
| Low Power Mode | YES |
| Number of Terminals | 100 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LFQFP |
| Package Shape | SQUARE |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.6 mm |
| Supply Voltage-Nom | 3.3 V |
| Supply Voltage-Min | 3.0 V |
| Supply Voltage-Max | 3.6 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5 mm |
| Terminal Position | QUAD |
| Length | 14.0 mm |
| Width | 14.0 mm |
