(1PC) ADSP-2181KS-133 Processor, 16-Bit Size, 24-Ext Bit, 16.67MHz, PQFP128
Tax included.

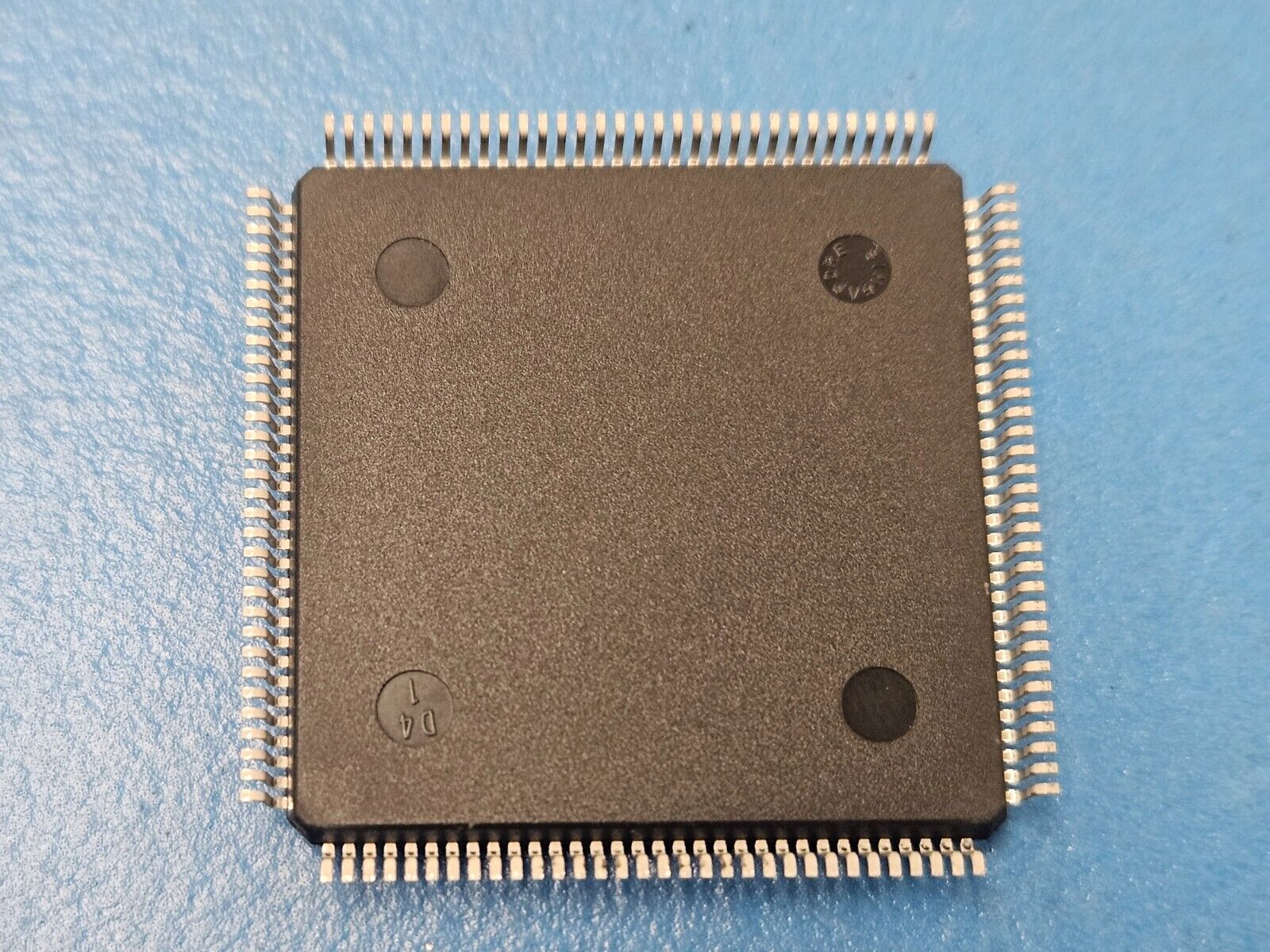

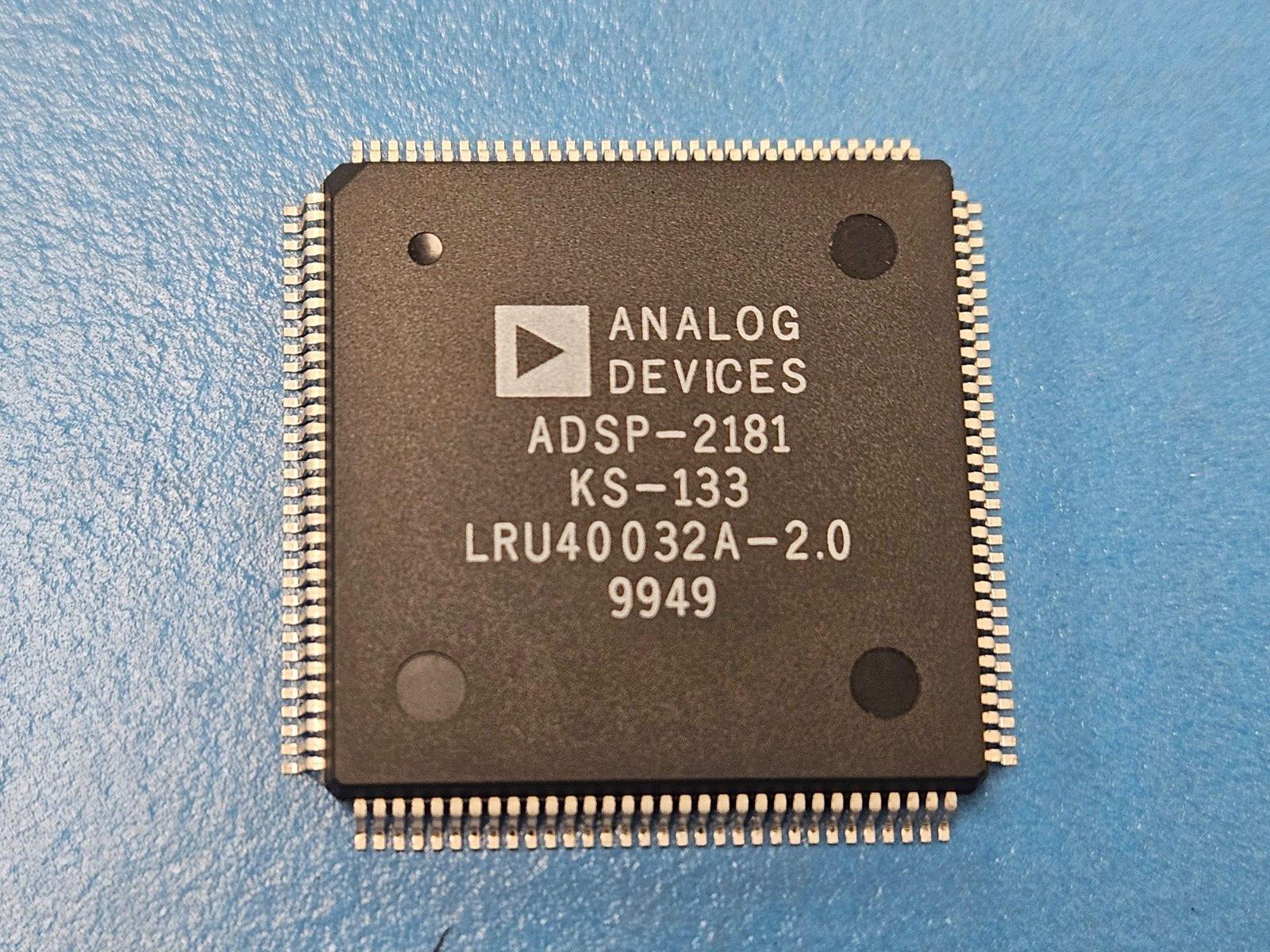

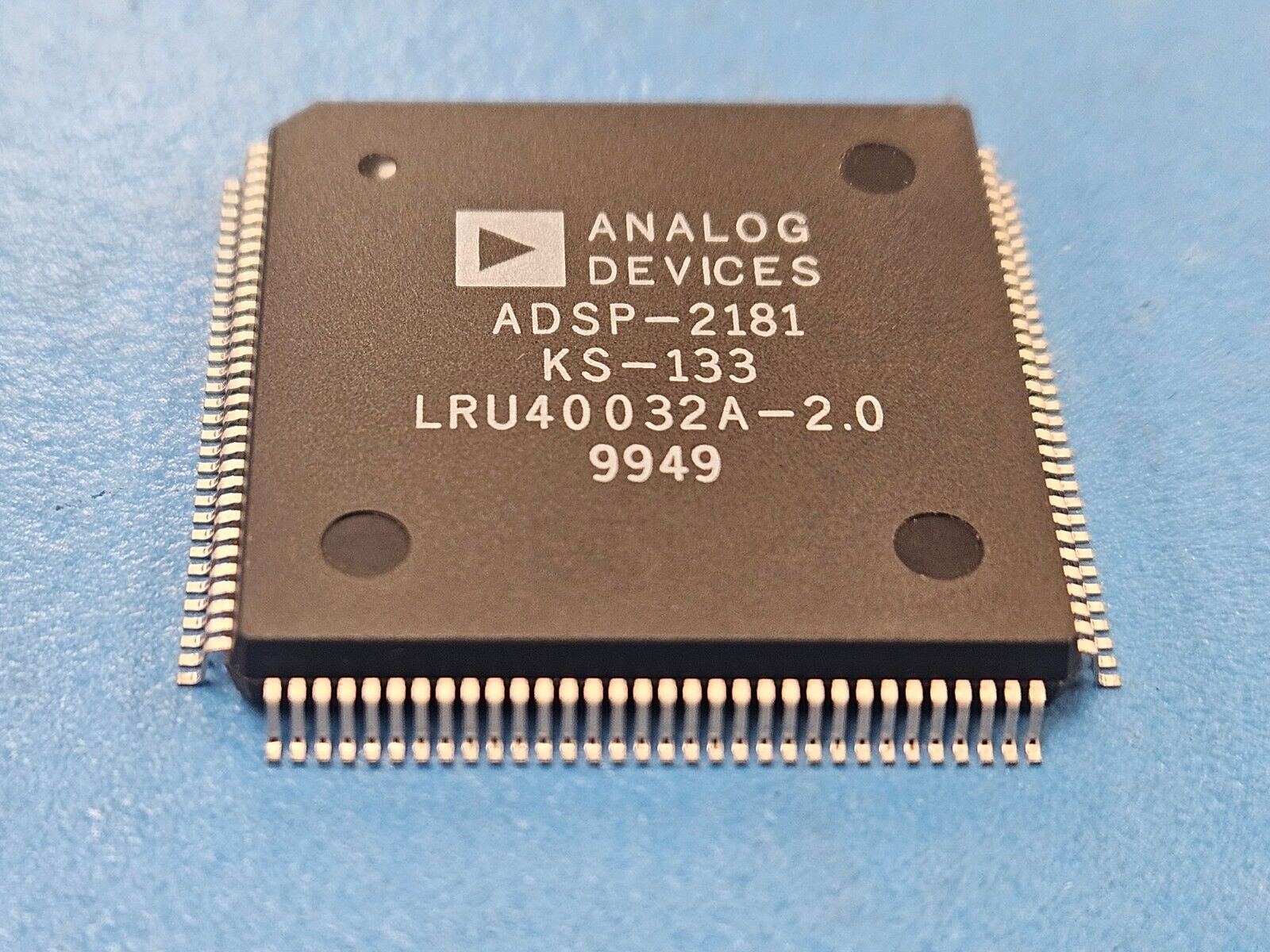

This listing is for (1PC) of ADSP-2181KS-133 by Analog Devices
Mfr Package Description QFP-128
Status Discontinued
Address Bus Width 14.0
Barrel Shifter YES
Bit Size 16
Boundary Scan NO
Clock Frequency-Max 16.67 MHz
External Data Bus Width 24.0
Format FIXED POINT
Integrated Cache NO
Internal Bus Architecture MULTIPLE
JESD-30 Code S-PQFP-G128
JESD-609 Code e0
Low Power Mode YES
Moisture Sensitivity Level 3
Number of DMA Channels 2.0
Number of External Interrupts 4.0
Number of Serial I/Os 2.0
Number of Terminals 128
Number of Timers 1.0
On Chip Data RAM Width 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP128,1.2SQ,32
Package Shape SQUARE
Package Style FLATPACK
Power Supplies 5
Qualification Status Not Qualified
RAM (words) 8192
Seated Height-Max 4.07 mm
Sub Category Digital Signal Processors
Supply Current-Max 100.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Length 28.0 mm
Width 28.0 mm
Additional Feature 33 MIPS SUSTAINED; SINGLE CYCLE INSTRUCTION EXECUTION
