(1PC) ADSP-2115KP-55 DSP, 16-Bit Size, 24-Ext Bit, 13.824MHz, CMOS, PLCC68
Tax included.

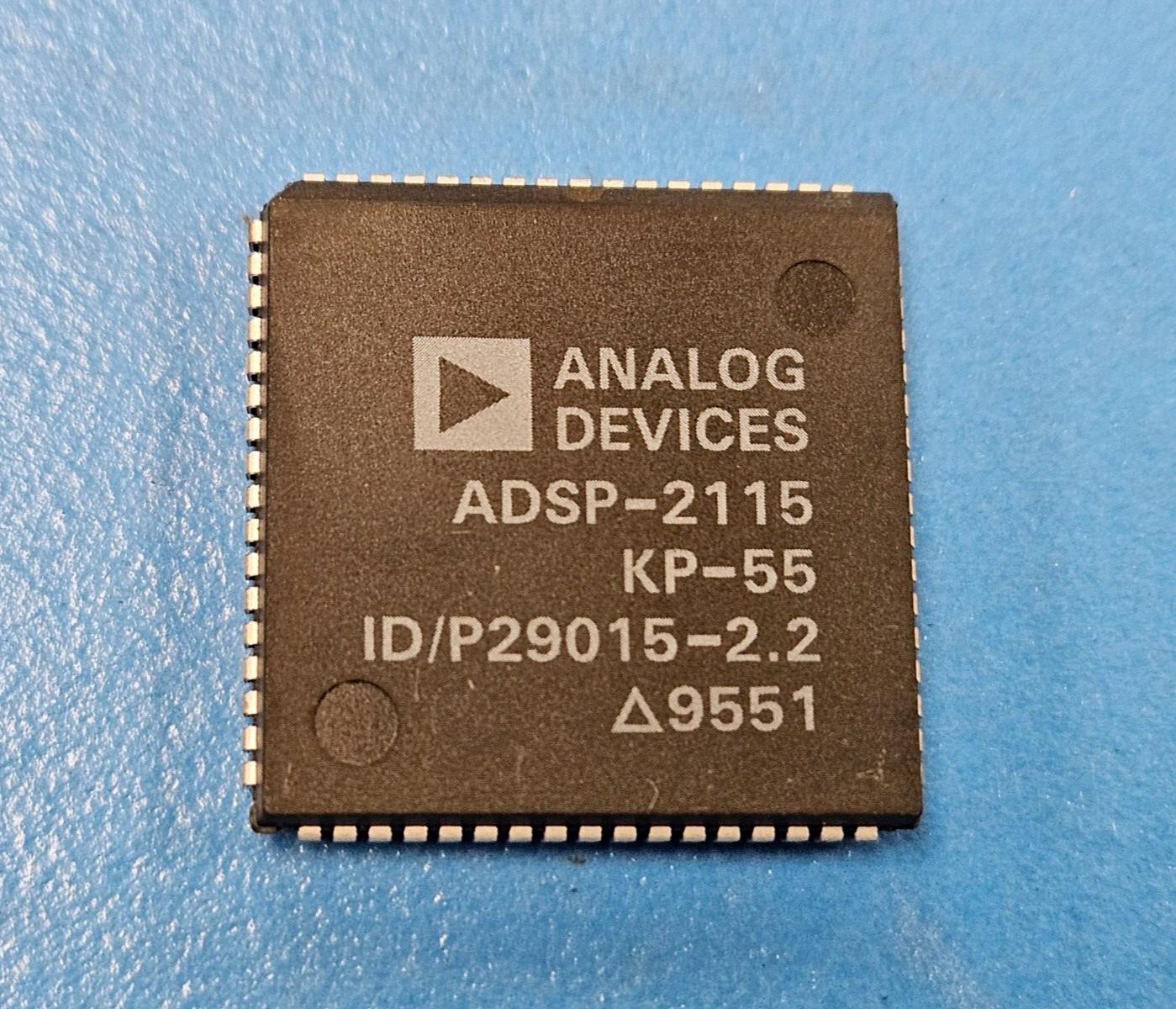

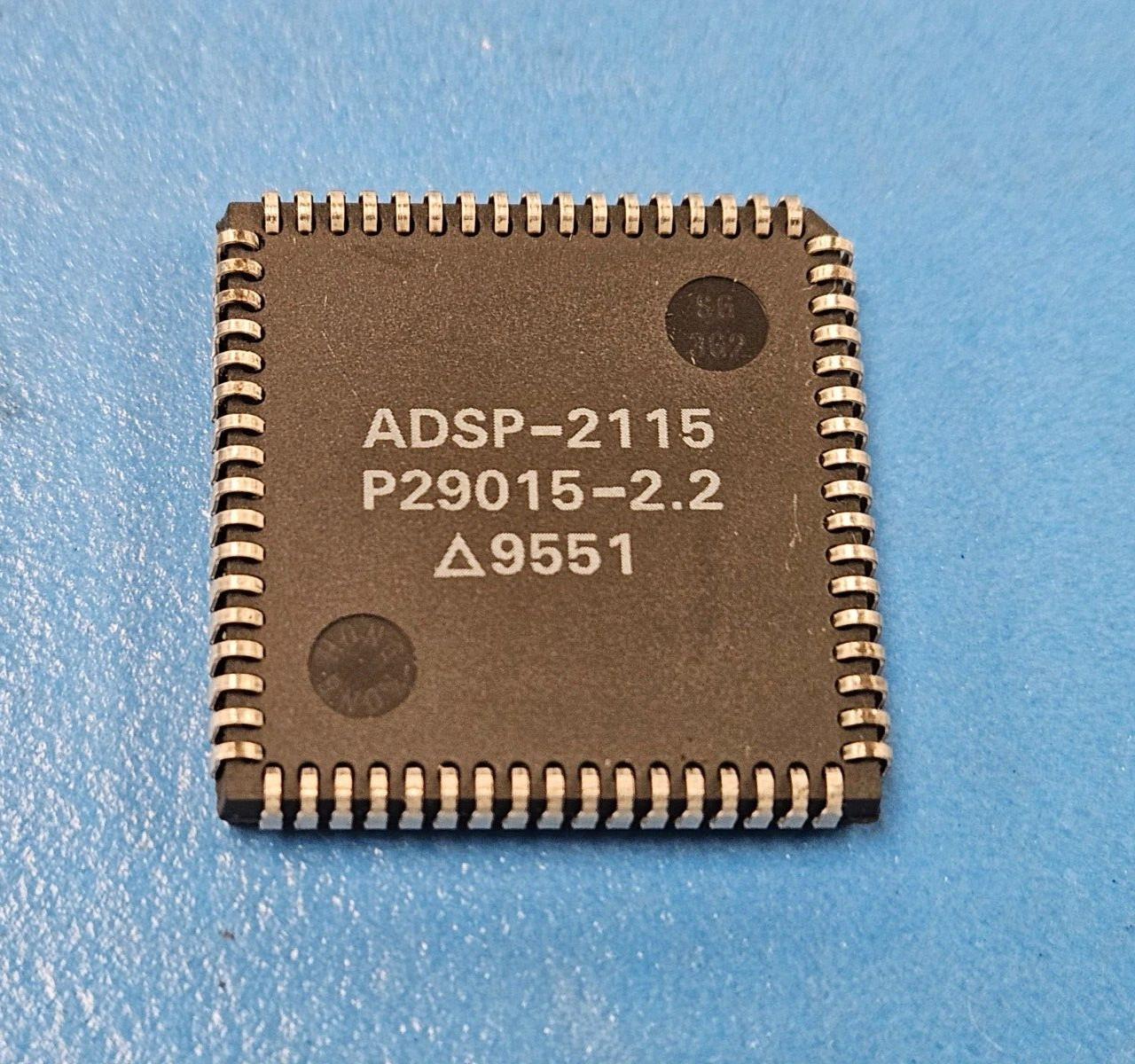

This listing is for (1pc) of ADSP-2115KP55 by Analog Devices
Mfr Package Description PLCC-68
Status Discontinued
Address Bus Width 14.0
Barrel Shifter YES
Bit Size 16
Boundary Scan NO
Clock Frequency-Max 13.824 MHz
External Data Bus Width 24.0
Format FIXED POINT
Integrated Cache NO
Internal Bus Architecture MULTIPLE
JESD-30 Code S-PQCC-J68
JESD-609 Code e0
Low Power Mode YES
Number of DMA Channels 0.0
Number of External Interrupts 3.0
Number of Serial I/Os 2.0
Number of Terminals 68
Number of Timers 1.0
On Chip Data RAM Width 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC68,1.0SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Power Supplies 5
Qualification Status Not Qualified
RAM (words) 512
Sub Category Digital Signal Processors
Supply Current-Max 42.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Additional Feature 20 MIPS; SINGLE CYCLE INSTRUCTION EXECUTION
