(1PC) ADSP-21062LKB-160 Processor, 32-Bit Size, 48-Ext Bit, 40MHz, PBGA225
Tax included.

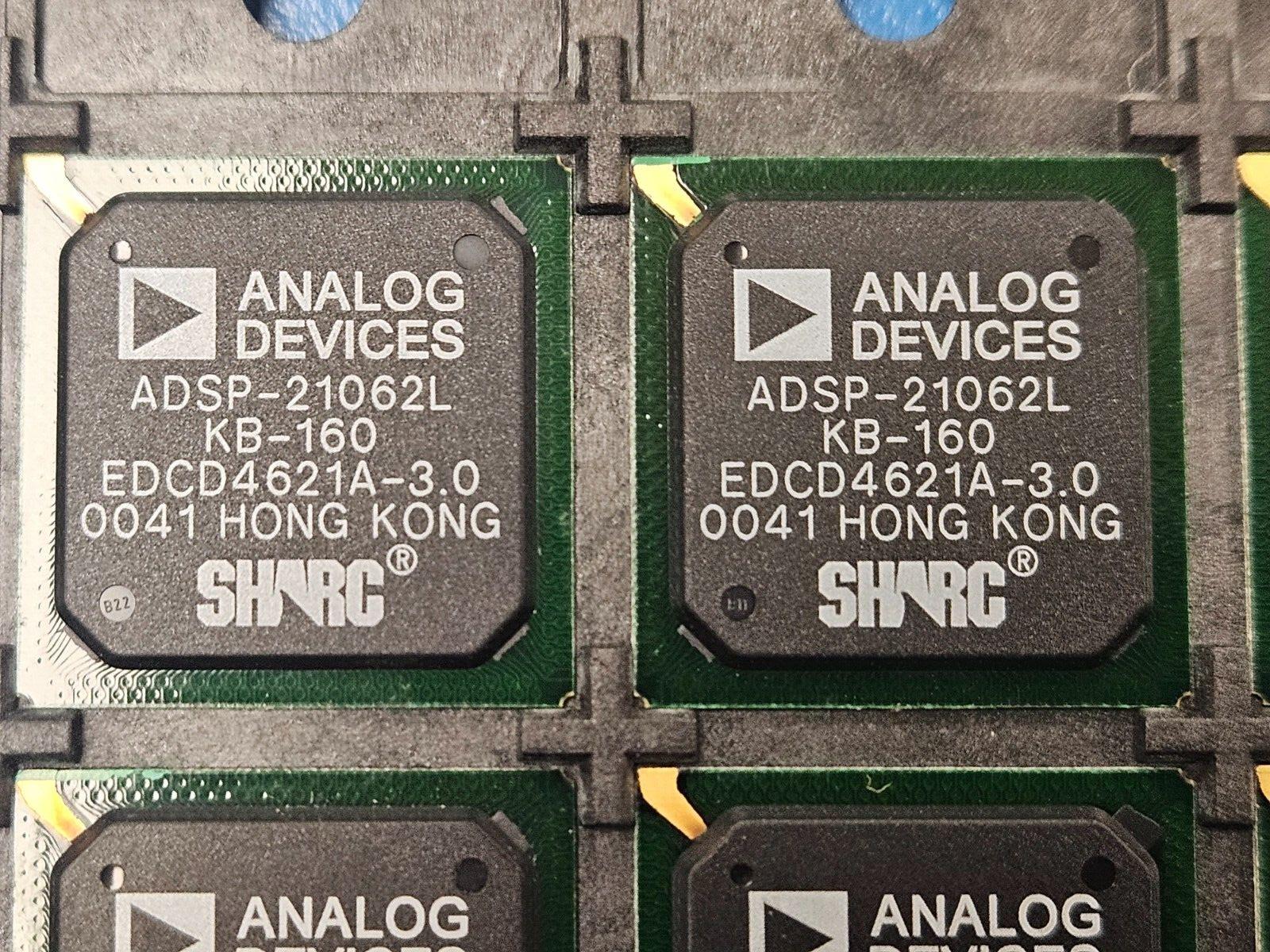

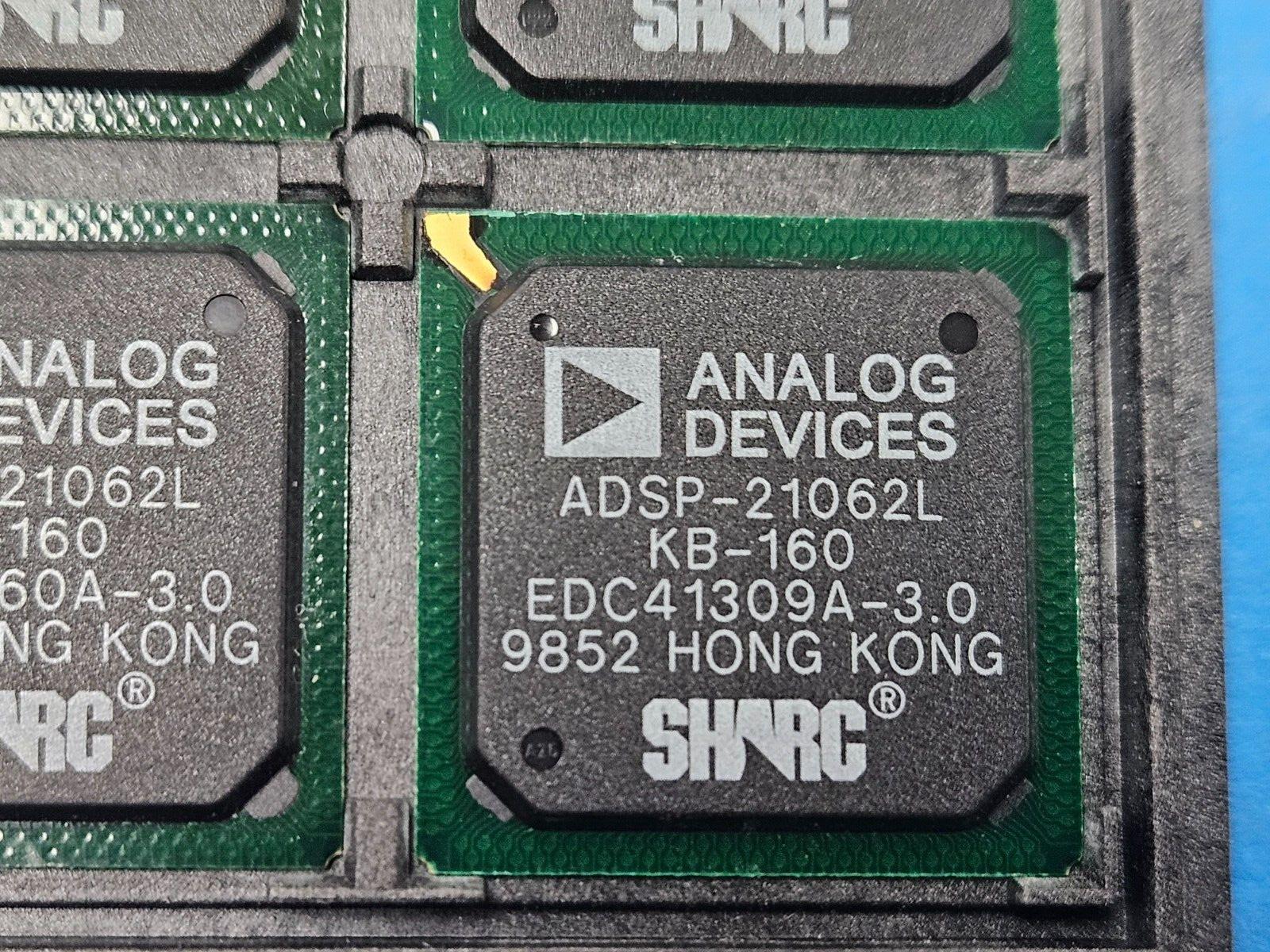

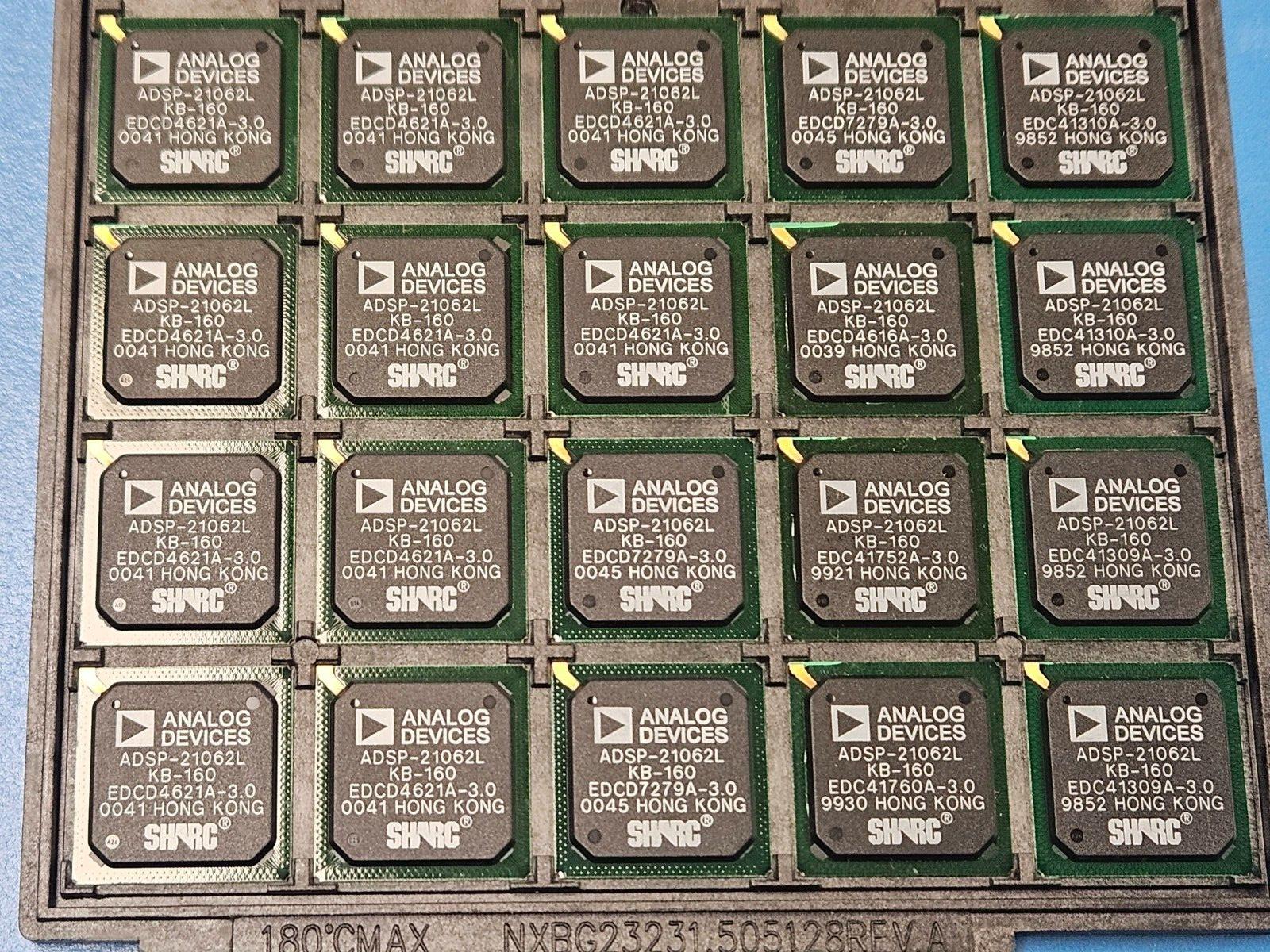

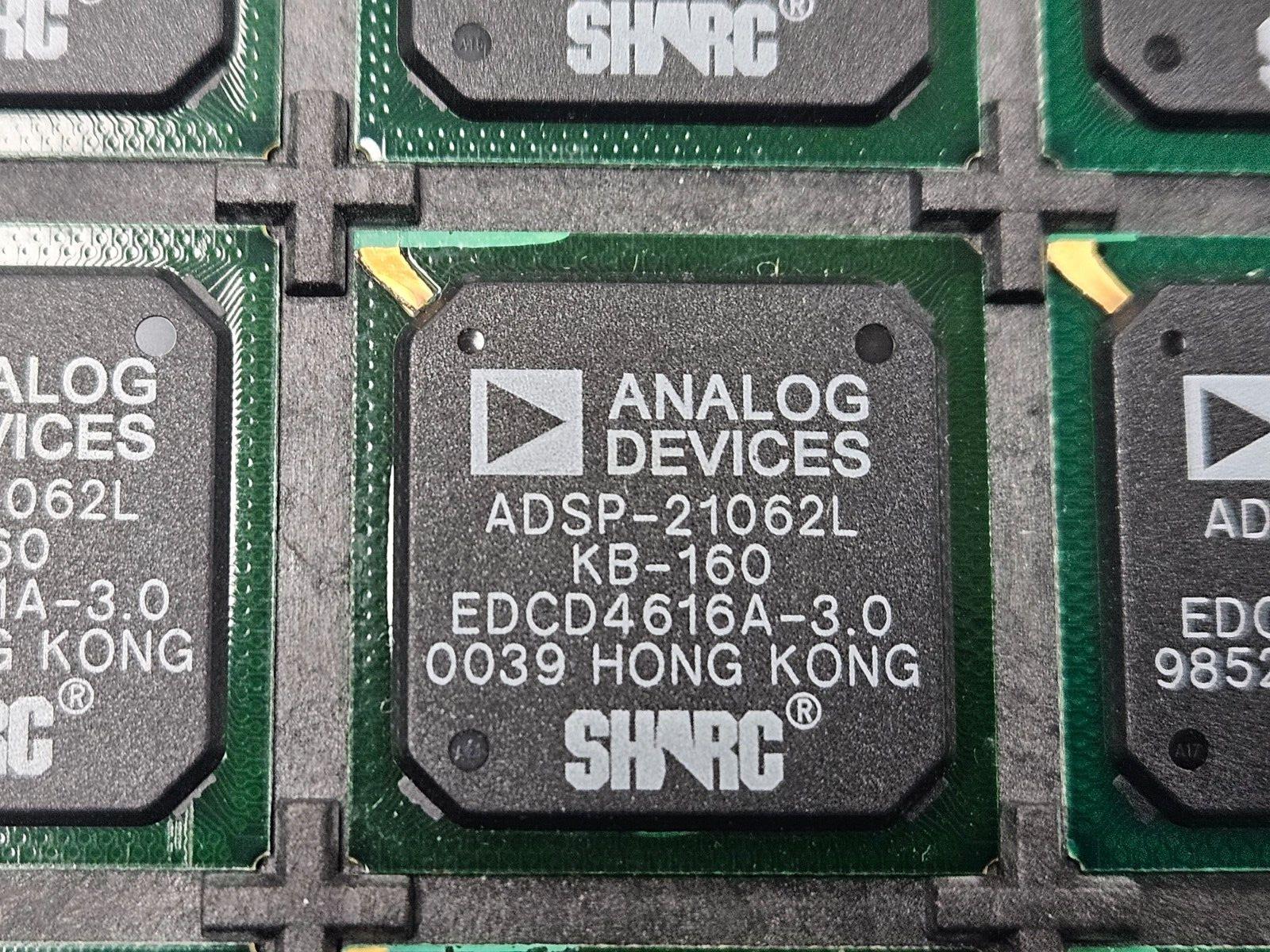

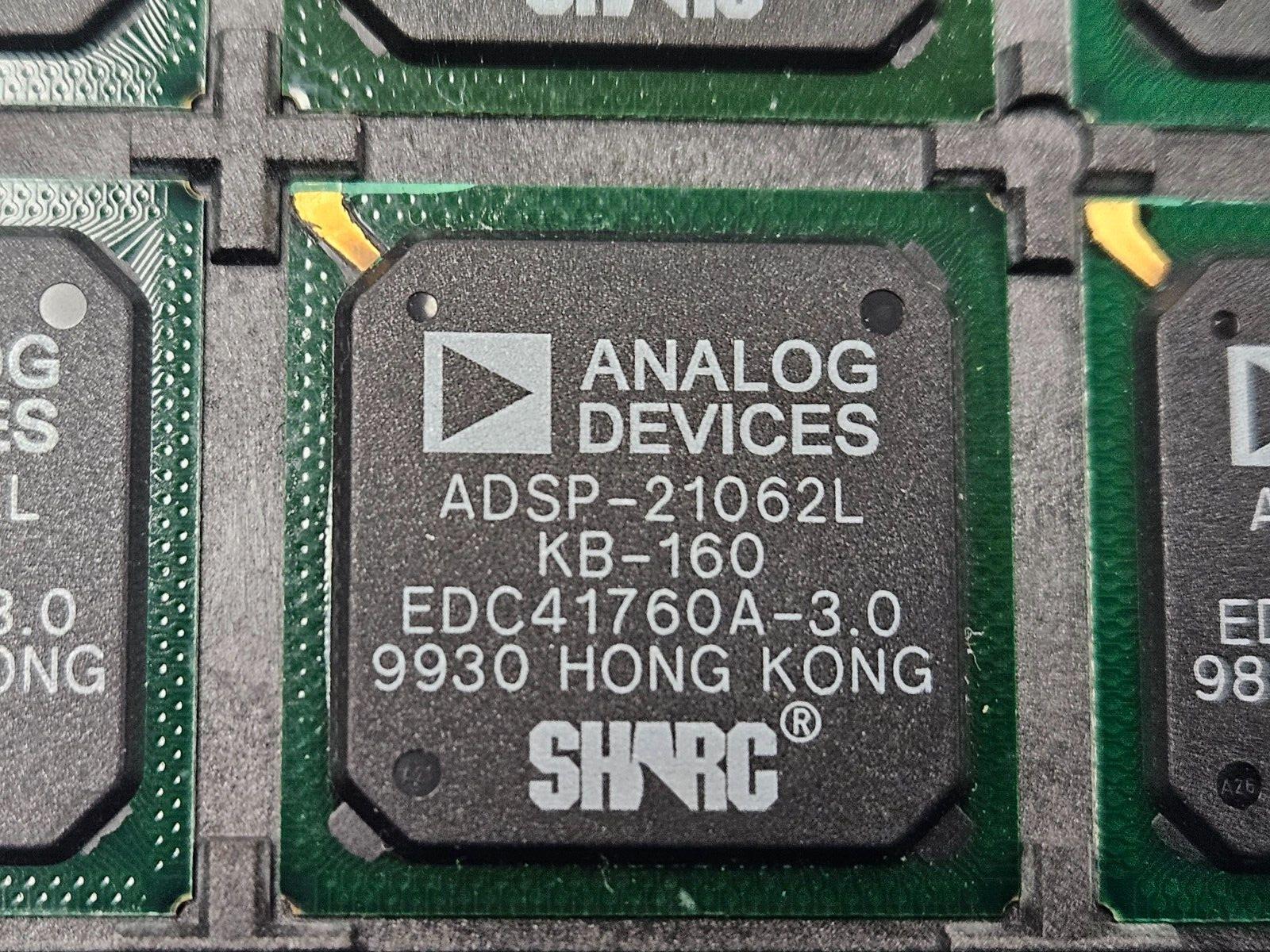

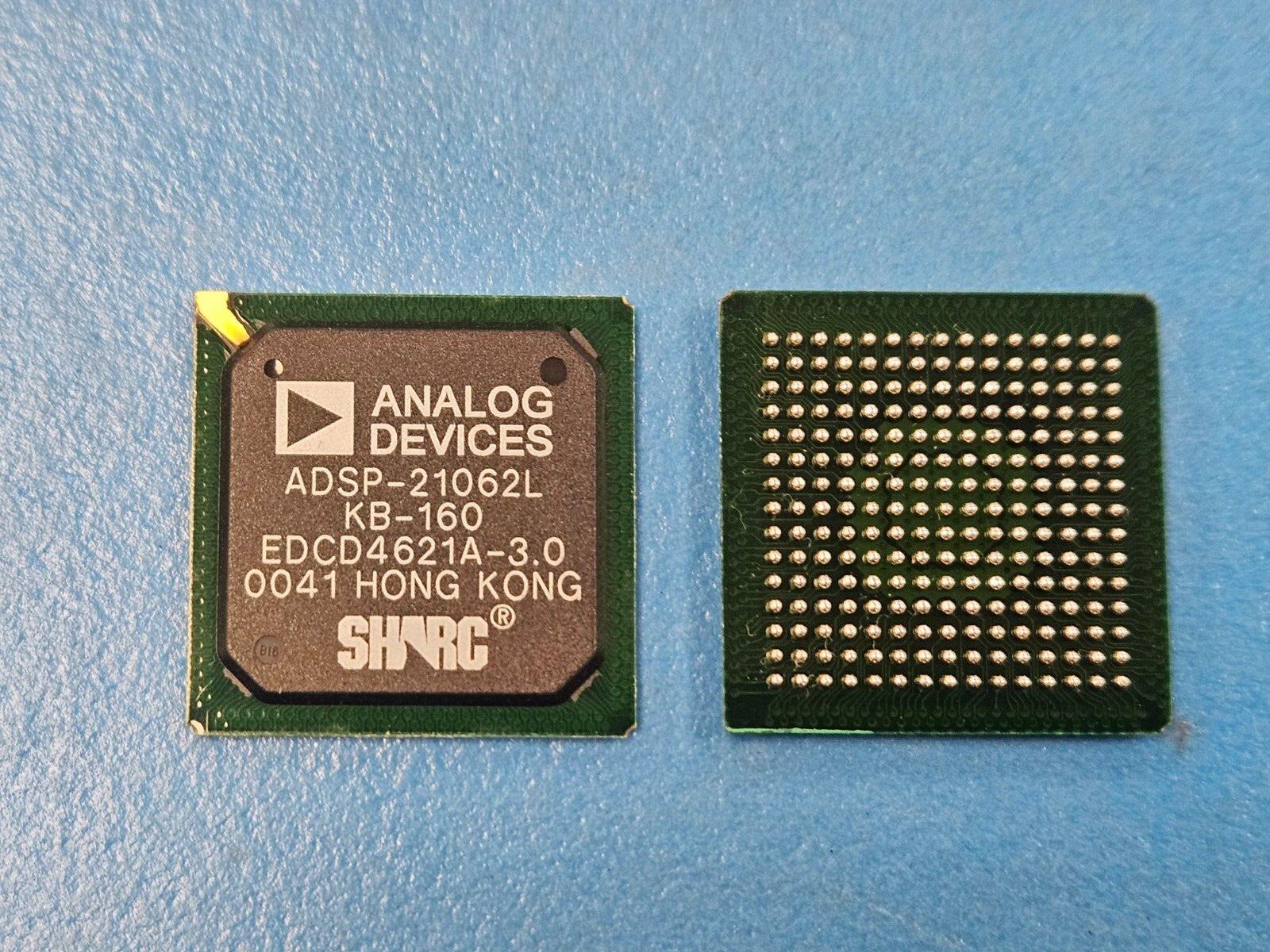

This listing is for (1PC) of ADSP-21062LKB-160 by Analog Devices
Mfr Package Description PLASTIC, MS-034AAJ-2, BGA-225
Status Discontinued
Address Bus Width 32.0
Barrel Shifter YES
Bit Size 32
Boundary Scan YES
Clock Frequency-Max 40.0 MHz
External Data Bus Width 48.0
Format FLOATING POINT
Internal Bus Architecture MULTIPLE
JESD-30 Code S-PBGA-B225
JESD-609 Code e0
Low Power Mode YES
Moisture Sensitivity Level 3
Number of Terminals 225
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA225,15X15,50
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) 225
Power Supplies 3.3
Qualification Status Not Qualified
RAM (words) 65536
Seated Height-Max 2.7 mm
Sub Category Digital Signal Processors
Supply Current-Max 600.0 mA
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.15 V
Supply Voltage-Max 3.45 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN LEAD SILVER

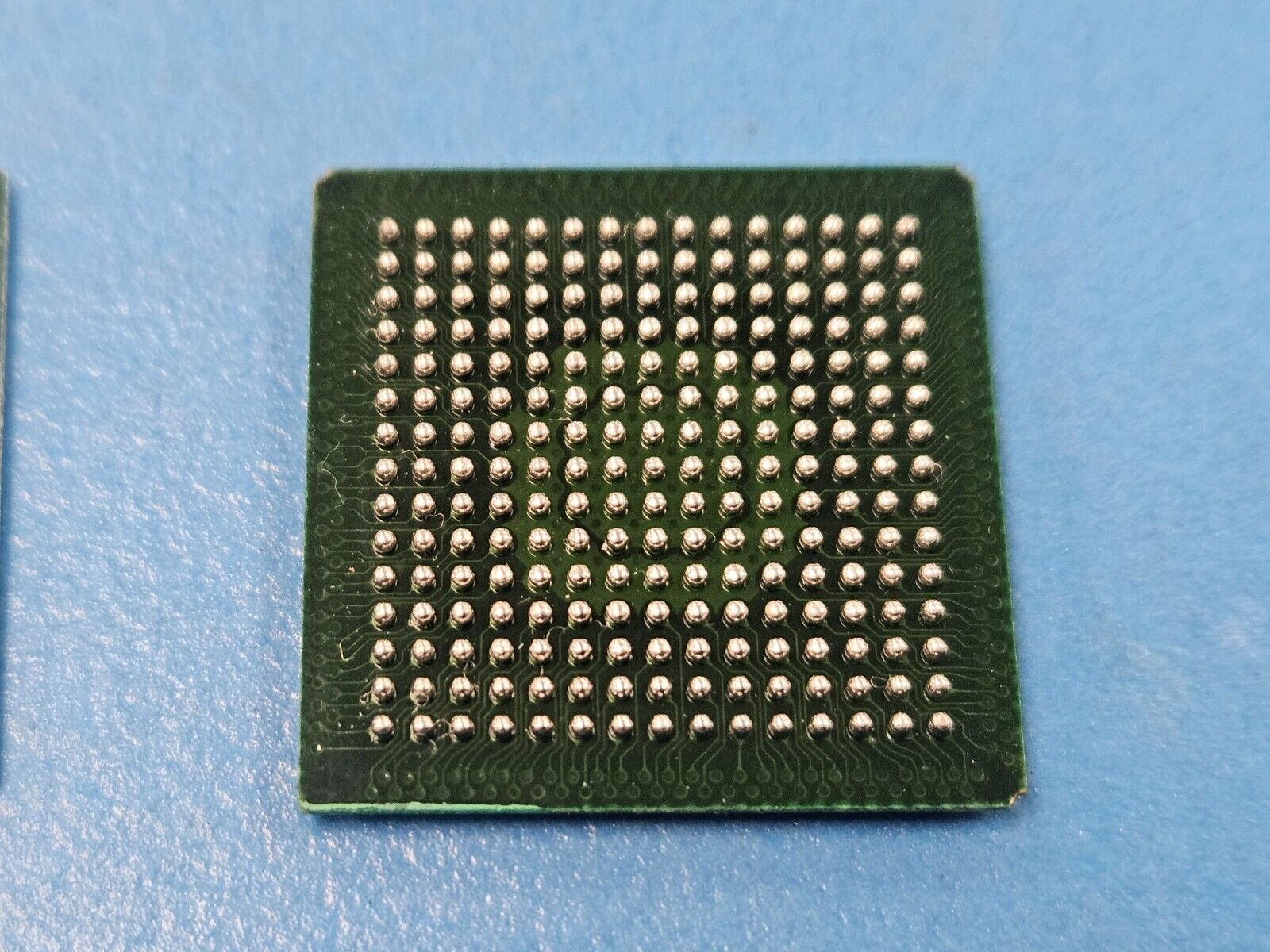

Terminal Form BALL
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Length 23.0 mm
Width 23.0 mm
