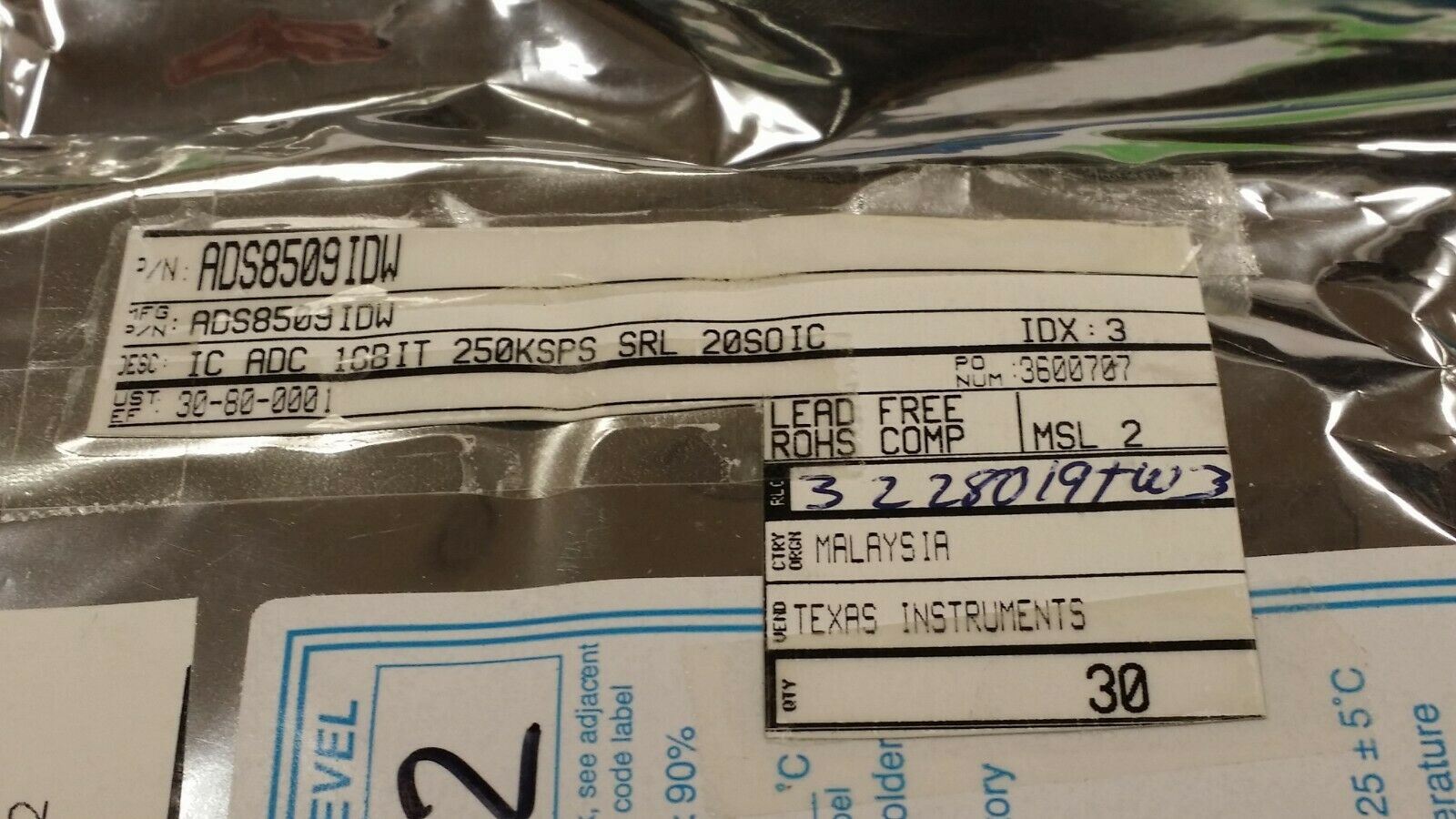

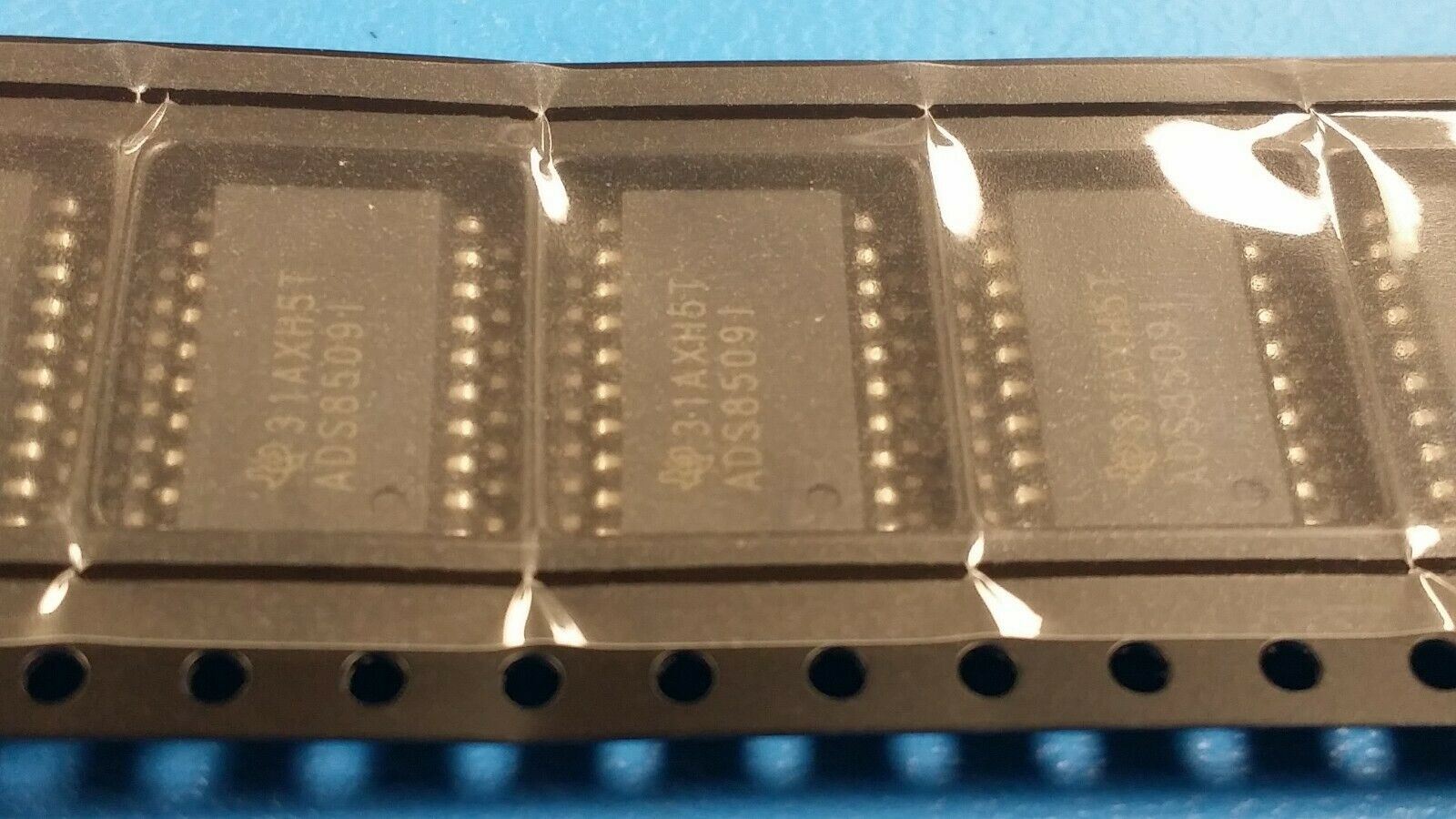

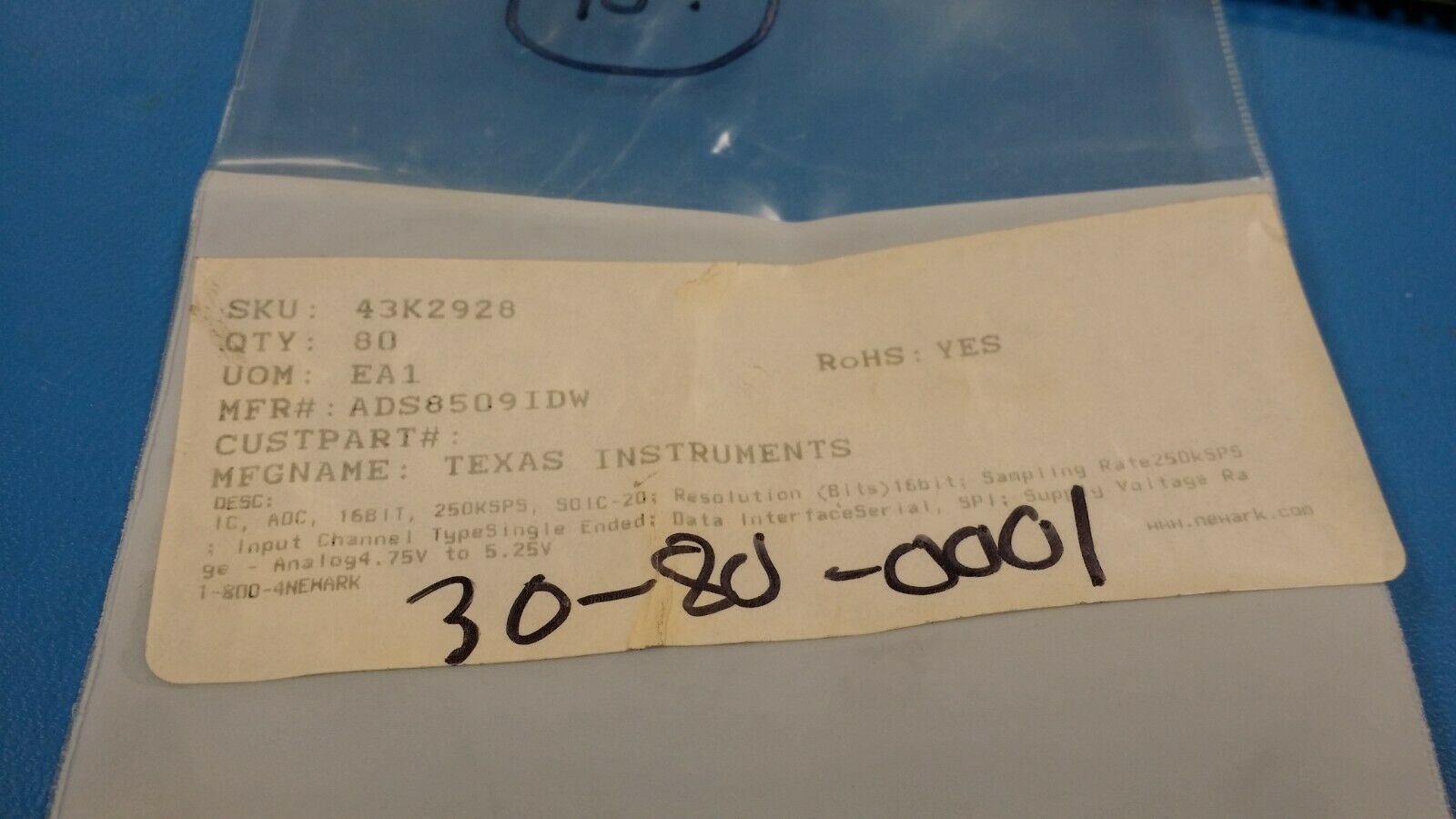

(1pc) ADS8509IDW 16-Bit, 250-kSPS, 1-Ch SAR ADC with programmable input ranges a
(1pc) ADS8509IDW 16-Bit, 250-kSPS, 1-Ch SAR ADC with programmable input ranges a
(1pc) ADS8509IDW 16-Bit, 250-kSPS, 1-Ch SAR ADC with programmable input ranges a

(1pc) ADS8509IDW 16-Bit, 250-kSPS, 1-Ch SAR ADC with programmable input ranges a

Tax included.
Only 0 left!
Will be in stock after

Each order is for 1 pc.



Manufacturer: Texas Instruments
Product Category: Analog to Digital Converters - ADC
RoHS: Details
Series: ADS8509
Mounting Style: SMD/SMT
Package / Case: SOIC-20
Resolution: 16 bit
Number of Channels: 1 Channel
Interface Type: SPI
Sampling Rate: 250 kS/s
Input Type: Single-Ended
Architecture: SAR
Analog Supply Voltage: 4.75 V to 5.25 V
Digital Supply Voltage: 4.75 V to 5.25 V
SNR - Signal to Noise Ratio: 88 dB
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Packaging: Tube
Brand: Texas Instruments
Development Kit: ADS8509EVM
DNL - Differential Nonlinearity: +/- 2 LSB
Features: Daisy-Chainable, Oscillator
Height: 2.35 mm
INL - Integral Nonlinearity: +/- 3 LSB
Length: 12.8 mm
Moisture Sensitive: Yes
Number of Converters: 1 Converter
Operating Supply Voltage: 5 V
Pd - Power Dissipation: 100 mW
Power Consumption: 155 mW
Product Type: ADCs - Analog to Digital Converters
Reference Type: External, Internal
SINAD - Signal to Noise and Distortion Ratio: 88 dB
