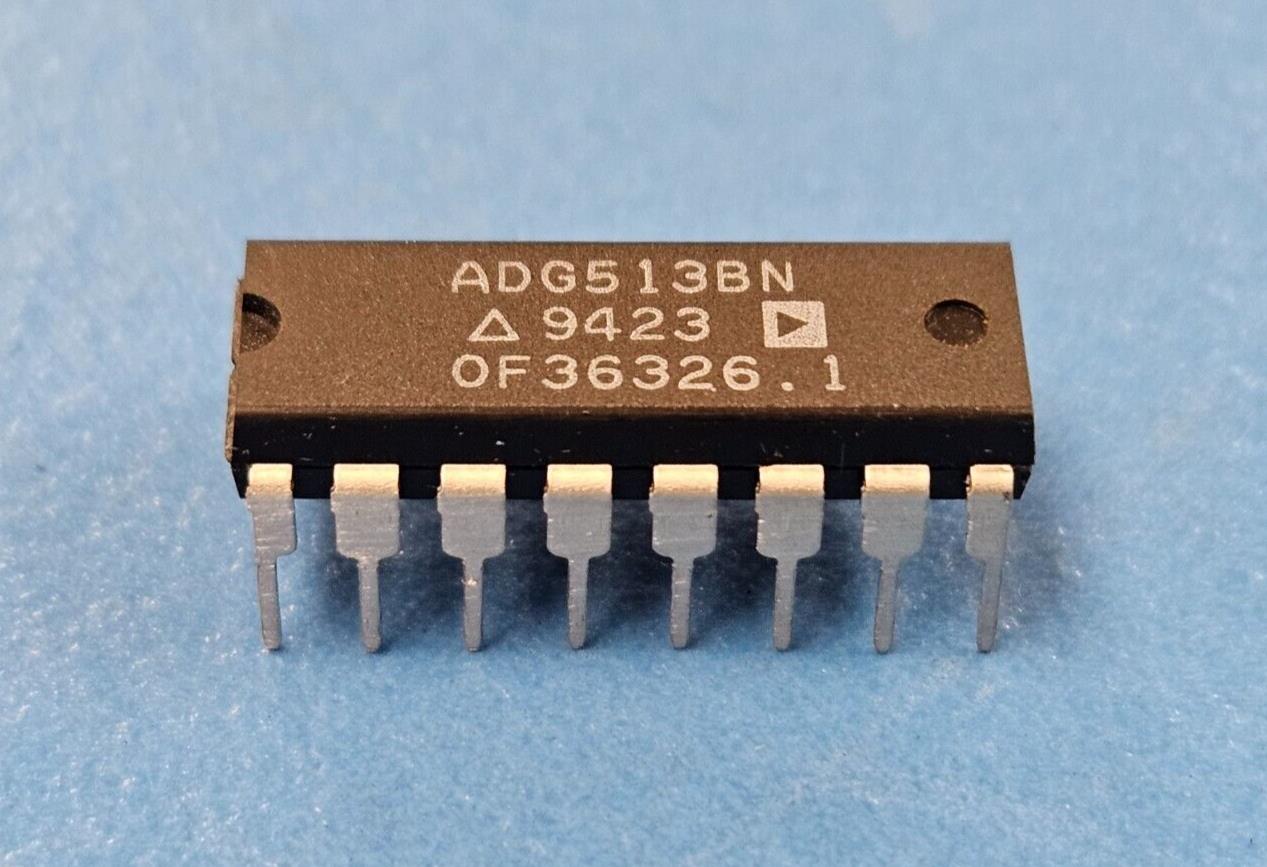

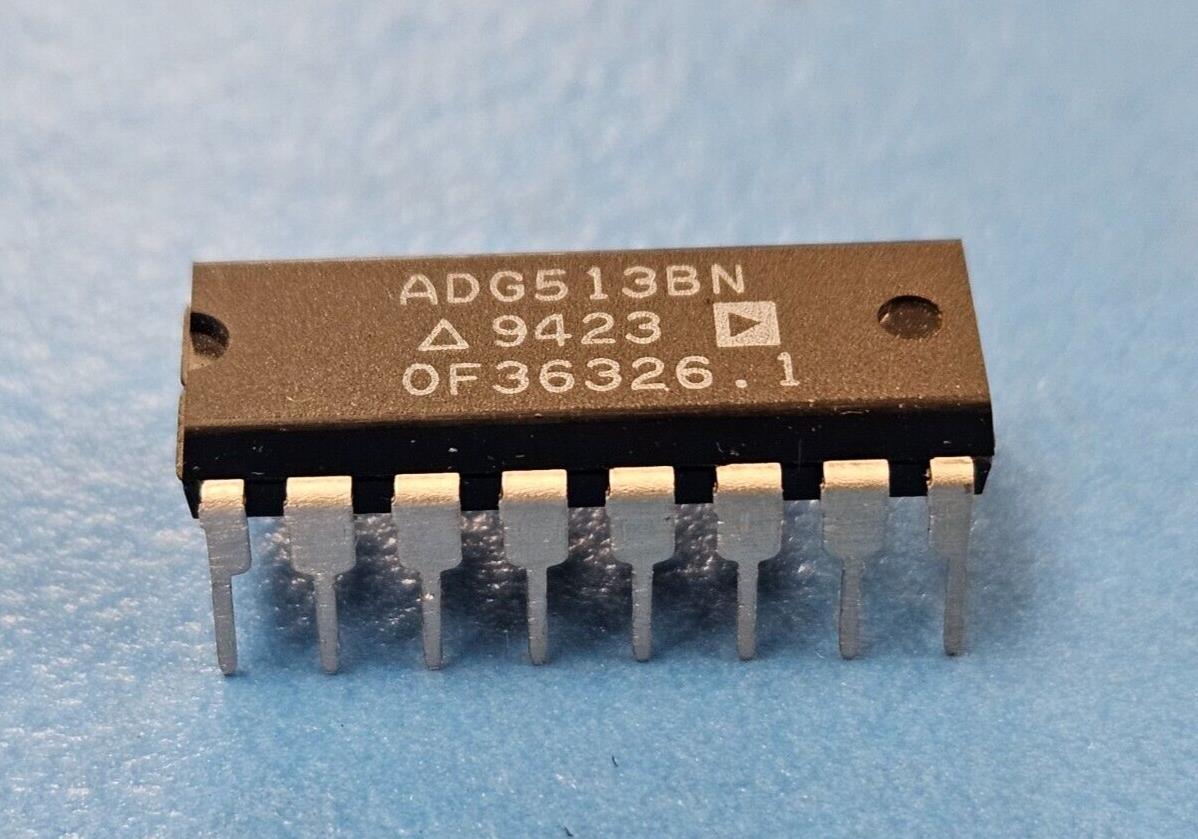

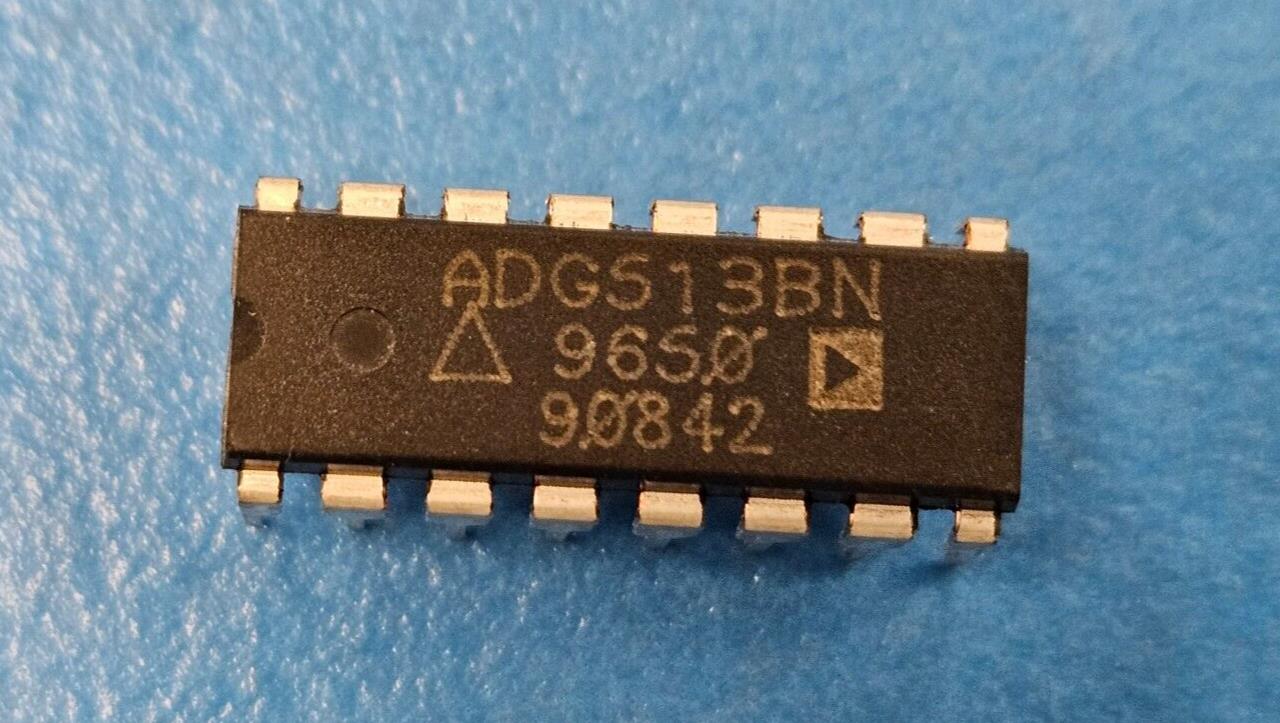

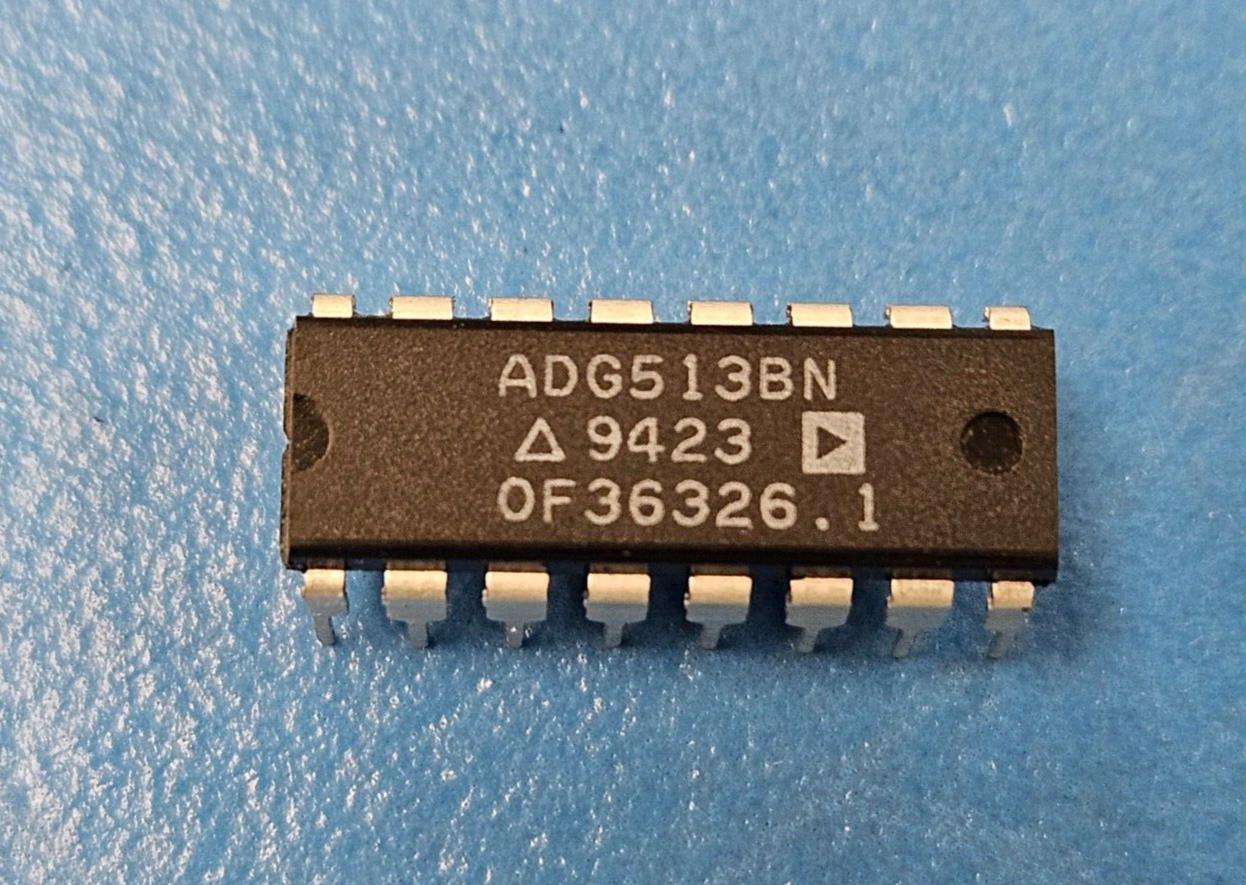

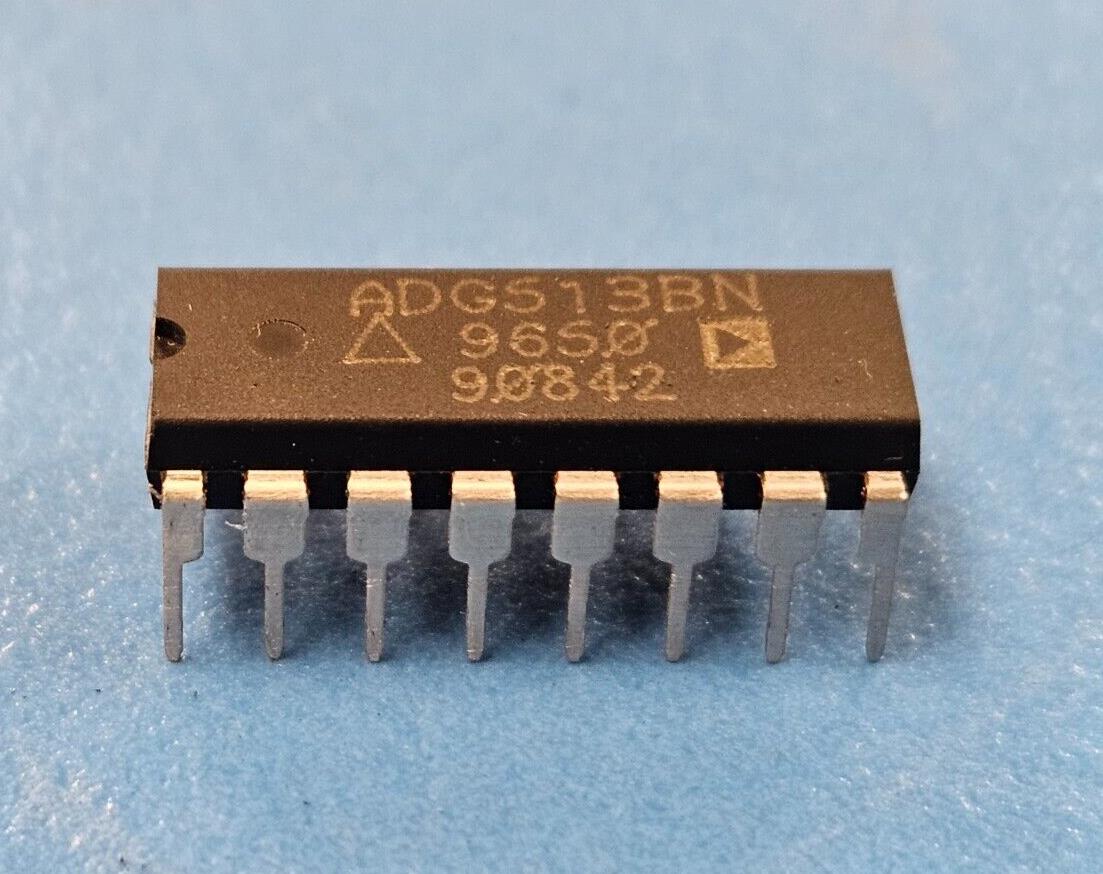

(1PC) ADG513BN SPST, 4 Func, 1 Channel, CMOS, PDIP16
Tax included.
This listing is for (1PC) of ADG513BN by Analog Devices
Mfr Package Description PLASTIC, DIP-16
Status Discontinued
Analog IC - Other Type SPST
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Neg Supply Voltage-Nom (Vsup) -5.0 V
Neg Supply Voltage-Min (Vsup) -4.5 V
Neg Supply Voltage-Max (Vsup) -5.5 V
Number of Channels 1
Number of Functions 4
Number of Terminals 16
Off-state Isolation-Nom 68.0 dB
On-state Resistance-Max (Ron) 50.0 ohm
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Screening Level MIL-STD-883
Seated Height-Max 5.33 mm
Sub Category Multiplexer or Switches
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Switch-off Time-Max 150.0 ns
Switch-on Time-Max 375.0 ns
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 20.13 mm
Width 7.62 mm
