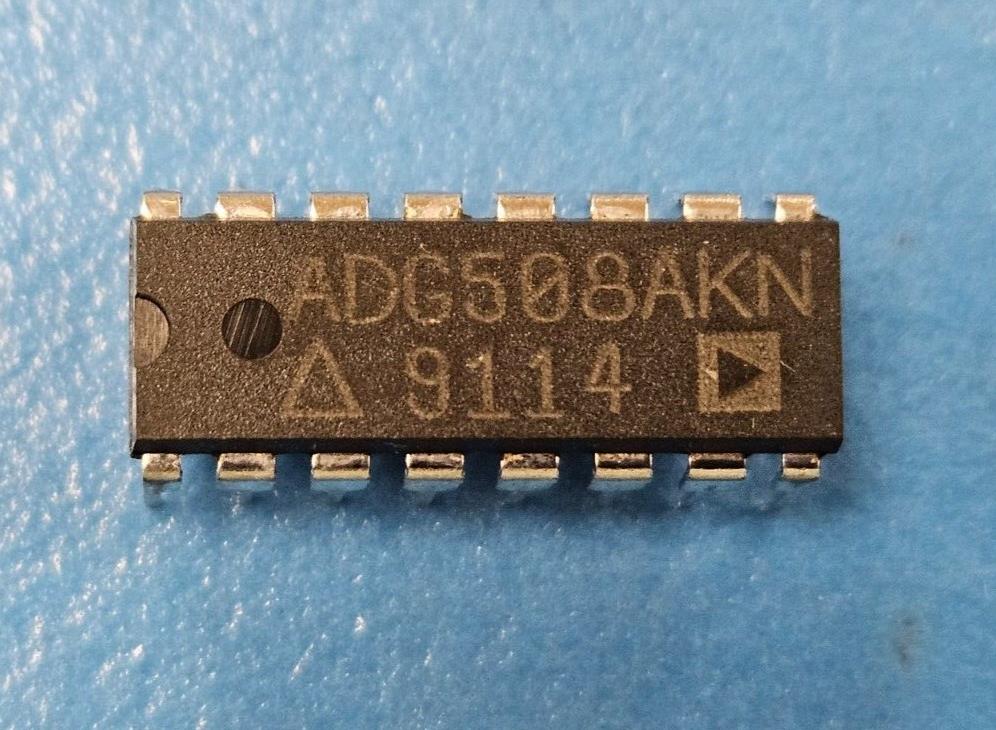

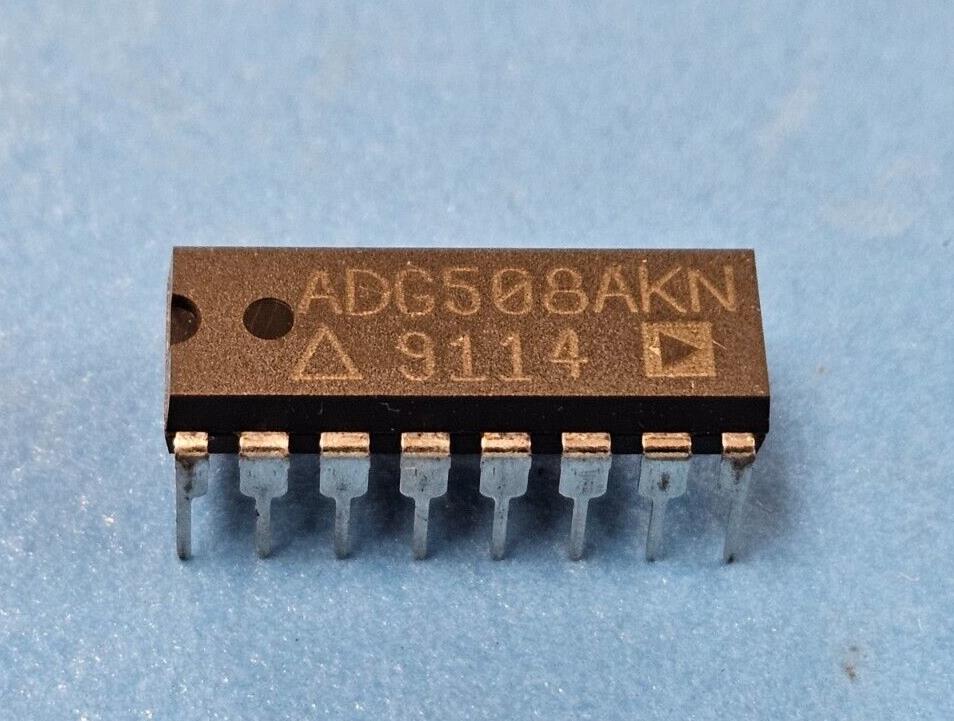

(1PC) ADG508AKN Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDIP16
Tax included.
This listing is for (1PC) of ADG508AKN by Analog Devices
Mfr Package Description PLASTIC, MS-001AB, DIP-16
REACH Compliant Yes
Status Discontinued
Analog IC - Other Type SINGLE-ENDED MULTIPLEXER
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Neg Supply Voltage-Nom (Vsup) -15.0 V
Neg Supply Voltage-Min (Vsup) -10.8 V
Neg Supply Voltage-Max (Vsup) -16.5 V
Number of Channels 8
Number of Functions 1
Number of Terminals 16
Off-state Isolation-Nom 68.0 dB
On-state Resistance Match-Nom 22.5 ohm
On-state Resistance-Max (Ron) 450.0 ohm
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Signal Current-Max 0.02 A
Sub Category Multiplexer or Switches
Supply Current-Max (Isup) 1.5 mA
Supply Voltage-Nom (Vsup) 15.0 V
Supply Voltage-Min (Vsup) 10.8 V
Supply Voltage-Max (Vsup) 16.5 V
Surface Mount NO
Switch-off Time-Max 300.0 ns
Switch-on Time-Max 300.0 ns
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 20.07 mm
Width 7.62 mm
Additional Feature ALSO OPERATES WITH 10.8 V TO 16.5 V SINGLE SUPPLY
