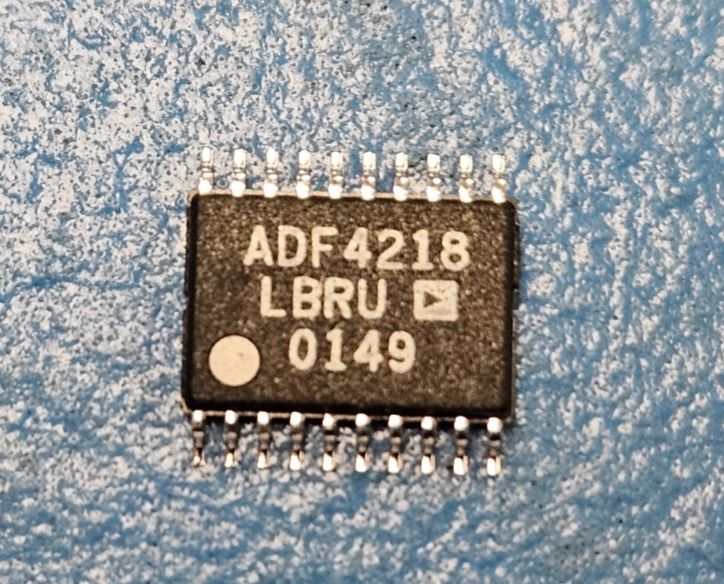

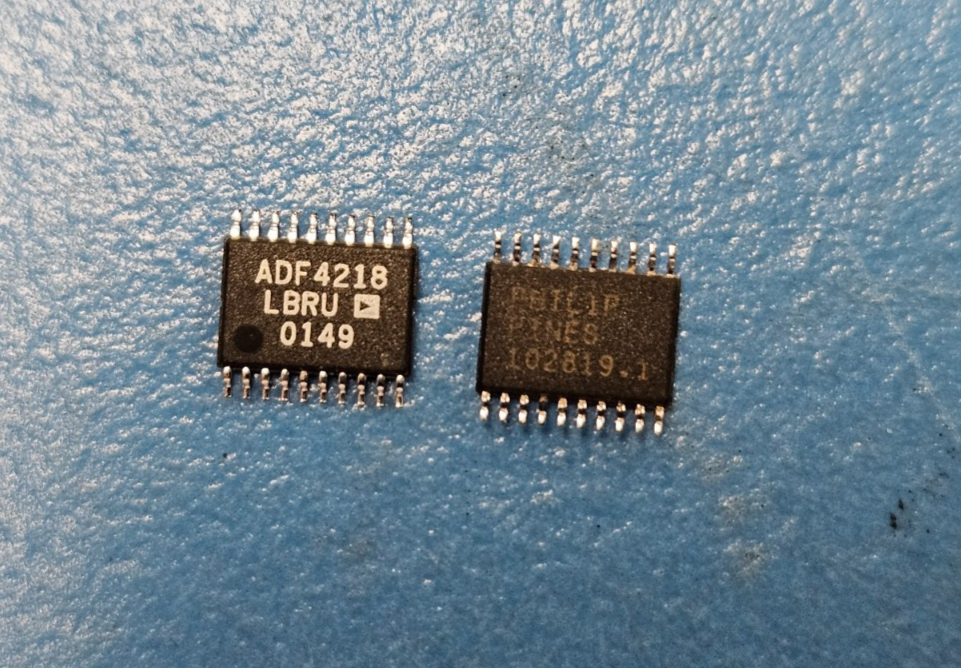

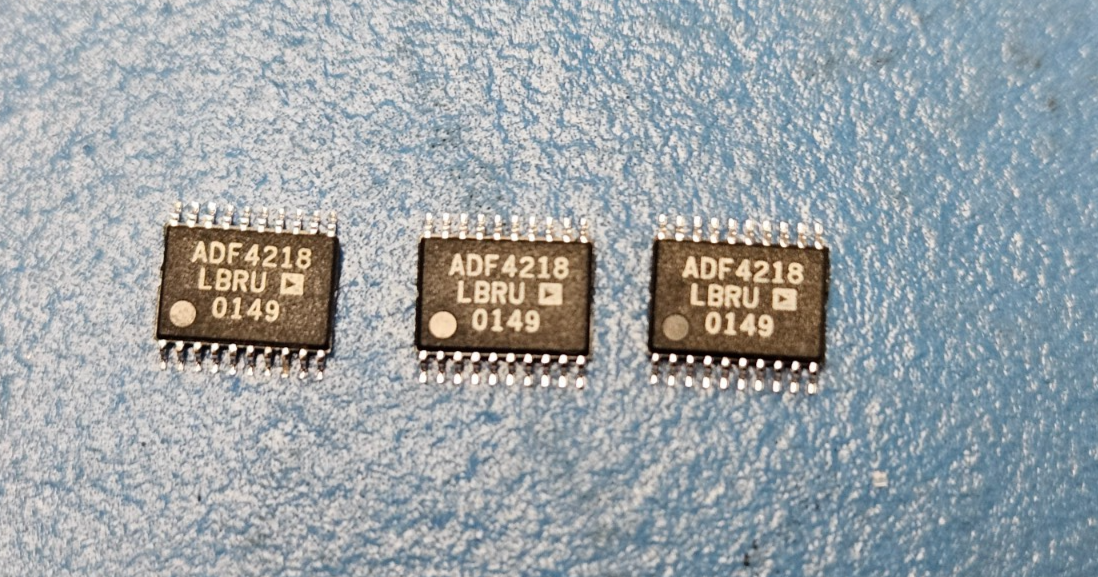

(1PC) ADF4218LBRU Analog Devices PLL Frequency Synthesizer, CMOS, SSOP20
Tax included.
This listing is for (1PC) of ADF4218LBRU by Analog Devices
Status Discontinued
Additional Feature ALSO REQUIRES A 3V TO 5.5V SUPPLY
Analog IC - Other Type PLL FREQUENCY SYNTHESIZER
JESD-30 Code R-PDSO-G20
J-STD-609 Code e0
Length (mm) 6.5000
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 20
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP20,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 240
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.2000
Supply Current-Max (mA) 10.0000000000000000
Supply Voltage-Max (V) 3.3000000000000000
Supply Voltage-Min (V) 2.6000000000000000
Supply Voltage-Nom (V) 3.0000000000000000
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 0.650
Terminal Position DUAL
Width (mm) 4.4000
