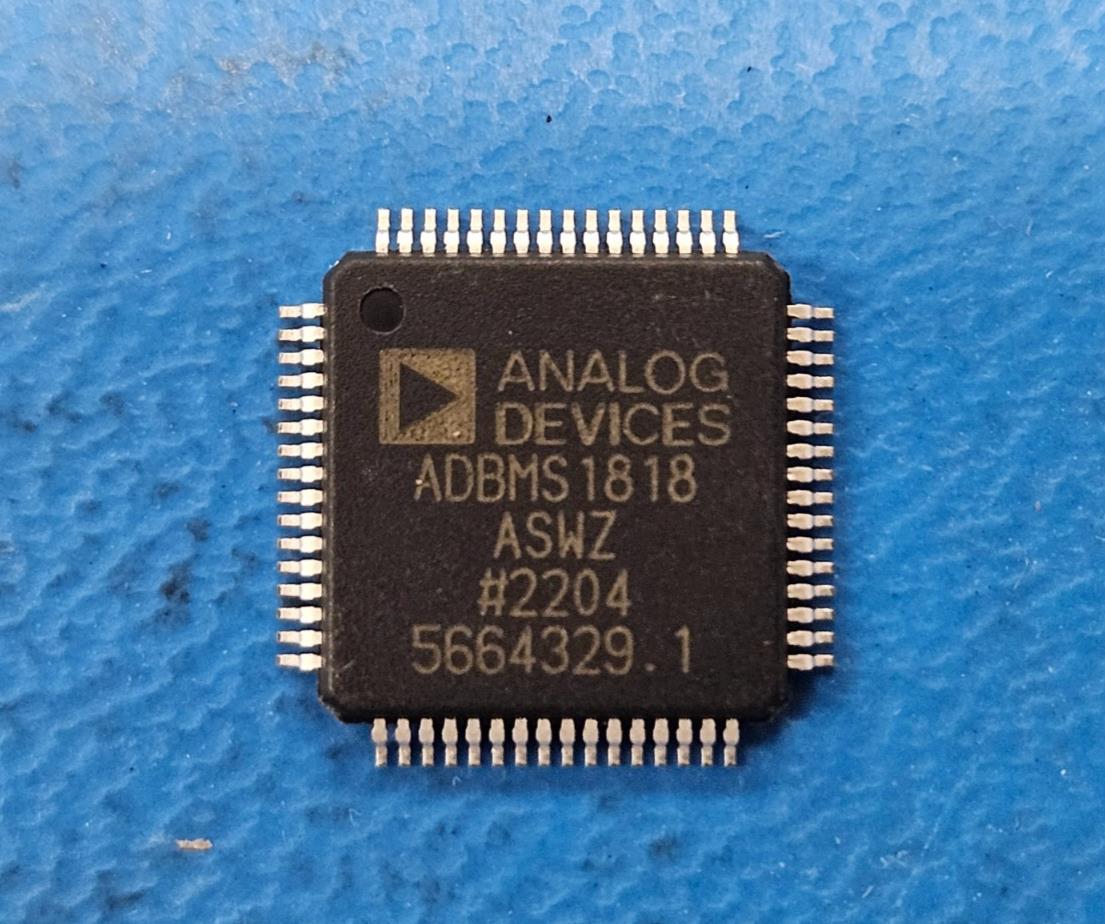

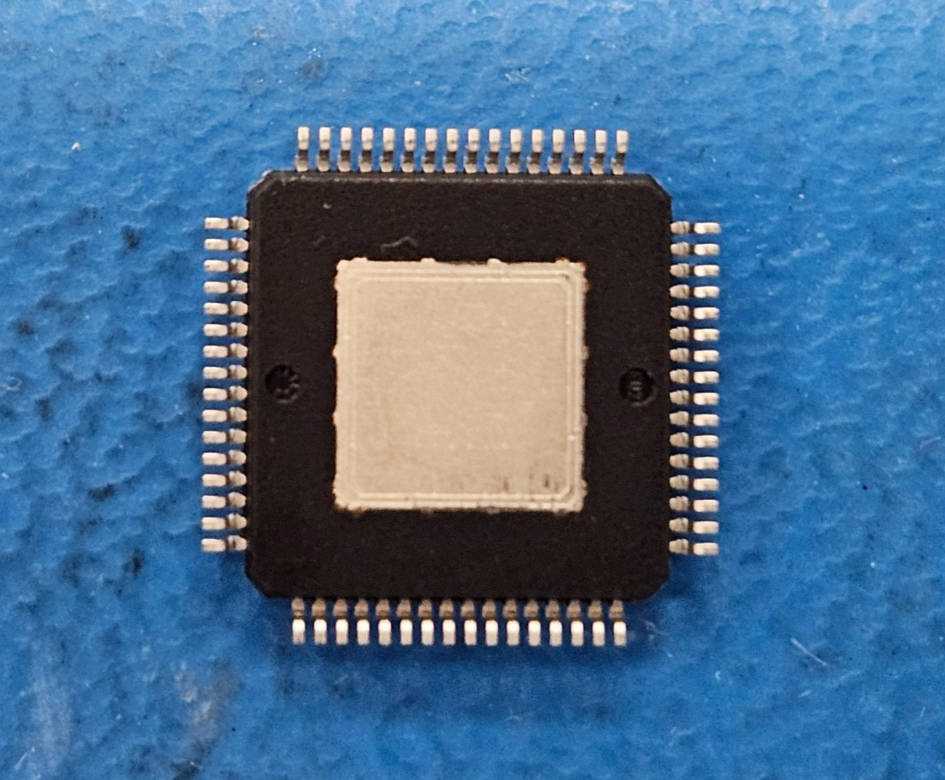

(1PC) ADBMS1818ASWZ Analog Devices Fixed, 18 Channel, PQFP64
Tax included.
This listing is for (1PC) of ADBMS1818ASWZ by Analog Devices
Status Active
Additional Feature Cascade Function:N;CTL:Y;Integrated MOSFET:Y;PS:N
Adjustable Threshold NO
Analog IC - Other Type BATTERY MONITOR
JESD-30 Code S-PQFP-G64
Length (mm) 10.0000
Moisture Sensitivity Level 3
Number of Channels 18
Number of Functions 1
Number of Terminals 64
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY
Package Code HLFQFP
Package Equivalence Code QFP64,.47SQ,20
Package Shape SQUARE
Package Style FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Seated Height-Max (mm) 1.6000
Supply Current-Max (mA) 16.5000000000000000
Supply Voltage-Max (V) 90.0000000000000000
Supply Voltage-Min (V) 16.0000000000000000
Supply Voltage-Nom (V) 60.0000000000000000
Surface Mount YES
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width (mm) 10.0000
