(1PC) AD9245BCPZ-20 ANALOG DEVICES IC ADC 14BIT SGL 20MSPS 32LFCSP
Tax included.

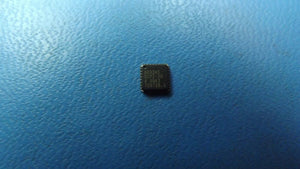

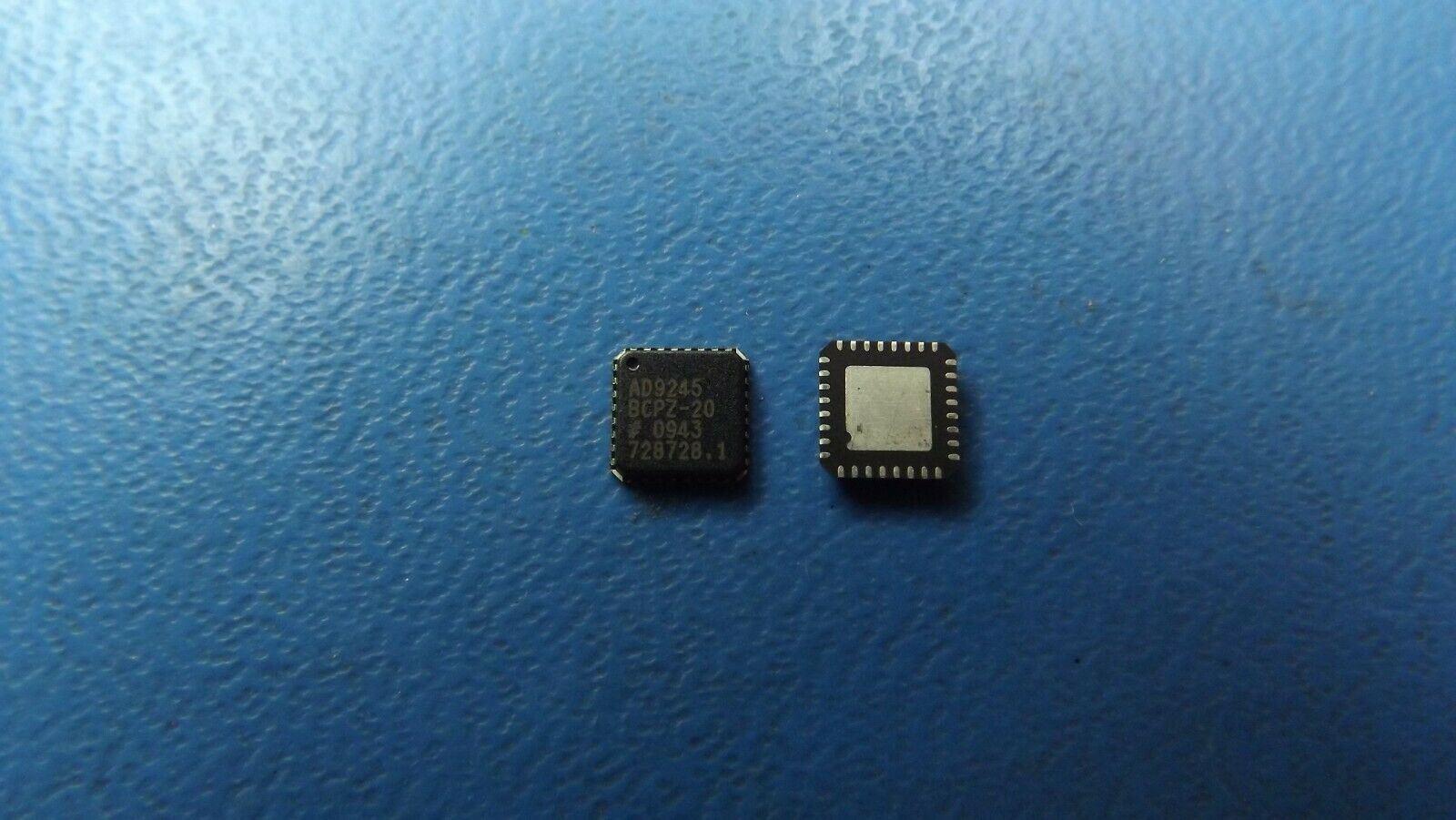

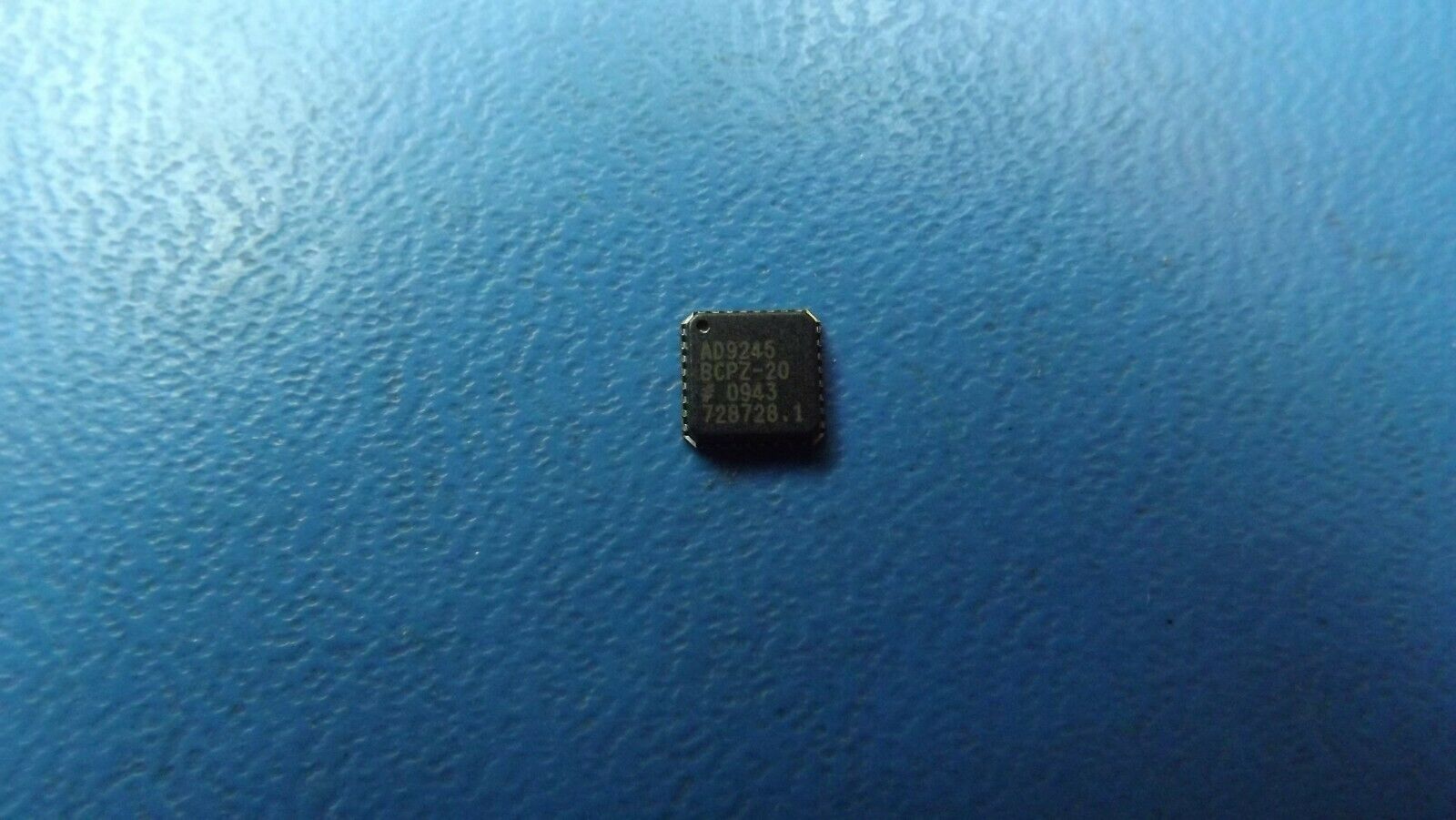

THIS LISTING IS FOR (1PC) OF AD9245BCPZ-20 BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT, EXPOSED PAD, MO-220-VHHD-2, LFCSP-32 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Converter Type | ADC, FLASH METHOD |
| Analog Input Voltage-Min | 1.0 V |
| Analog Input Voltage-Max | 2.0 V |
| JESD-30 Code | S-XQCC-N32 |
| JESD-609 Code | e3 |
| Linearity Error-Max (EL) | 0.0189 % |
| Moisture Sensitivity Level | 3 |
| Number of Analog In Channels | 1.0 |
| Number of Bits | 14 |
| Number of Functions | 1 |
| Number of Terminals | 32 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Output Bit Code | OFFSET BINARY, 2'S COMPLEMENT BINARY |
| Output Format | PARALLEL, WORD |
| Package Body Material | UNSPECIFIED |
| Package Code | HVQCCN |
| Package Equivalence Code | LCC32,.2SQ,20 |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 2.5,3 |
| Qualification Status | Not Qualified |
| Sample-and-Hold/Track-and-Hold | SAMPLE |
| Sample Rate | 20.0 MHz |
| Seated Height-Max | 1.0 mm |
| Sub Category | Analog to Digital Converters |
| Supply Voltage-Nom | 3.0 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | NO LEAD |
| Terminal Pitch | 0.5 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Length | 5.0 mm |
| Width | 5.0 mm |
