(1PC) AD9042AST Single ADC Pipelined 41Msps 12-bit Parallel 44-Pin LQFP
Tax included.

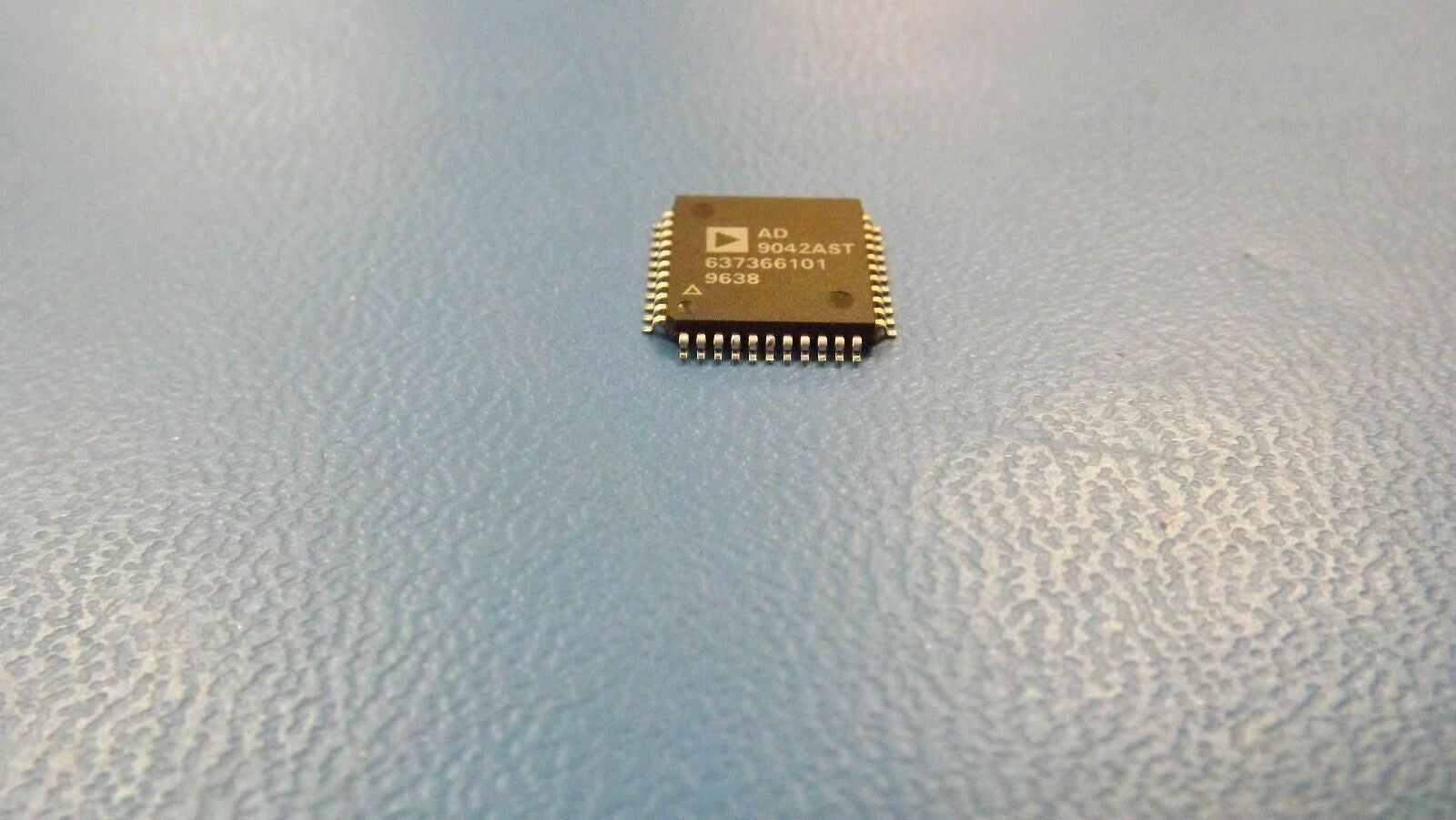

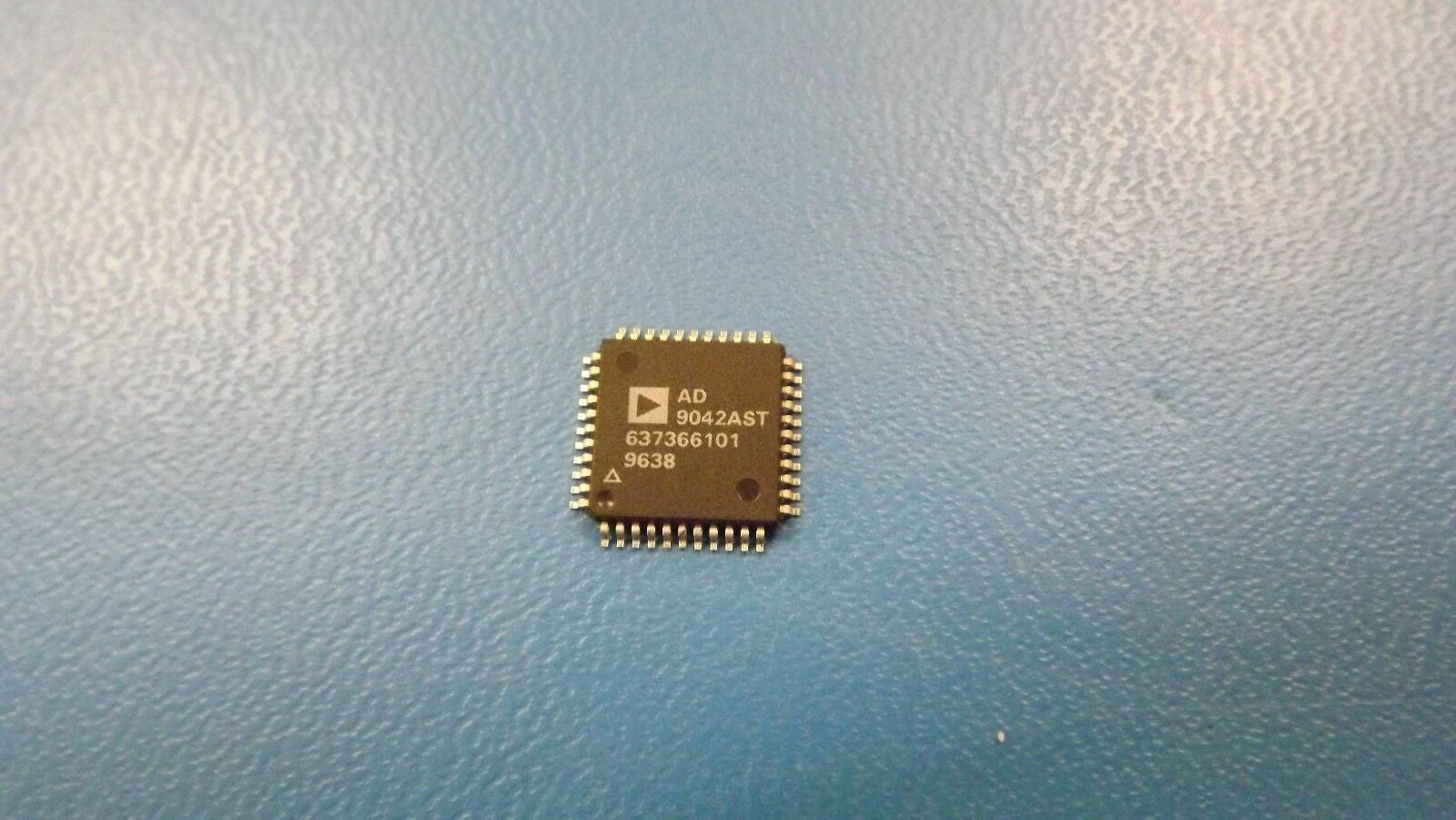

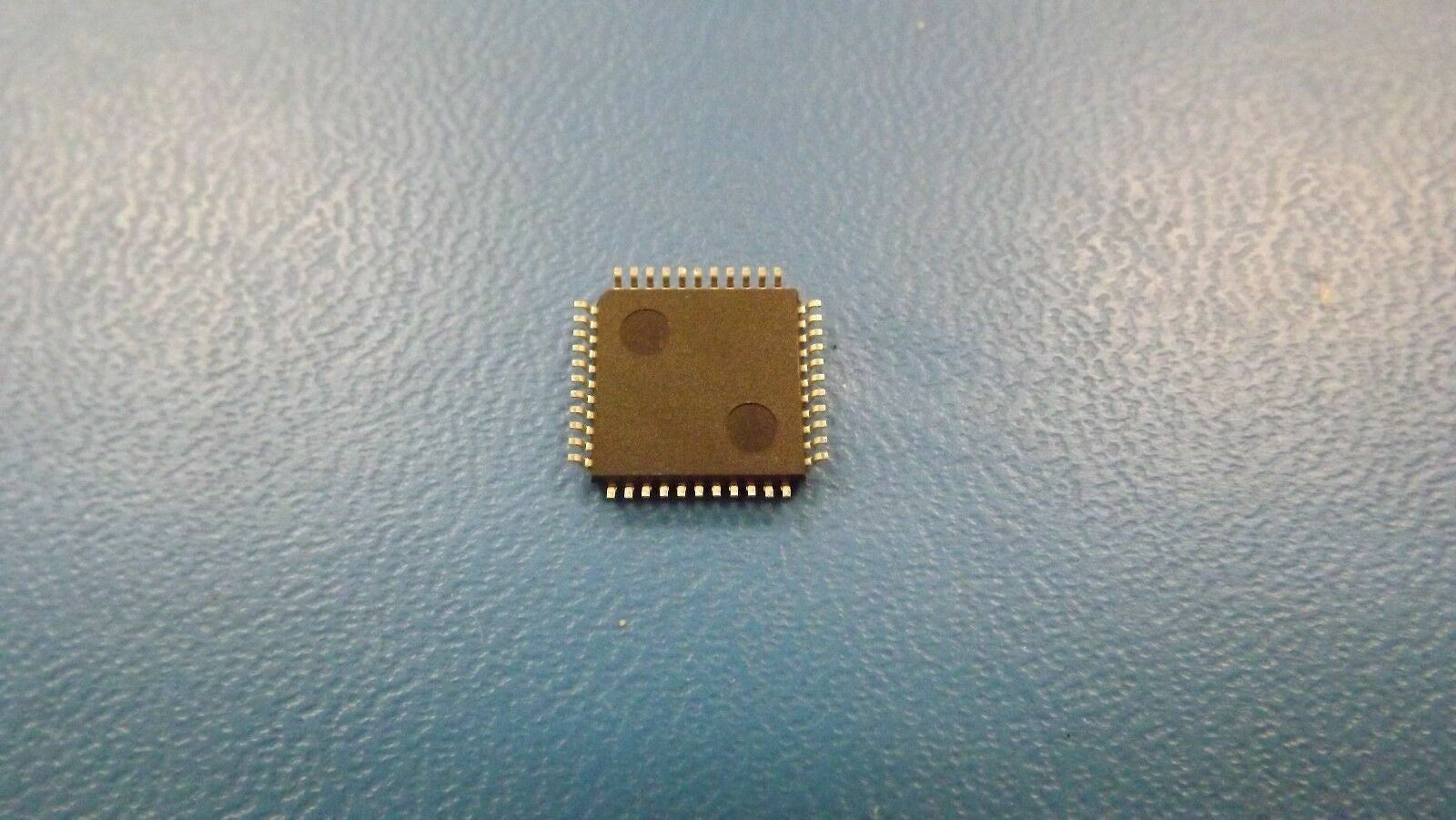

THIS LISTING IS FOR (1PCS) OF AD9042AST BY ANALOG DEVICES
**LISTED AS REFURBISHED BECAUSE LEADS HAVE BEEN STRAIGHTENED AND SOME FACES MAY NOT BE PERFECT. THESE PARTS HAVE NEVER BEEN PUT ON CIRCUIT BOARDS.
SPECIFICATIONS
| Mfr Package Description | TQFP-44 |
| Status | Discontinued |
| Converter Type | ADC, PROPRIETARY METHOD |
| Analog Input Voltage-Min | 1.9 V |
| Analog Input Voltage-Max | 2.9 V |
| Conversion Time-Max | 0.02 µs |
| JESD-30 Code | S-PQFP-G44 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 3 |
| Number of Analog In Channels | 1.0 |
| Number of Bits | 12 |
| Number of Functions | 1 |
| Number of Terminals | 44 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Output Bit Code | 2'S COMPLEMENT BINARY |
| Output Format | PARALLEL, WORD |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LQFP |
| Package Equivalence Code | QFP44,.47SQ,32 |
| Package Shape | SQUARE |
| Package Style | FLATPACK, LOW PROFILE |
| Peak Reflow Temperature (Cel) | 235 |
| Power Supplies (V) | 5 |
| Qualification Status | Not Qualified |
| Sample-and-Hold/Track-and-Hold | TRACK |
| Sample Rate | 41.0 MHz |
| Seated Height-Max | 1.6 mm |
| Sub Category | Analog to Digital Converters |
| Supply Voltage-Nom | 5.0 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.8 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 20 |
| Length | 10.0 mm |
| Width | 10.0 mm |
