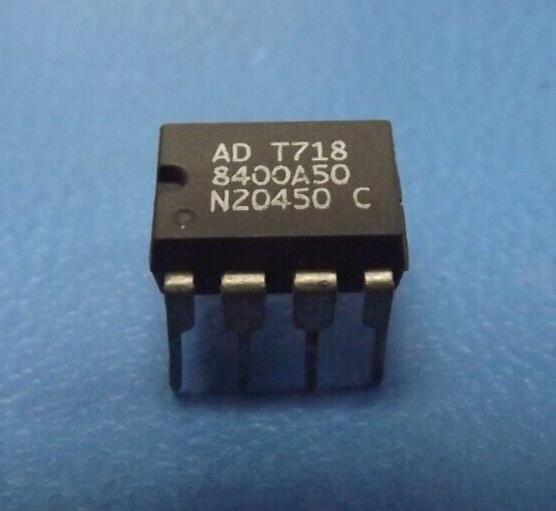

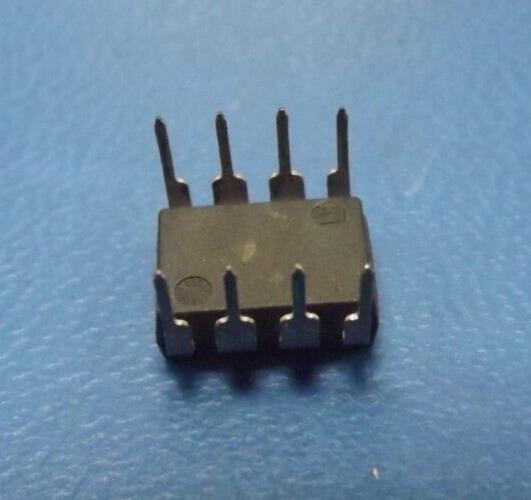

(1PC) AD8400AN50 ANALOG DEVICES Digital Potentiometer CMOS, PDIP8
Tax included.
THIS LISTING IS FOR (1PC) OF AD8400AN50 BY ANALOG DEVICES
Mfr Package Description PLASTIC, DIP-8
Status Discontinued
Converter Type DIGITAL POTENTIOMETER
Bandwidth-Nom 0.125 MHz
Control Interface 2-WIRE SERIAL
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Number of Functions 1
Number of Positions 256
Number of Terminals 8
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Resistance Law LINEAR
Resistor Terminal Voltage-Min 0.0 V
Resistor Terminal Voltage-Max 5.0 V
Seated Height-Max 5.33 mm
Sub Category Digital Potentiometers
Supply Voltage-Nom 5.0 V
Surface Mount NO
Technology CMOS
Temperature Coefficient-Nom 500.0 ppm/Cel
Temperature Grade AUTOMOTIVE
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Total Resistance-Nom 50000.0 ohm
Length 9.88 mm
Width 7.62 mm
Additional Feature IT CAN ALSO OPERATE FROM A 3V NOM SINGLE SUPPLY
