(1PC) AD8016ARP Operational Amplifier, 3000uV Offset-Max, BIPolar, 20P-SOIC
Tax included.

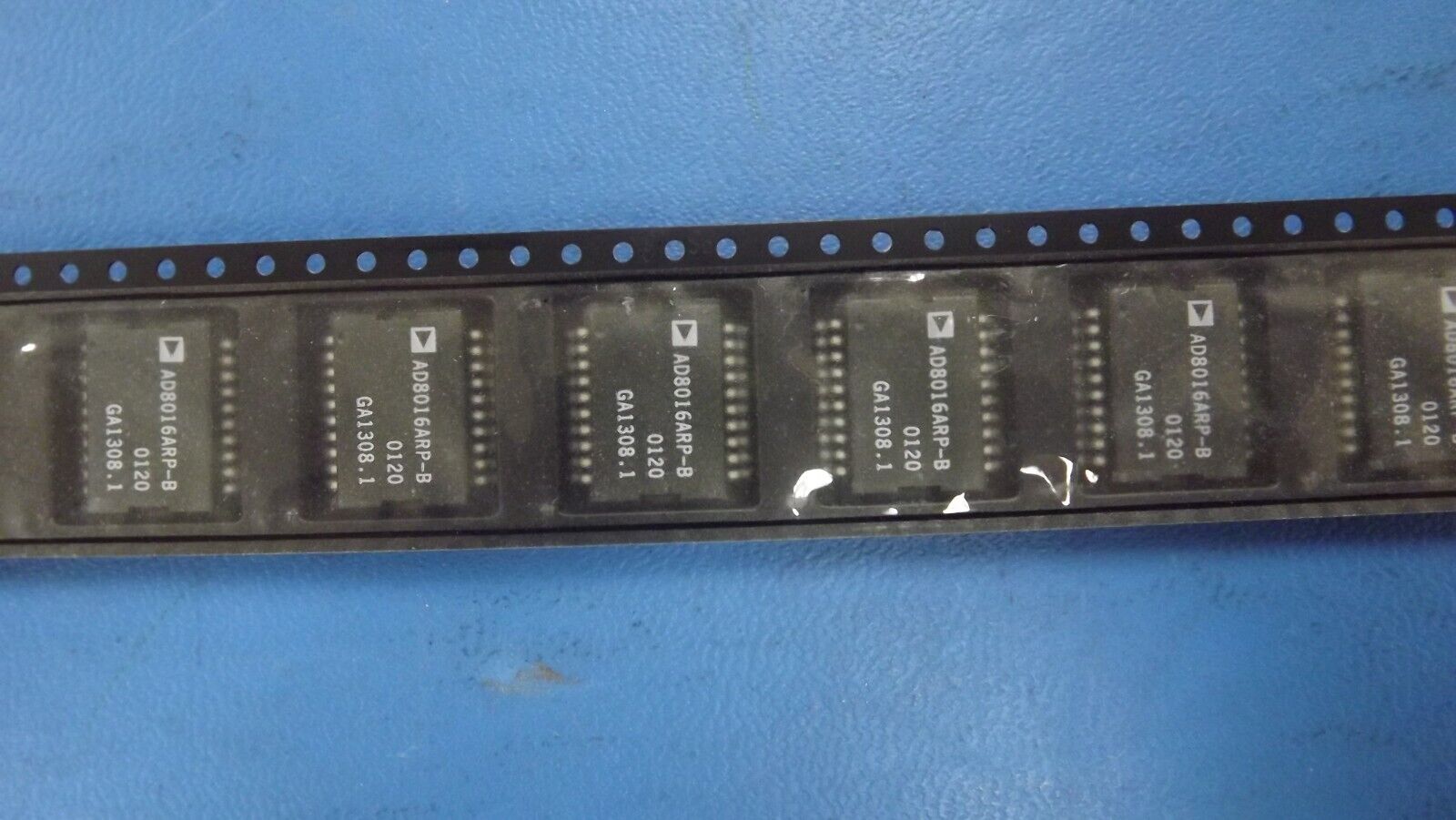

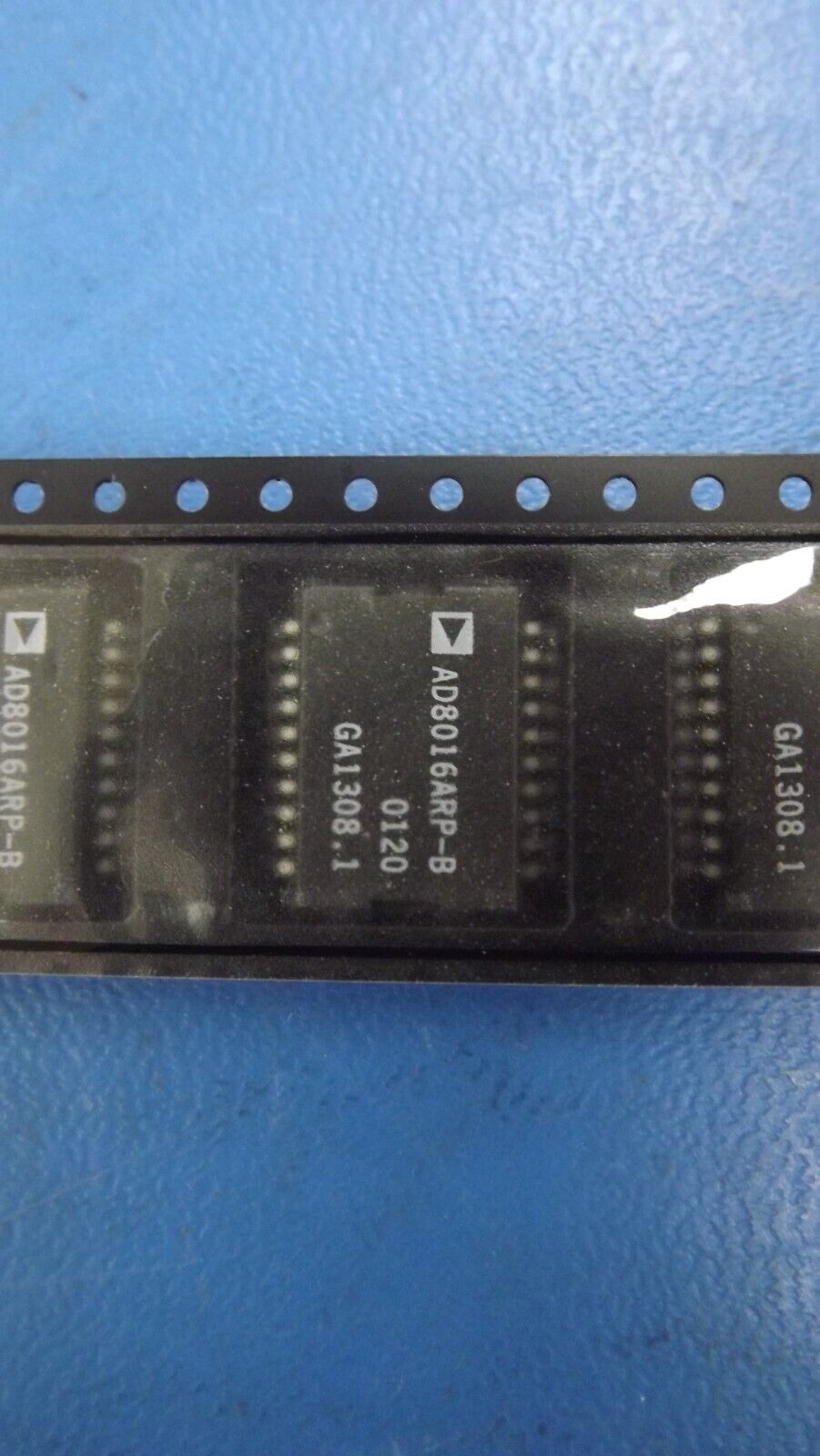

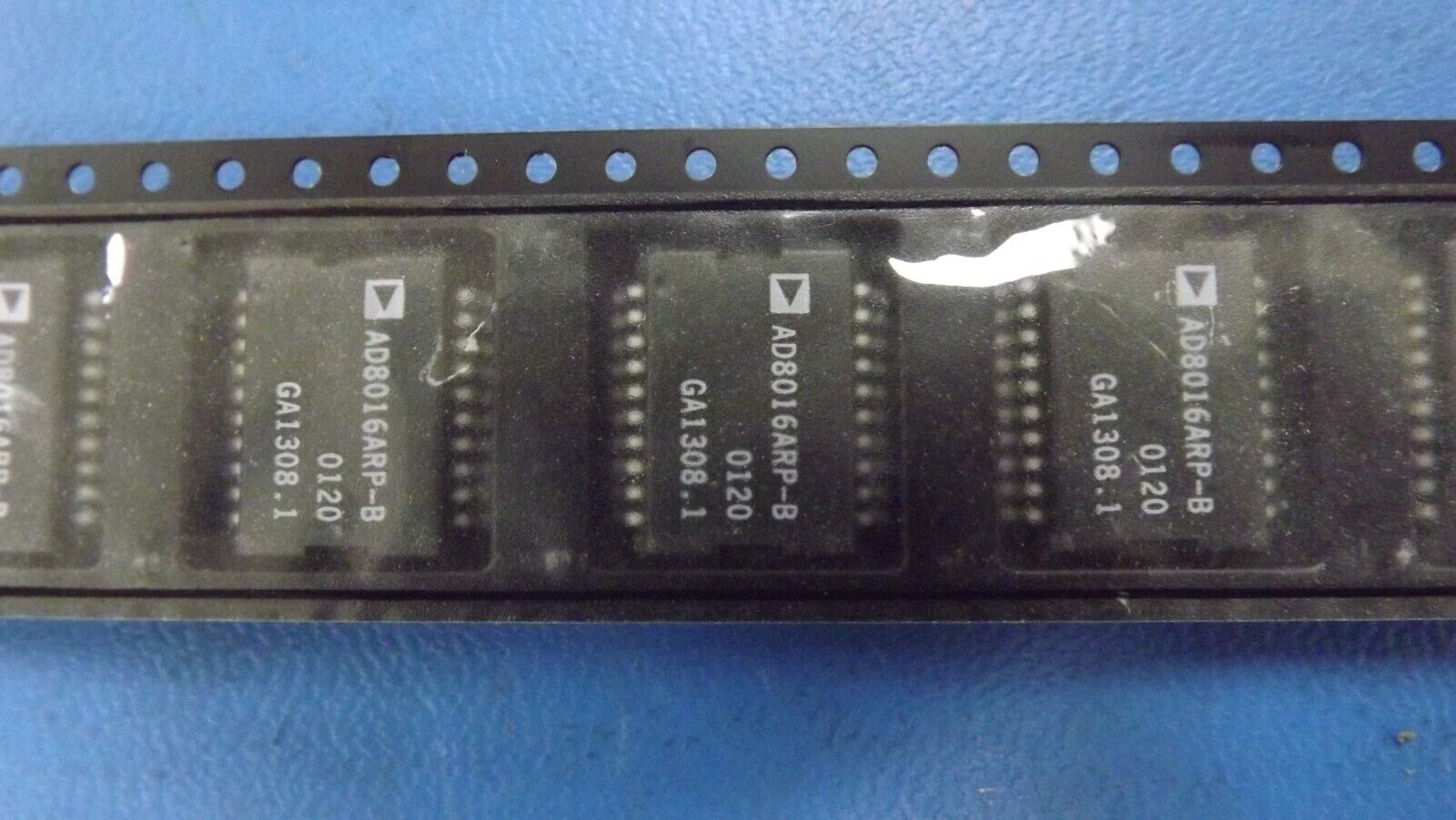

THIS LISTING IS FOR (1PC) OF AD8016ARP-B BY ANALOG DEVICES
Mfr Package Description PLASTIC, SOP3-20
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture CURRENT-FEEDBACK
Bias Current-Max (IIB) @25C 75.0 µA
Common-mode Reject Ratio-Nom 66.0 dB
Frequency Compensation YES
Input Offset Voltage-Max 3000.0 µV
JESD-30 Code R-PDSO-G20
JESD-609 Code e0
Low-Bias NO
Low-Offset NO
Micropower NO
Moisture Sensitivity Level 4
Neg Supply Voltage Limit-Max -13.2 V
Neg Supply Voltage-Nom (Vsup) -6.0 V
Number of Functions 2
Number of Terminals 20
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.56
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 225
Power YES
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 3.6 mm
Slew Rate-Nom 300.0 V/us
Sub Category Operational Amplifier
Supply Current-Max 26.4 mA
Supply Voltage Limit-Max 13.2 V
Supply Voltage-Nom (Vsup) 6.0 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
