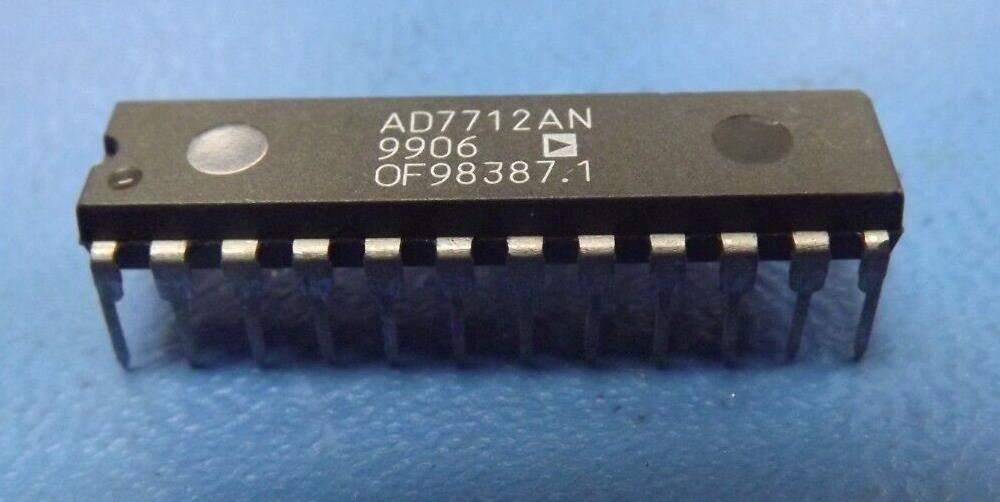

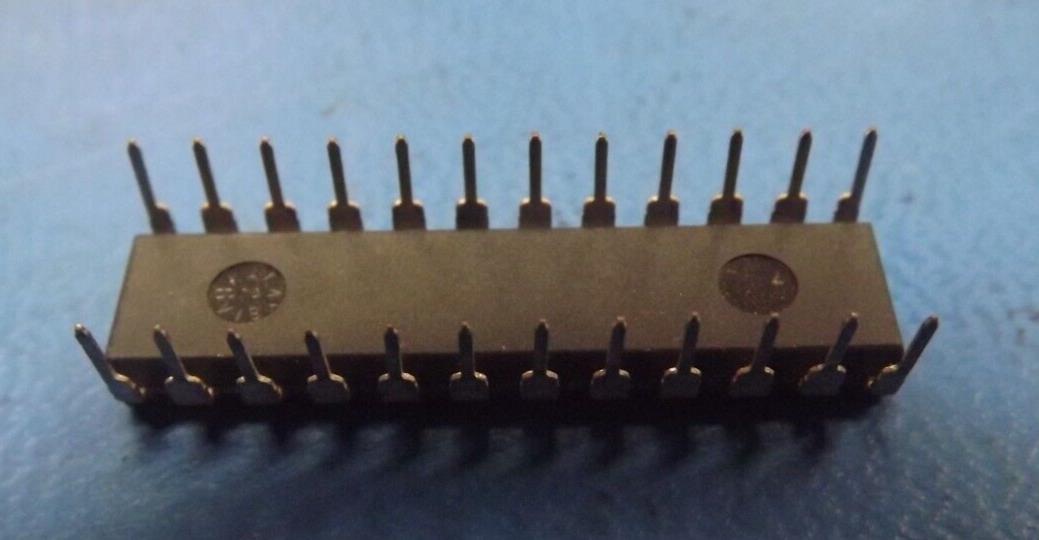

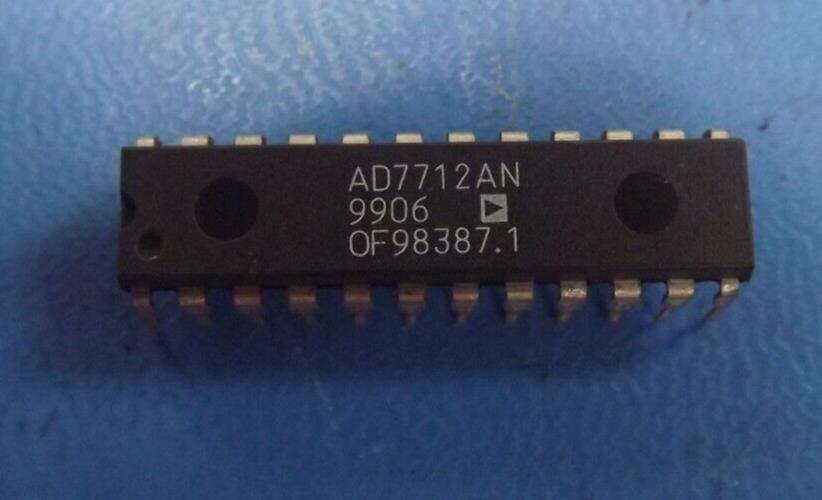

(1PC) AD7712AN 24 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 24-PDIP
Tax included.
THIS LISTING IS FOR (1PC) OF AD7712AN BY ANALOG DEVICES
Mfr Package Description DIP-24
REACH Compliant Yes
Status Discontinued
Converter Type ADC, DELTA-SIGMA
Analog Input Voltage-Min -10.0 V
Analog Input Voltage-Max 10.0 V
JESD-30 Code R-PDIP-T24
JESD-609 Code e0
Linearity Error-Max (EL) 0.003 %
Negative Supply Voltage-Nom -5.0 V
Number of Analog In Channels 2.0
Number of Bits 24
Number of Functions 1
Number of Terminals 24
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Bit Code BINARY, OFFSET BINARY
Output Format SERIAL
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP24,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Sample-and-Hold/Track-and-Hold SAMPLE
Seated Height-Max 5.33 mm
Sub Category Analog to Digital Converters
Supply Voltage-Nom 5.0 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 30.45 mm
Width 7.62 mm
