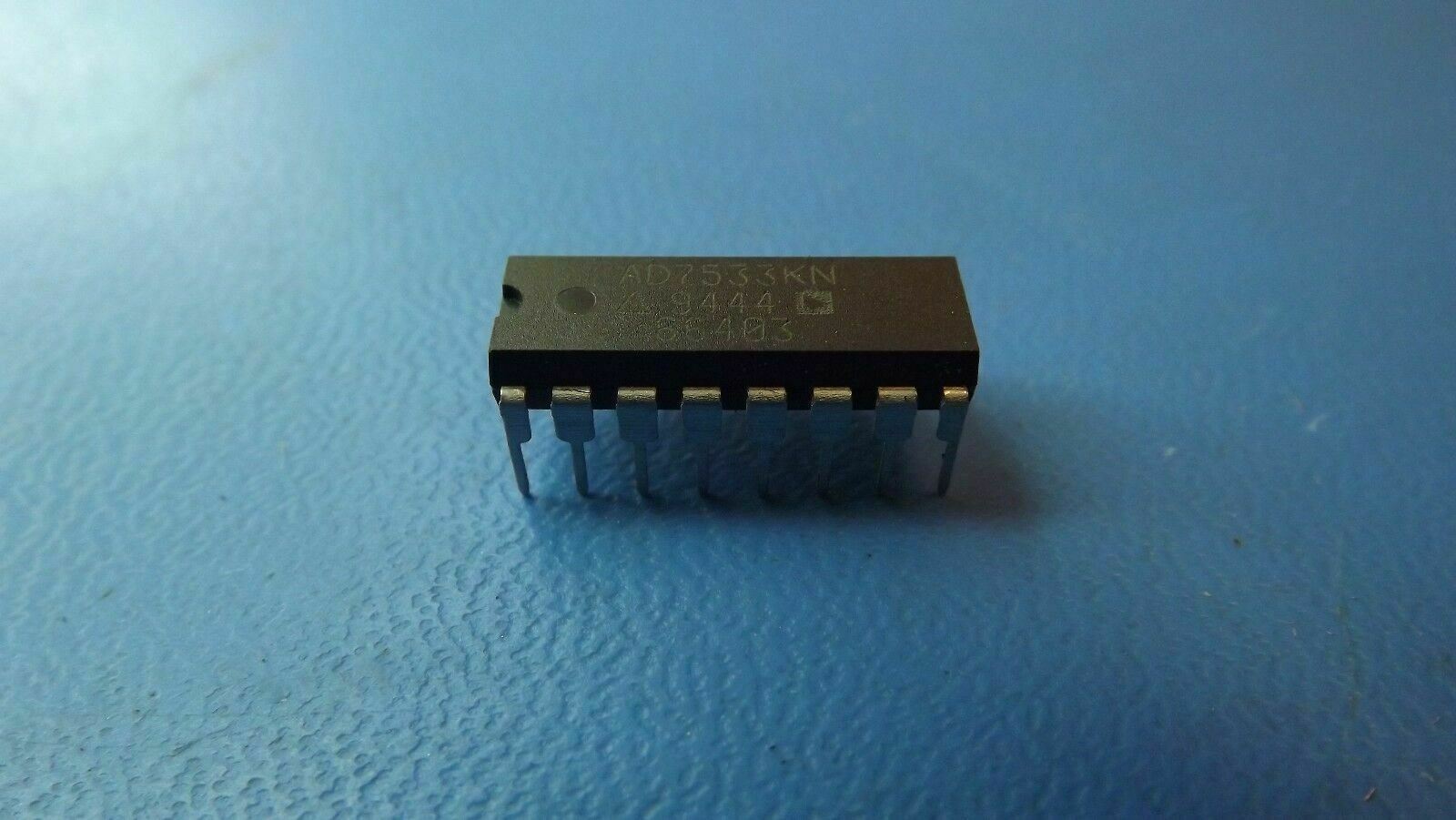

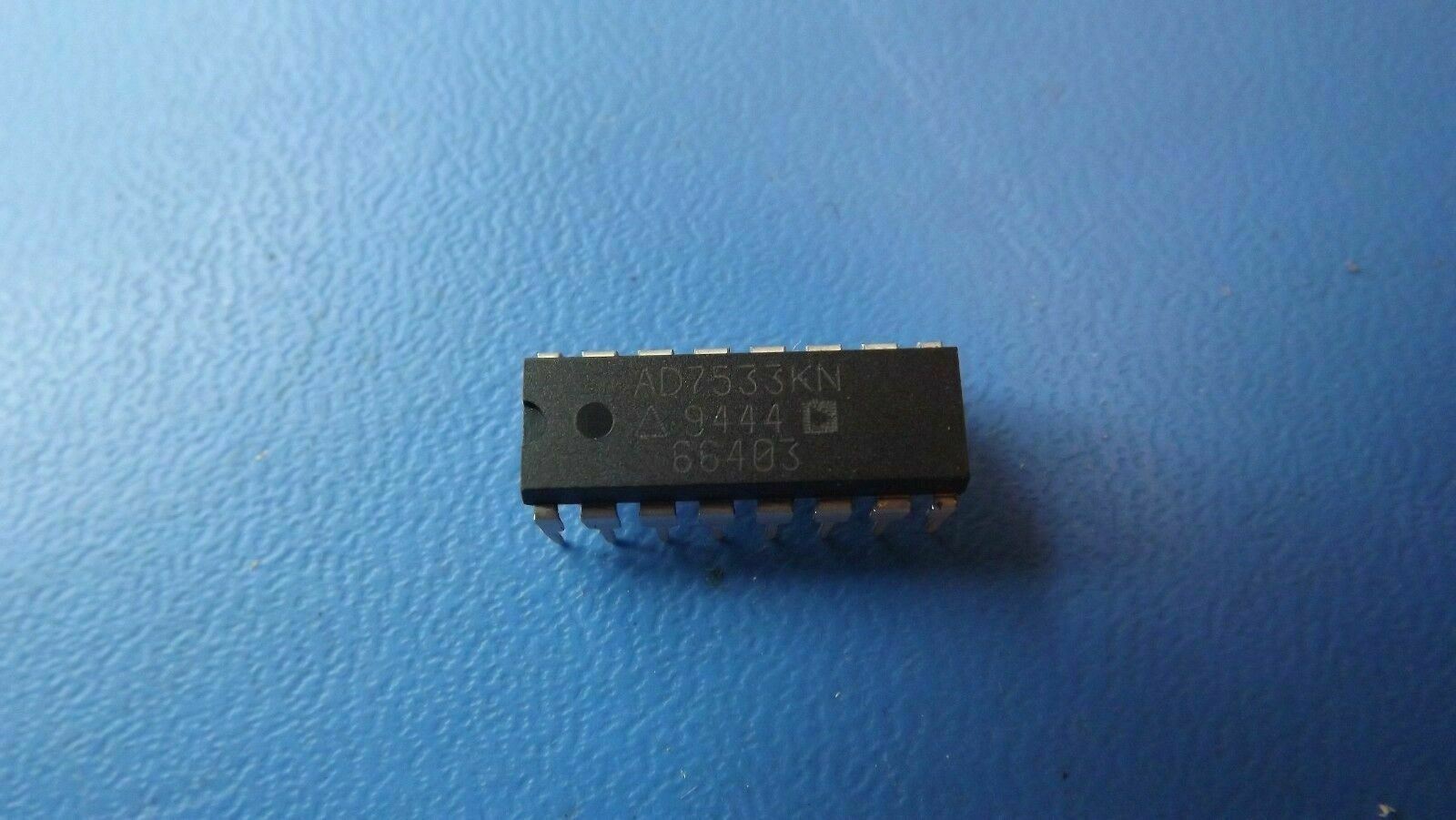

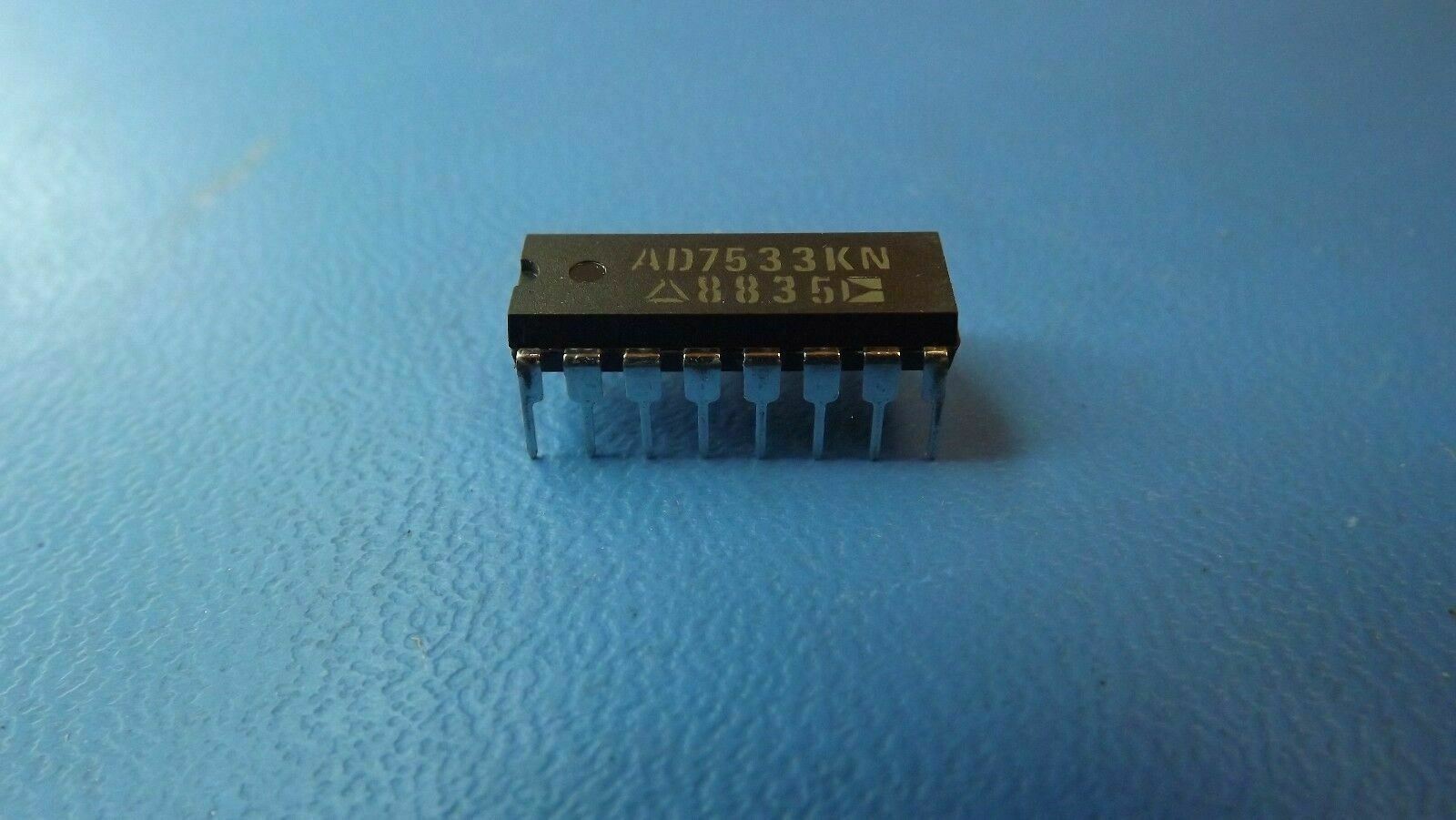

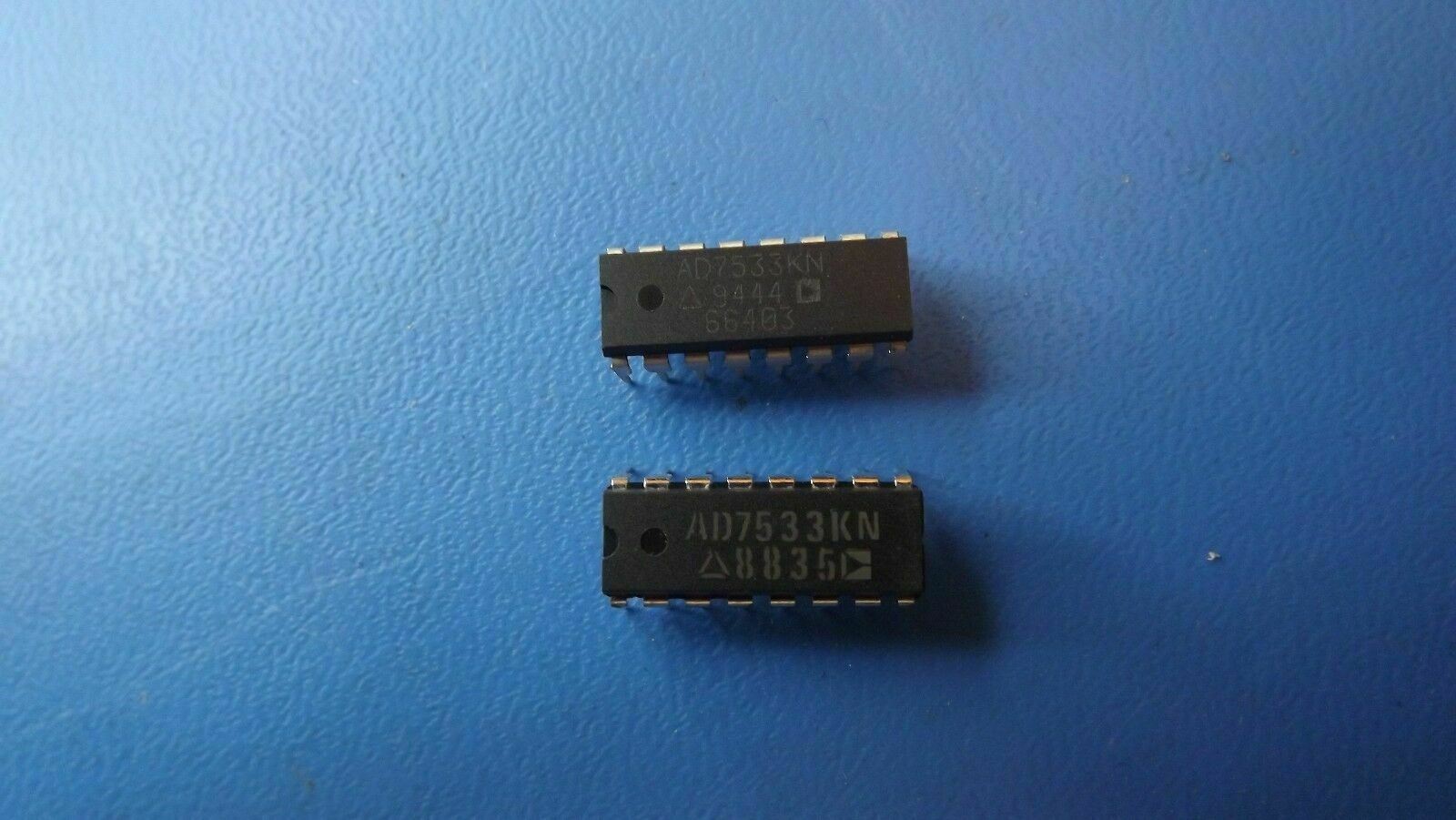

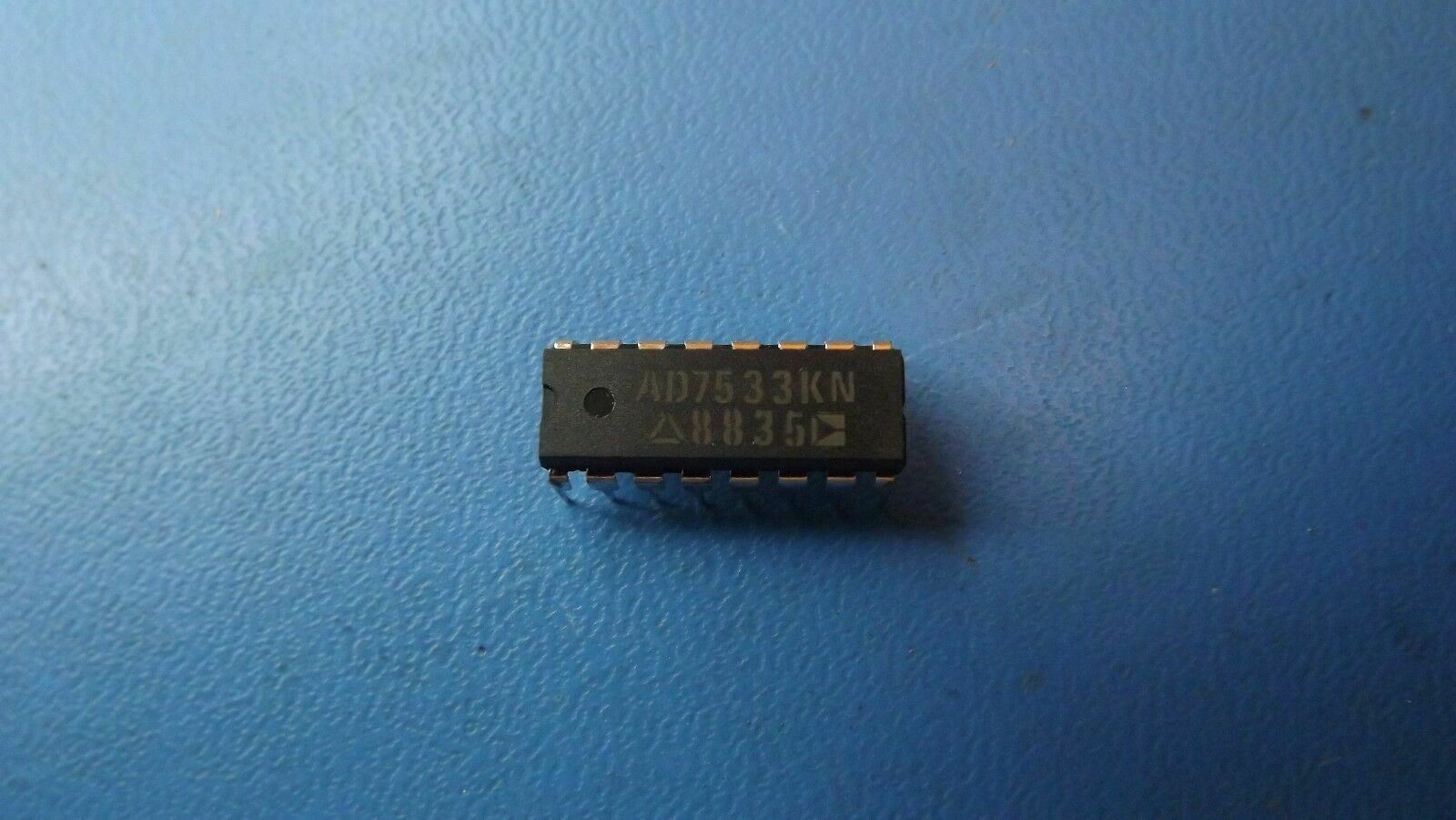

(1PC) AD7533KN ANALOG DEVICES DAC 1-CH Segment 10-bit 16-Pin PDIP

  • $7.95
    Unit price per
Tax included.

Only 19 left!

THIS LISTING IS FOR (1PC) OF AD7533KN BY ANALOG DEVICES

SPECIFICATIONS

REACH Compliant Yes
Status Contact Mfr
Converter Type D/A CONVERTER
Input Bit Code BINARY, OFFSET BINARY
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Linearity Error-Max (EL) 0.1 %
Number of Bits 10-BIT
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supplies (V) 15
Settling Time-Max 0.8 µs
Sub Category Other Converters
Supply Current-Max 2.0 mA
Supply Voltage-Nom 15.0 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
