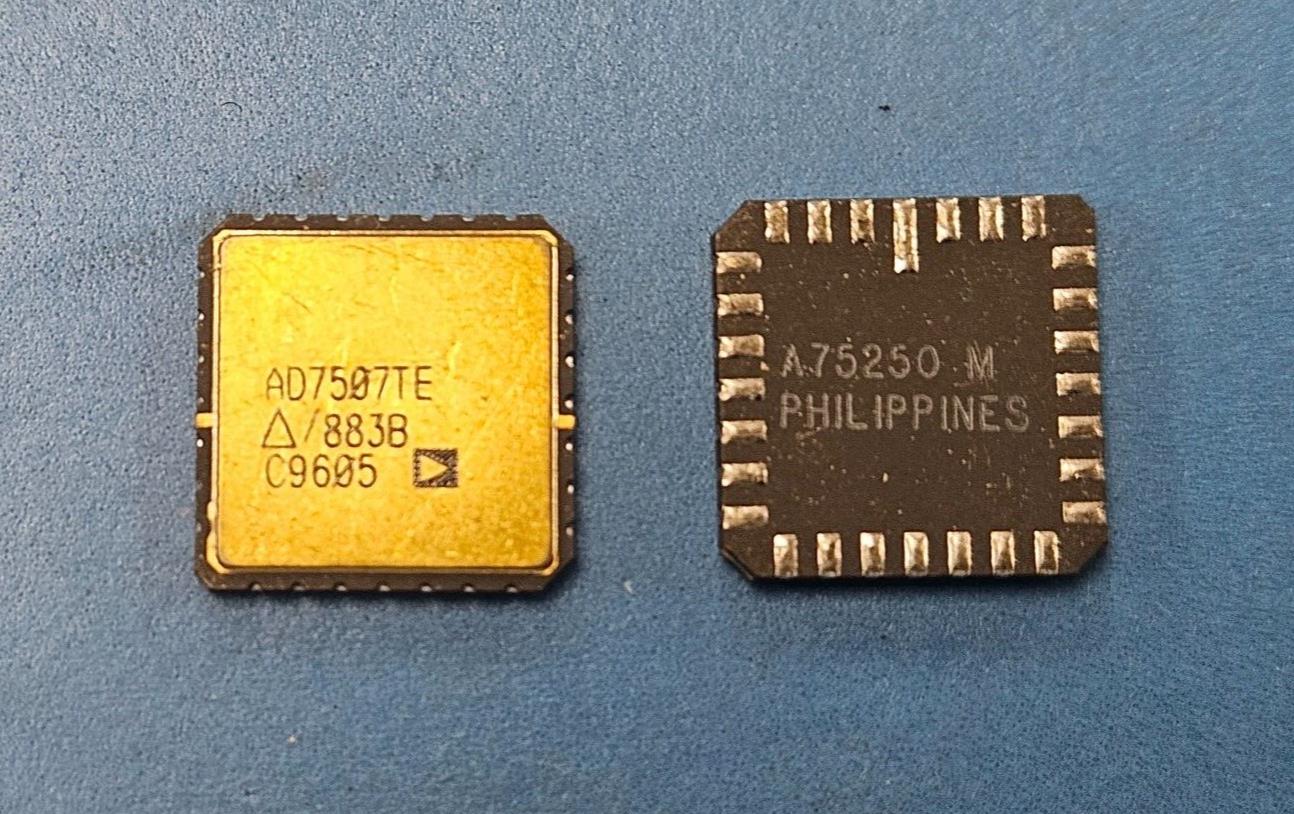

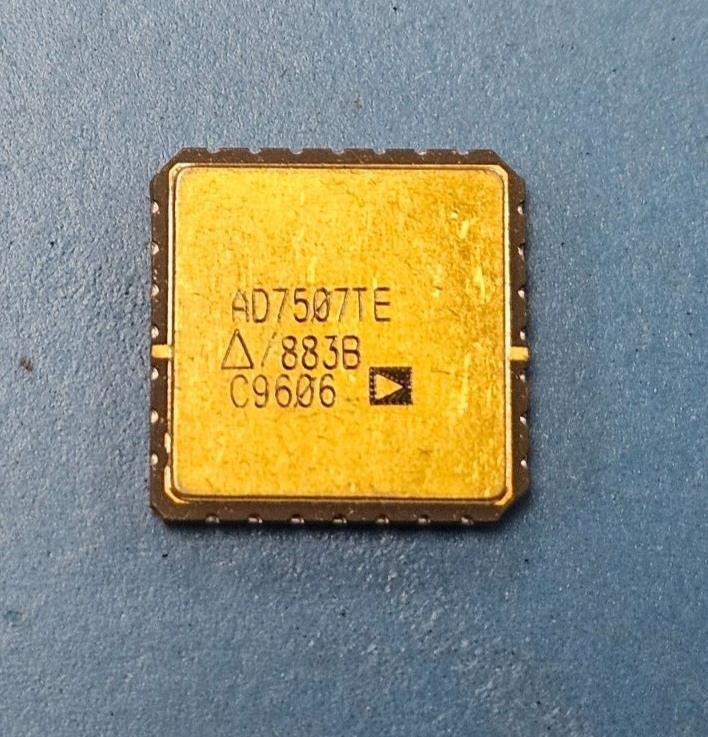

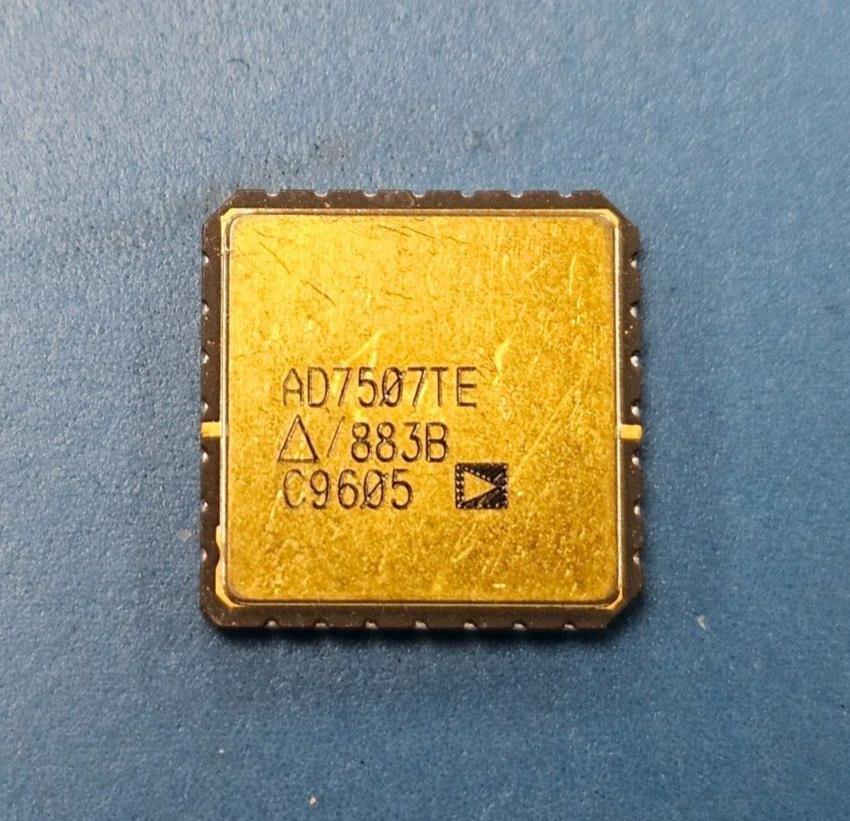

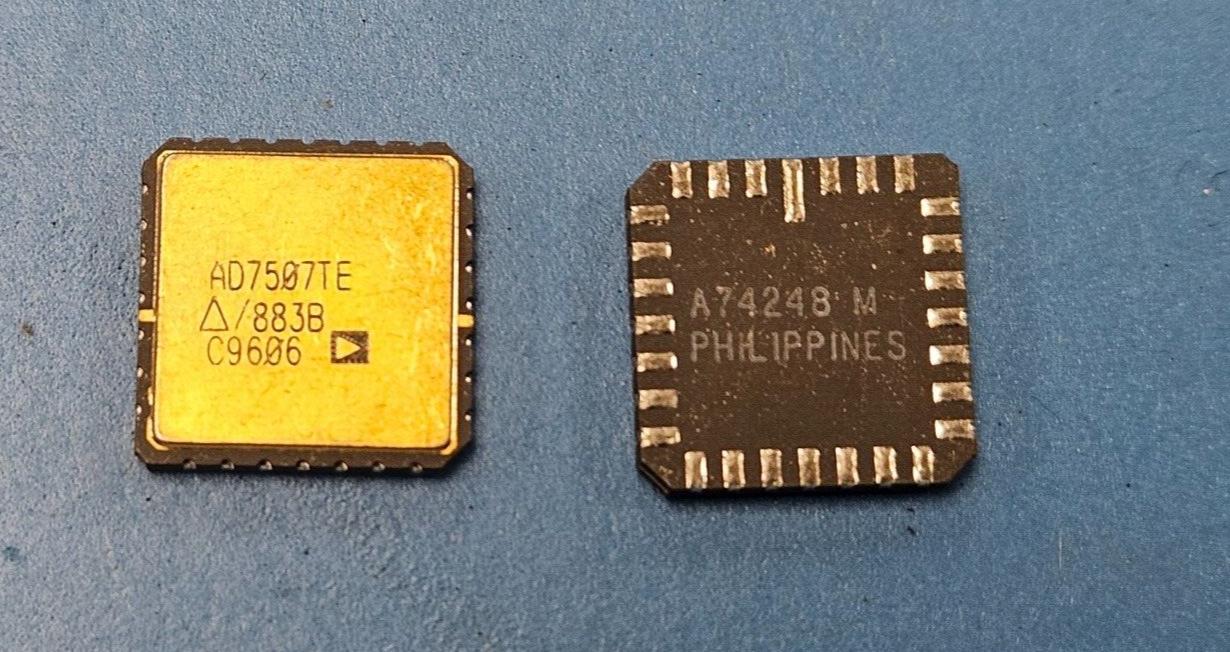

(1PC) AD7507TE Differential Multiplexer, 1 Func, 8 Channel, CMOS, LCC28
Tax included.
THIS LISTING IS FOR (1PC) OF AD7507TE BY ANALOG DEVICES
Mfr Package Description LCC-28
Status Discontinued
Analog IC - Other Type DIFFERENTIAL MULTIPLEXER
JESD-30 Code S-CQCC-N28
JESD-609 Code e0
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Channels 8
Number of Functions 1
Number of Terminals 28
Off-state Isolation-Nom 70.0 dB
On-state Resistance Match-Nom 12.0 ohm
On-state Resistance-Max (Ron) 400.0 ohm
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code QCCN
Package Equivalence Code LCC28,.45SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Qualification Status Not Qualified
Seated Height-Max 2.54 mm
Signal Current-Max 0.02 A
Sub Category Multiplexer or Switches
Supply Current-Max (Isup) 2.0 mA
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount YES
Switch-off Time-Max 1000.0 ns
Switch-on Time-Max 1500.0 ns
Technology CMOS
Terminal Finish TIN LEAD
Terminal Form NO LEAD
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 11.43 mm
Width 11.43 mm
