(1PC) AD7506JN Single-Ended Multiplexer, 1 Func, 16 Channel, CMOS, PDIP28
Tax included.

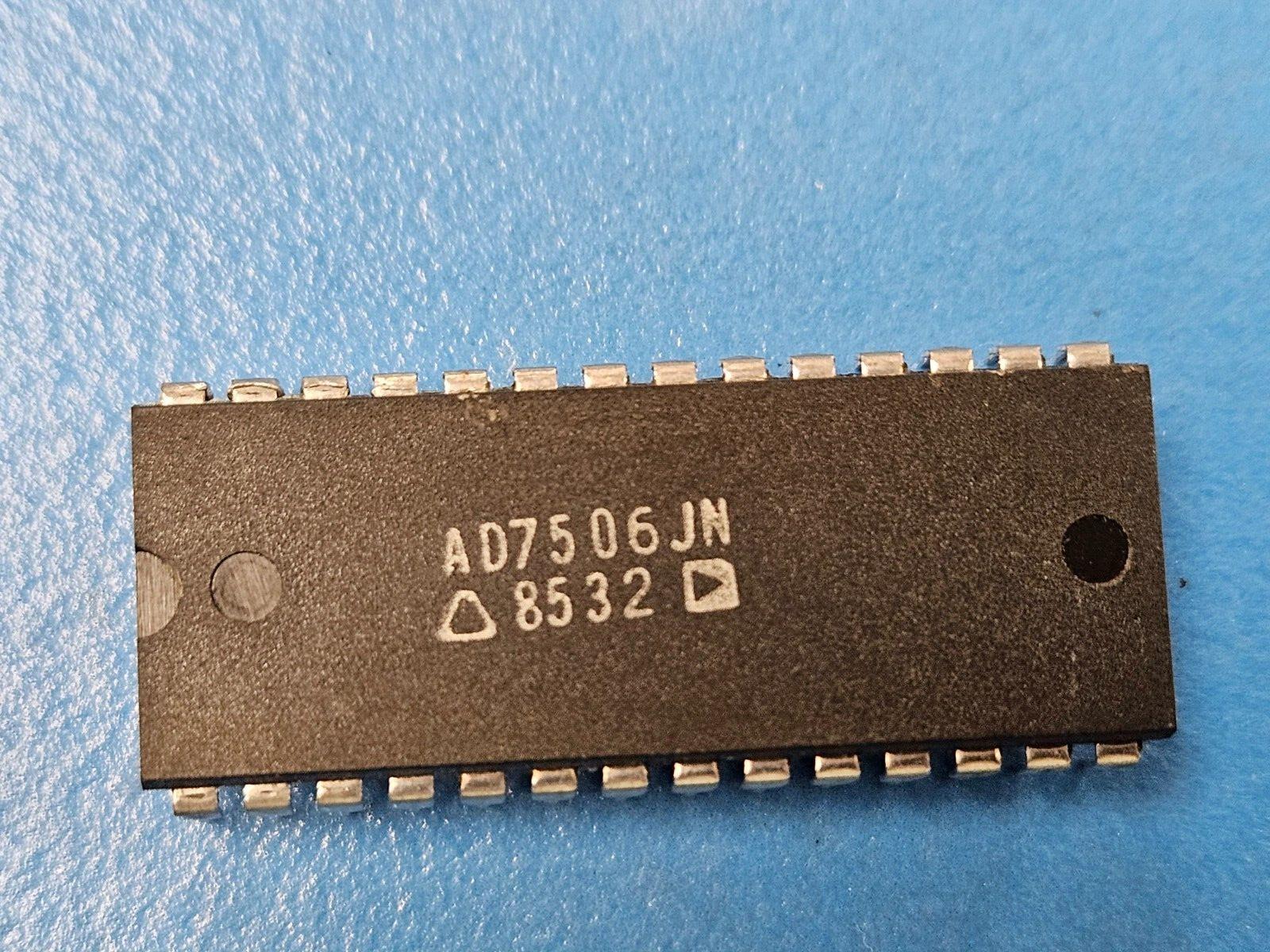

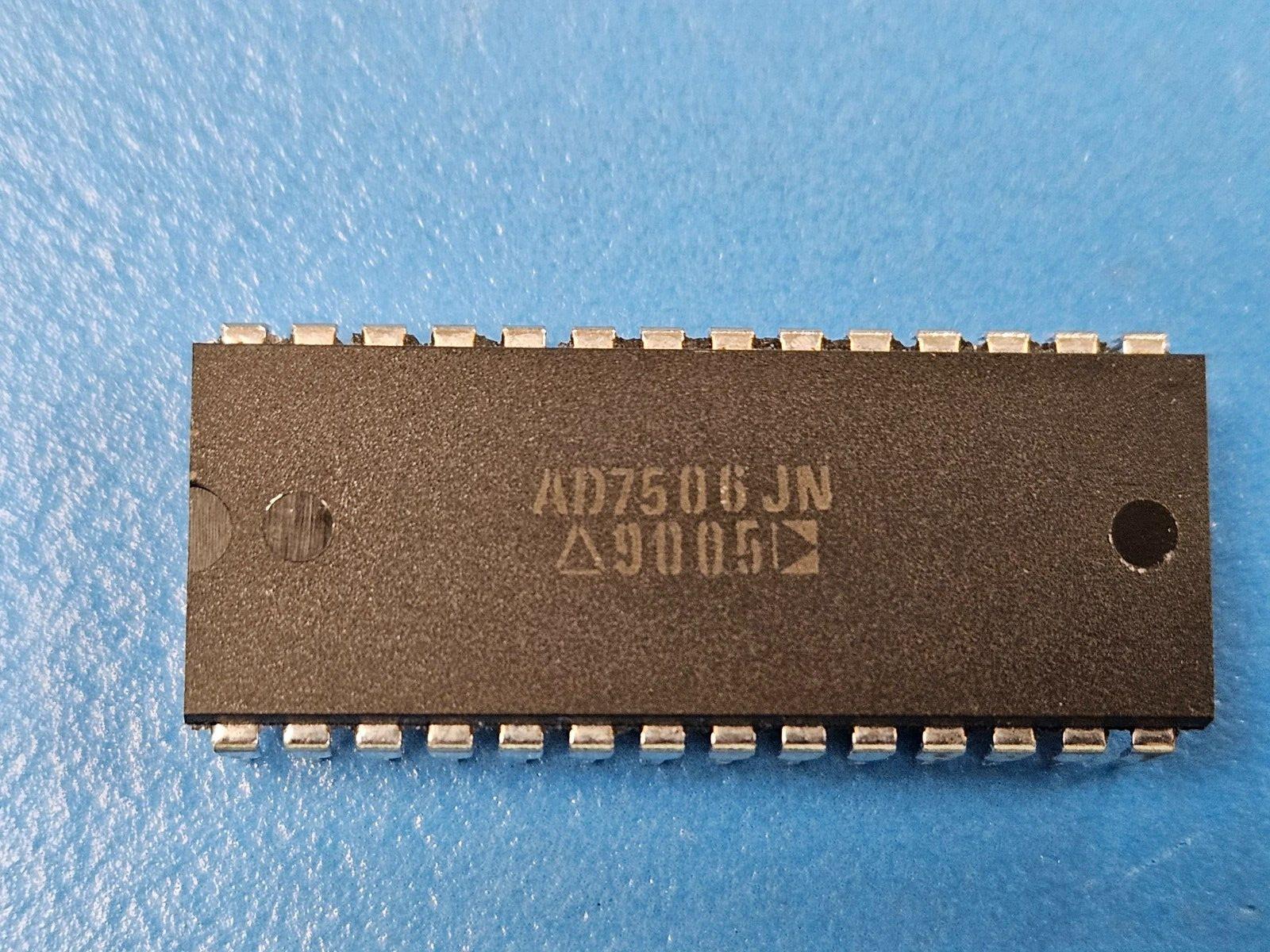

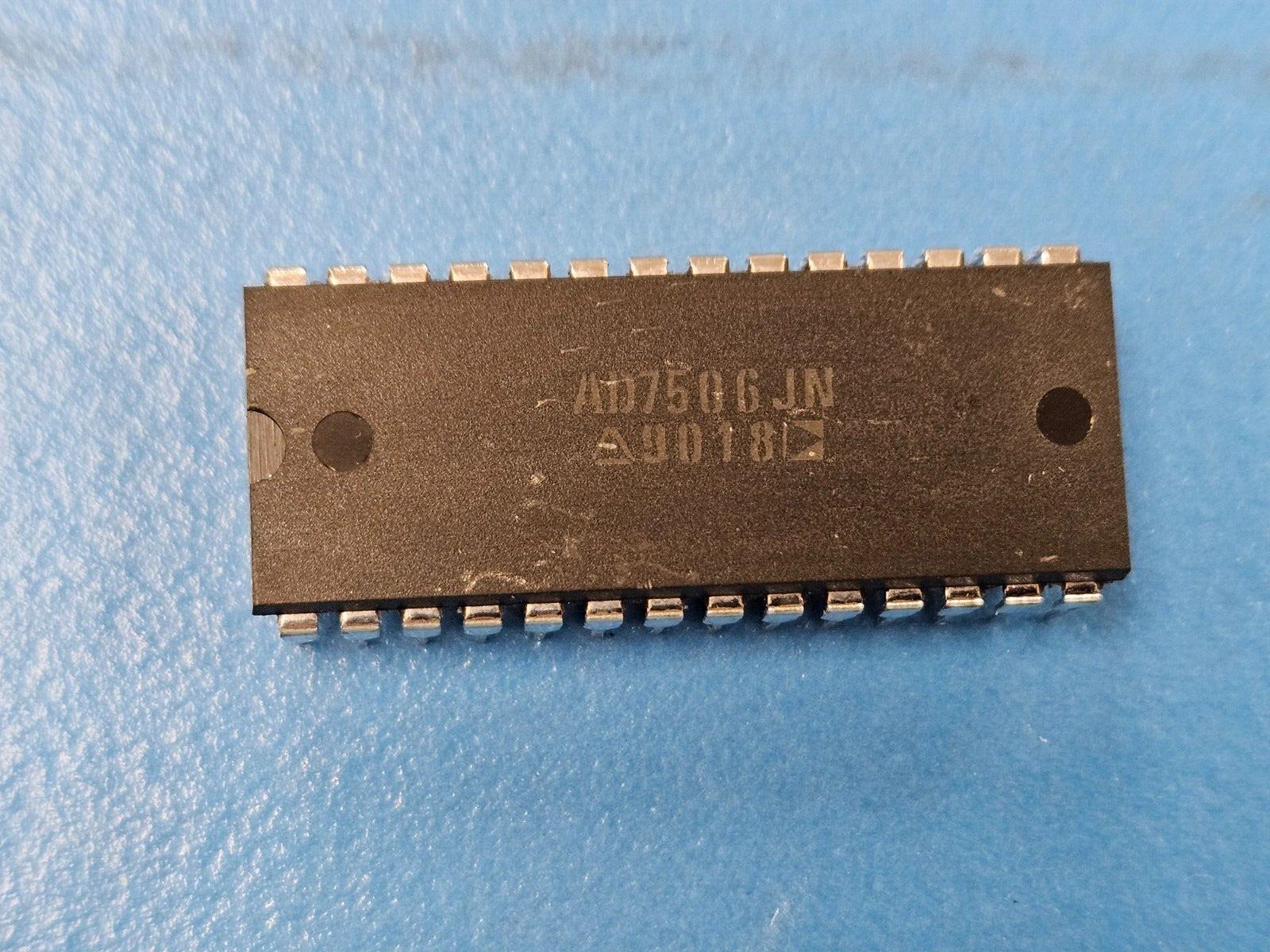

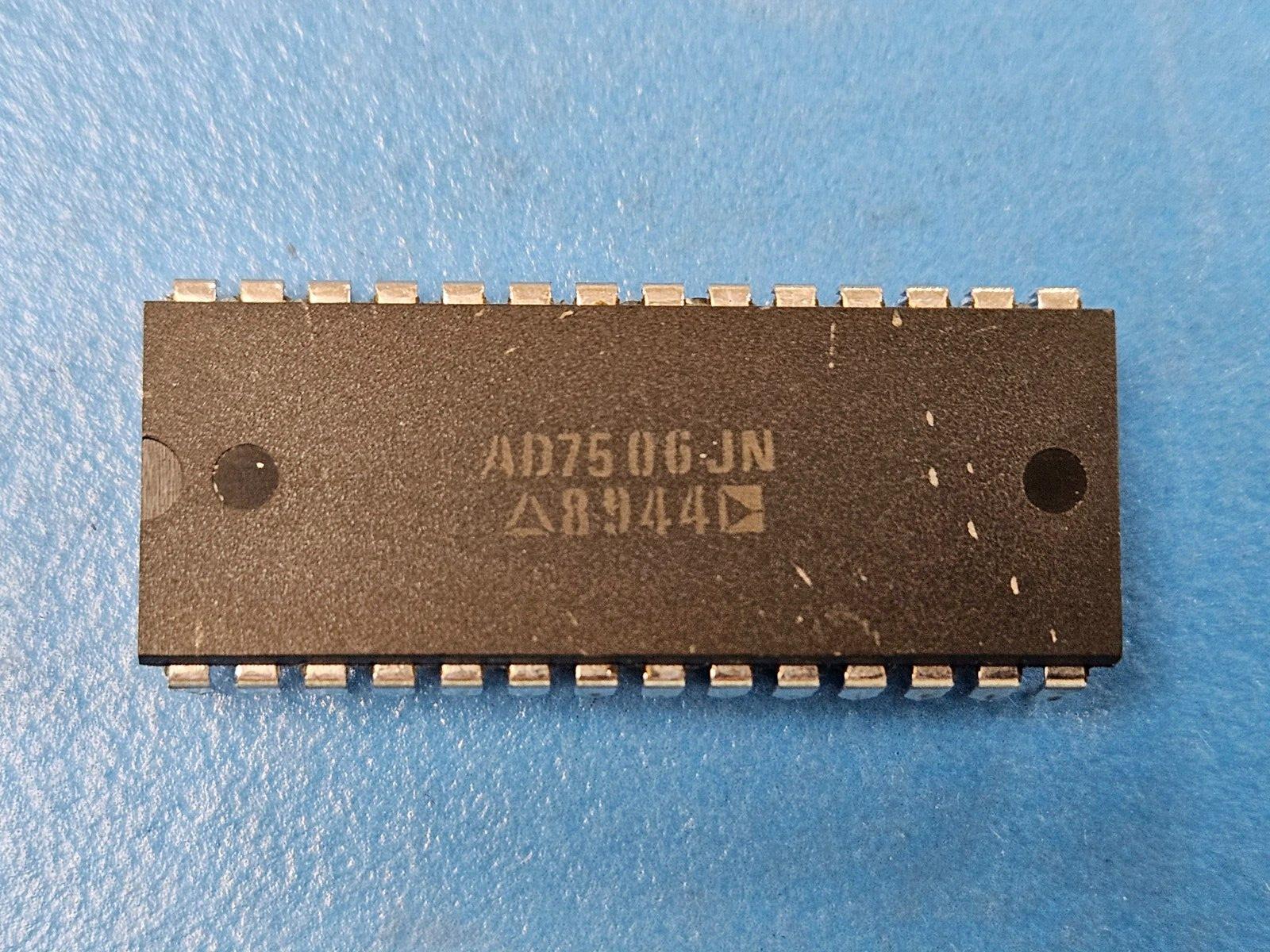

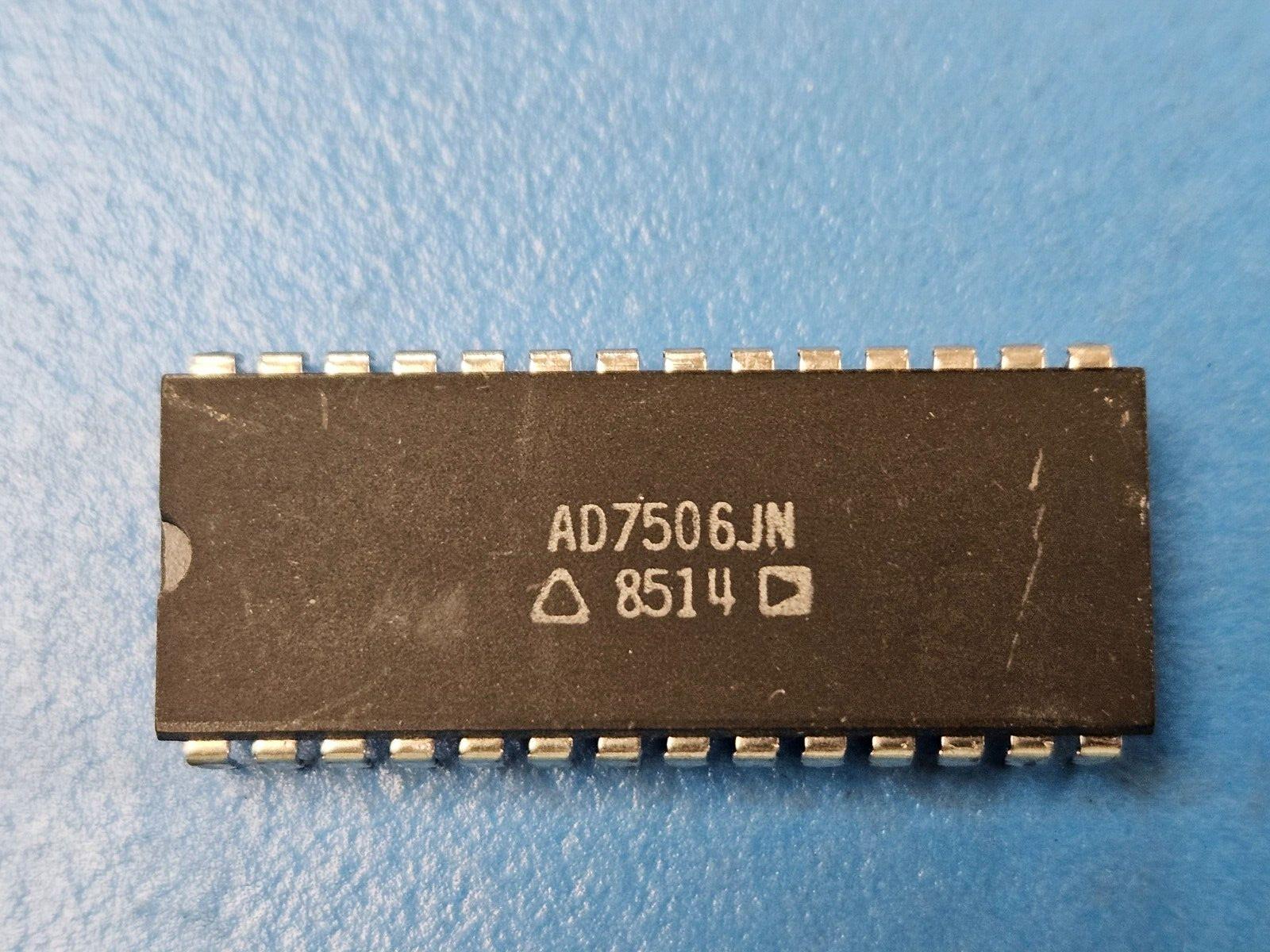

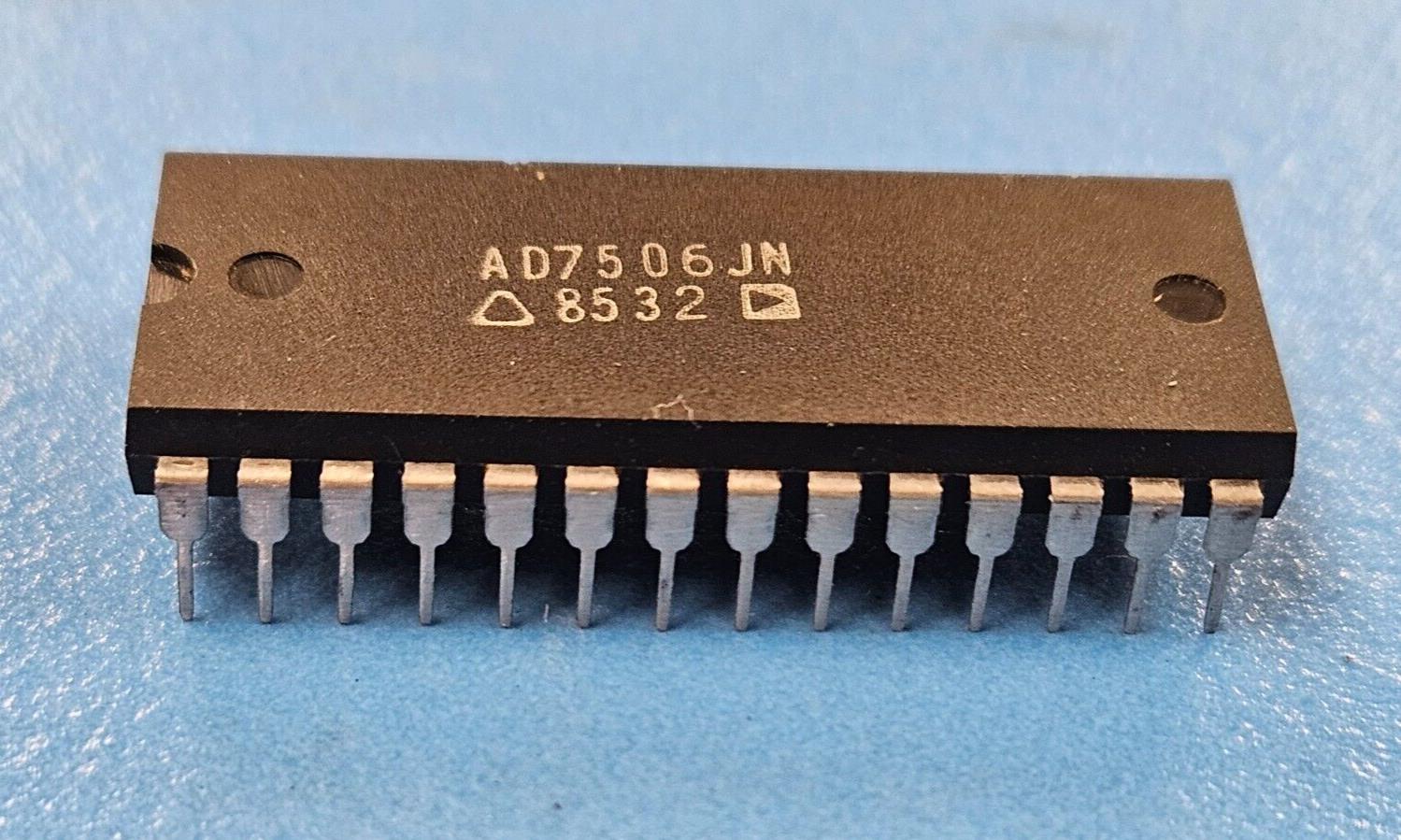

This listing is for (1pc) of AD7506JN by Analog Devices
Status Discontinued
Analog IC - Other Type SINGLE-ENDED MULTIPLEXER
JESD-30 Code R-PDIP-T28
JESD-609 Code e0
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Channels 16
Number of Functions 1
Number of Terminals 28
On-state Resistance-Max (Ron) 550.0 ohm
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Signal Current-Max 0.02 A
Sub Category Multiplexer or Switches
Supply Current-Max (Isup) 1.0 mA
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
