(1PC) AD7328BRUZ Analog Devices ADC Single SAR 1Msps 13-bit Serial 20-Pin TSSOP
Tax included.

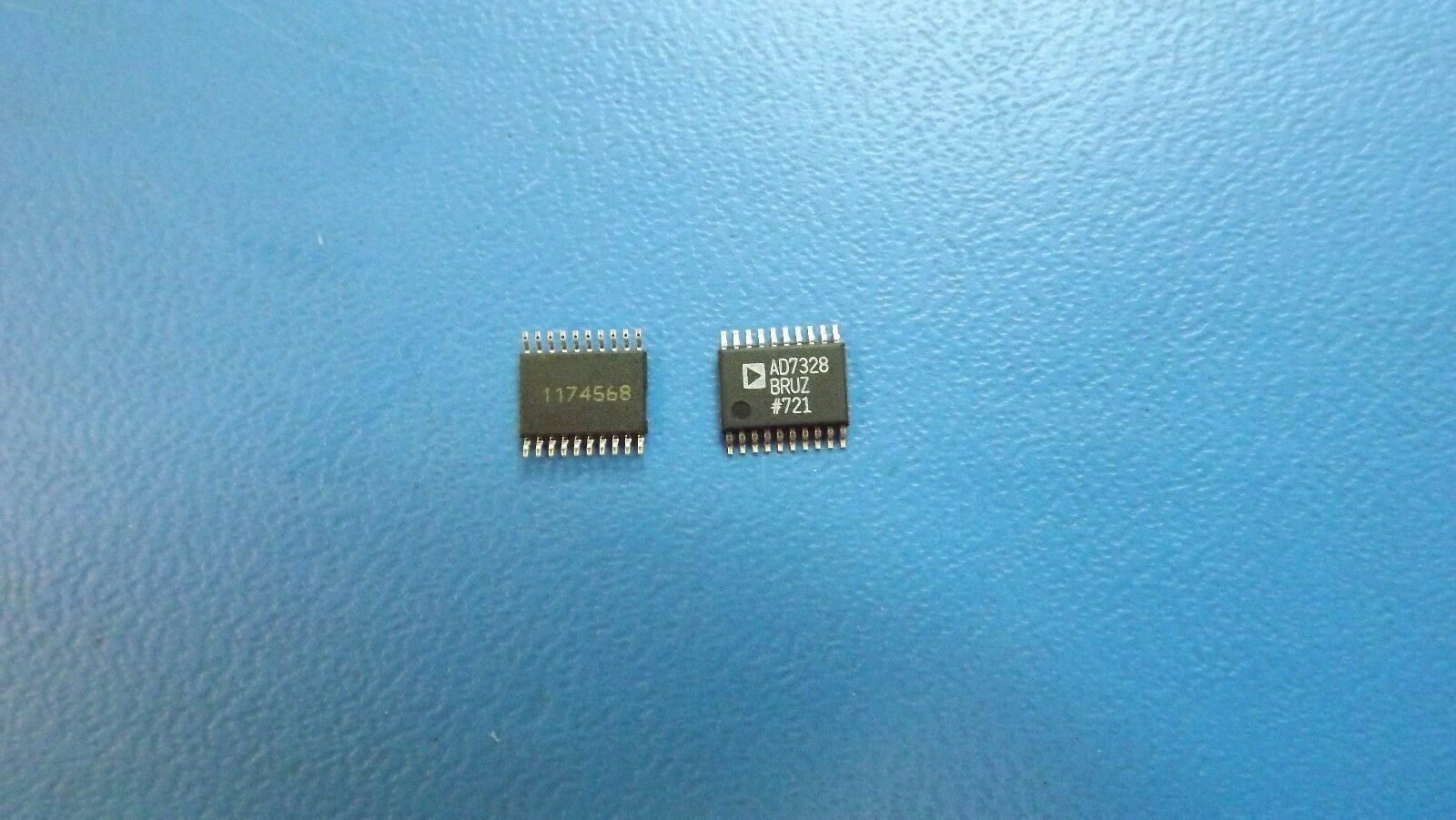

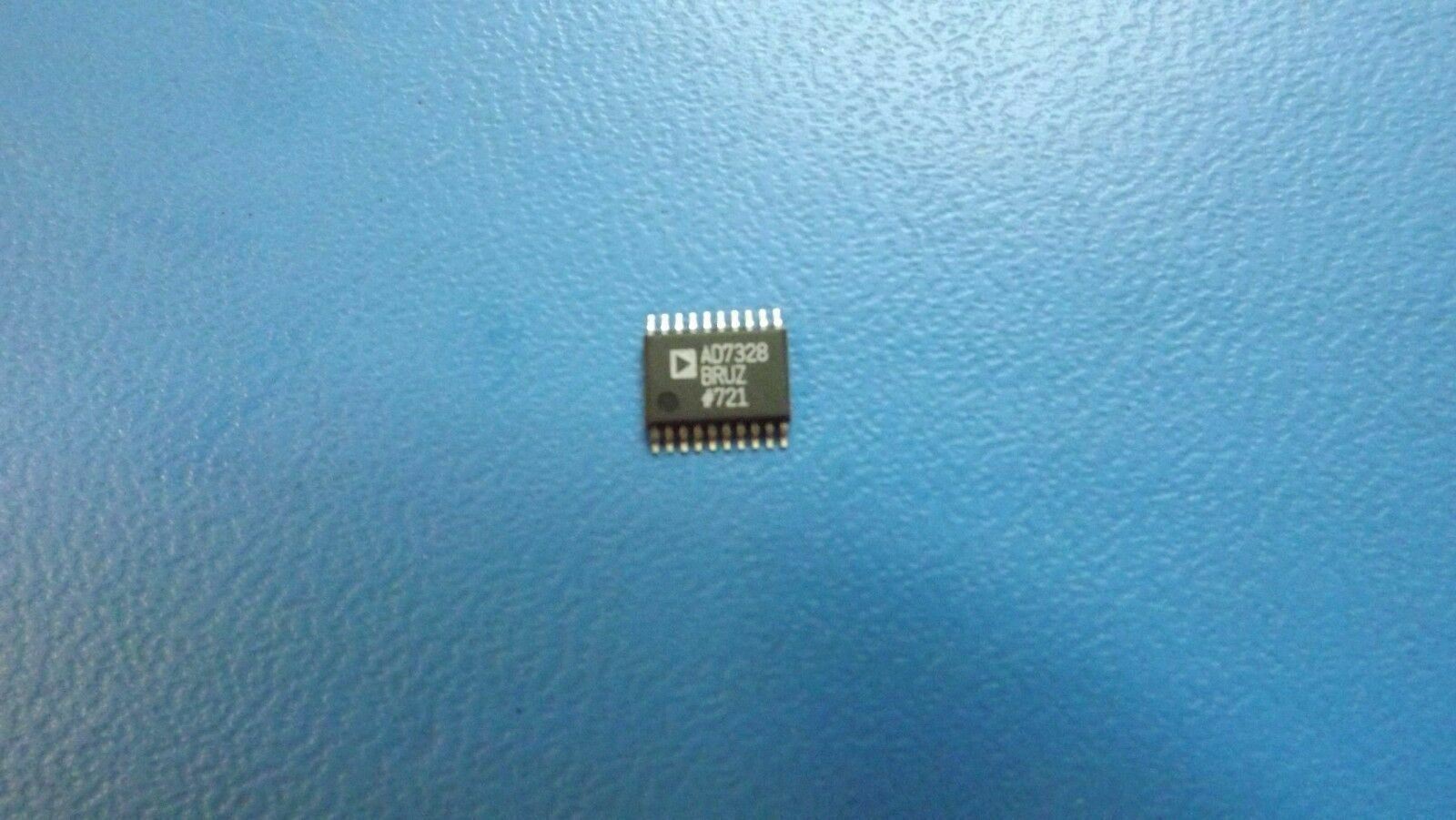

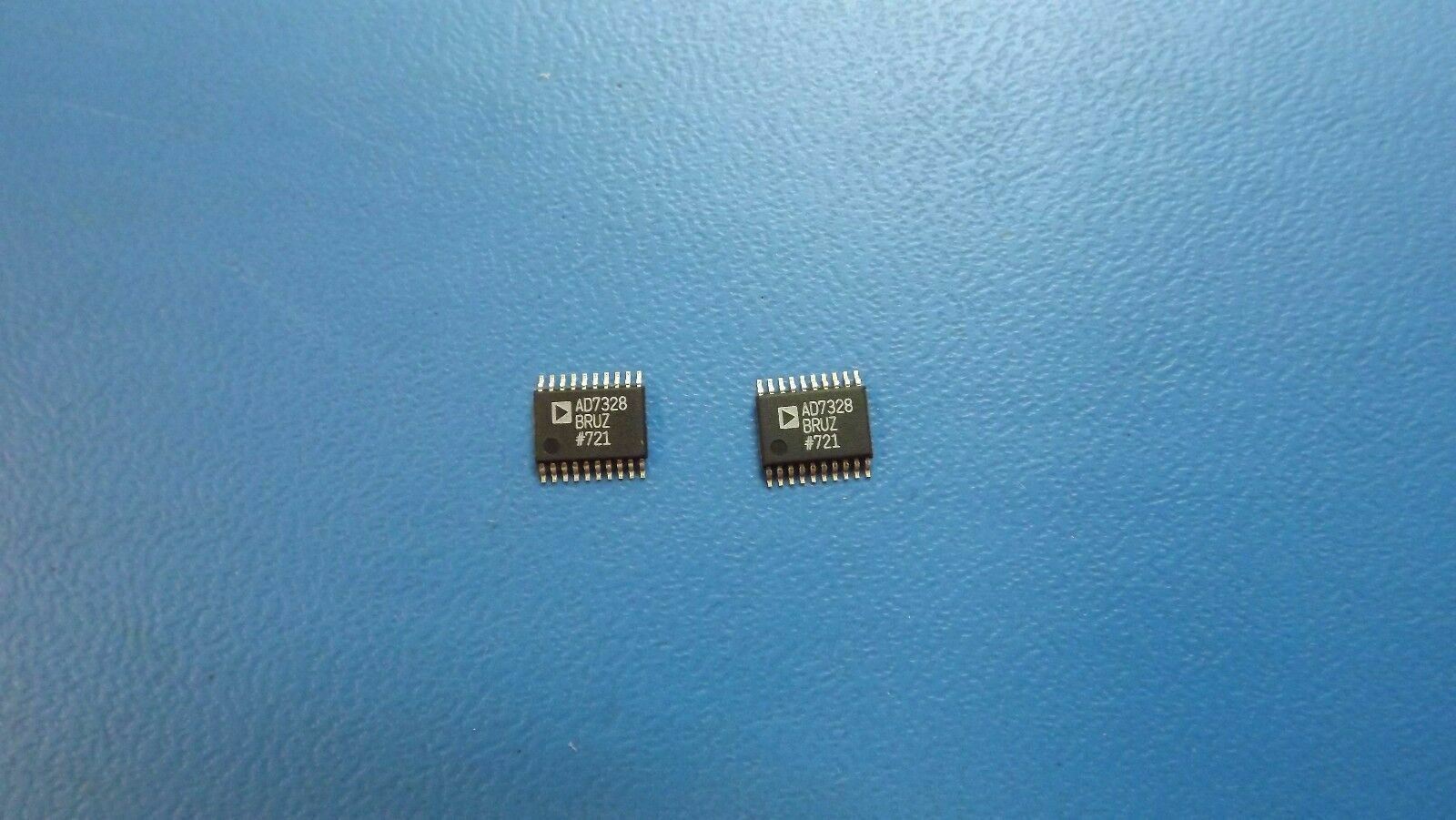

THIS LISTING IS FOR (1PC) OF AD7328BRUZ BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT, MO-153AC, TSSOP-20 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION |
| Analog Input Voltage-Min | -10.0 V |
| Analog Input Voltage-Max | 10.0 V |
| Conversion Time-Max | 0.8 µs |
| JESD-30 Code | R-PDSO-G20 |
| JESD-609 Code | e3 |
| Linearity Error-Max (EL) | 0.0269 % |
| Moisture Sensitivity Level | 1 |
| Number of Analog In Channels | 8.0 |
| Number of Bits | 12 |
| Number of Functions | 1 |
| Number of Terminals | 20 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Output Bit Code | BINARY, 2'S COMPLEMENT BINARY |
| Output Format | SERIAL |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP20,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 3/5,+-15 |
| Qualification Status | Not Qualified |
| Sample-and-Hold/Track-and-Hold | TRACK |
| Sample Rate | 1.0 MHz |
| Seated Height-Max | 1.2 mm |
| Sub Category | Analog to Digital Converters |
| Supply Voltage-Nom | 5.0 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 6.5 mm |
| Width | 4.4 mm |
