(1PC) AD7245AAN DAC 1-CH R-2R 12-bit 24-Pin PDIP
Tax included.

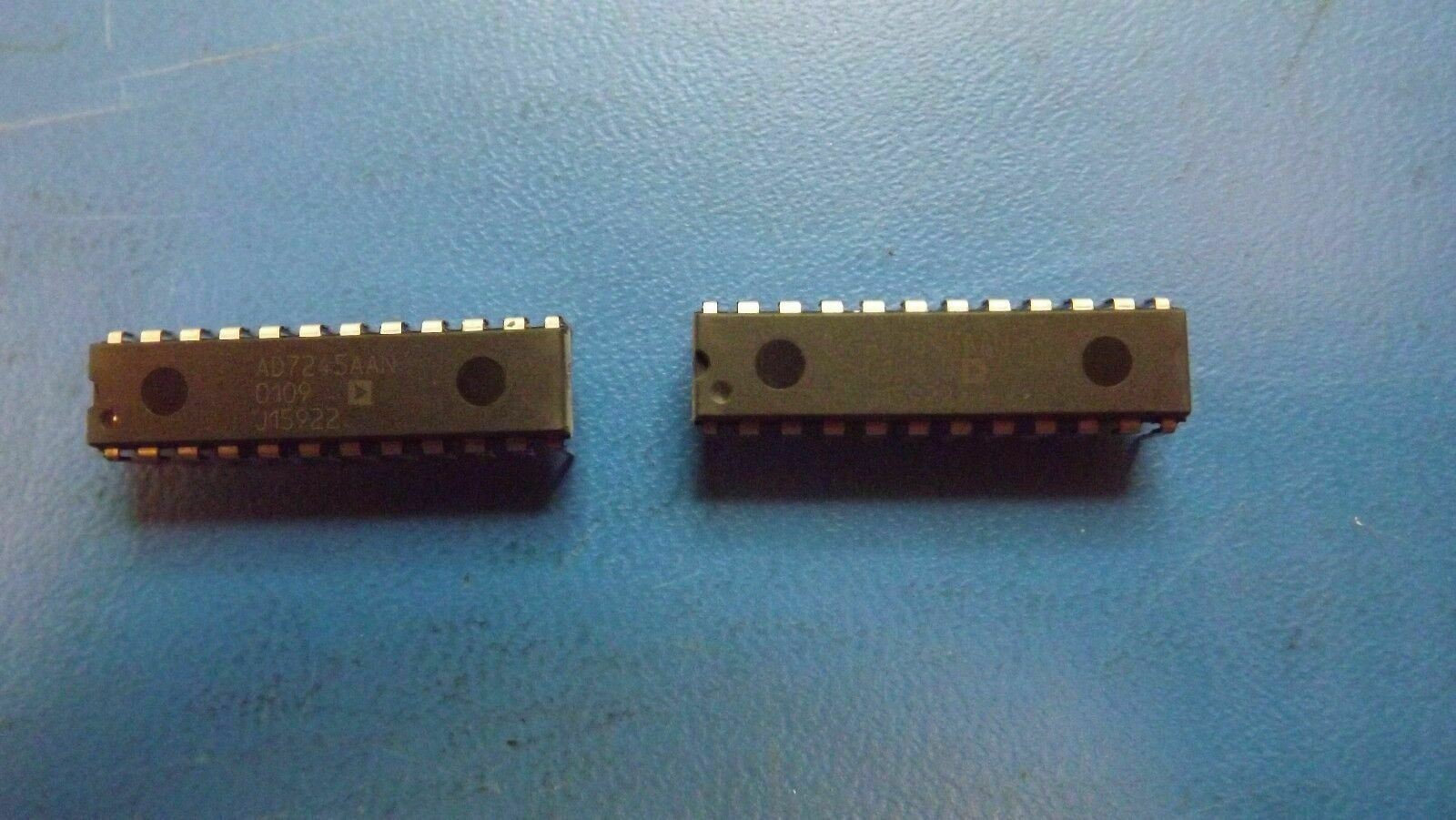

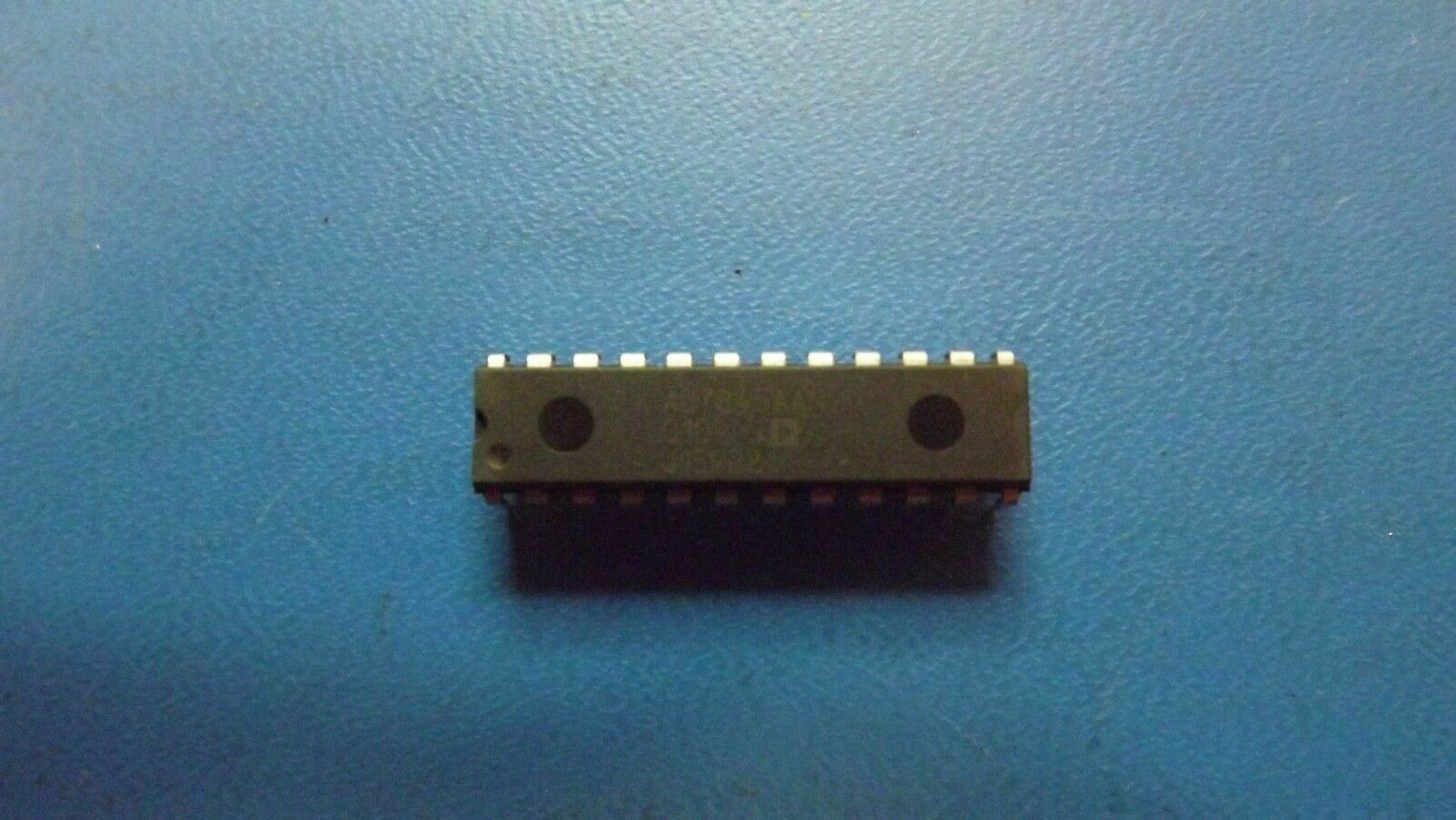

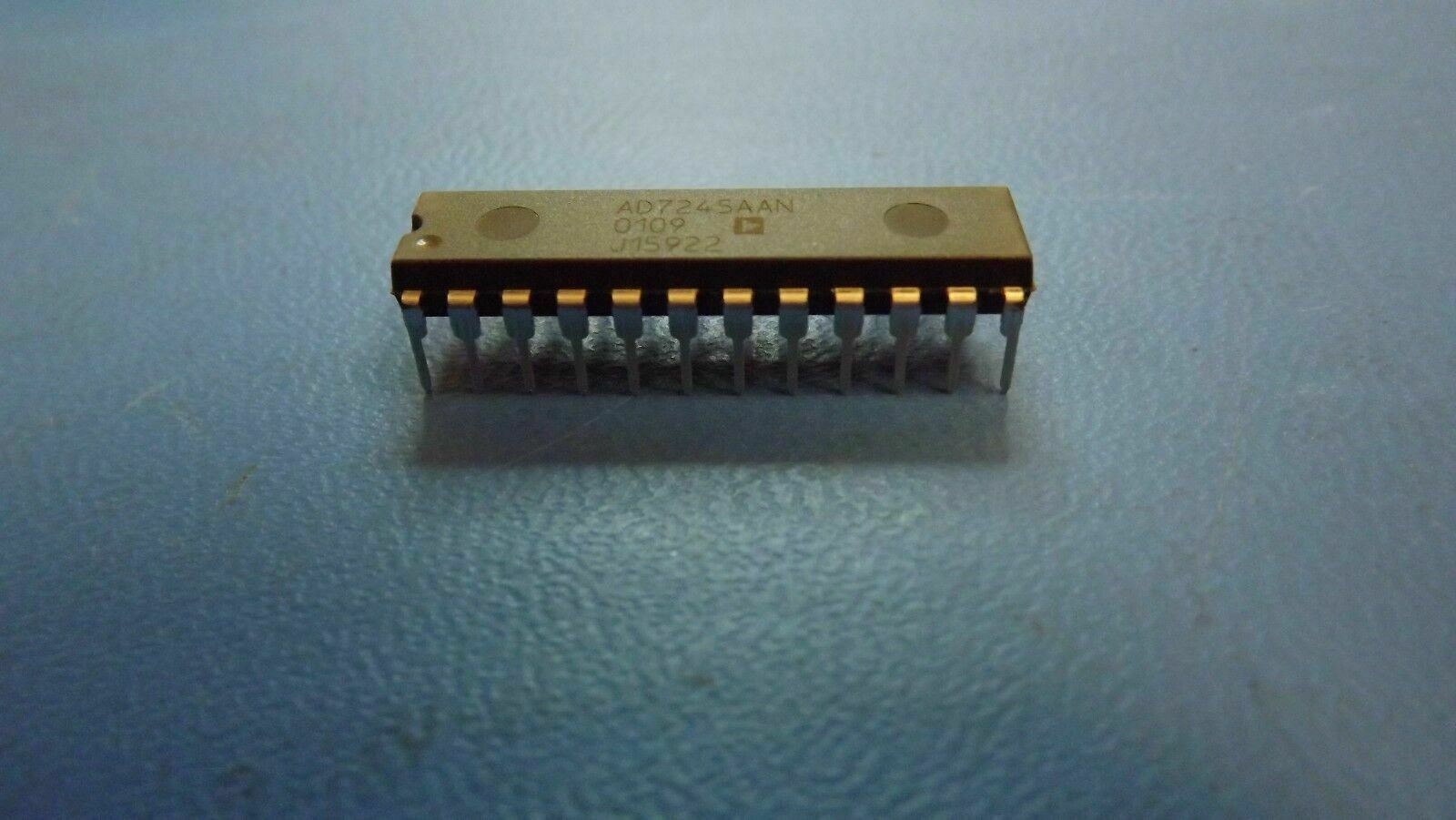

THIS LISTING IS FOR (1PC) OF AD7245AAN BY ANALOG DEVICES.
DAC 1-CH R-2R 12-bit 24-Pin PDIP
PART INFORMATION
AD7245AAN PART DETAILS & PARAMETRIC
| EU RoHS | Not Compliant |
| Maximum Operating Temperature (°C) | 85 |
| Output Type | Voltage |
| Number of DAC Channels | 1 |
| Converter Type | General Purpose |
| Architecture | R-2R |
| Resolution | 12bit |
| Maximum Settling Time (us) | 7 |
| Conversion Rate | 143ksps |
| Integral Nonlinearity Error | ±1LSB |
| Digital Interface Type | Parallel |
| Minimum Operating Temperature (°C) | -40 |
| Power Supply Type | Single|Dual |
| Minimum Single Supply Voltage (V) | 10.8 |
| Typical Single Supply Voltage (V) | 12|15 |
| Maximum Single Supply Voltage (V) | 16.5 |
| Minimum Dual Supply Voltage (V) | ±10.8 |
| Typical Dual Supply Voltage (V) | ±12|±15 |
| Maximum Dual Supply Voltage (V) | ±16.5 |
| Packaging | Tube |
| Mounting | Through Hole |
| Package Height (mm) | 3.3 |
| Package Length (mm) | 31.75 |
| Package Width (mm) | 6.35 |
| PCB | 24 |
| Standard Package Name | DIP |
| Supplier Package | PDIP N |
| Pin Count | 24 |
| Lead Shape | Through Hole |
