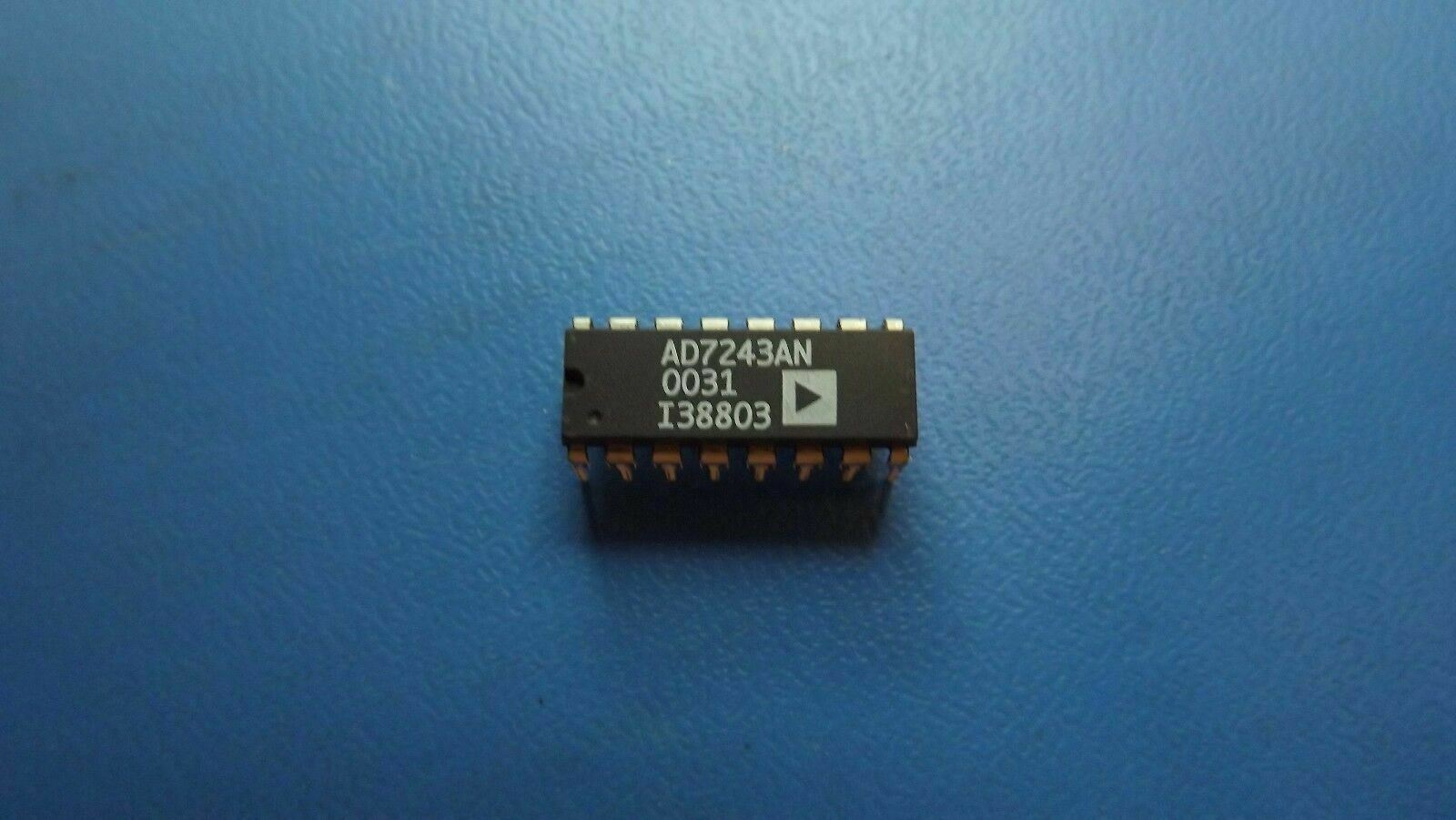

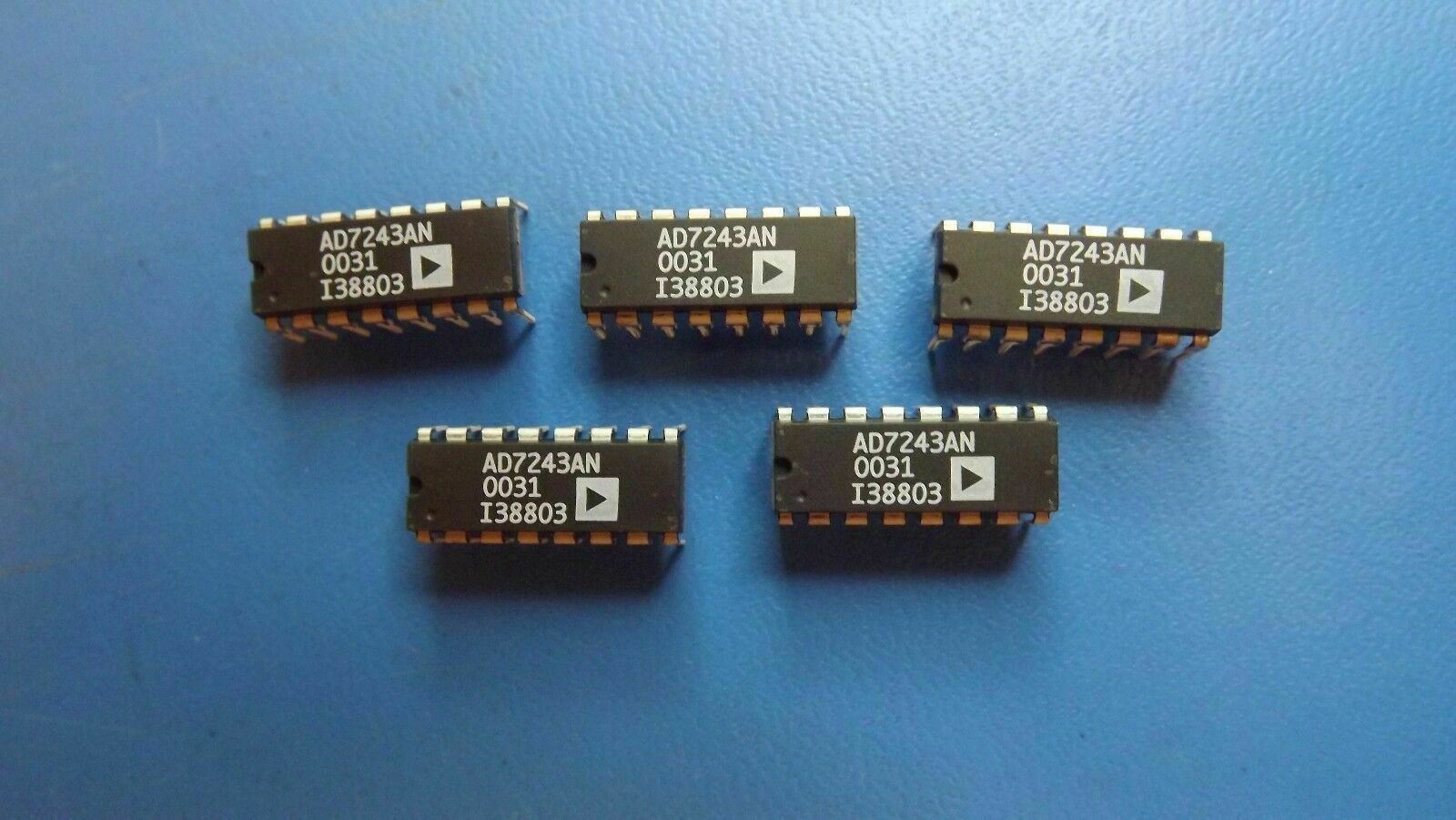

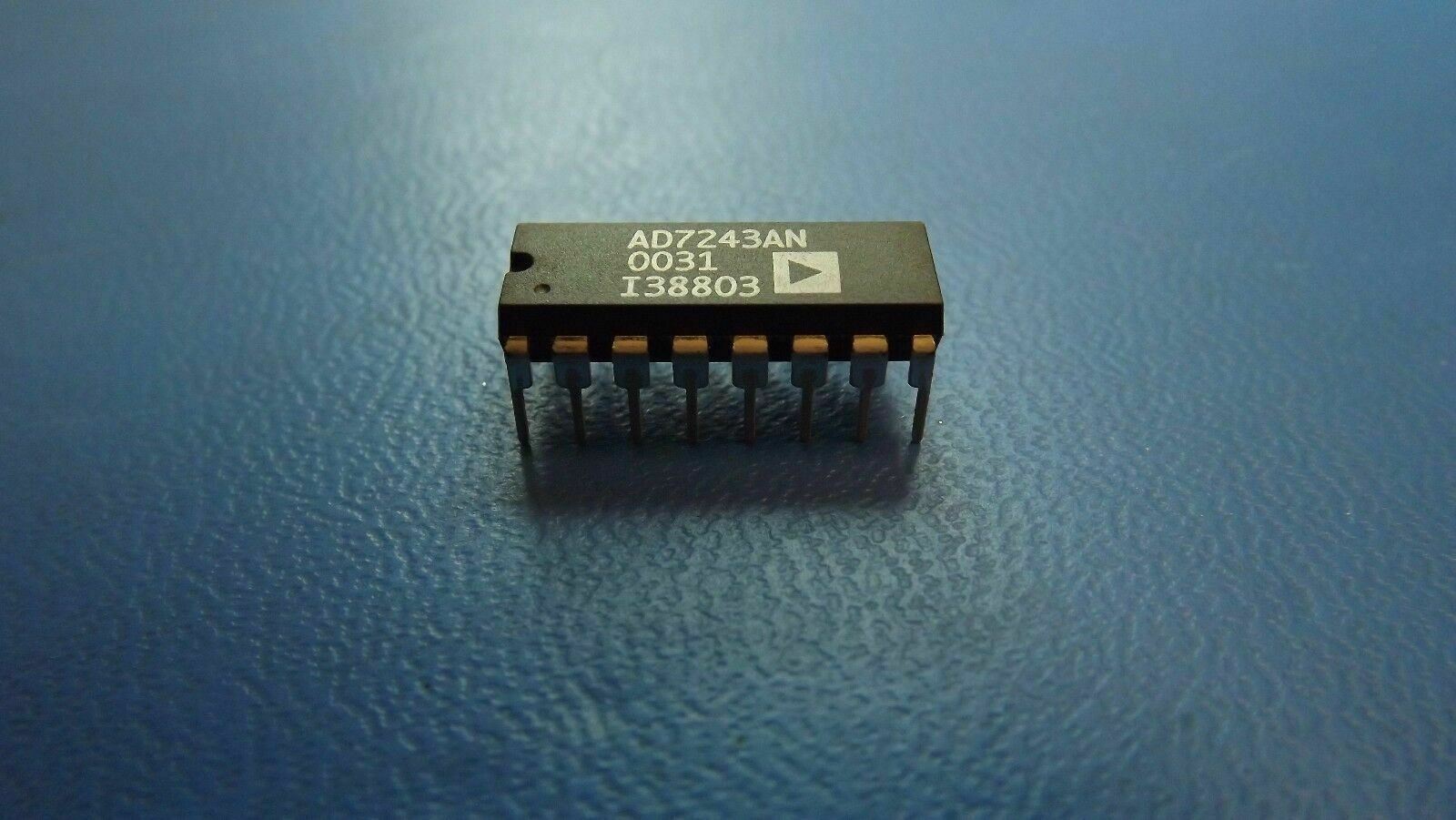

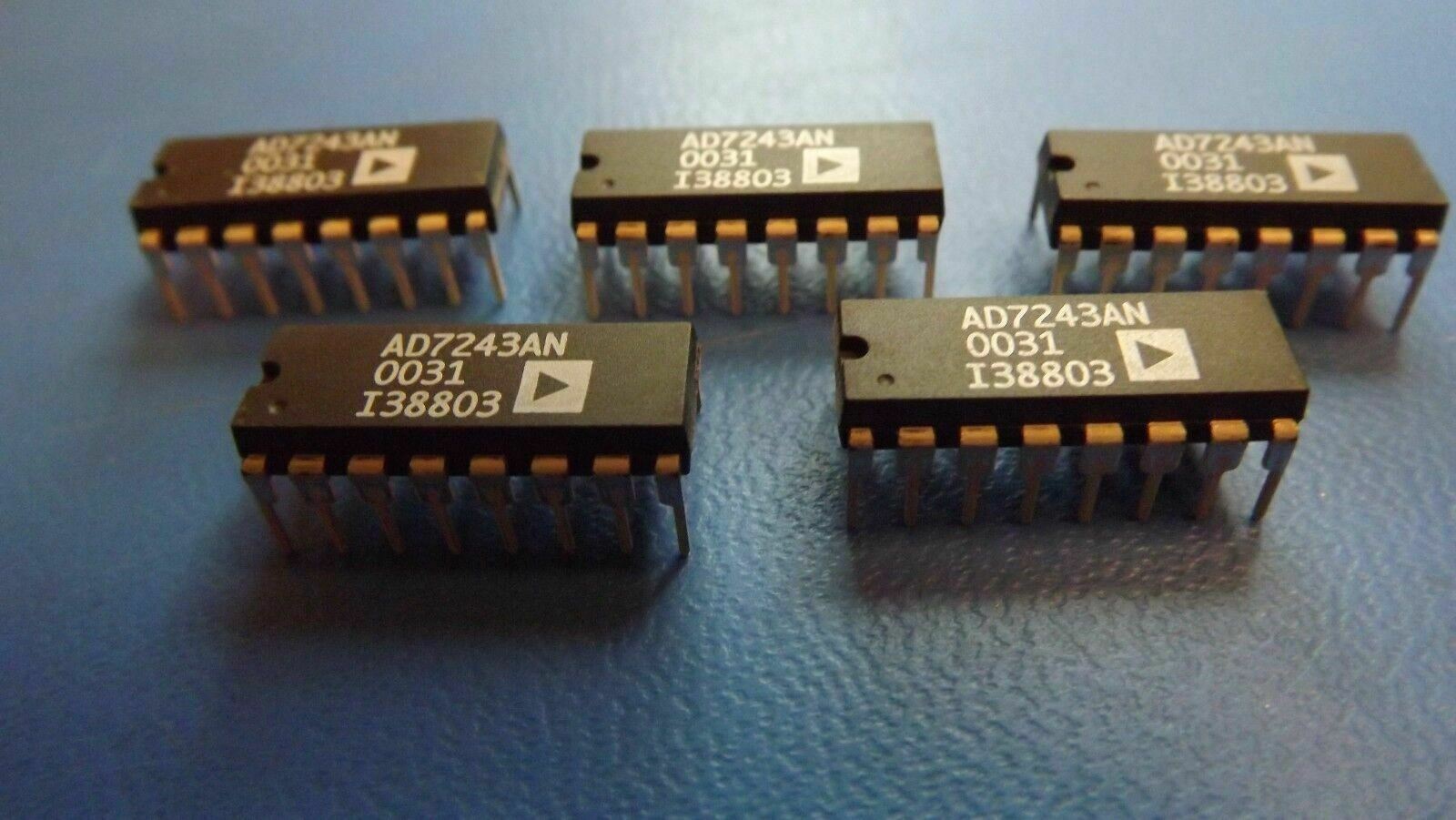

(1PC) AD7243AN DAC 1-CH R-2R 12-bit 16-Pin PDIP

  • $10.00
    Unit price per
Tax included.

Only 5 left!

THIS LISTING IS FOR (1PC) OF AD7243AN BY ANALOG DEVICES

SPECIFICATIONS

Mfr Package Description PLASTIC, DIP-16
REACH Compliant Yes
Status Active
Converter Type D/A CONVERTER
Analog Output Voltage-Min -5.0 V
Analog Output Voltage-Max 5.0 V
Input Bit Code BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY
Input Format SERIAL
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Linearity Error-Max (EL) 0.0244 %
Moisture Sensitivity Level NOT APPLICABLE
Number of Bits 12
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT APPLICABLE
Power Supplies (V) 12/15,GND/-12/-15
Qualification Status Not Qualified
Seated Height-Max 5.46 mm
Settling Time-Max 10.0 µs
Settling Time-Nom (tstl) 5.0 µs
Sub Category Other Converters
Supply Current-Max 10.0 mA
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT APPLICABLE
Width 7.62 mm
