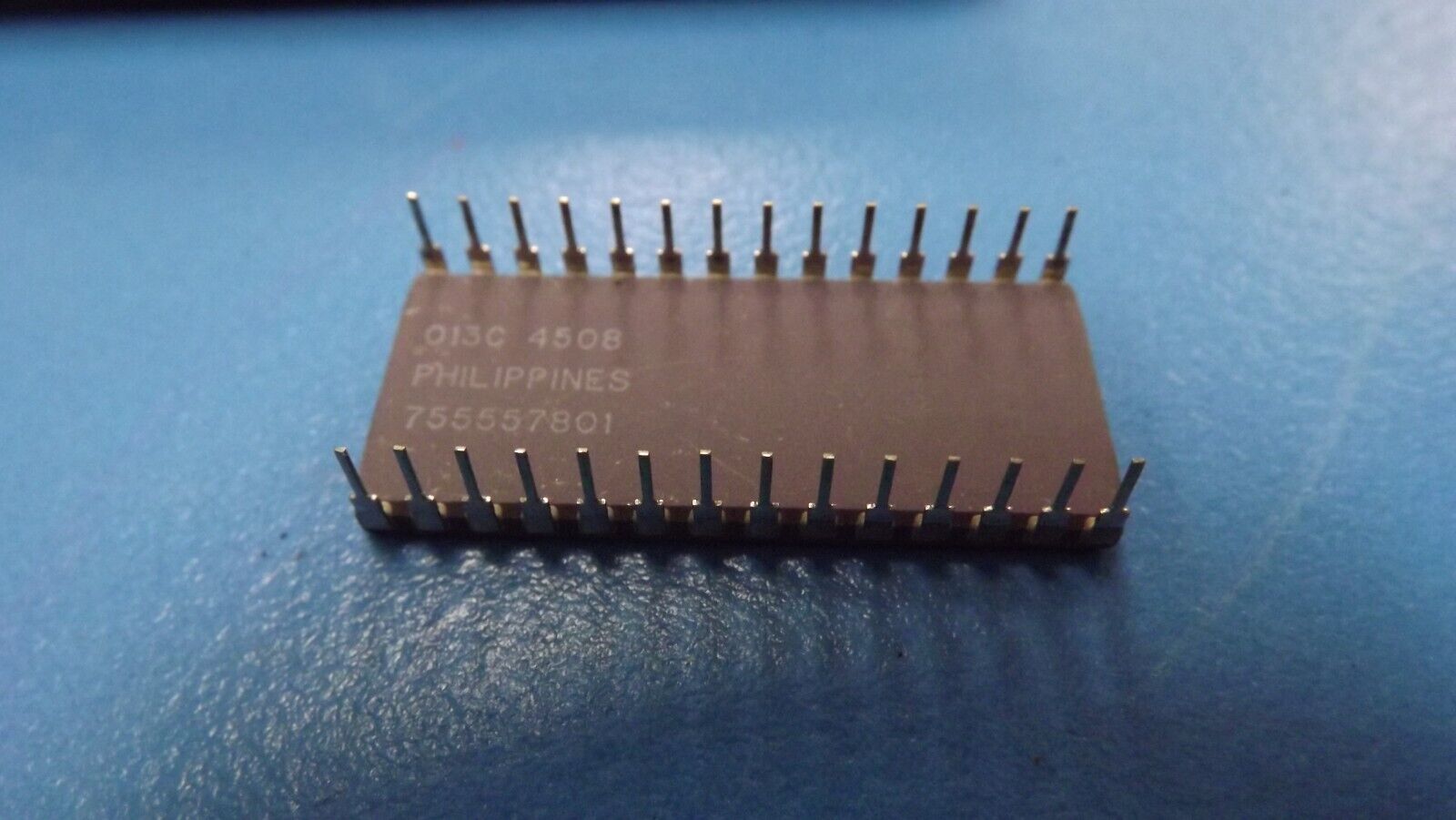

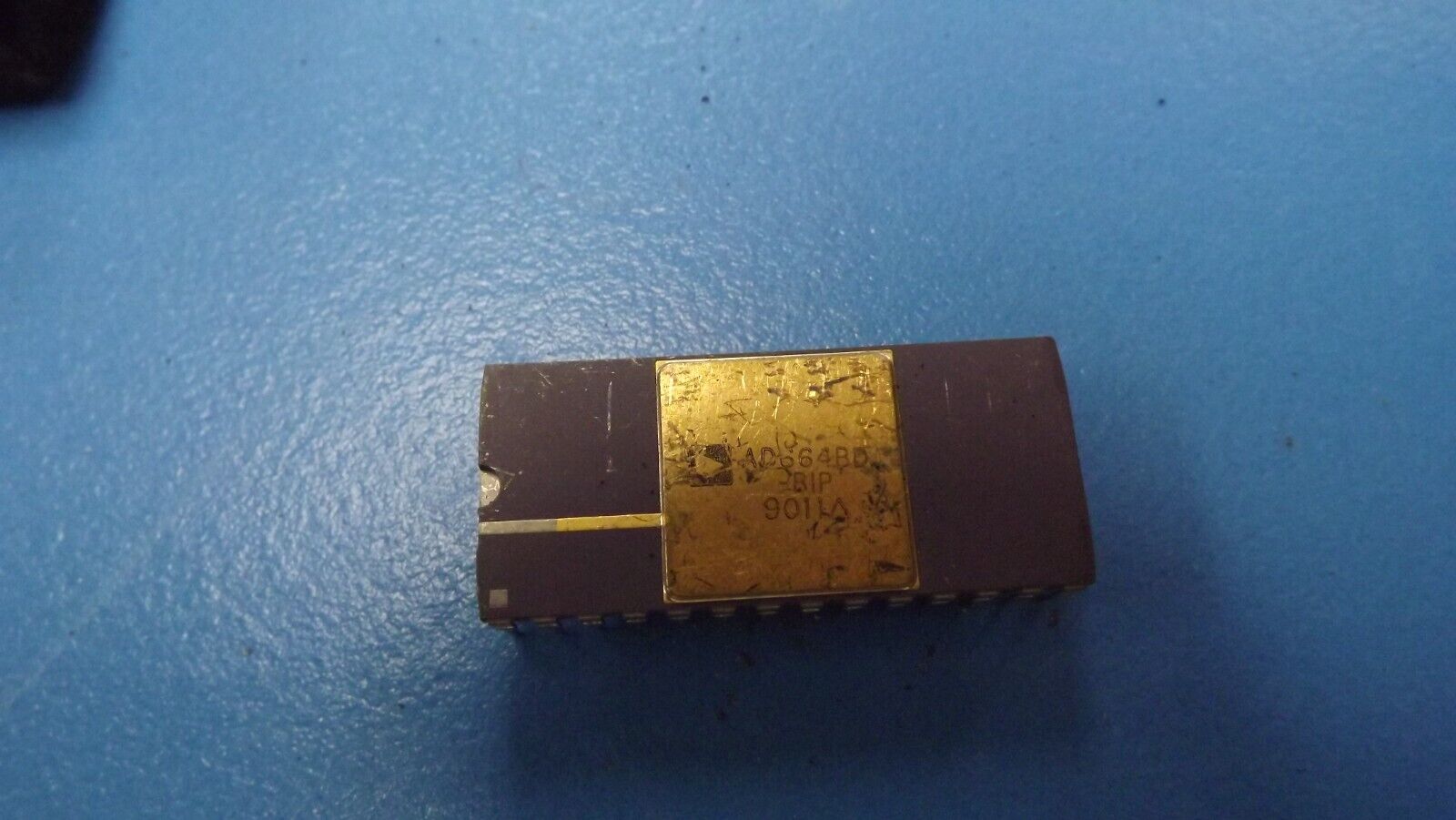

(1PC) AD664BD-BIP ANALOG DEVICES 12 Bit Digital to Analog Converter 4 28-CDIP
Tax included.

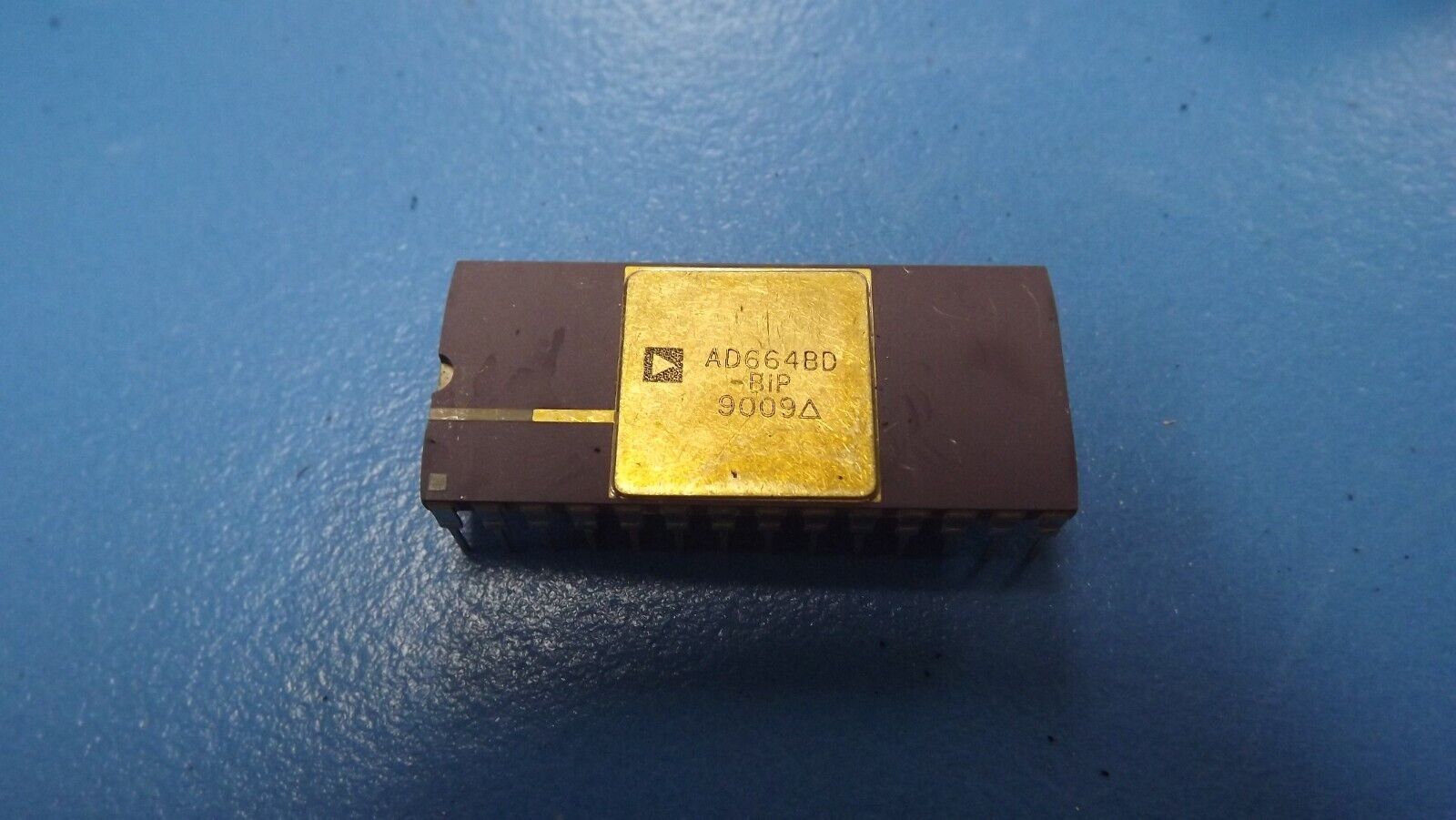

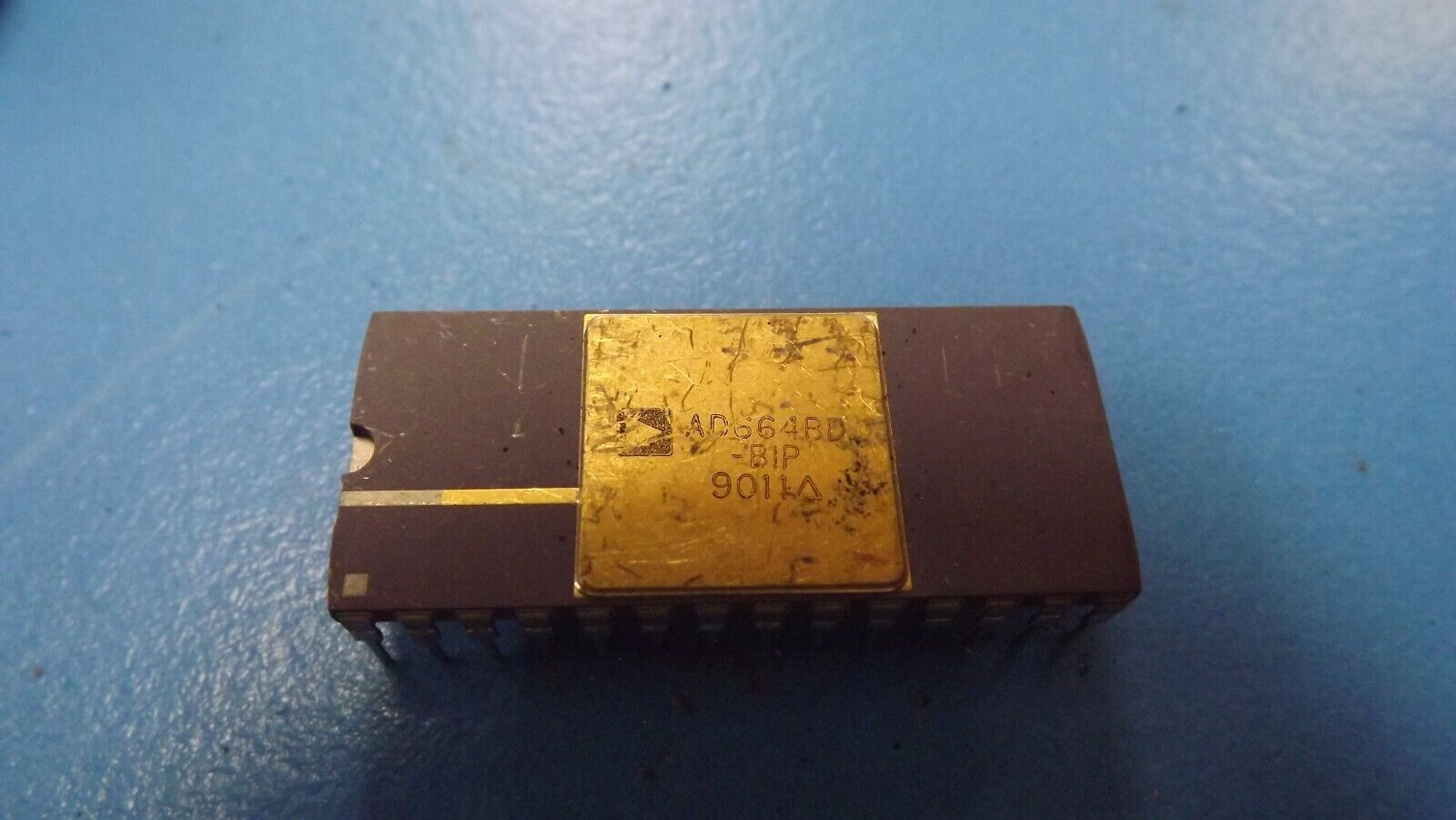

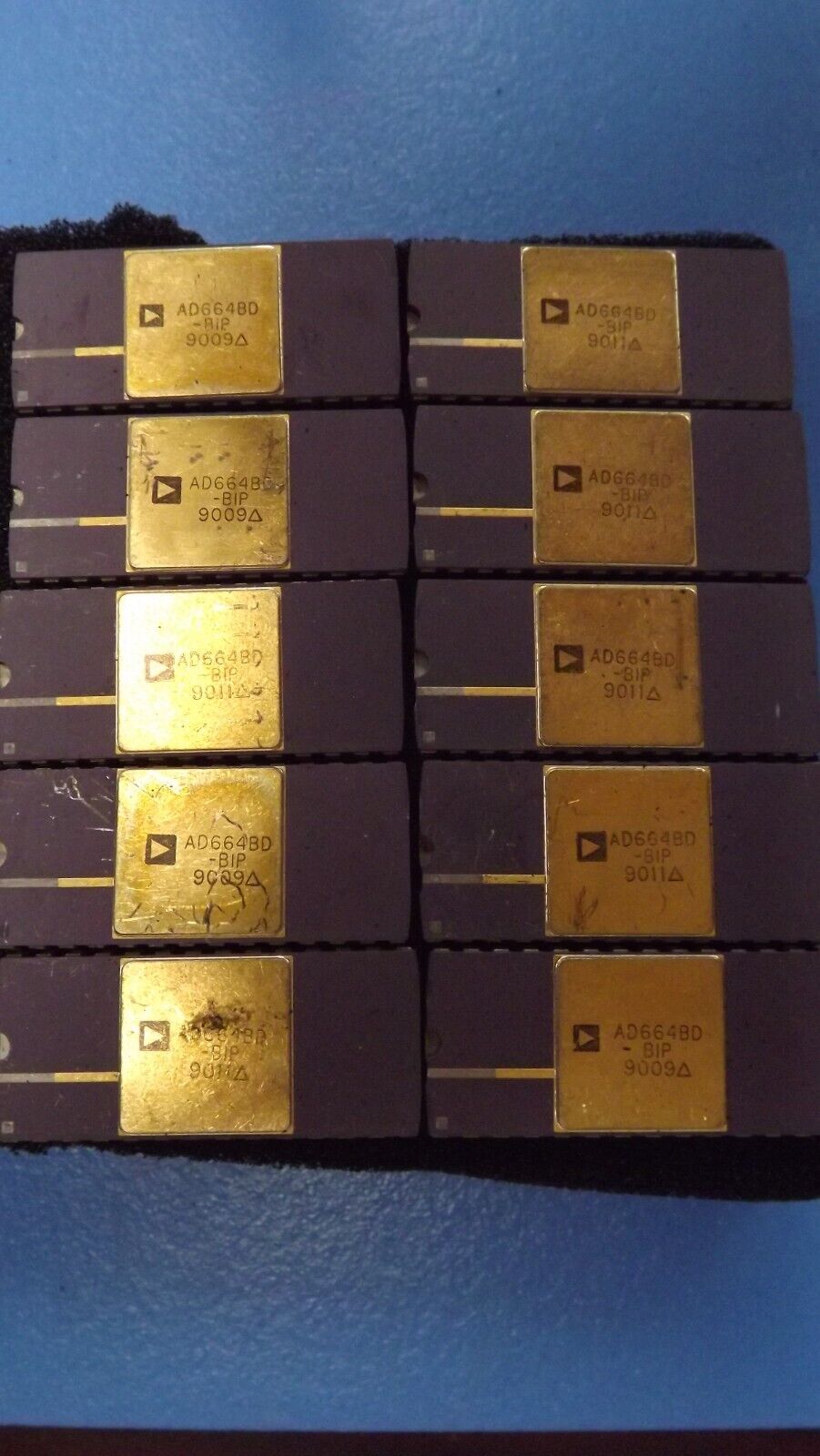

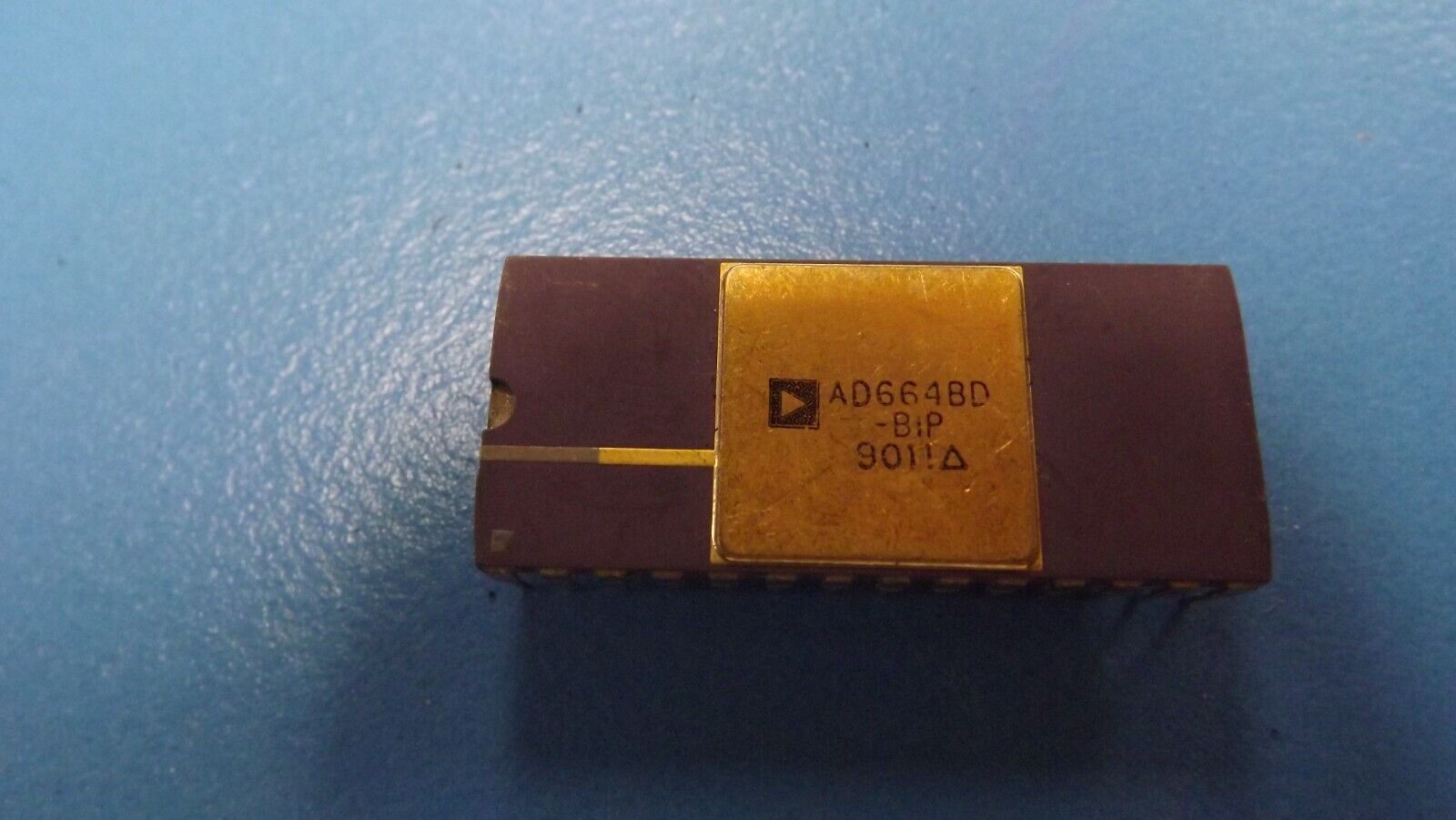

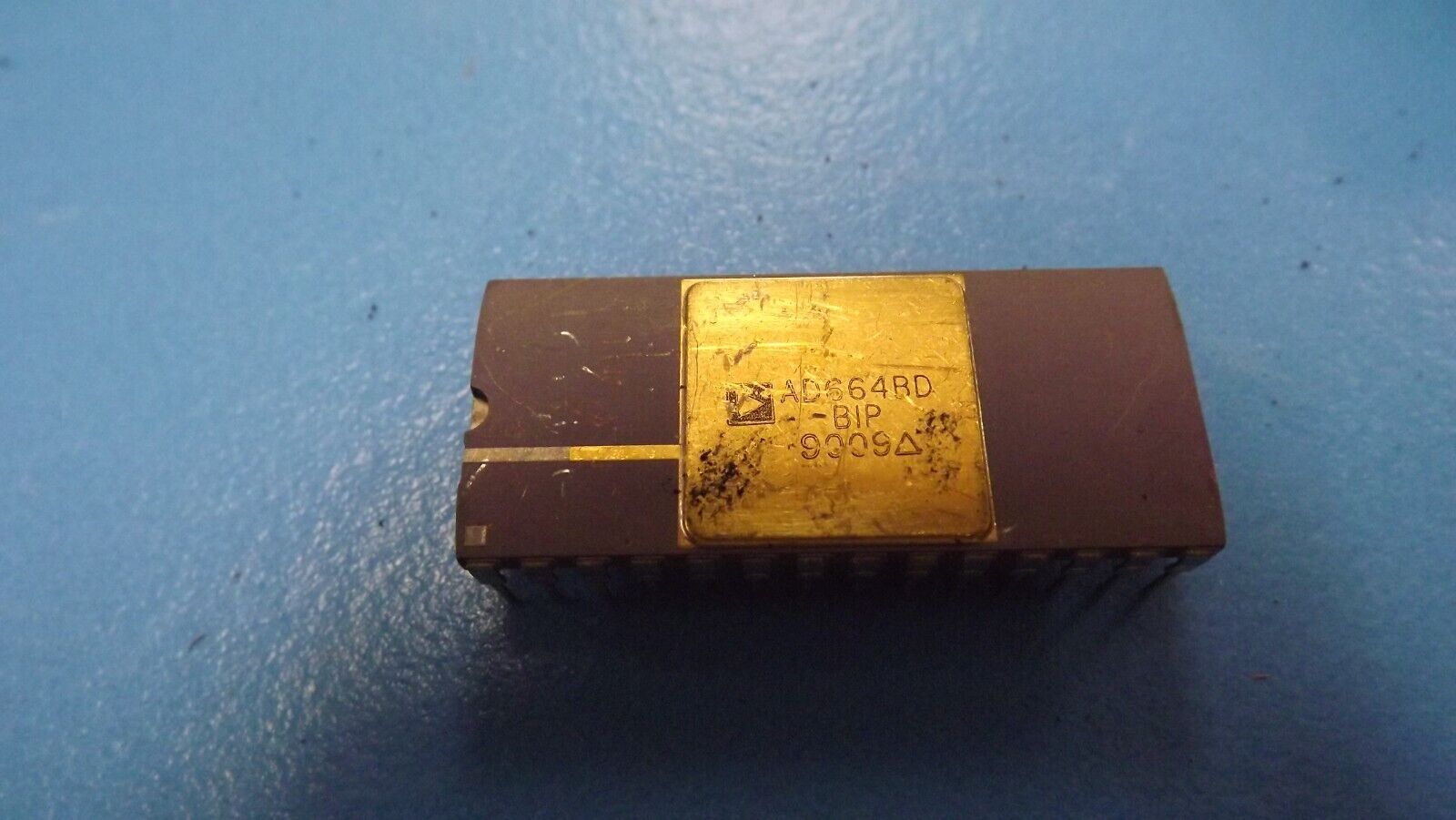

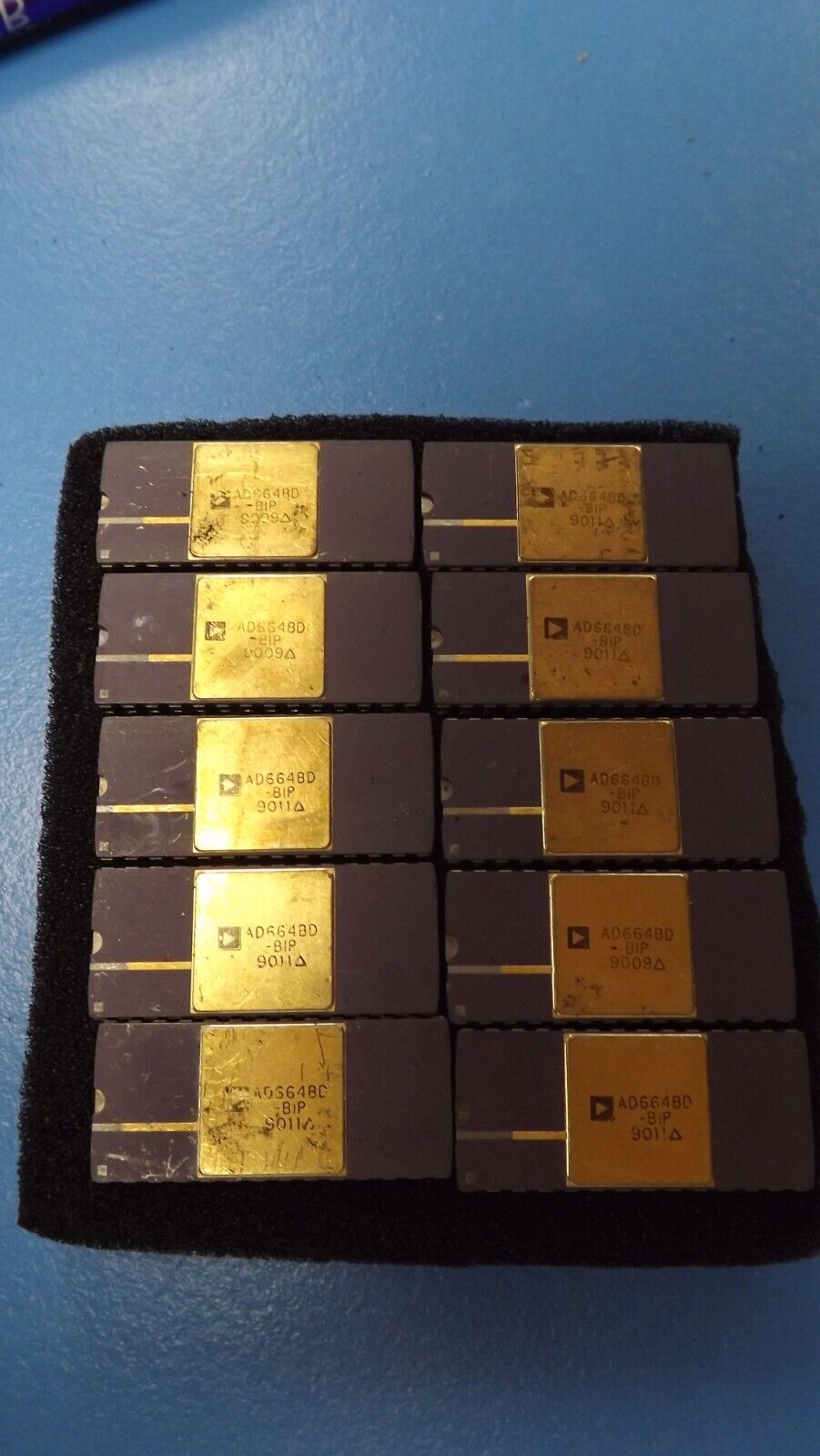

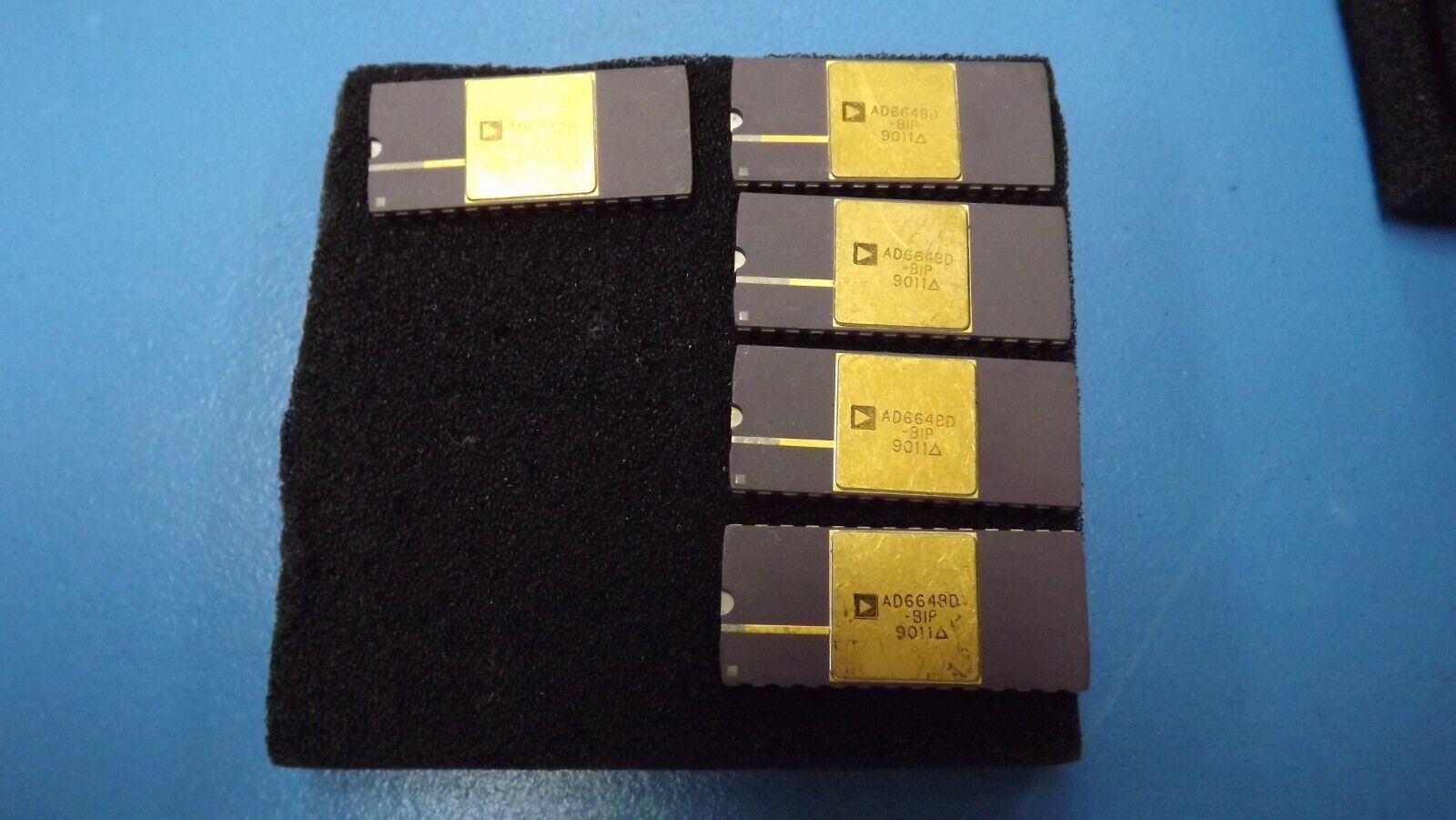

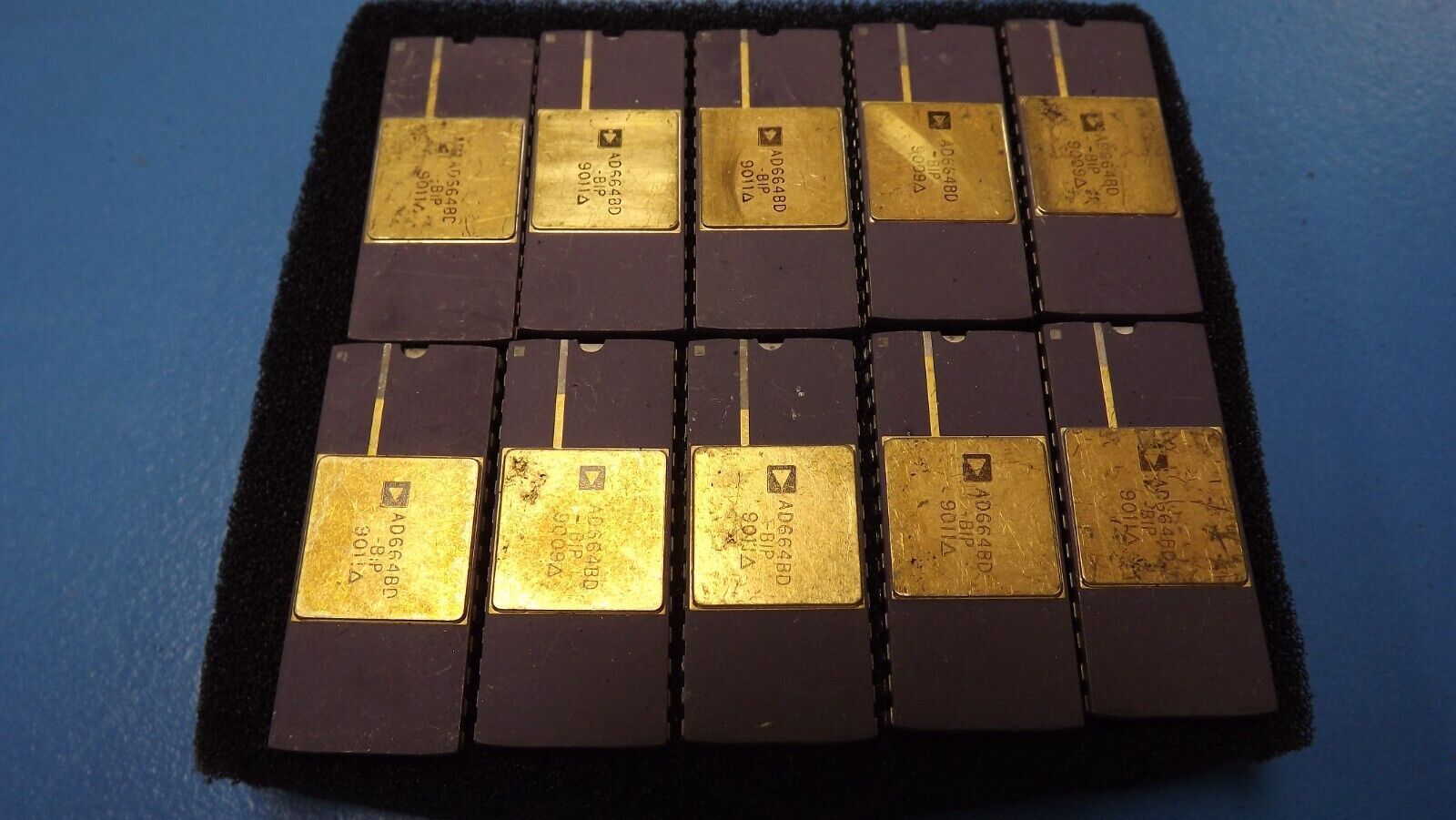

THIS LISTING IS FOR (1PC) OF AD664BD-BIP BY ANALOG DEVICES
Mfr Package Description HERMETIC SEALED, CERAMIC, DIP-28
Status NRFND
Converter Type D/A CONVERTER
Analog Output Voltage-Min -13.0 V
Analog Output Voltage-Max 13.0 V
Input Bit Code BINARY
Input Format PARALLEL, WORD
JESD-30 Code R-CDIP-T28
JESD-609 Code e0
Linearity Error-Max (EL) 0.0183 %
Negative Supply Voltage-Nom -15.0 V
Number of Bits 12
Number of Functions 4
Number of Terminals 28
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.72 mm
Settling Time-Max 10.0 µs
Settling Time-Nom (tstl) 10.0 µs
Sub Category Other Converters
Supply Current-Max 19.0 mA
Supply Voltage-Nom 15.0 V
Surface Mount NO
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 15.24 mm
