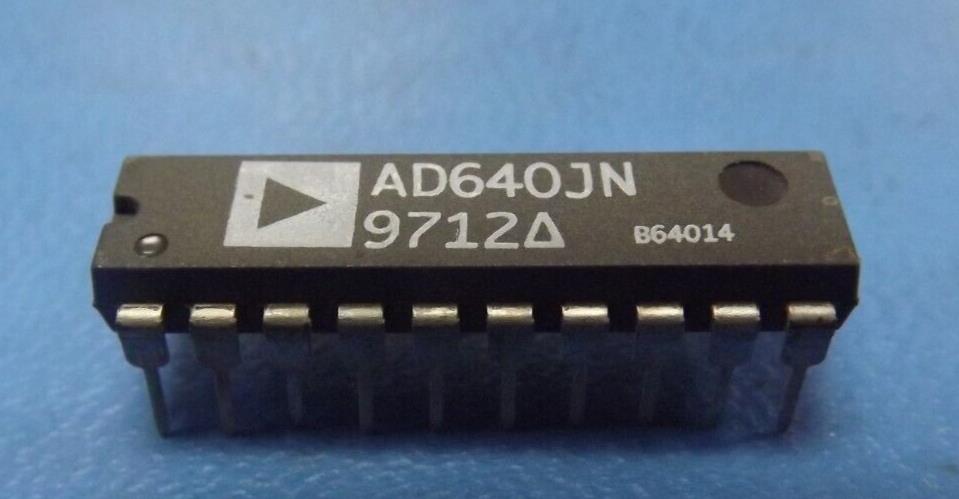

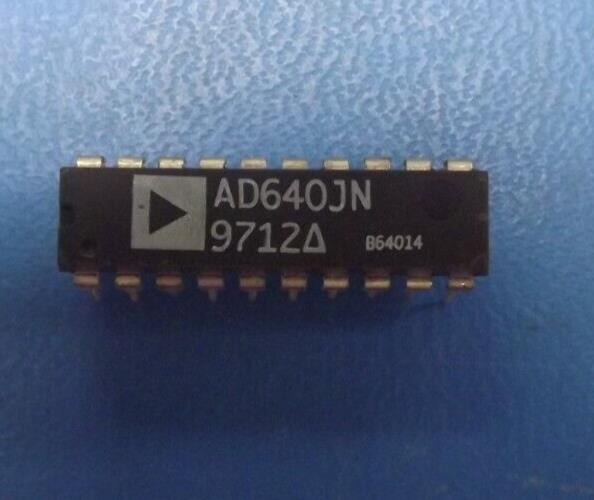

(1PC) AD640JN Log/Antilog Amplifier, 1 Func, 145MHz Band Width, BIPolar,PDIP20
Tax included.
THIS LISTING IS FOR (1PC) OF AD640JN BY ANALOG DEVICES
Mfr Package Description PLASTIC, DIP-20
REACH Compliant Yes
Status Discontinued
Analog IC - Other Type LOG OR ANTILOG AMPLIFIER
Bandwidth-Nom 145.0 MHz
JESD-30 Code R-PDIP-T20
JESD-609 Code e0
Neg Supply Voltage-Nom (Vsup) -5.0 V
Neg Supply Voltage-Min (Vsup) -4.5 V
Neg Supply Voltage-Max (Vsup) -7.5 V
Negative Input Voltage-Max -2.0 V
Number of Functions 1
Number of Terminals 20
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Positive Input Voltage-Max 0.3 V
Qualification Status Not Qualified
Seated Height-Max 5.715 mm
Sub Category Analog Computational Functions
Supply Current-Max (Isup) 60.0 mA
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 7.5 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 27.18 mm
Width 7.62 mm
