(1PC) AD603AR SP Amp Variable Gain Amp Single ±6.3V 8-Pin SOIC
Tax included.
THIS LISTING IS FOR (1PC) OF AD603AR BY ANALOG DEVICES.
SP Amp Variable Gain Amp Single ±6.3V 8-Pin SOIC

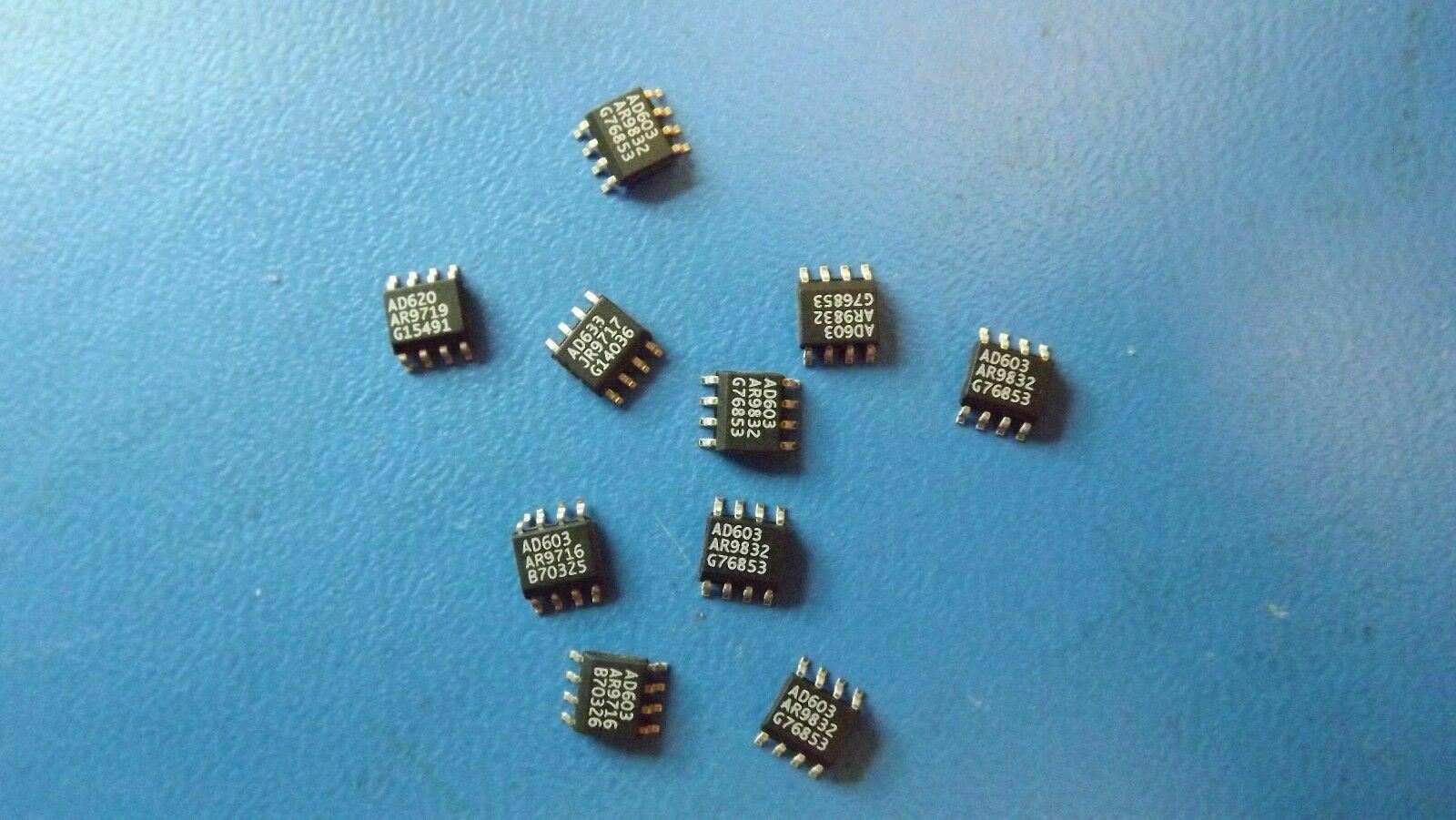

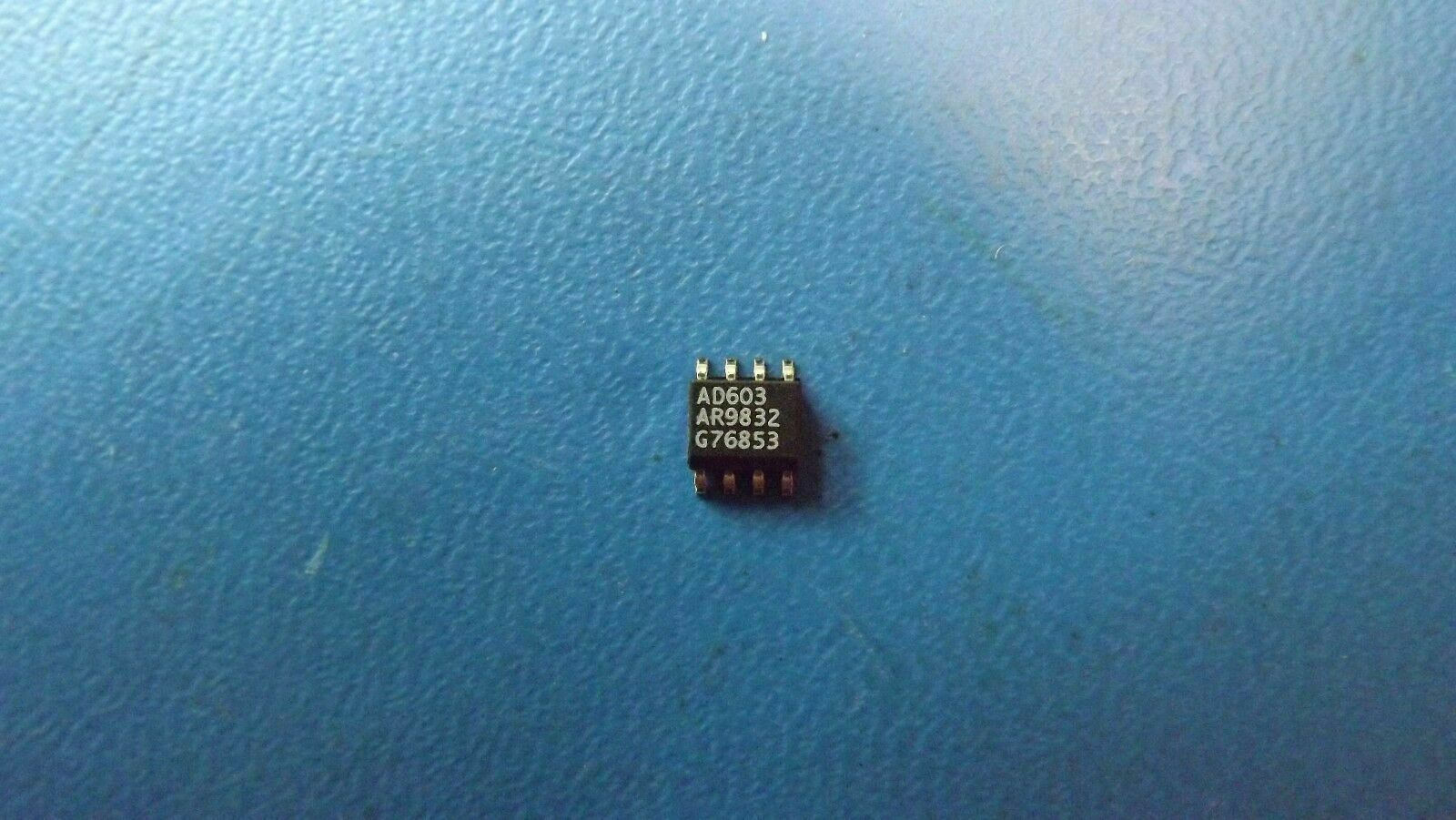

**WE HAVE DIFFERENT DATE CODES OTHER THAN THE ONES SHOWN IN THE PICTURE. CAN NOT GUARANTEE YOU WILL RECEIVE SAME AS PICTURED, BUT THE PART NUMBER WILL BE MARKED THE SAME.
PART INFORMATION
AD603AR PART DETAILS & PARAMETRIC
| EU RoHS | Not Compliant |
| Rail to Rail | No |
| Number of Elements per Chip | 2 |
| Number of Channels per Chip | 1 |
| Maximum Input Bias Current (uA) | 0.25@±5V |
| Maximum Input Resistance (MOhm) | 0.000103@±5V |
| Type | Variable Gain Amplifier |
| Maximum Voltage Gain (dB) | 31.3 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Power Supply Type | Dual |
| Minimum Dual Supply Voltage (V) | ±4.75 |
| Typical Dual Supply Voltage (V) | ±5 |
| Maximum Dual Supply Voltage (V) | ±6.3 |
| Maximum Power Dissipation (mW) | 400 |
| Packaging | Tube |
| Supplier Temperature Grade | Industrial |
| Mounting | Surface Mount |
| Package Height (mm) | 1.5(Max) |
| Package Length (mm) | 5(Max) |
| Package Width (mm) | 4(Max) |
| PCB | 8 |
| Standard Package Name | SOIC |
| Supplier Package | SOIC N |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
