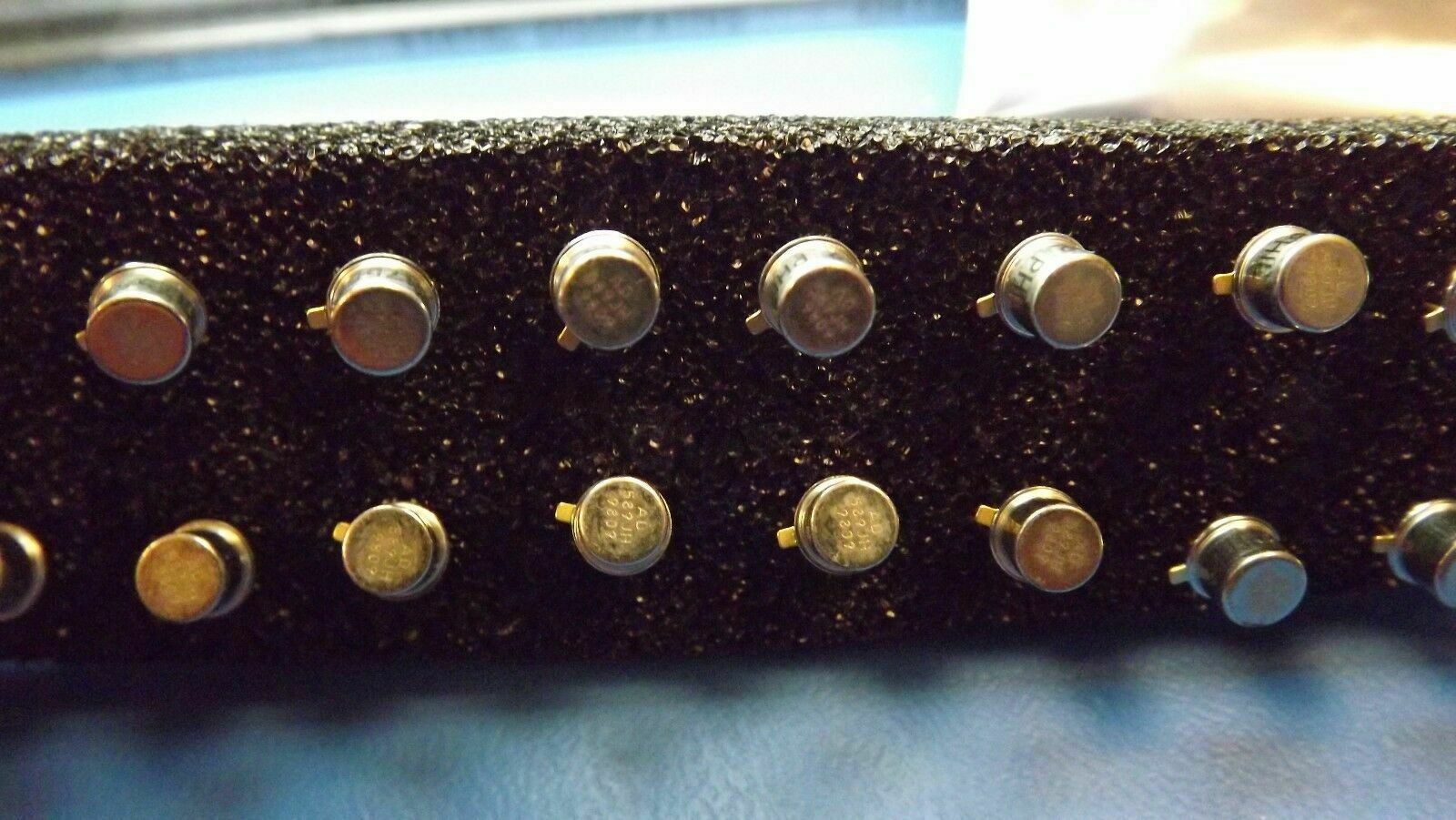

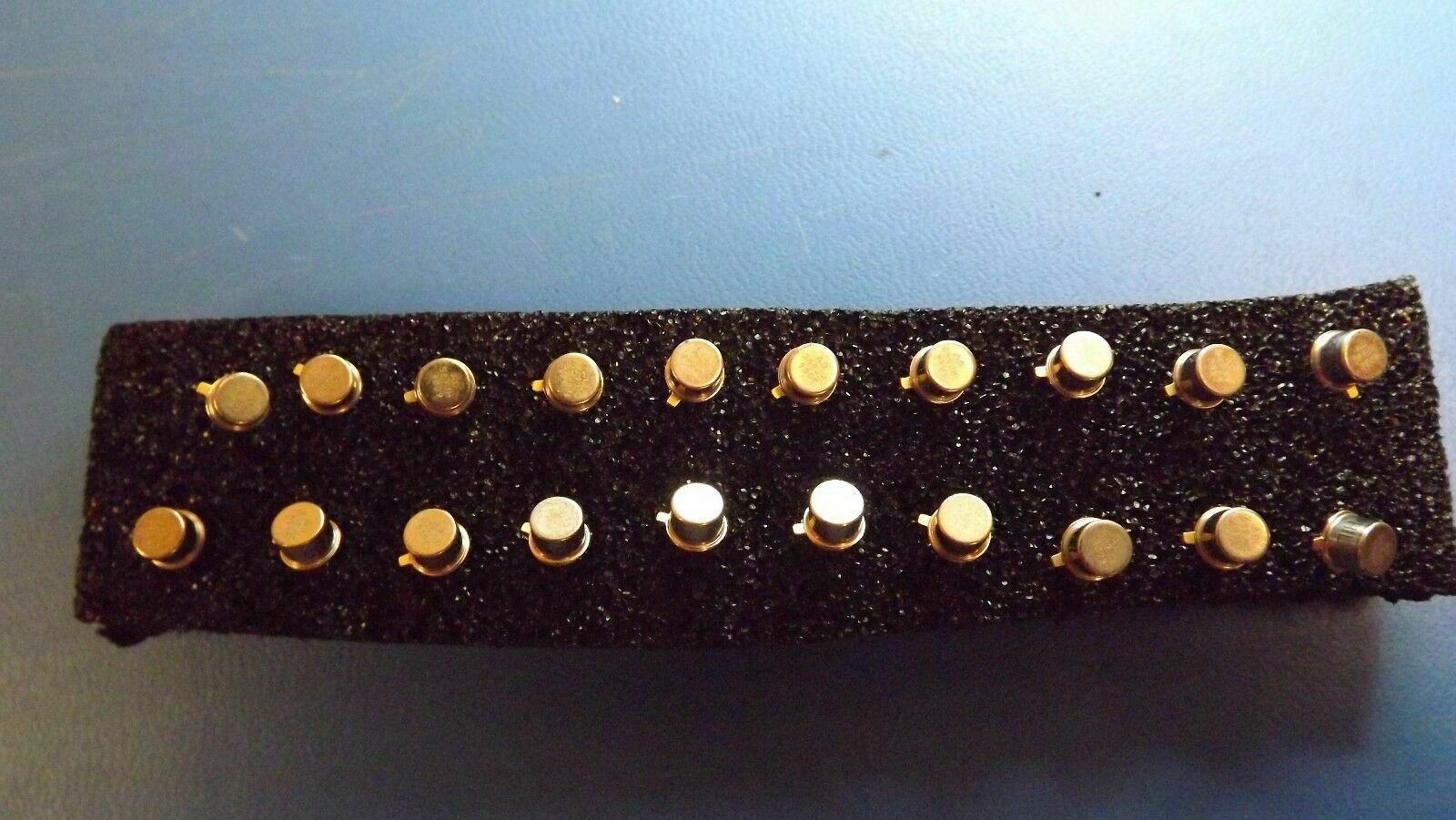

(1PC) AD589JH Analog Devices V-Ref Precision 1.235V 5mA 2-Pin TO-51
Tax included.
THIS LISTING IS FOR (1PC) OF AD589JH BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | METAL CAN-2 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE |
| JESD-30 Code | O-MBCY-W2 |
| JESD-609 Code | e4 |
| Moisture Sensitivity Level | NOT APPLICABLE |
| Number of Functions | 1 |
| Number of Outputs | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Voltage-Nom | 1.235 V |
| Output Voltage-Min | 1.2 V |
| Output Voltage-Max | 1.25 V |
| Package Body Material | METAL |
| Package Equivalence Code | SIP2,.1 |
| Package Shape | ROUND |
| Package Style | CYLINDRICAL |
| Peak Reflow Temperature (Cel) | NOT APPLICABLE |
| Qualification Status | Not Qualified |
| Sub Category | Voltage References |
| Supply Current-Max (Isup) | 5.0 mA |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temp Coef of Voltage-Max | 100.0 ppm/Cel |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Gold (Au) |
| Terminal Form | WIRE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE |
| Trim/Adjustable Output (V) | NO |
| Voltage Tolerance-Max | 2.8 % |
