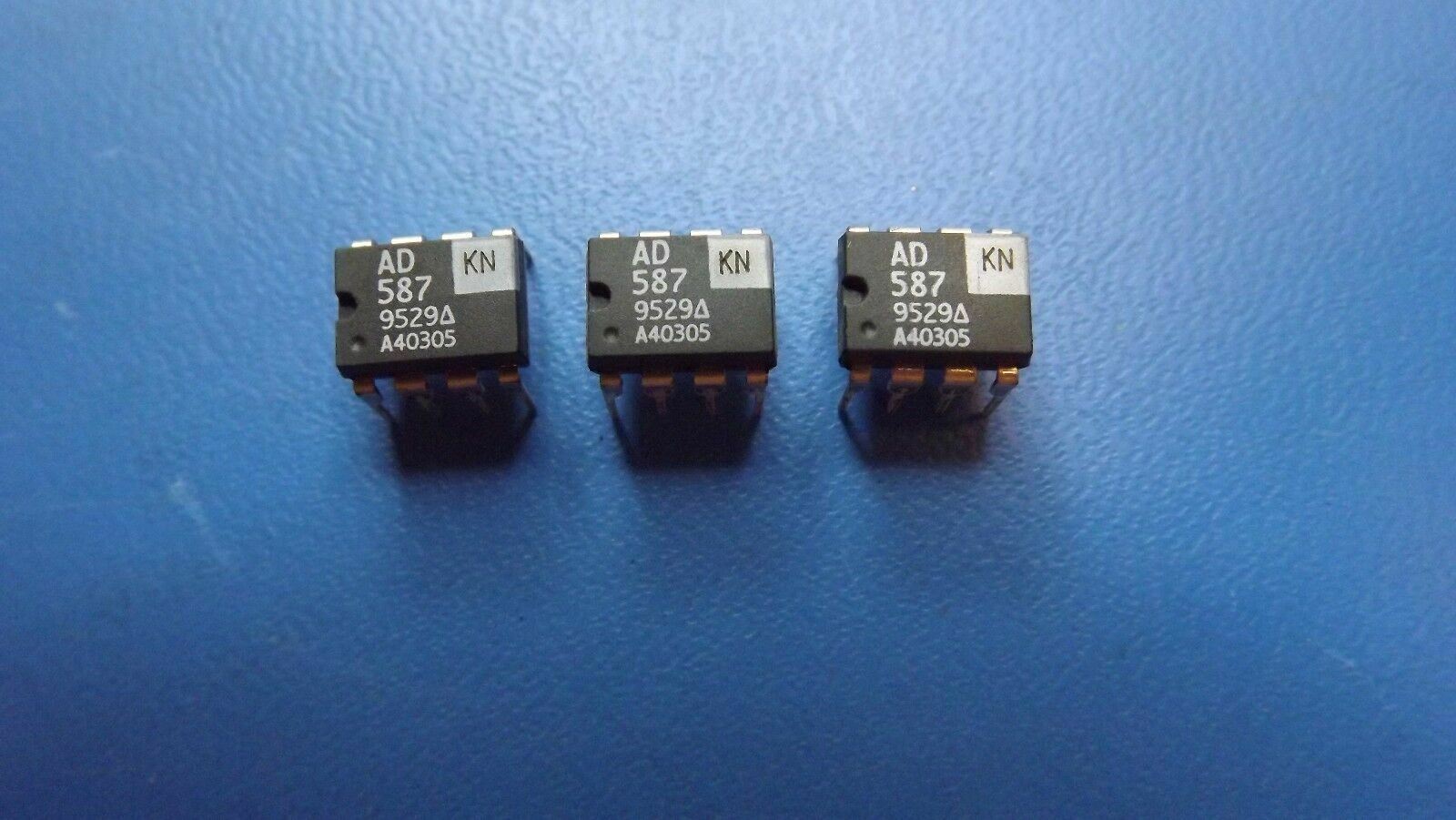

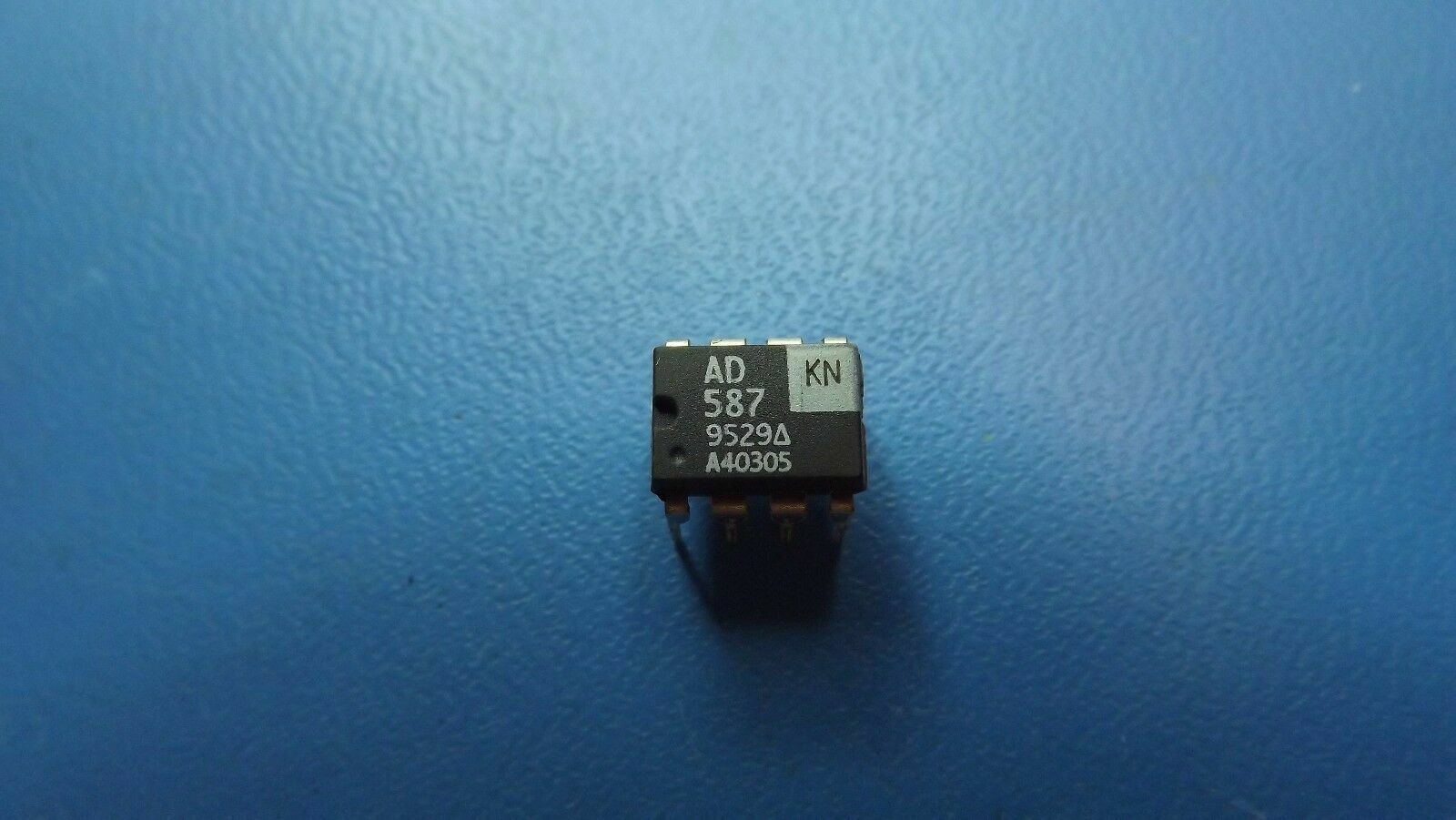

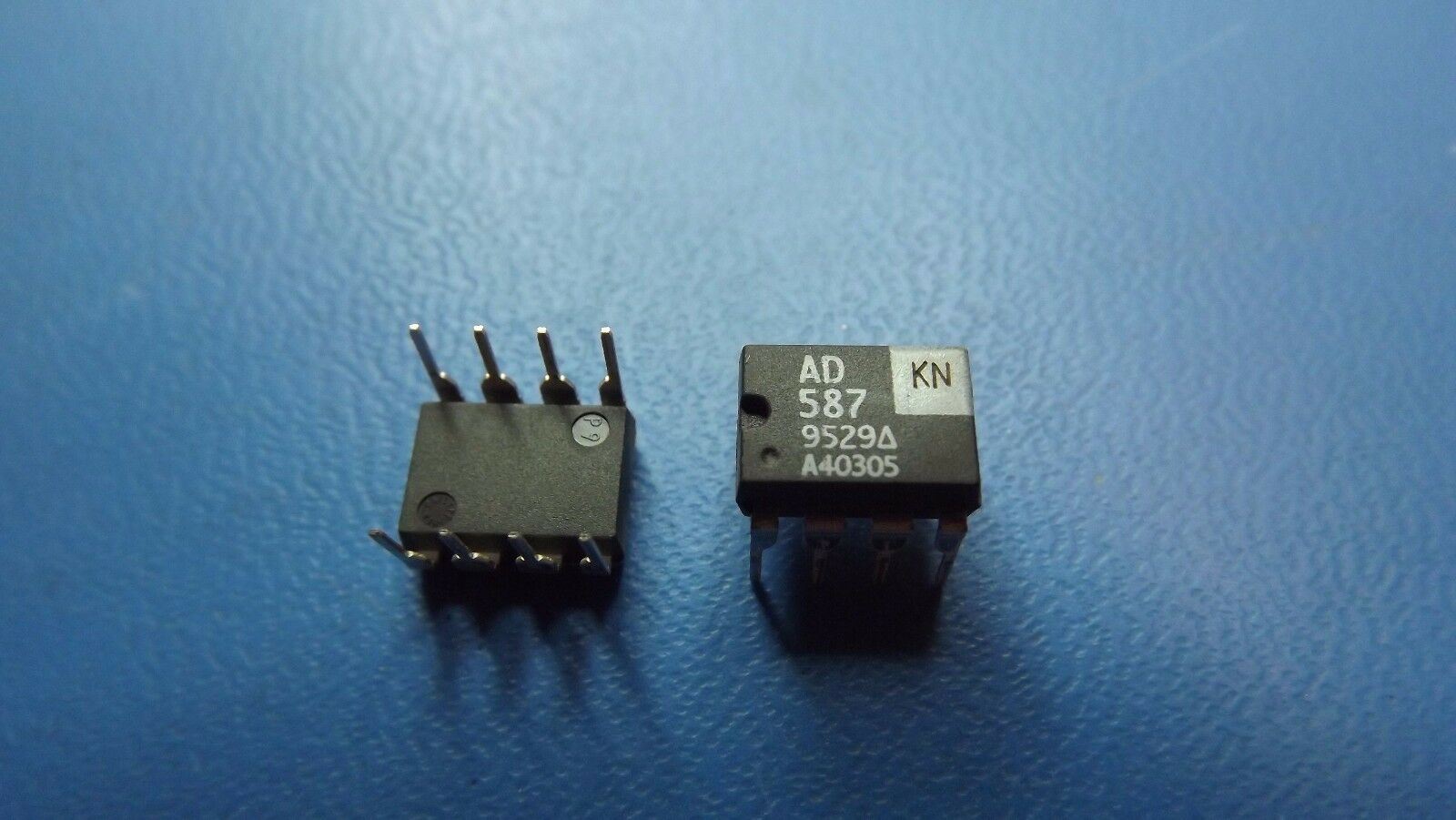

(1PC) AD587KN ANALOG DEVICES V-Ref Precision 10V 10mA 8-Pin PDIP
Tax included.
THIS LISTING IS FOR (1PC) OF AD587KN BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | PLASTIC, MO-095BA, DIP-8 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | NOT APPLICABLE |
| Number of Functions | 1 |
| Number of Outputs | 1.0 |
| Number of Terminals | 8 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Voltage-Nom | 10.0 V |
| Output Voltage-Min | 9.995 V |
| Output Voltage-Max | 10.005 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT APPLICABLE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.33 mm |
| Sub Category | Voltage References |
| Supply Current-Max (Isup) | 4.0 mA |
| Supply Voltage-Nom (Vsup) | 15.0 V |
| Supply Voltage-Min (Vsup) | 13.5 V |
| Supply Voltage-Max (Vsup) | 36.0 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temp Coef of Voltage-Max | 10.0 ppm/Cel |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE |
| Trim/Adjustable Output (V) | YES |
| Voltage Tolerance-Max | 0.05 % |
| Length | 9.27 mm |
| Width | 7.62 mm |
