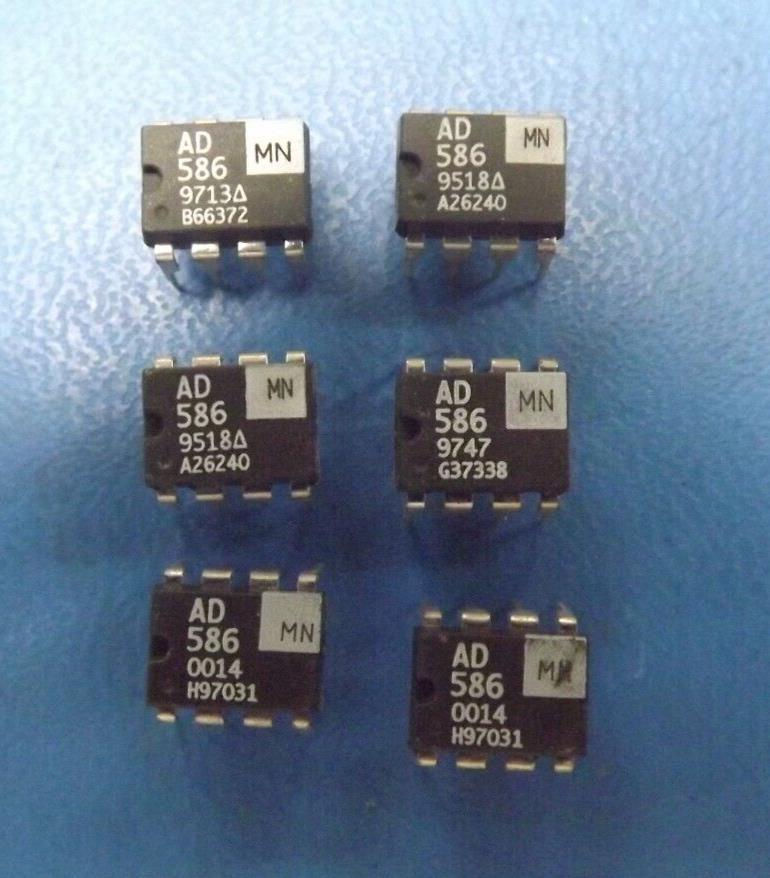

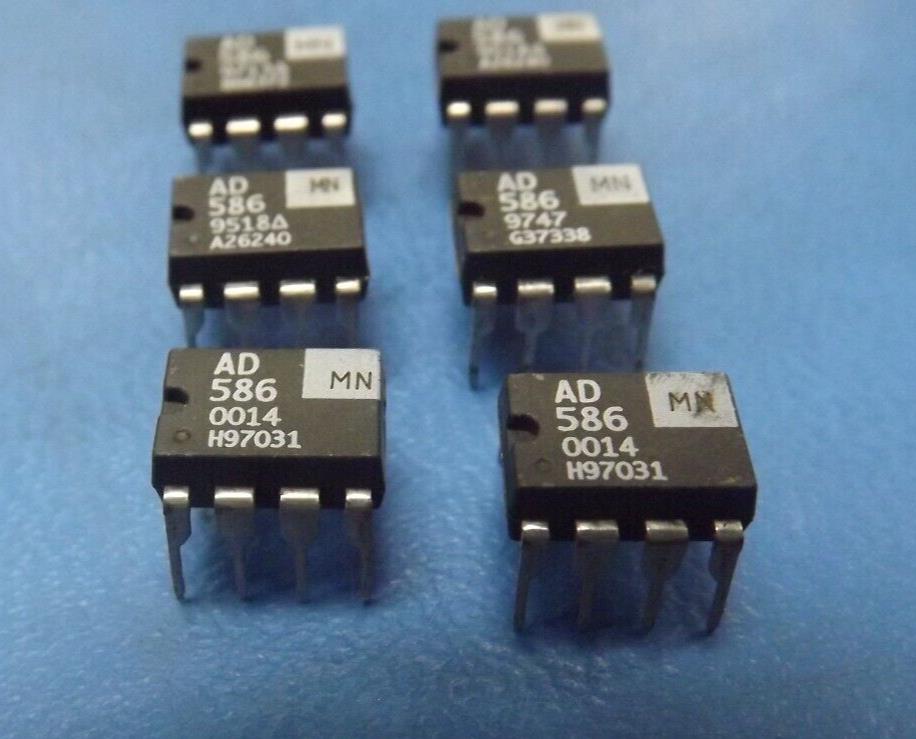

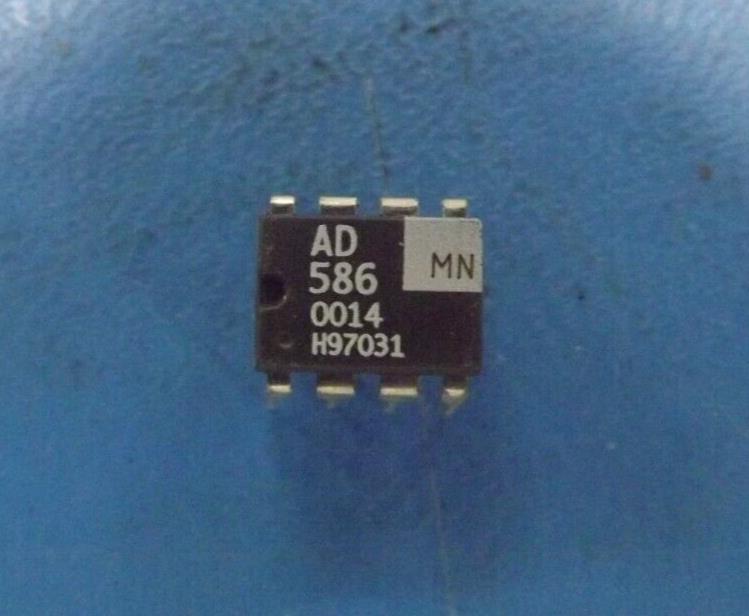

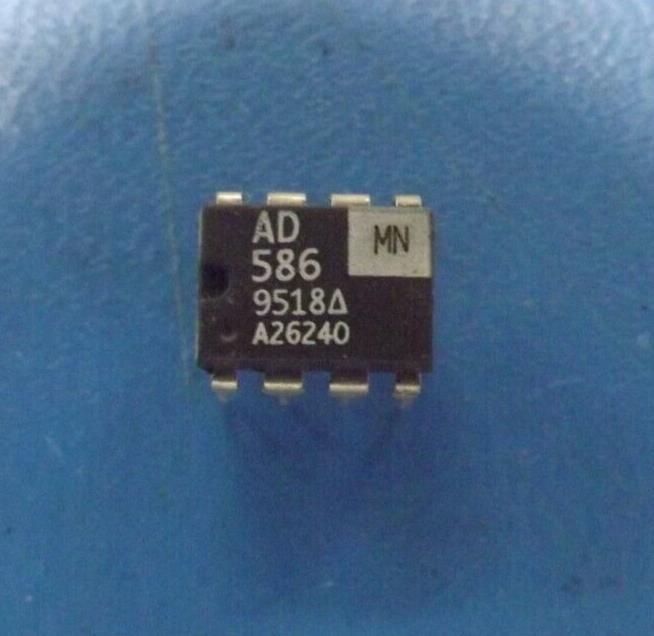

(1PC) AD586MN Analog Devices V-Ref Precision 5V 10mA 8-Pin PDIP
Tax included.
THIS LISTING IS FOR (1PC) OF AD586MN BY ANALOG DEVICES
Mfr Package Description PLASTIC, MO-095AA, DIP-8
Status Discontinued
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Number of Functions 1
Number of Outputs 1.0
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Voltage-Nom 5.0 V
Output Voltage-Min 4.998 V
Output Voltage-Max 5.002 V
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Sub Category Voltage References
Supply Current-Max (Isup) 3.0 mA
Supply Voltage-Nom (Vsup) 15.0 V
Supply Voltage-Min (Vsup) 10.8 V
Supply Voltage-Max (Vsup) 36.0 V
Surface Mount NO
Technology BIPOLAR
Temp Coef of Voltage-Max 2.0 ppm/Cel
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Voltage Tolerance-Max 0.04 %
Length 9.27 mm
Width 7.62 mm
