(1PC) AD22057R SP Amp Current Sense Amp Single 36V 8-Pin SOIC
Tax included.

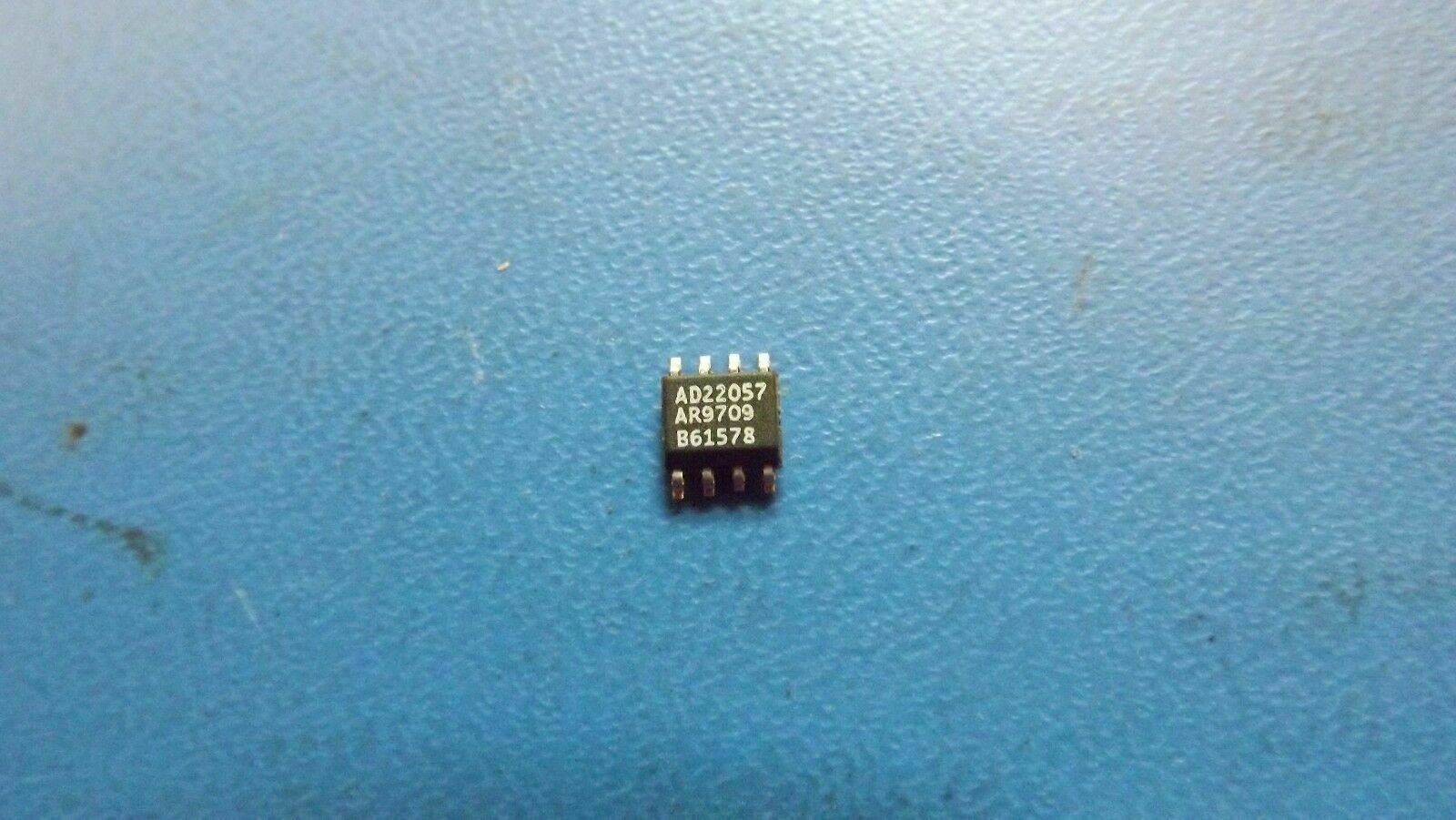

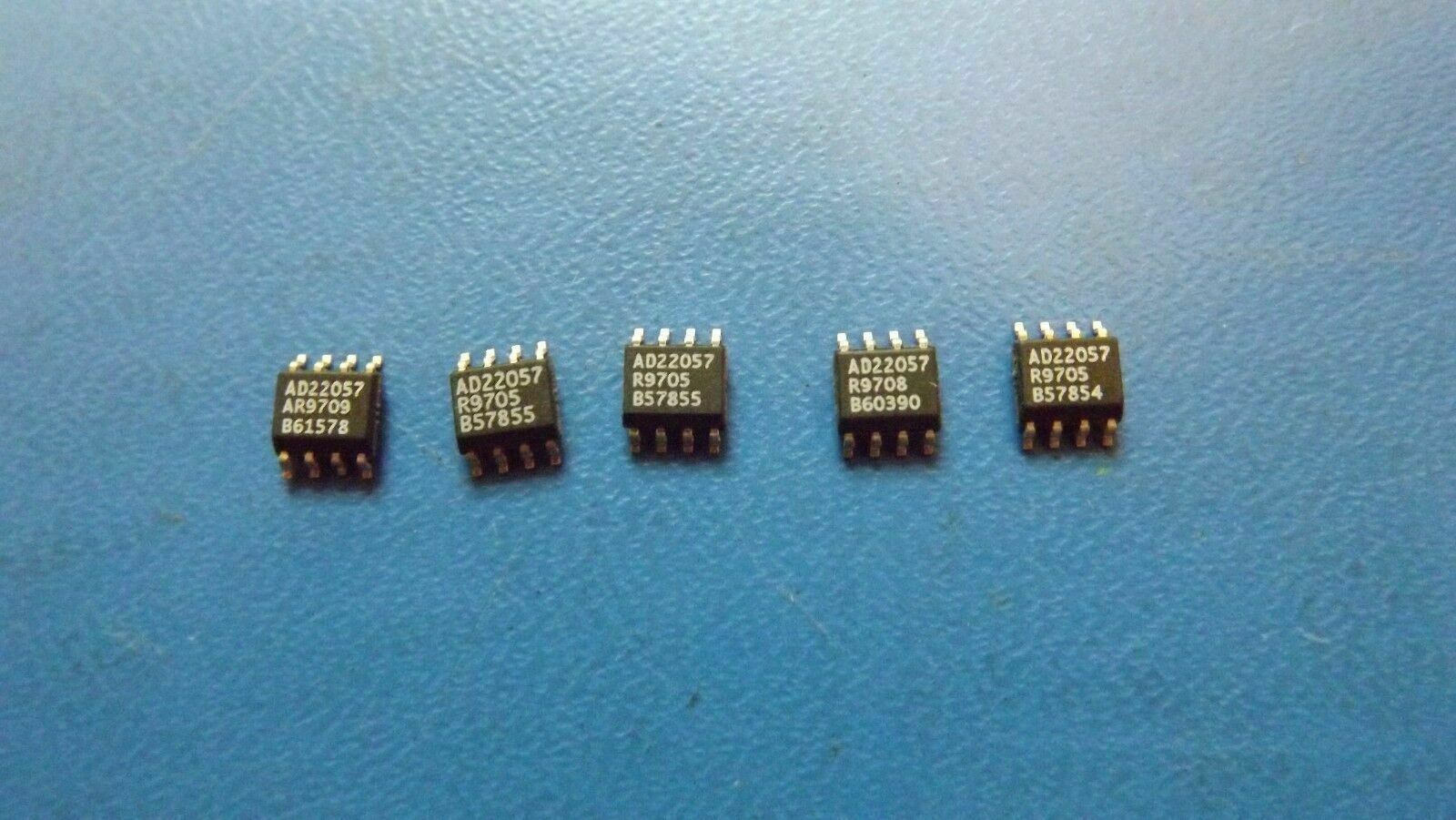

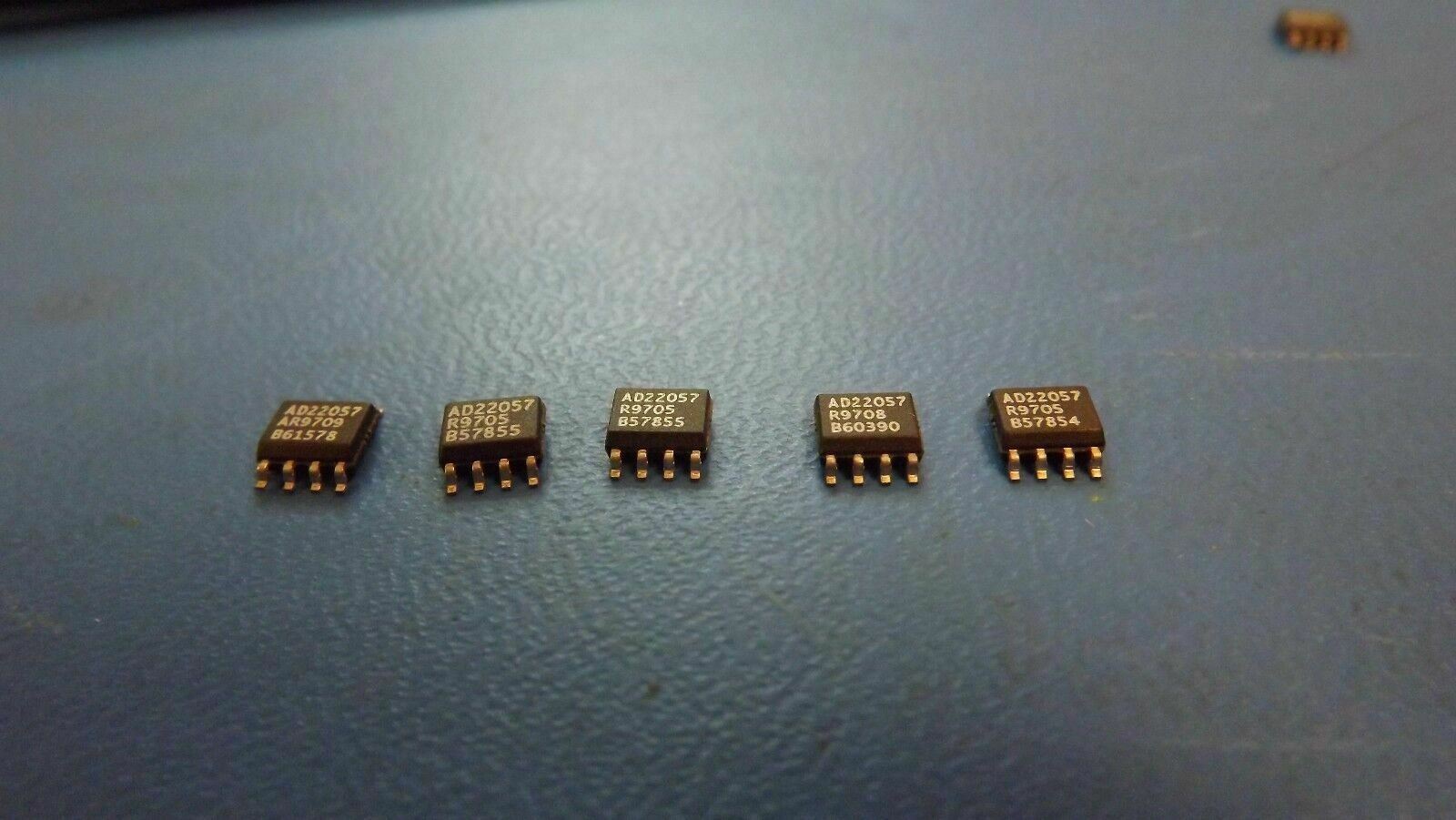

THIS LISTING IS FOR (1PC) AD22057R BY ANALOG DEVICES.
SP Amp Current Sense Amp Single 36V 8-Pin SOIC
PART INFORMATION
AD22057R PART DETAILS & PARAMETRIC
| EU RoHS |
Not Compliant
|
| Rail to Rail | No |
| Number of Elements per Chip | 2 |
| Number of Channels per Chip | 1 |
| Minimum CMRR (dB) | 80 |
| Maximum Input Resistance (MOhm) | 0.4(Typ)@5V |
| Type | Current Sense Amplifier |
| Maximum Voltage Gain (dB) | 26.06 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Power Supply Type | Single |
| Minimum Single Supply Voltage (V) | 3 |
| Typical Single Supply Voltage (V) | 5 |
| Maximum Single Supply Voltage (V) | 36 |

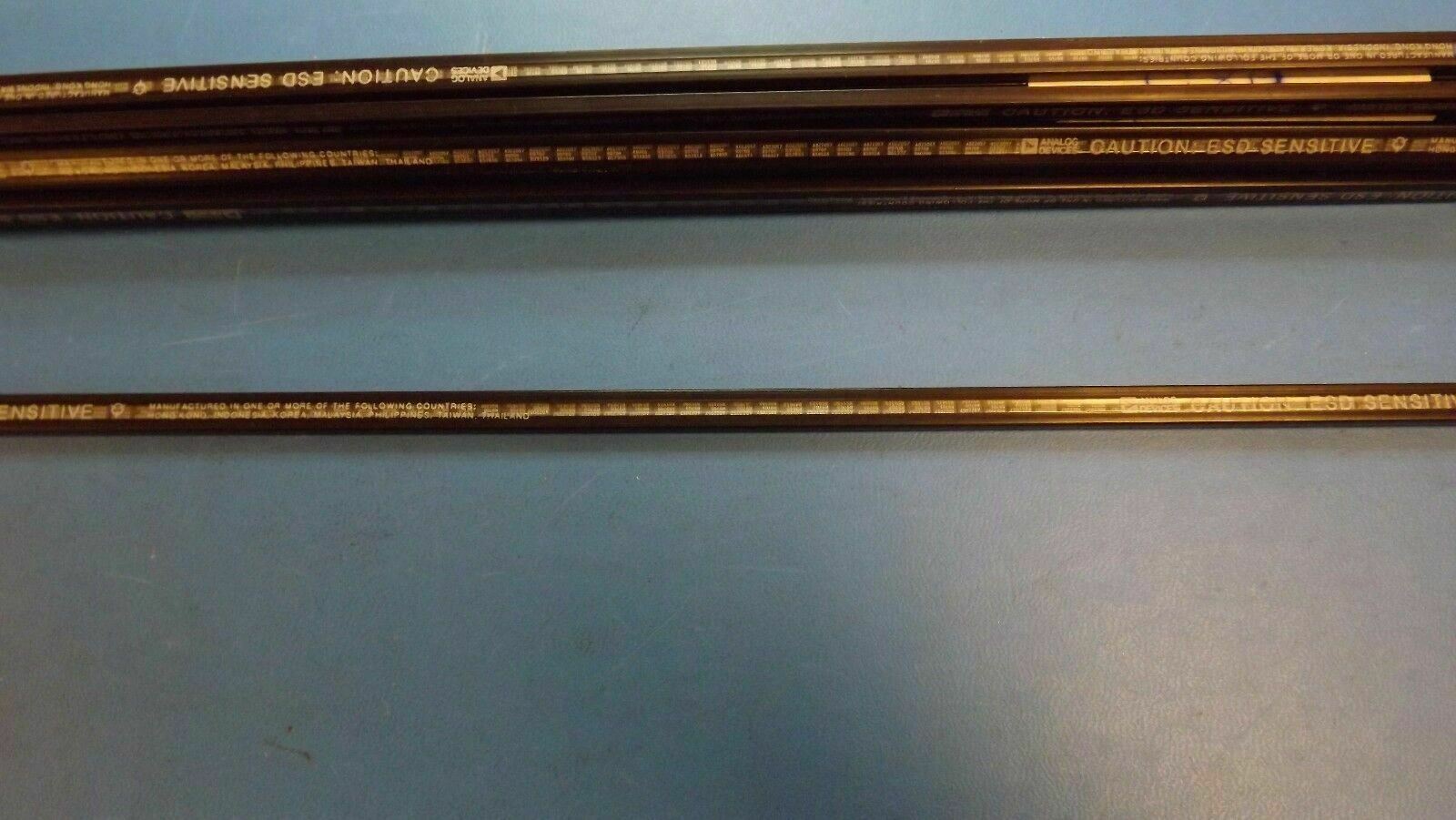

| Packaging | Tube |
| Supplier Temperature Grade | Automotive |
| Mounting | Surface Mount |
| Package Height (mm) | 1.5(Max) |
| Package Length (mm) | 5(Max) |
| Package Width (mm) | 4(Max) |
| PCB | 8 |
| Standard Package Name | SOIC |
| Supplier Package | SOIC N |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
