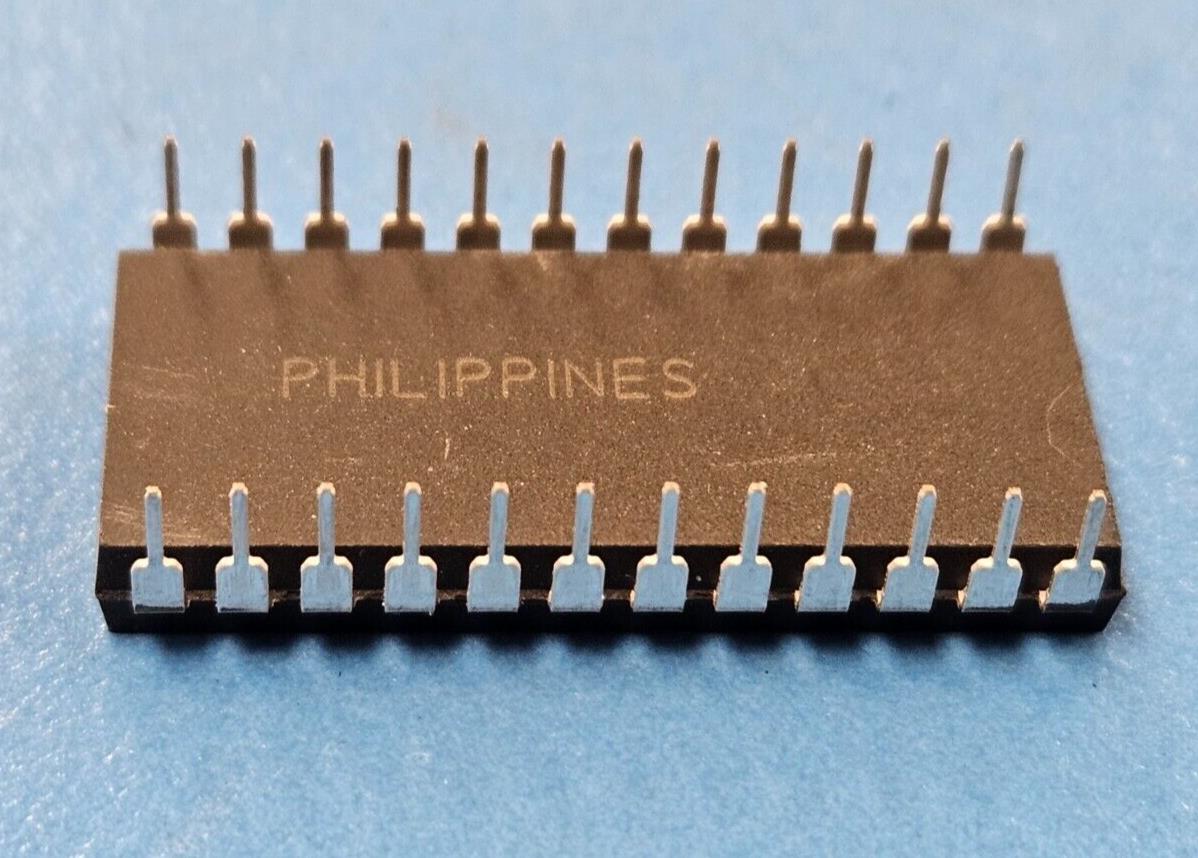

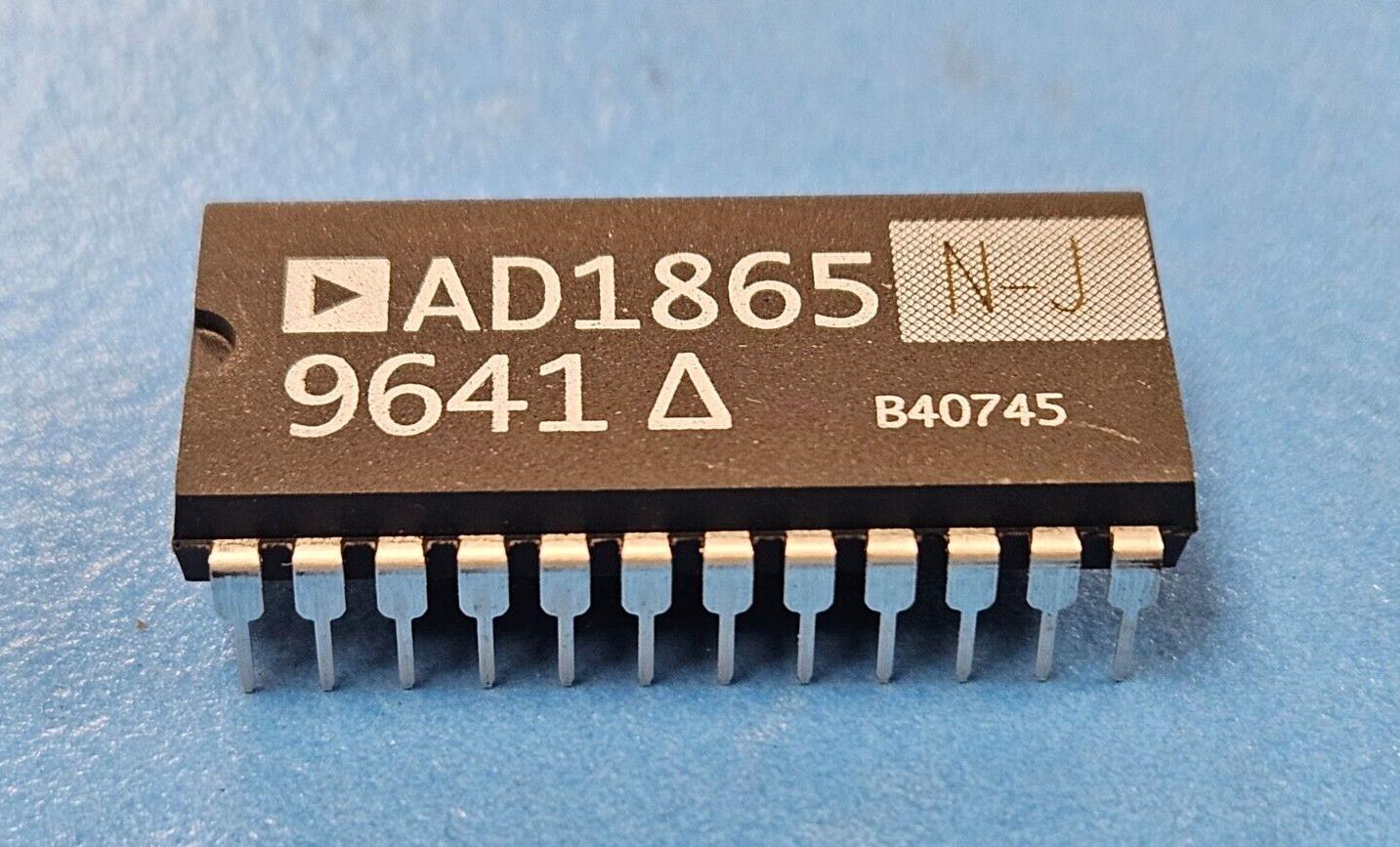

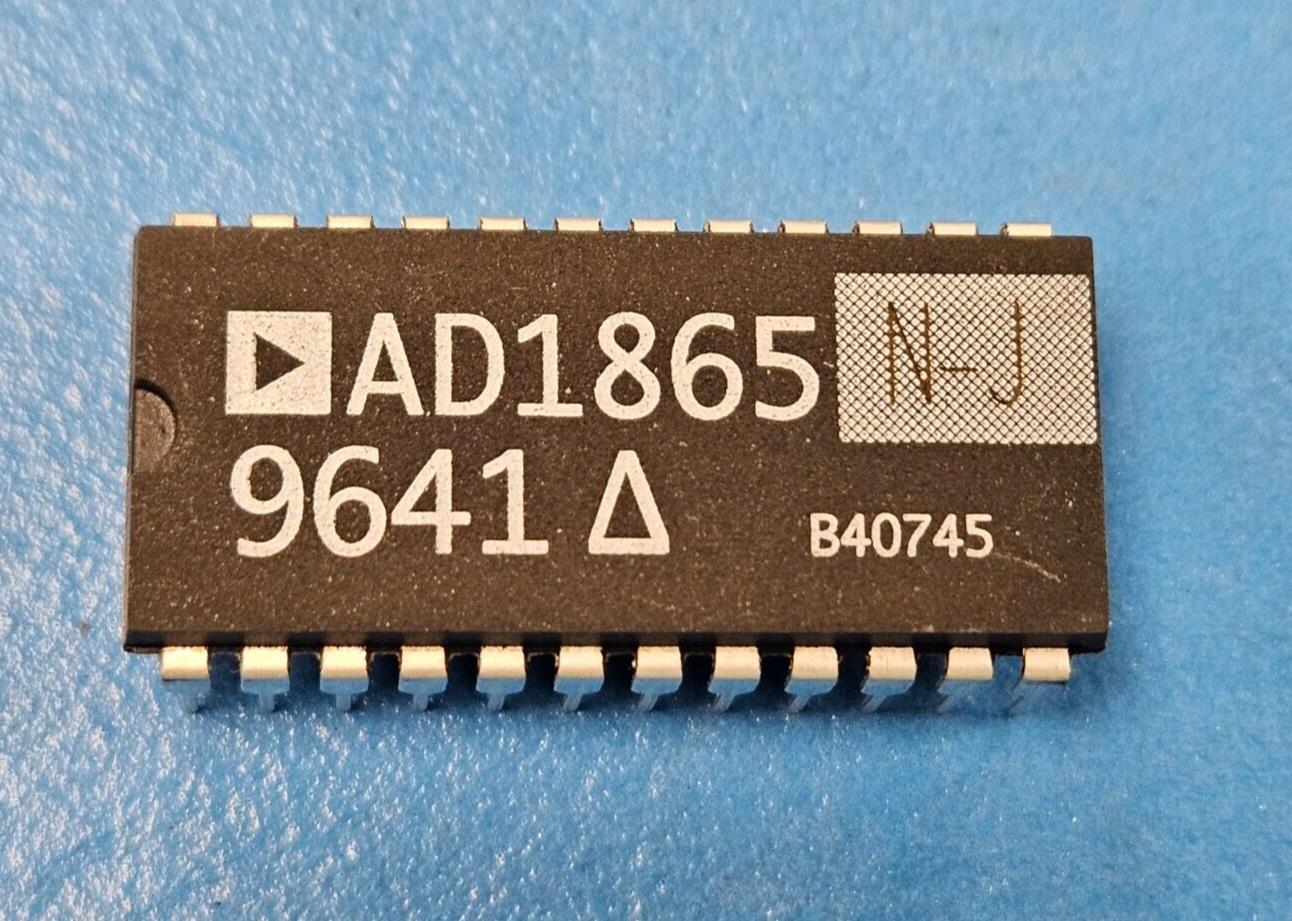

(1PC) AD1865N-J D/A Converter, 2 Func, Serial Input Loading, PDIP24
Tax included.
This listing is for (1PC) of AD1865N-J by Analog Devices
Mfr Package Description PLASTIC, DIP-24
Status Discontinued
Converter Type D/A CONVERTER
Analog Output Voltage-Min -3.0 V
Analog Output Voltage-Max 3.0 V
Input Bit Code 2'S COMPLEMENT BINARY
Input Format SERIAL
JESD-30 Code R-PDIP-T24
JESD-609 Code e0
Linearity Error-Max (EL) 1.0 %
Negative Supply Voltage-Nom -5.0 V
Number of Bits 18
Number of Functions 2
Number of Terminals 24
Operating Temperature-Min -25.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP24,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Sub Category Other Converters
Supply Current-Max 26.0 mA
Supply Voltage-Nom 5.0 V
Surface Mount NO
Technology BIMOS
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 30.48 mm
Width 7.62 mm
