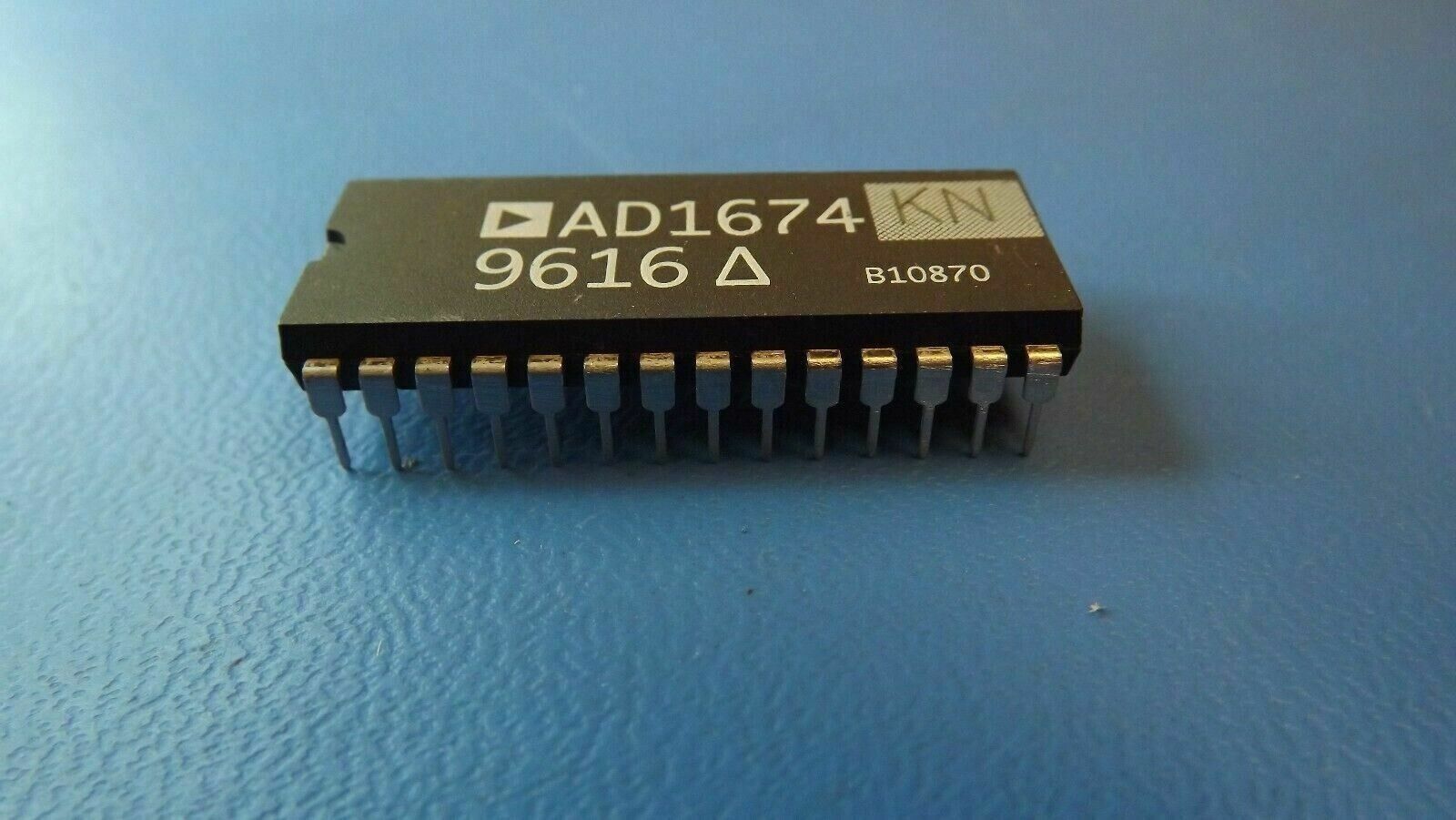

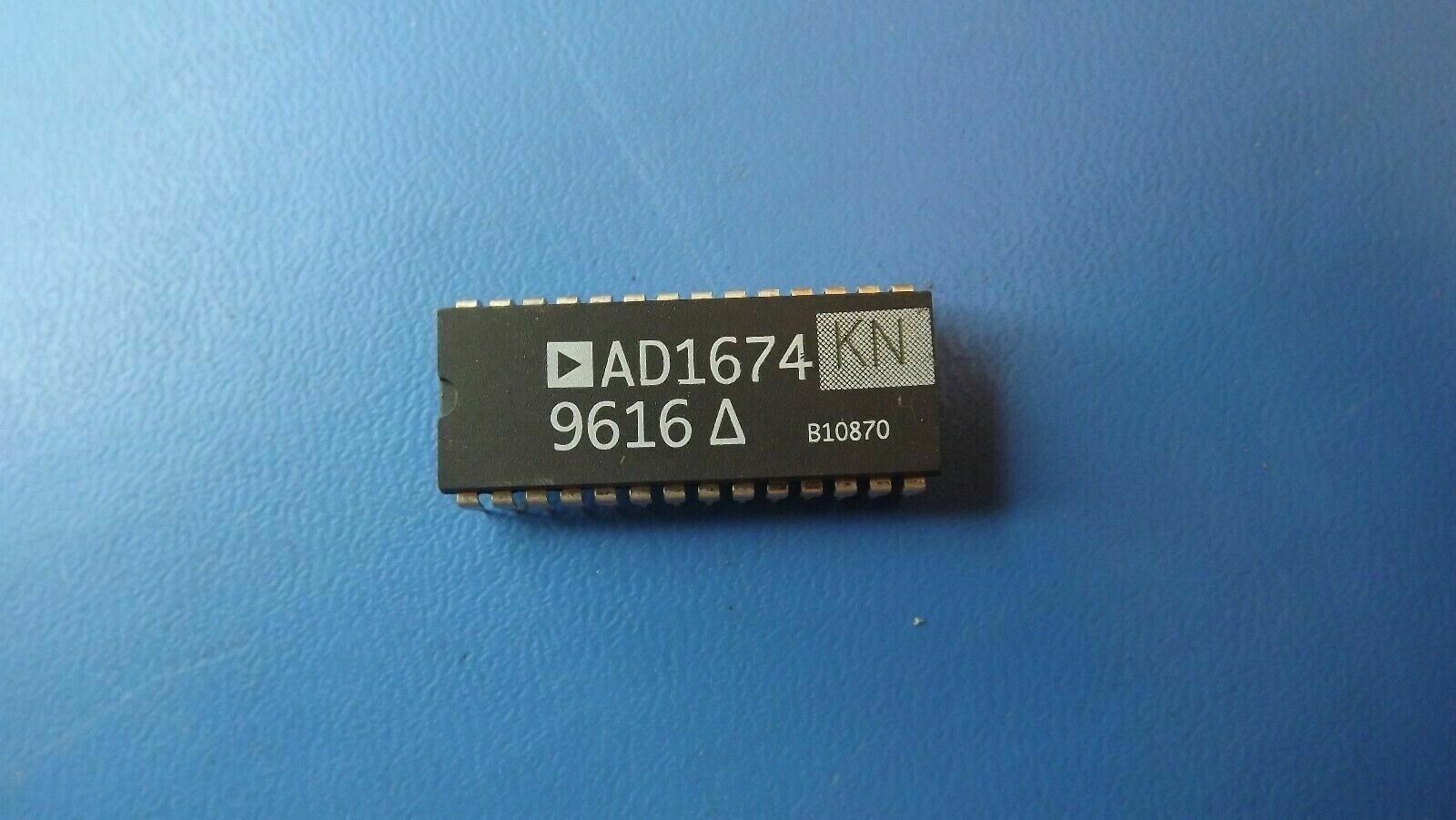

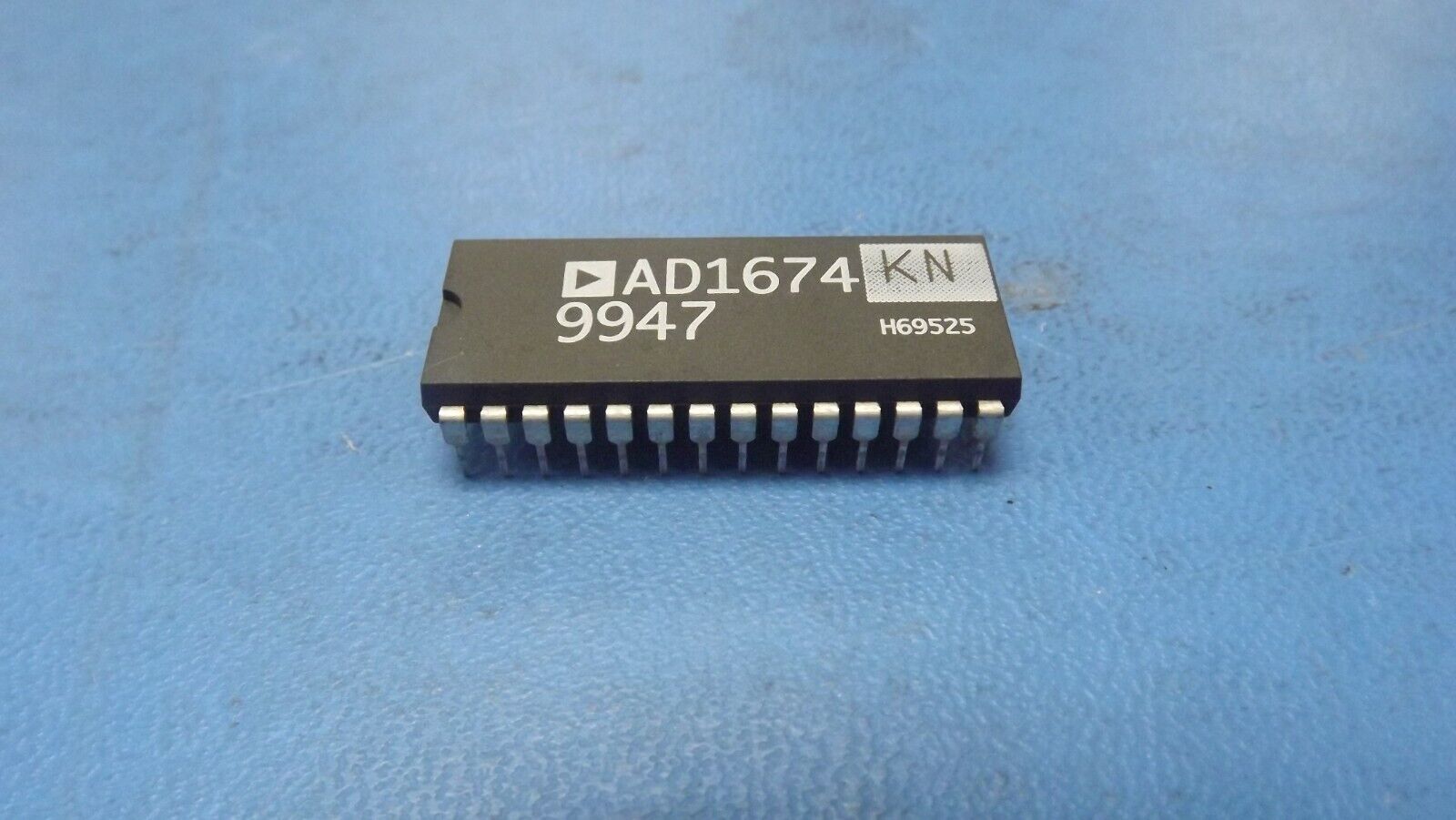

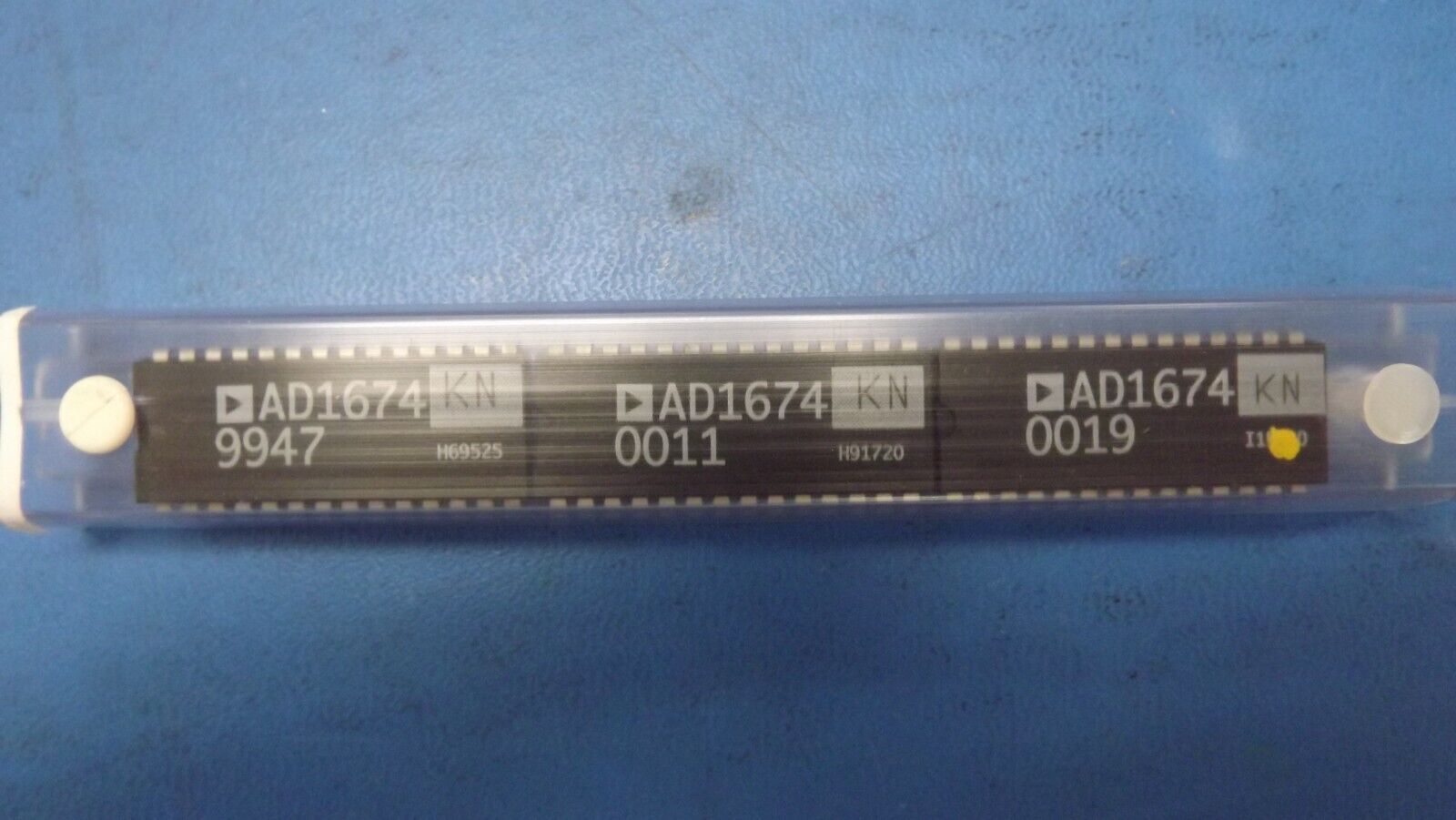

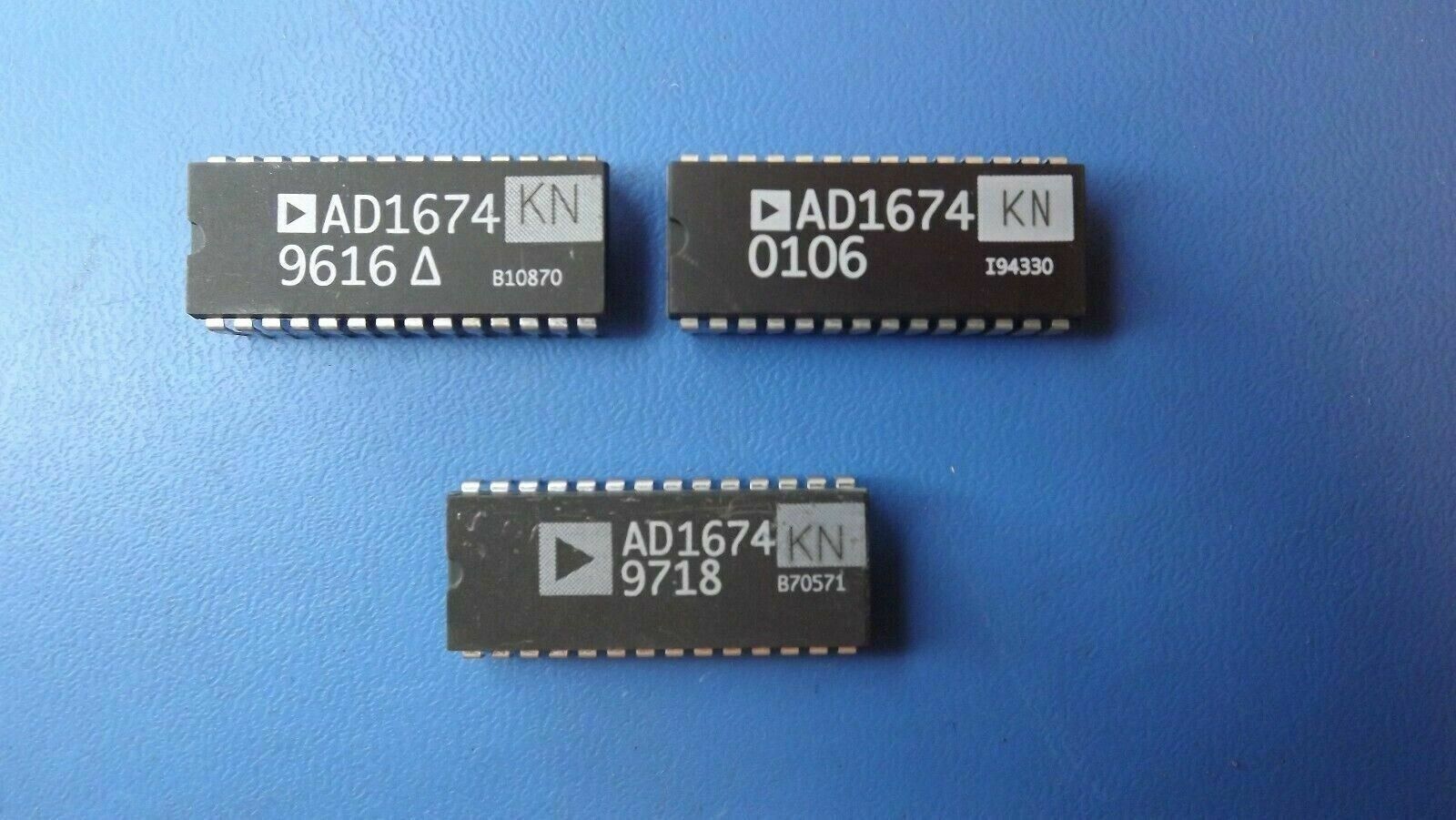

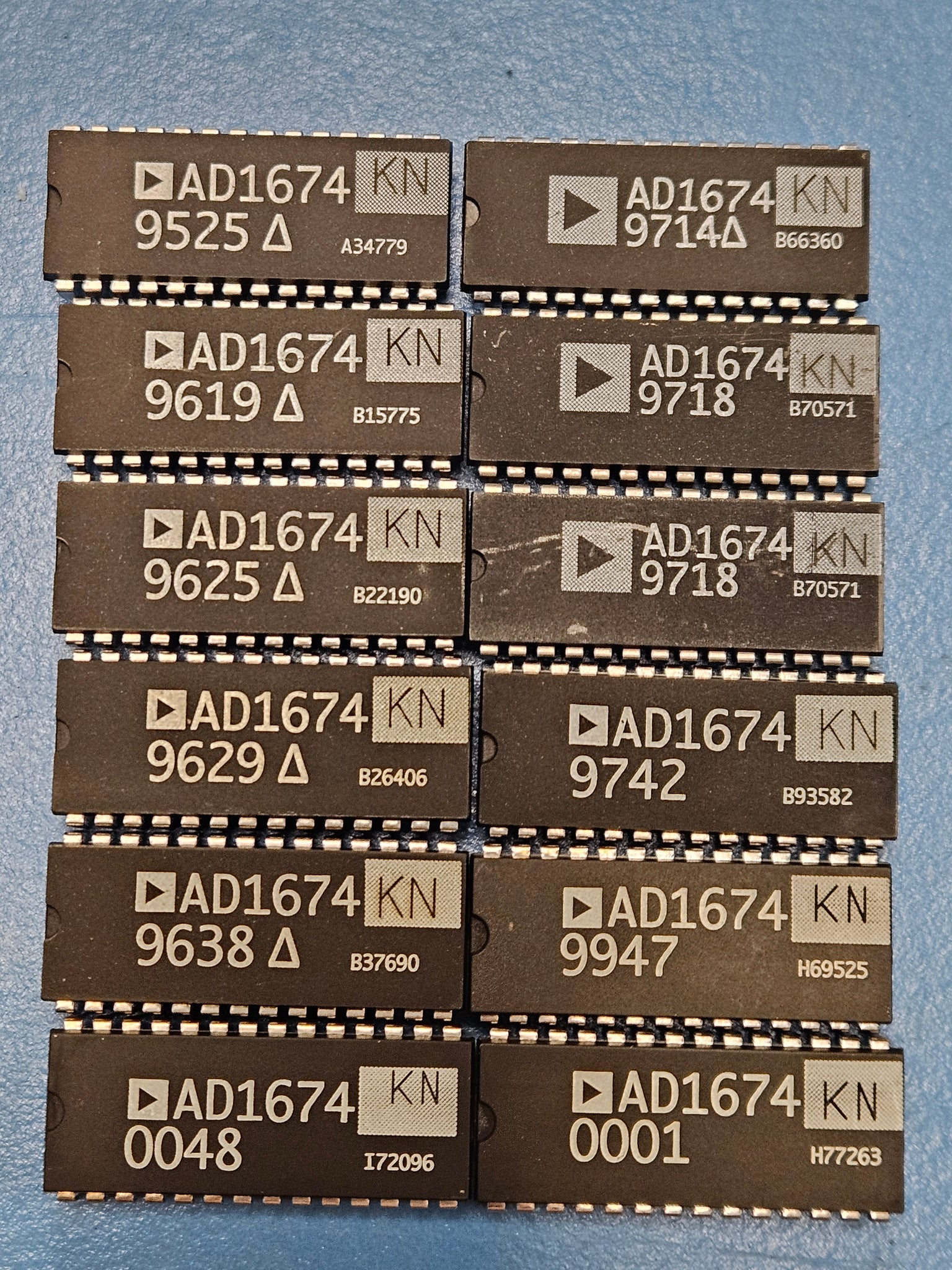

(1PC) AD1674KN ANALOG DEVICES ADC Single SAR 100ksps 12-bit Parallel 28-Pin PDIP

  • $14.95
    Unit price per
Tax included.

Only 10 left!

THIS LISTING IS FOR (1PC) OF AD1674KN BY ANALOG DEVICES

SPECIFICATIONS

Mfr Package Description PLASTIC, DIP-28
REACH Compliant Yes
Status Active
Converter Type ADC, SUCCESSIVE APPROXIMATION
Analog Input Voltage-Min -10.0 V
Analog Input Voltage-Max 10.0 V
Conversion Time-Max 10.0 µs
JESD-30 Code R-PDIP-T28
JESD-609 Code e0
Linearity Error-Max (EL) 0.0122 %
Moisture Sensitivity Level NOT APPLICABLE
Negative Supply Voltage-Nom -15.0 V
Number of Analog In Channels 1.0
Number of Bits 12
Number of Functions 1
Number of Terminals 28
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Bit Code BINARY
Output Format PARALLEL, WORD
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT APPLICABLE
Power Supplies (V) 5,+-12/+-15
Qualification Status Not Qualified
Sample-and-Hold/Track-and-Hold SAMPLE
Sample Rate 0.111 MHz
Seated Height-Max 6.35 mm
Sub Category Analog to Digital Converters
Supply Current-Max 18.0 mA
Supply Voltage-Nom 15.0 V
Surface Mount NO
Technology BICMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT APPLICABLE
Length 37.4 mm
Width 15.24 mm
