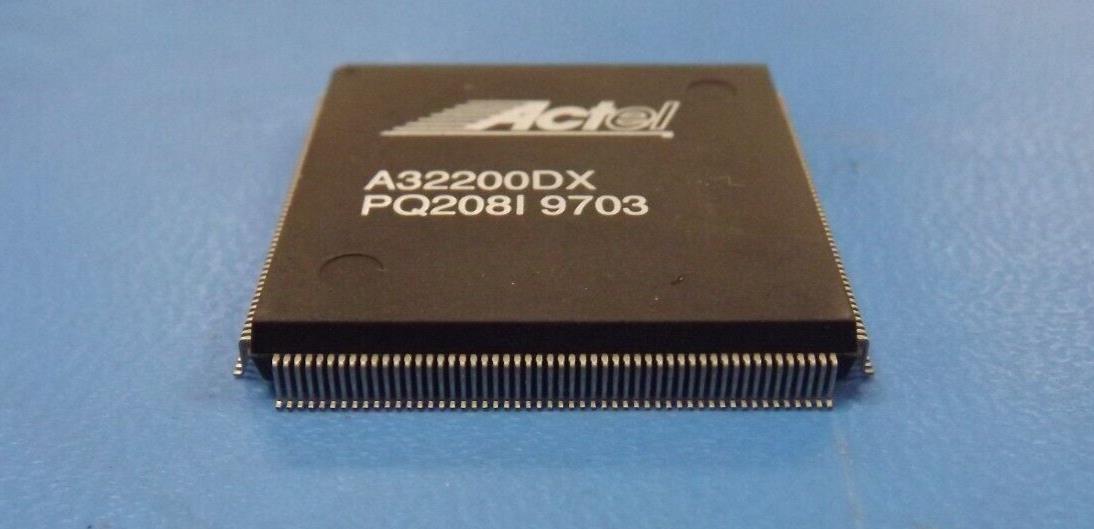

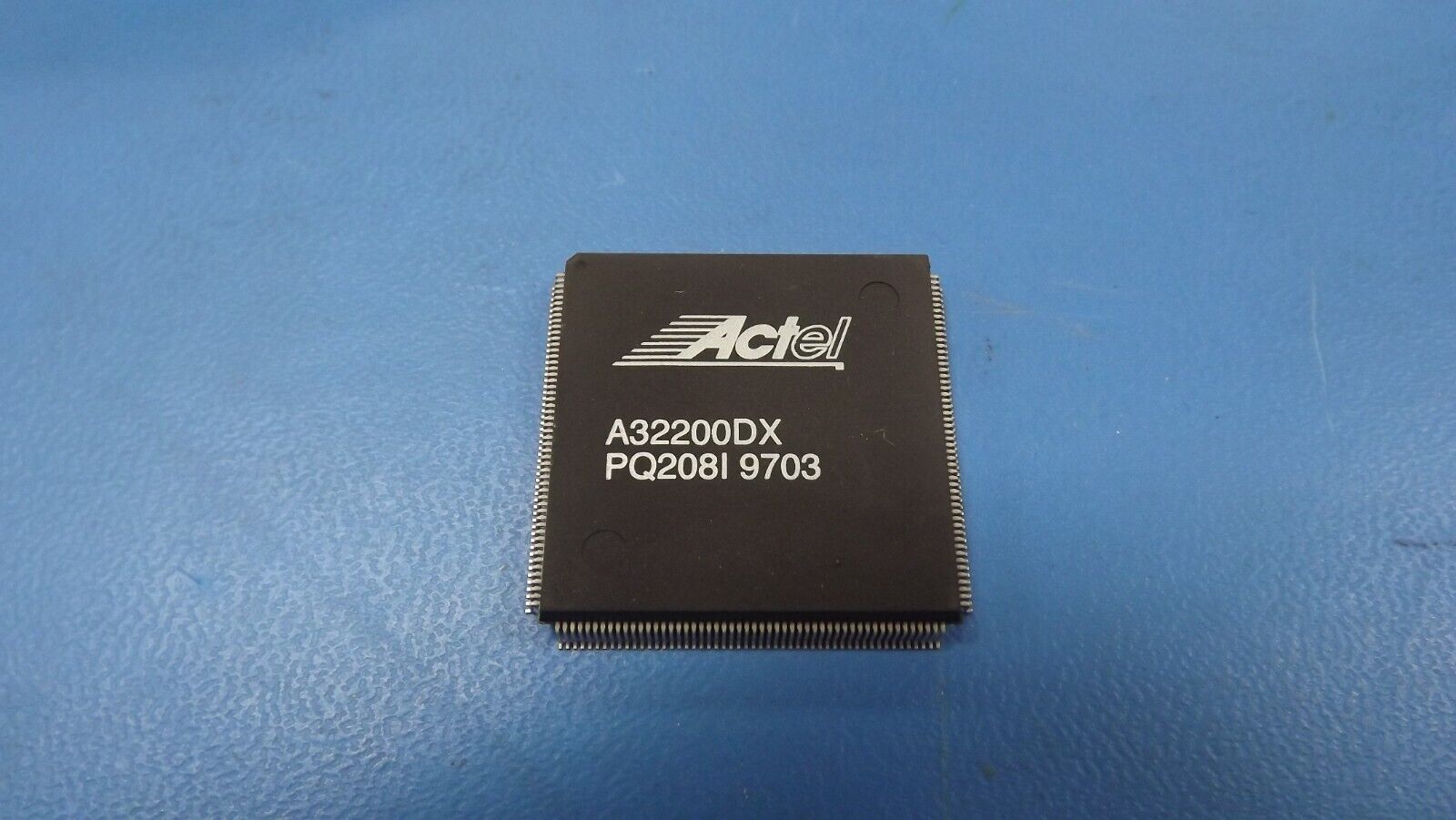

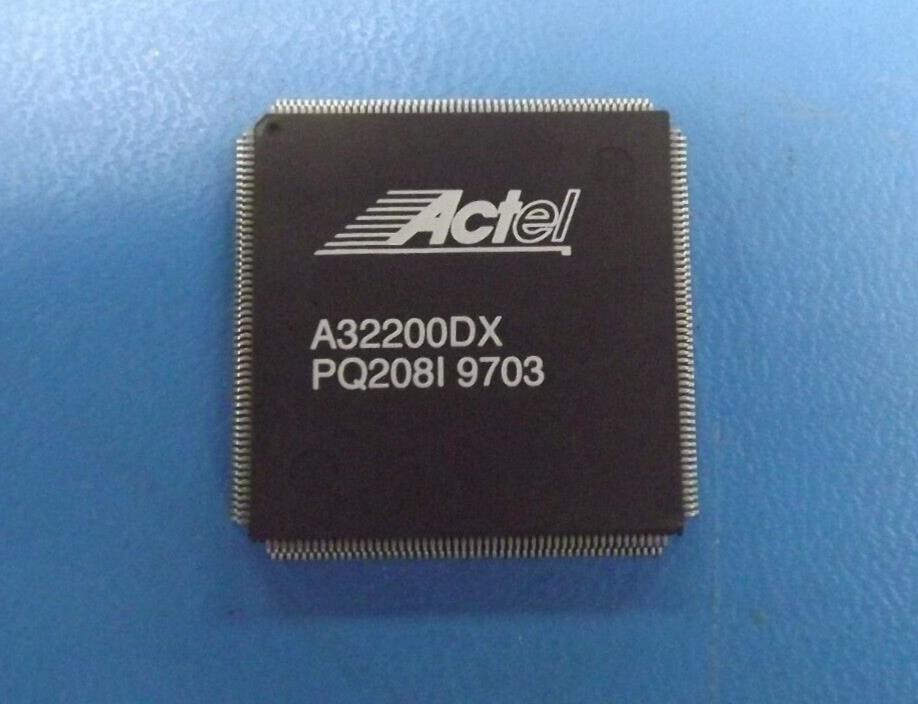

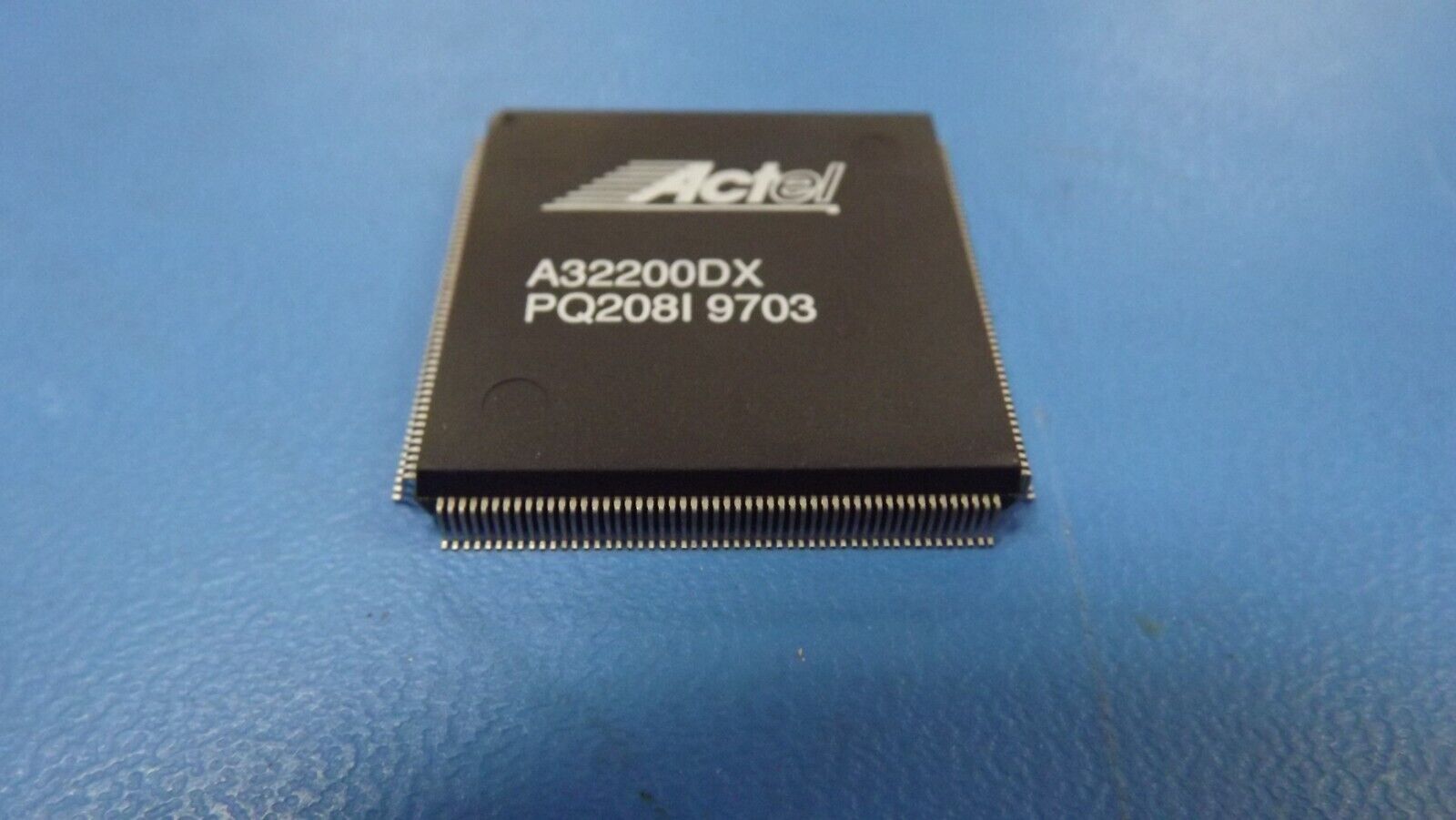

(1PC) A32200DX-PQ208I FPGA 115MHz, 2414-Cell, CMOS, PQFP208
(1PC) A32200DX-PQ208I FPGA 115MHz, 2414-Cell, CMOS, PQFP208
(1PC) A32200DX-PQ208I FPGA 115MHz, 2414-Cell, CMOS, PQFP208
(1PC) A32200DX-PQ208I FPGA 115MHz, 2414-Cell, CMOS, PQFP208
(1PC) A32200DX-PQ208I FPGA 115MHz, 2414-Cell, CMOS, PQFP208

(1PC) A32200DX-PQ208I FPGA 115MHz, 2414-Cell, CMOS, PQFP208

Tax included.
Only 5 left!
THIS LISTING IS FOR (1PC) OF A32200DX-PQ208I BY ACTEL

Status Discontinued
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency-Max 115.0  MHz
JESD-30 Code S-PQFP-G208
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of Inputs 176.0
Number of Logic Cells 2414.0
Number of Outputs 176.0
Number of Terminals 208
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 85.0  Cel
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP208,1.2SQ,20
Package Shape SQUARE
Package Style FLATPACK
Peak Reflow Temperature (Cel) 225
Power Supplies 5
Qualification Status Not Qualified
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 5.0  V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5  mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
