(1PC) 981134-184-2MCF Card Edge Connector, 184 Contact(s), 2 Row(s), Right Angle
Tax included.

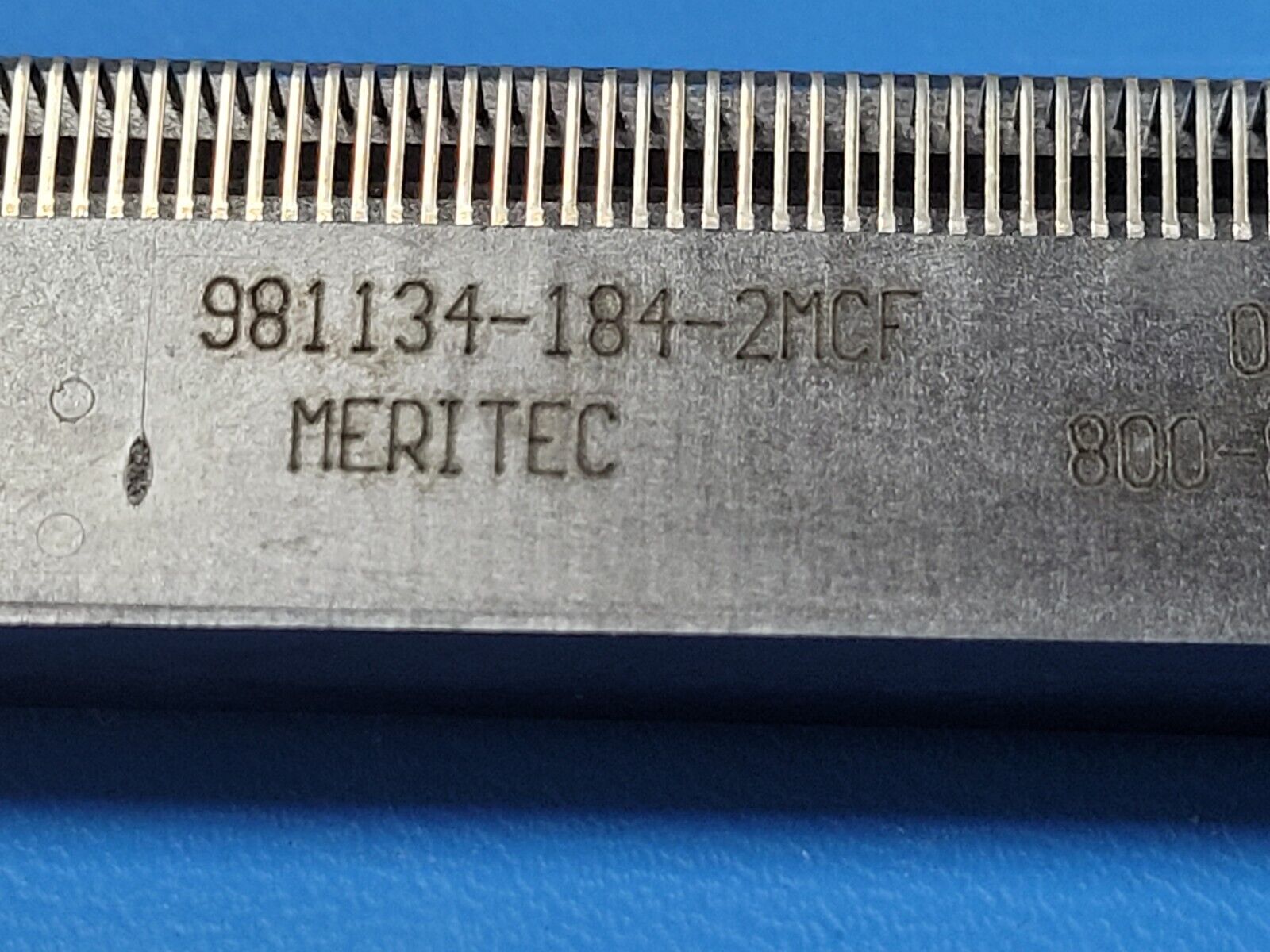

THIS IS FOR (1PC) OF 981134-184-2MCF BY METITEC

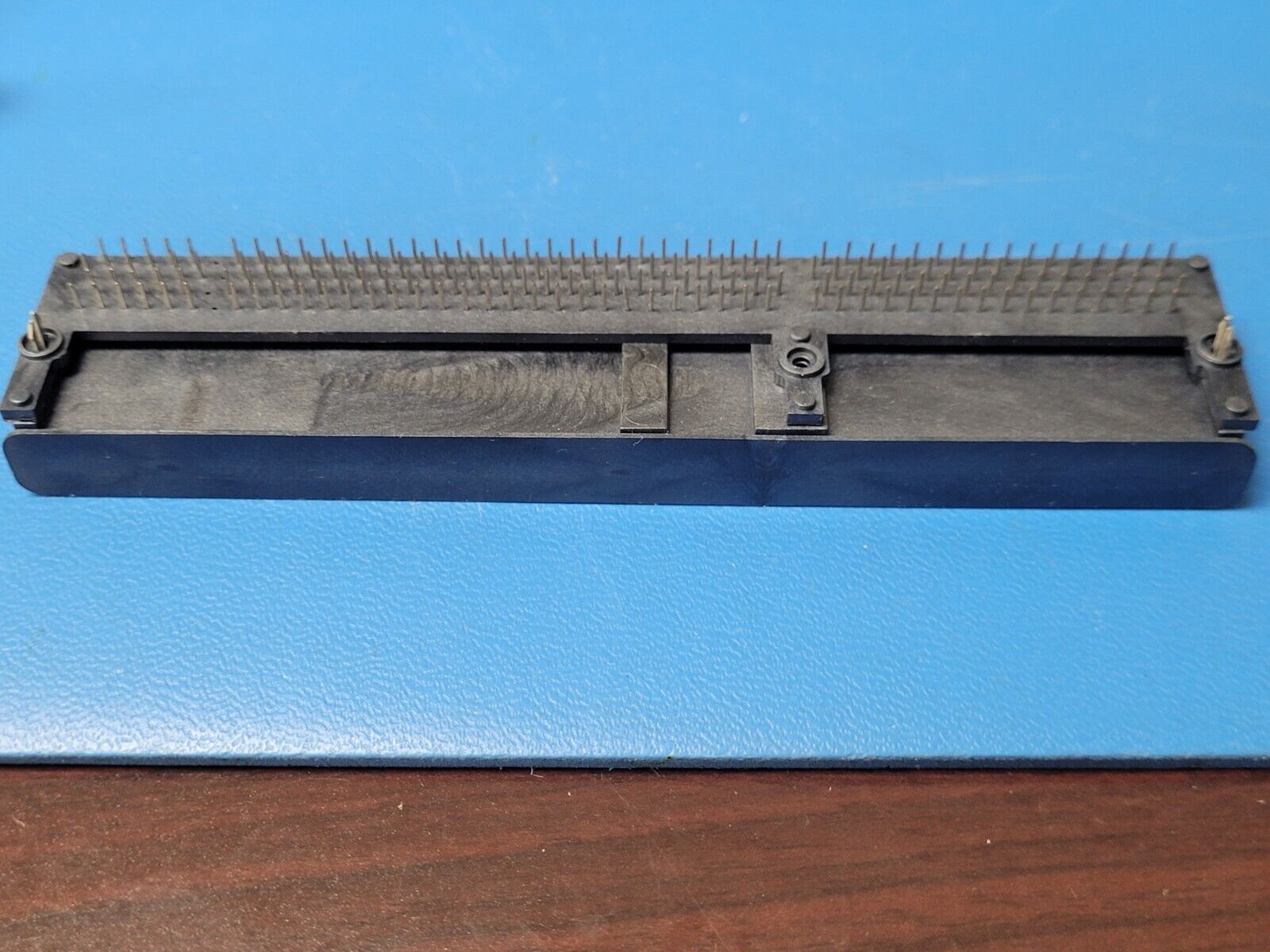

Card Edge Connector, 184 Contact(s), 2 Row(s), Right Angle
Part #: 981134-184-2MCF
Part Category: Connectors
Manufacturer: Meritec
Description: Card Edge Connector, 184 Contact(s), 2 Row(s), Right Angle, Solder Terminal, Locking, Black Insulator, Receptacle
Status Discontinued
Connector Type CARD EDGE CONNECTOR
Board Mounting Option SPLIT BOARD LOCK
Body Breadth 0.49 inch
Body Length 5.13 inch
Body/Shell Style RECEPTACLE
Contact Finish - Mating AU ON NI
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Resistance 40.0 mohm
Contact Style CENTRONIC
Insulation Resistance 1.0E9 ohm
Insulator Color BLACK
Insulator Material GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer Series 98113
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 4
Number of Rows Loaded 2
Operating Temperature-Min -40.0 Cel
PCB Contact Pattern STAGGERED
Rated Current (Signal) 1.0 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.1 inch
Total Number of Contacts 184
Additional Feature 3.3V, 64BIT PCI
