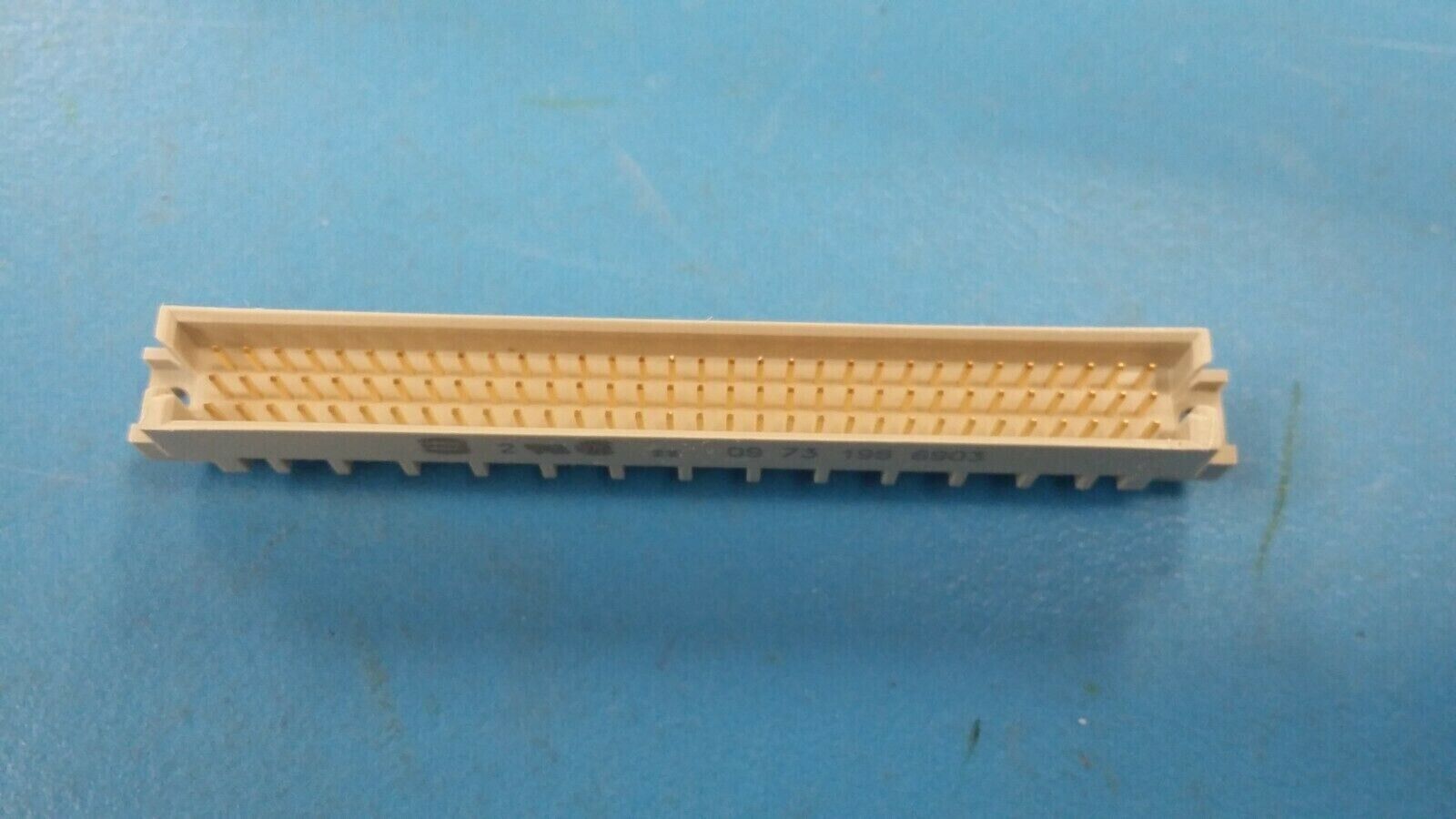

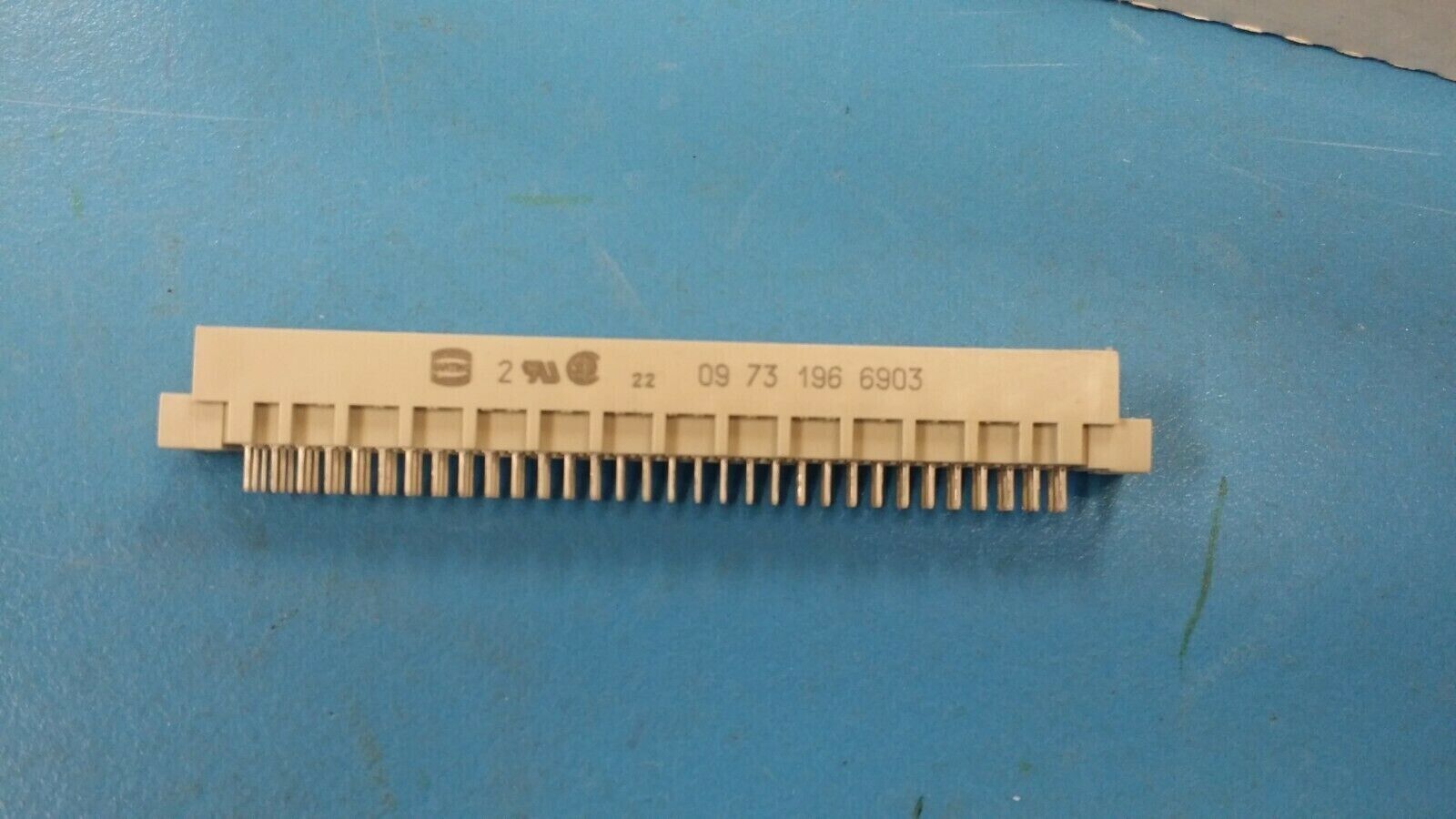

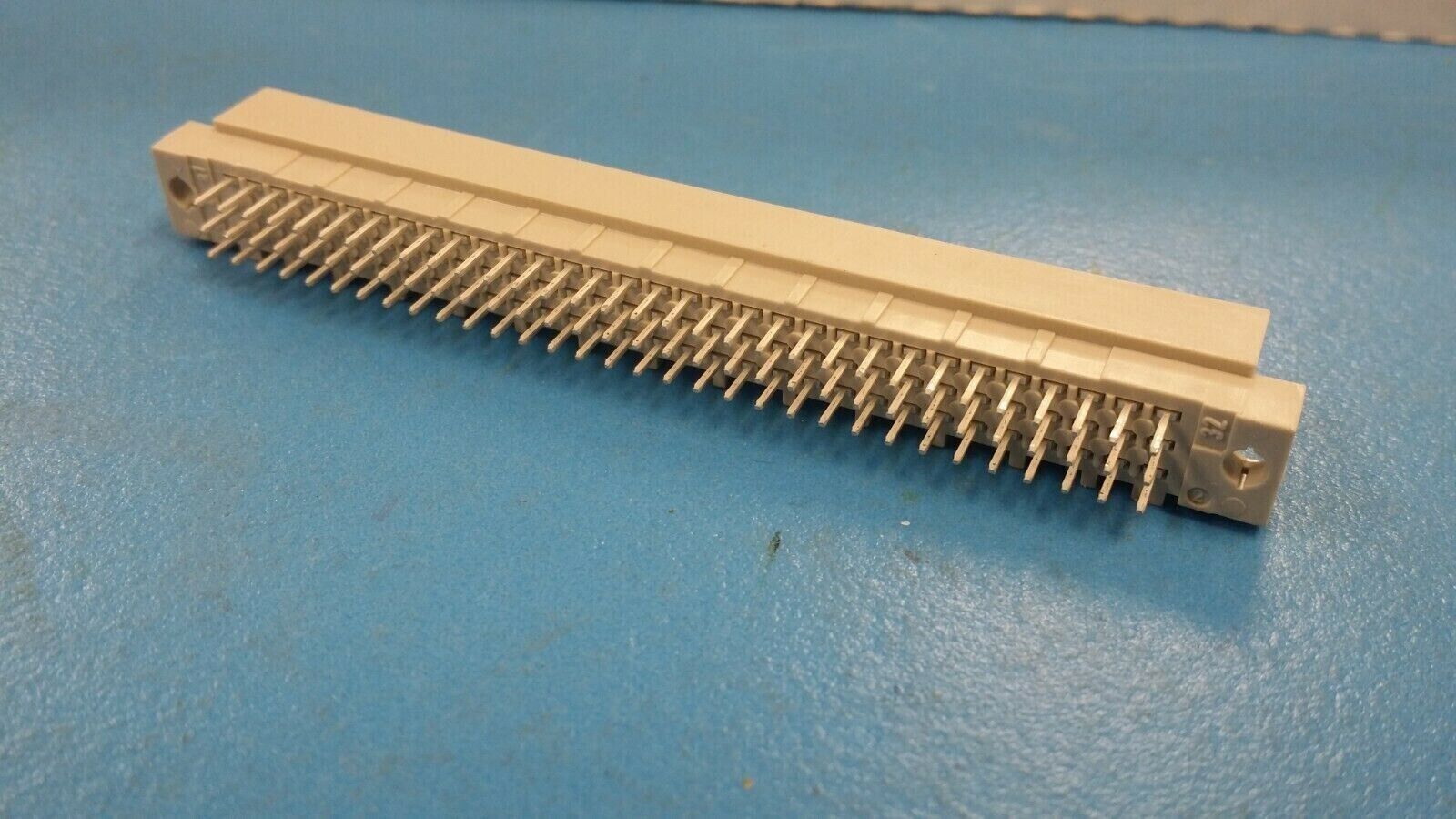

(1pc) 9731966903 Conn DIN 41612 M 96 POS 2.54mm Solder ST Thru-Hole
Tax included.
This listing is for (1pc) of 9731966903 by Harting
Connector Type BOARD EURO CONNECTOR
Body Breadth 0.437 inch
Body Depth 0.457 inch
Body Length 3.74 inch
Contact Finish - Mating NOT SPECIFIED
Contact Finish - Termination GOLD OVER NICKEL
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 15.0 mohm
Contact Style SQ PIN-SKT
DIN Conformance YES
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1.0E12 ohm
Insulator Material GLASS FILLED POLYETHYLENE
JESD-609 Code e4
MIL Conformance NO
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Name of Rows Loaded A,B,C
Number Of Connectors ONE
Number Of PCB Rows 3
Number of Rows Loaded 3
Operating Temperature-Min -65.0 Cel
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 2.0 A
Reference Standard VDE,CSA
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.157 inch
Terminal Pitch 2.54 mm
Total Number of Contacts 96
UL Flammability Code 94V-0
Additional Feature STANDARD: DIN 41612, PANEL MOUNTABLE
