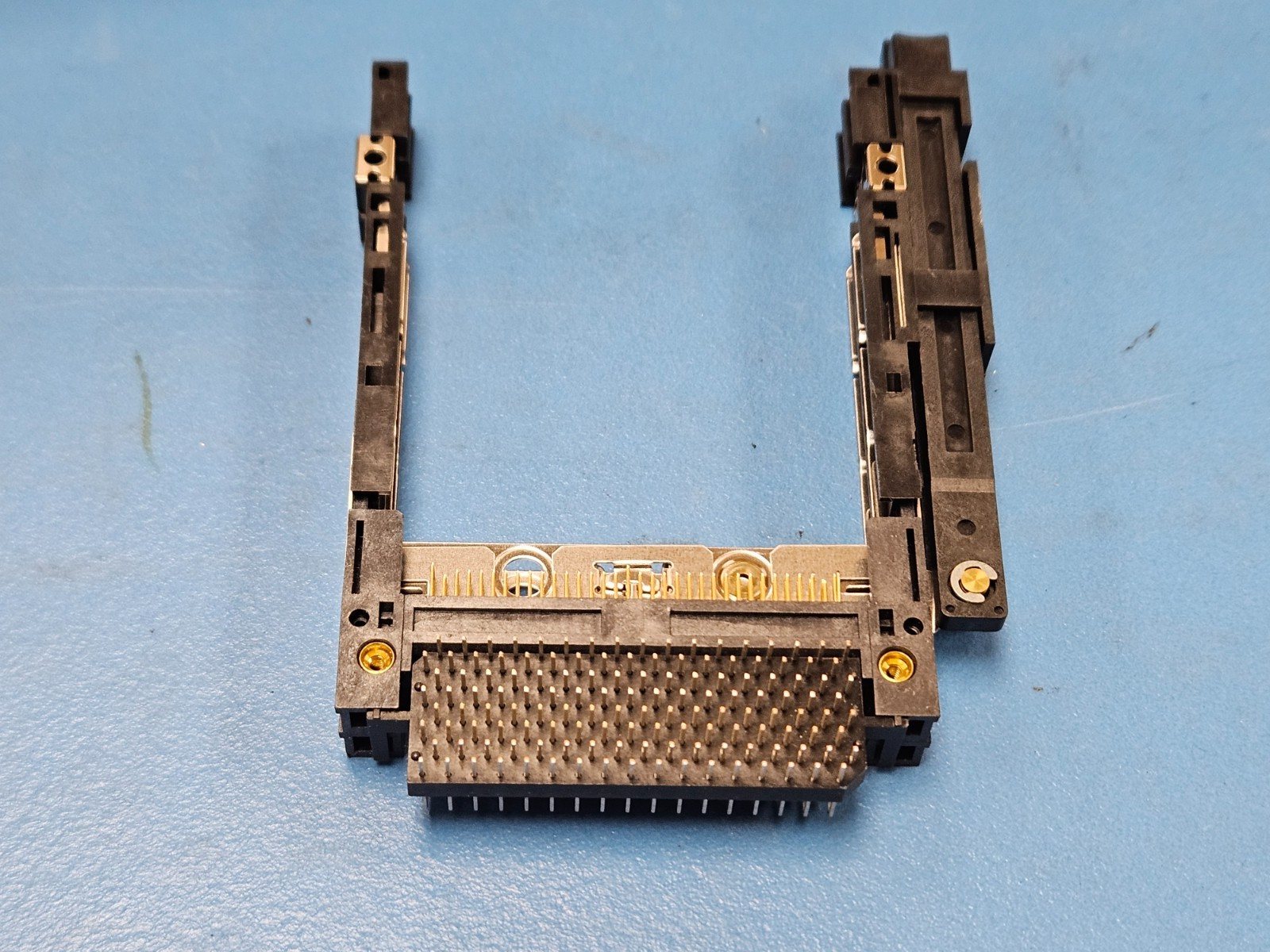

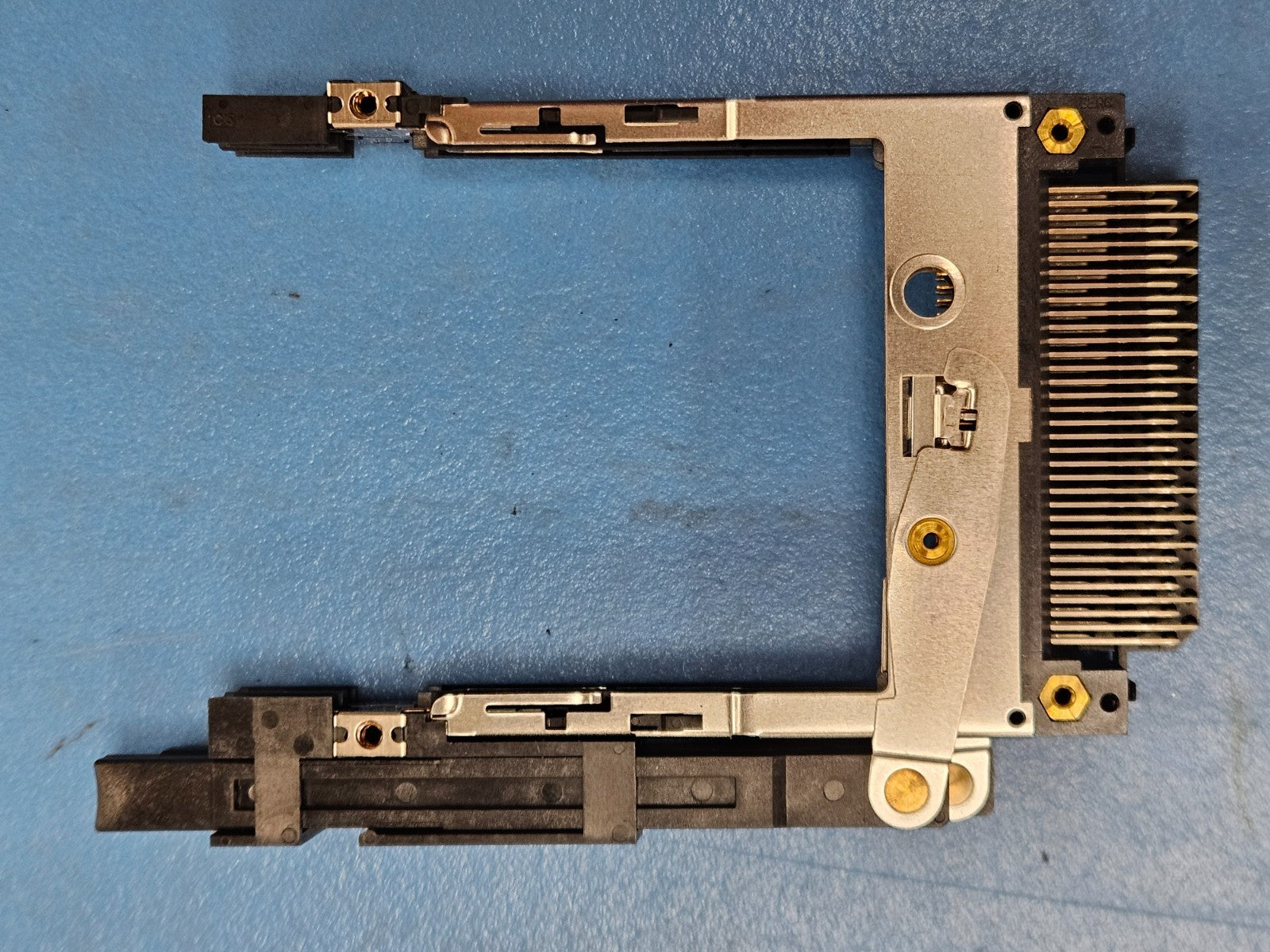

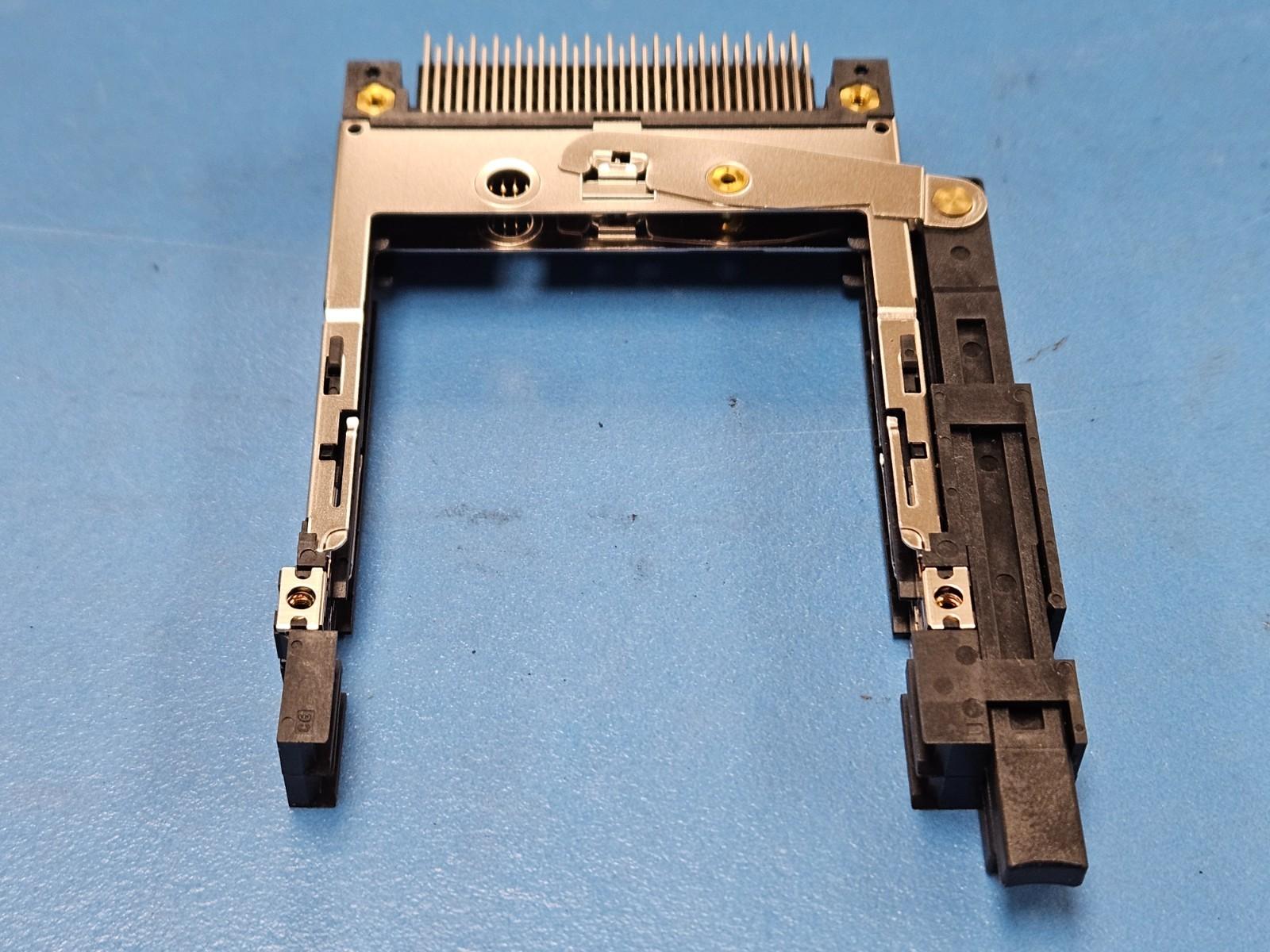

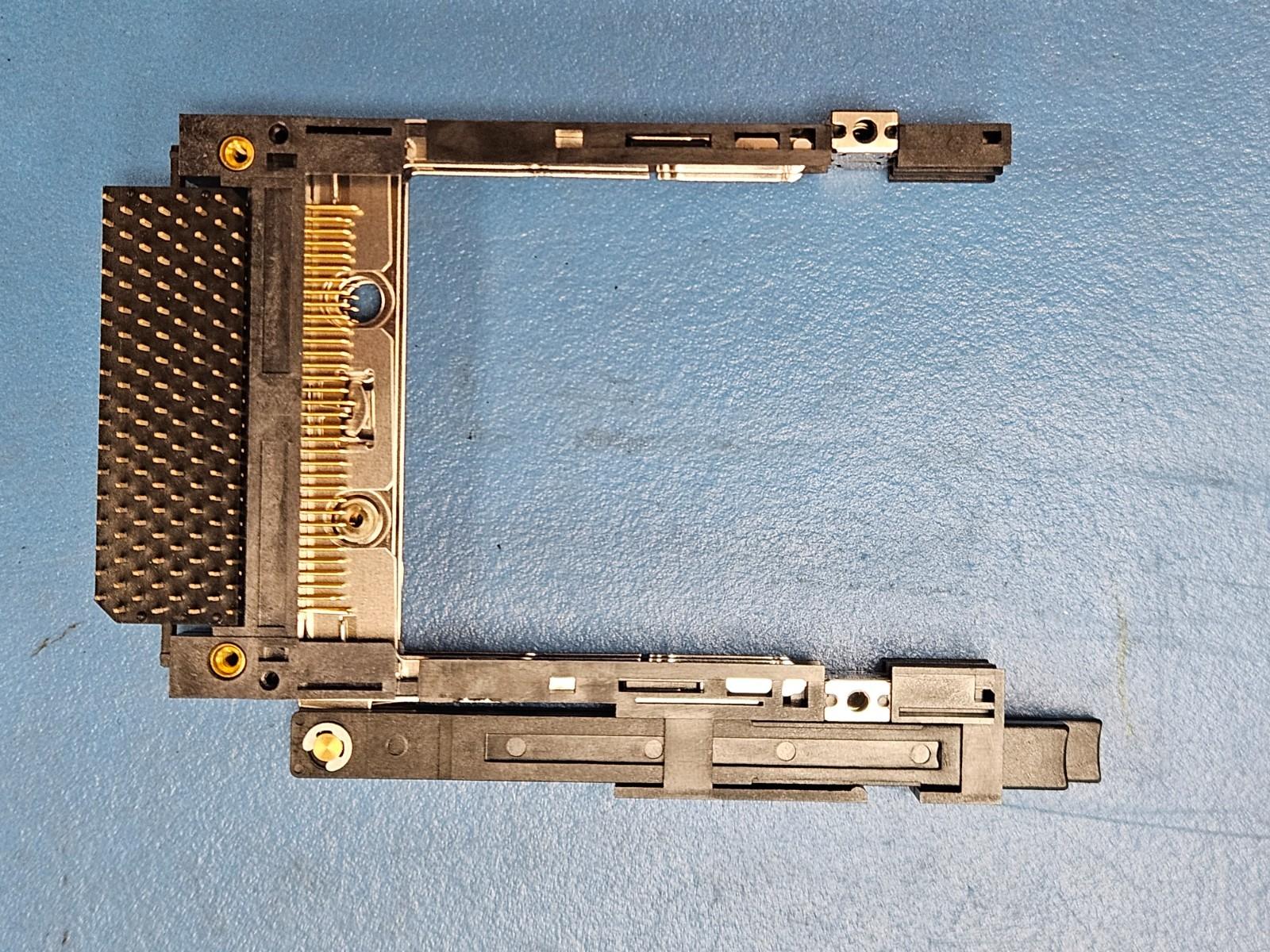

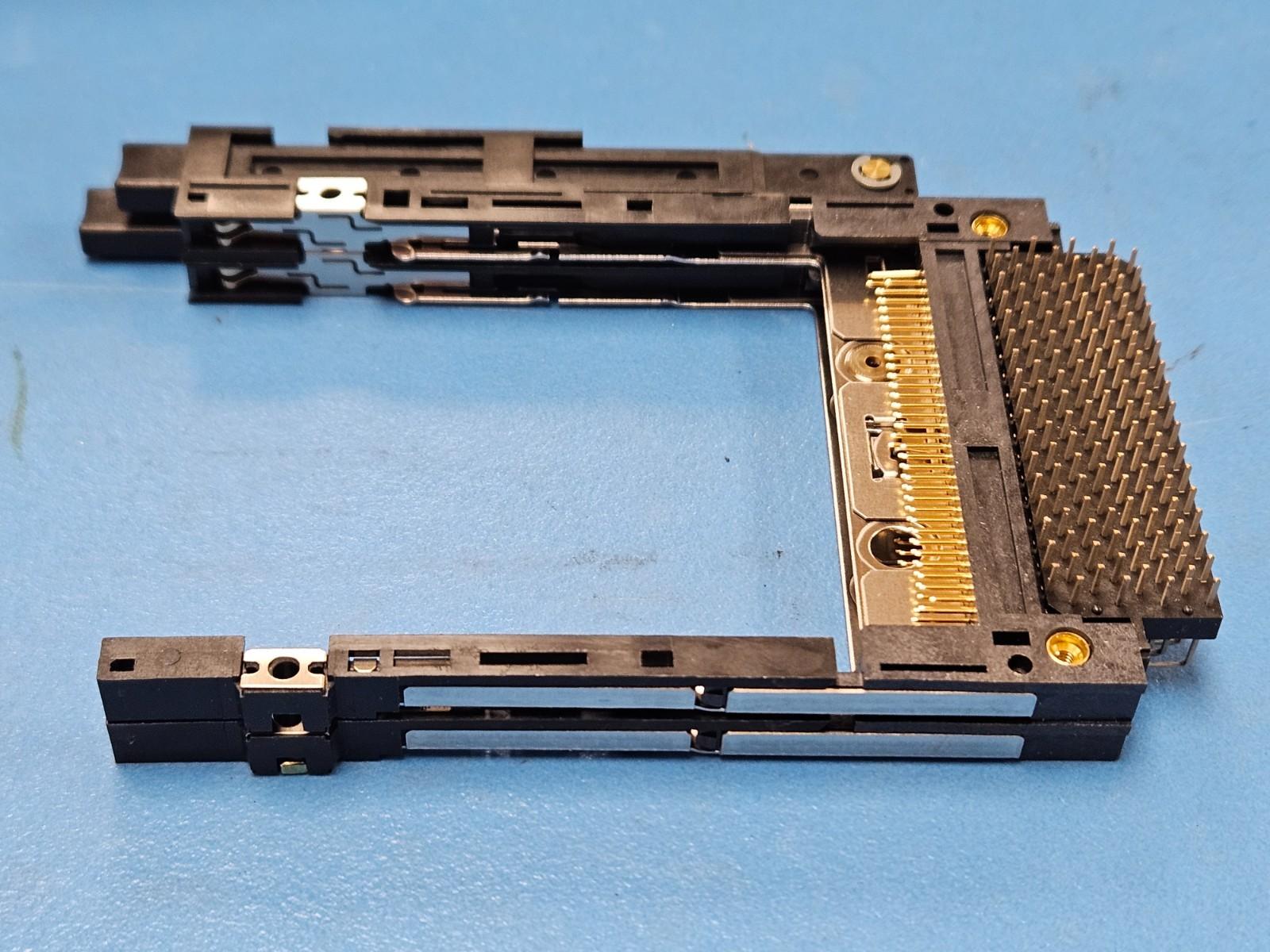

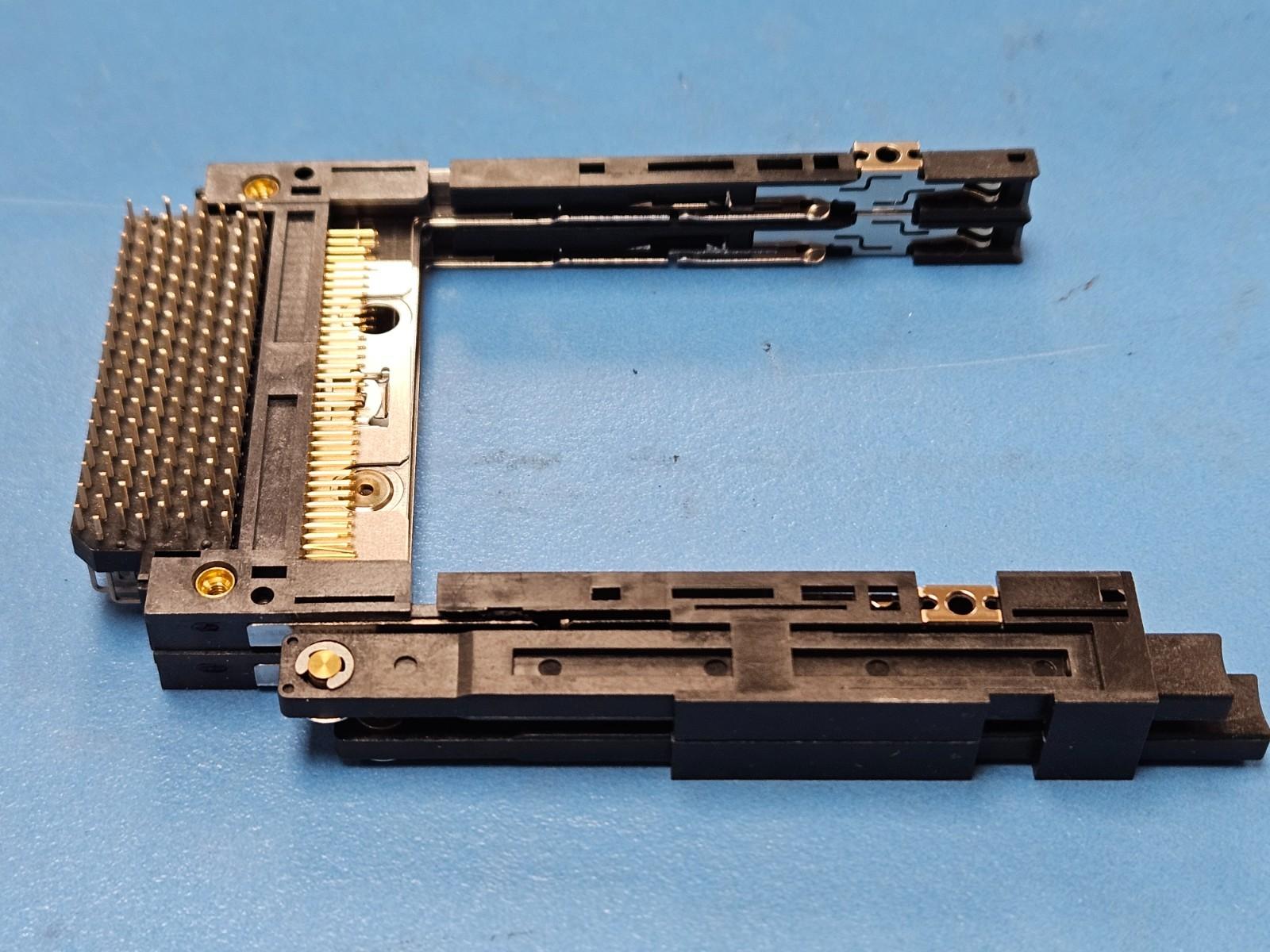

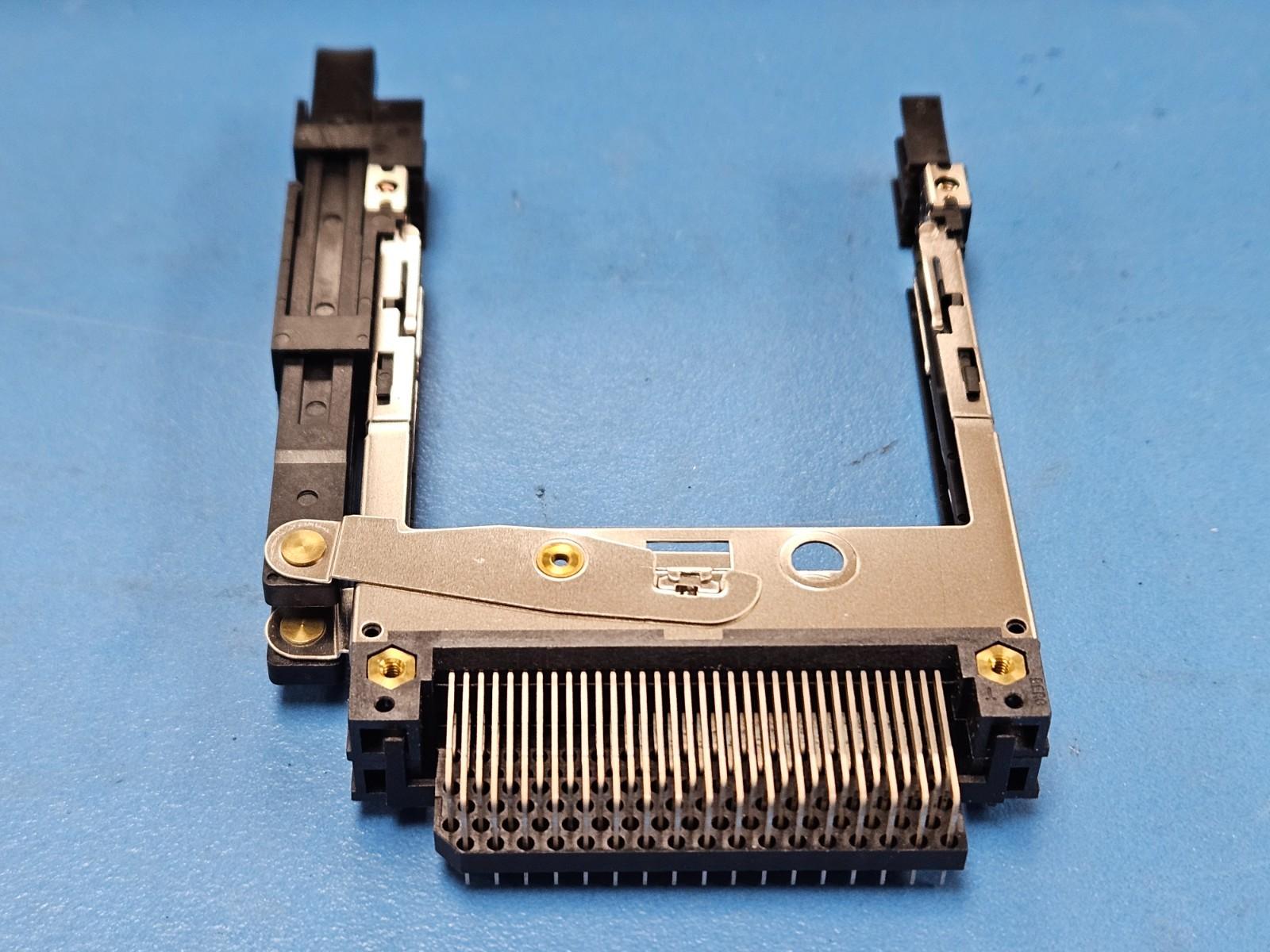

(1PC) 95635-200CA PCMCIA Connector, 136 Contact , 2 Rows of 68, Male
Tax included.
This listing is for (1PC) of 95635-200CA by FCI
Status Discontinued
Additional Feature OTHER STACKING CONNECTOR: 68 CONTACTS, STAGGERED CONFIGURATION
Body Breadth (inch) 0.457000
Body Depth (inch) 3.366000
Body Length (inch) 2.480000
Body/Shell Style RECEPTACLE
Connector Type PCMCIA CONNECTOR
Contact Finish - Mating TIN LEAD
Contact Finish - Termination Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 40.000000000000000
Contact Style SQ PIN-SKT
DIN Conformance NO
Durability (Cycles) 10000
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) 39.1424
Insulation Resistance (ohm) 100000000.000000000000000
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
J-STD-609 Code e0
MIL Conformance NO
Mating Contact Pitch (inch) 0.05
Mixed Contacts NO
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number of Connectors TWO
Number of PCB Rows 4+4
Number of Ports 2
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 65
Operating Temperature-Min (Cel) -20
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing (mm) 1.905
Plating Thickness (inch) 4u
Rated Current (Signal) (A) 0.5000000000000000
Screening Level / Reference Standard UL, CSA
Terminal Length (inch) 0.110000
Terminal Pitch (mm) 1.27
Termination Type SOLDER
Number of Contacts 68
UL Flammability Code 94V-0
Withdrawl Force-Min (N) 6.672
